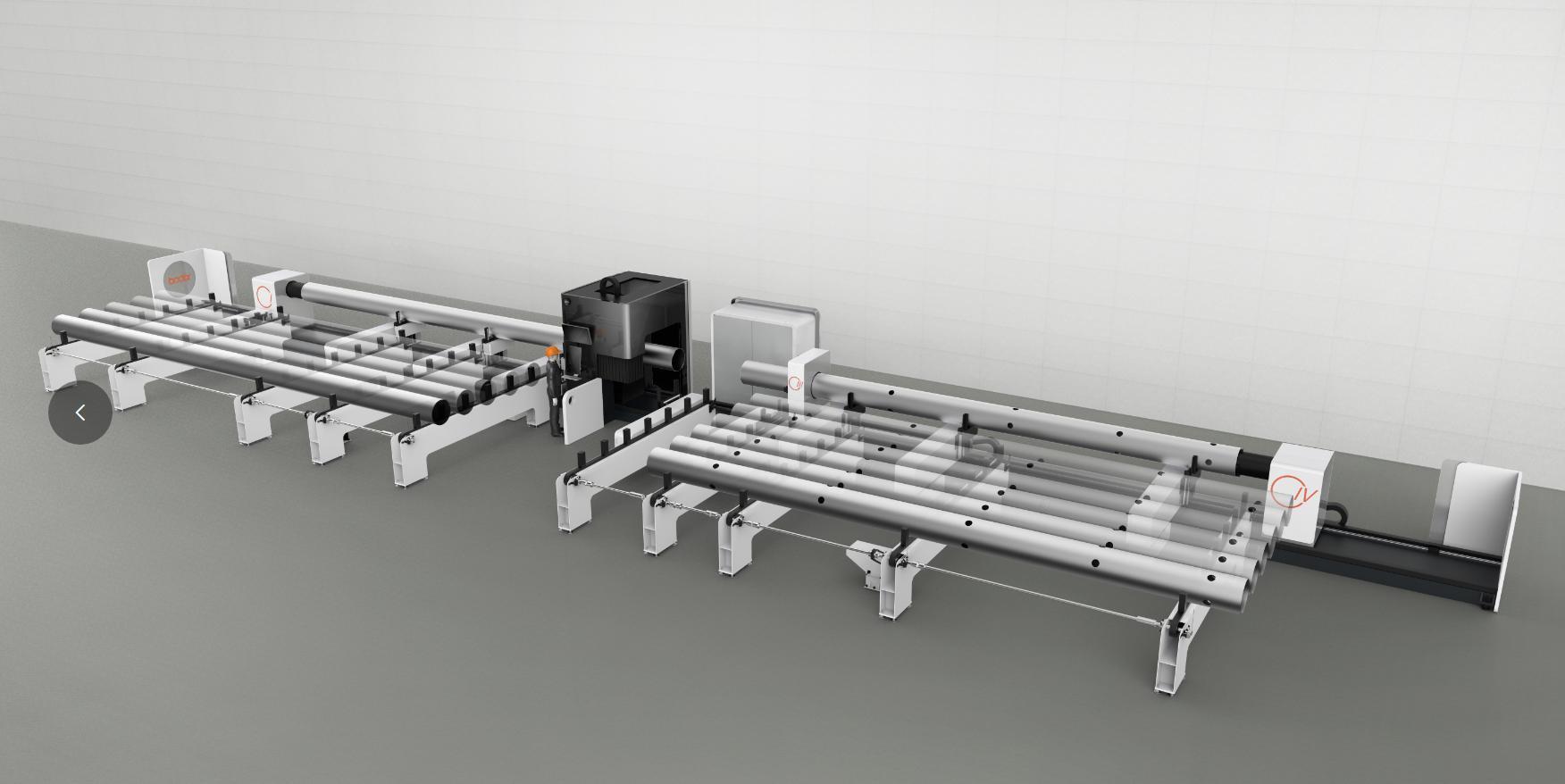

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 6kw | ||
| Freight & Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportation | By Sea | |
| Loading Container | 3*40'GP+3*40'OT+1*20'GP | |
| Payment Terms | 30% down payment, 70% before shipment. | |
| Warranty | Three years limited warranty for main parts. One year free labor. | |
| Optional: | ||
| M-Loader500-120 | ||
| Fume Filter | ||
| Air Compressor | ||
| Bevel Cutting | ||
| Weld Recognition | ||
| Basic Parameter: | ||
| Tube size range | Round tube: Φ60-Φ530mm Square tube: □60 - □530mm Rectangular tube: 60mm≤Side length≤530mm I-beam: 10#-40# |
|
| Maximum machinable tube length | 12000mm (≈39') | |
| Maximum tube weight | 3000kg | |
| Intelligent Function: | ||
| Automatic positioning | Yes | |
| Bodor Lightning perforation technology | Yes | |
| High Speed Cutting Expert Database | Yes | |
| Servo roller | Yes | |
| Unloading assist | Yes | |
| Cutting gas automatic pressure regulation function | O2 | |
| Touch screen control | Yes | |
| Manual / Automatic control modes | Yes | |
| Variable frequency control of feeding speed | Yes | |
| Automatic focusing function of laser head | Yes | |
| Laser cutting technology database | Yes | |
| Bevel cutting | Yes | |
| Over edge protection | Yes | |
| Active collision prevention | Yes (Not available when optional bevel cutting) | |
| Cutting Angle Steel and Channel Steel | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Out-of-material alarm | Yes | |
| Intelligent maintenance reminder | Yes | |
| BodorCloud service | Yes | |
| WIFI internet connection | Yes | |
| Performance: | ||
| Tube cross-sectional shape | Round tube, square tube, rectangular tube, angle steel, channel steel, H-beam, etc. | |
| Requirements for tubes | 3mm-20mm tube wall thickness | |
| Maximum tube length | 12000mm (≈39') | |
| Shortest remaining material | No waste of materials | |
| Dimensions | 39000kg | |
| Overall weight | 33000mm×4800mm×3400mm (≈108.3'x15.8'x11.2') | |
| Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | ±0.03mm/m | |
| Max. Chuck rotating speed | 40r/min | |
| X axis maximum speed | 35m/min | |
| Y axis maximum speed | 35m/min | |
| X maximum acceleration | 0.5G | |
| Y maximum acceleration | 0.5G | |
| Z axis maximum speed | 25m/min | |
| Configuration: | ||
| Laser source | BodorPower | |
| Laser head | BodorGenius T | |
| Chuck drive types | Pneumatic chuck | |
| Number of chucks | 4 | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axis, Y-axis, Z-axis, A-axis Servo motor and driver |
Bodor | |
| Control system | BodorThinker Tube | |
| Special typesetting software for cutting tube machine | BodorNest Tube V1.5 | |
| Display size | 21.5 inches | |
| File format | IGS | |
| Water Chiller | Yes | |
| Dust removal | Centrifugal fan | |
| Total power capacity/current with 12KW source (380V) | 241kVA/305A | |
| Total power capacity/current with 6KW source (380V) | 208kVA/263A | |
| M-Loader500-120: | ||
| Adaptive length | 12000mm (≈39') | |
| One-click setting | Yes | |
| Lack of material alarm | Yes | |
| Add tube midway | Yes | |
| Automatic loading | Yes | |
| Anti-scratch tube | Yes | |
| Host security interlock | Yes | |
| Tube type | Round tube | Yes |
| Square tube | Yes | |
| Rectangular tube | Yes | |
| Channel tube | Yes | |
| H-tube | Yes | |
| Tube size range | Round tube | Φ60 - Φ500mm |
| Square tube | □60 - □350mm | |
| Rectangular tube | 350mm≥Side length≥60mm | |
| Channel tube | 320mm≥Side length≥60mm | |
| H-tube | 320mm≥Side length≥60mm | |
| Maximum tube weight | 1600kg | |
| Tube loading length range | Loading: 3500-12000mm (≈11.5'-39') Unloading：≤12000mm (39') Due to the long overhang of some length tubes, the overhang is large |
|
| Maximum load capacity of storage bin | 9.6t | |
| Location number | 11（φ<90）6(φ>90) | |
| Module dimensions | Loading：9300*4700mm*1300mm (≈30.5'x15.4'x4.3') Unloading：11000mm*4700mm*1300mm (≈36'x15.4'x4.3') | |
| Weight | Loading：700kg Unloading：750kg | |
| Total power capacity/current (380V) | 6KVA/27.8A | |
