1 – NEW BAILEIGH STRAIGHT BRAKE, MODEL #: HB-12016

1 - NEW BAILEIGH STRAIGHT BRAKE, MODEL #: HB-12016

Brand
BAILEIGH

Model
HB-12016

Type
Brakes, Apron

Stock #
86578

Condition
Not specified

Year
N/A

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

Beam Adjustment (Front to Rear)	1 inches
Mild Steel Capacity (Gauge)	16
Shipping Dimensions (L x W x H)	145" x 33" x 41"
Weight	2840 pounds
Max. Bend (Deg.)	0 – 135°
Overall Length	120 inches

Equipped With

FEATURES:
* Sheet metal hand brake bends16 gauge mild steel across its full 10-foot length (120”)
* Maximum bend angle of 135°
* 2 heavy duty counterweights assist the operator and the reduce effort of bending full sheets

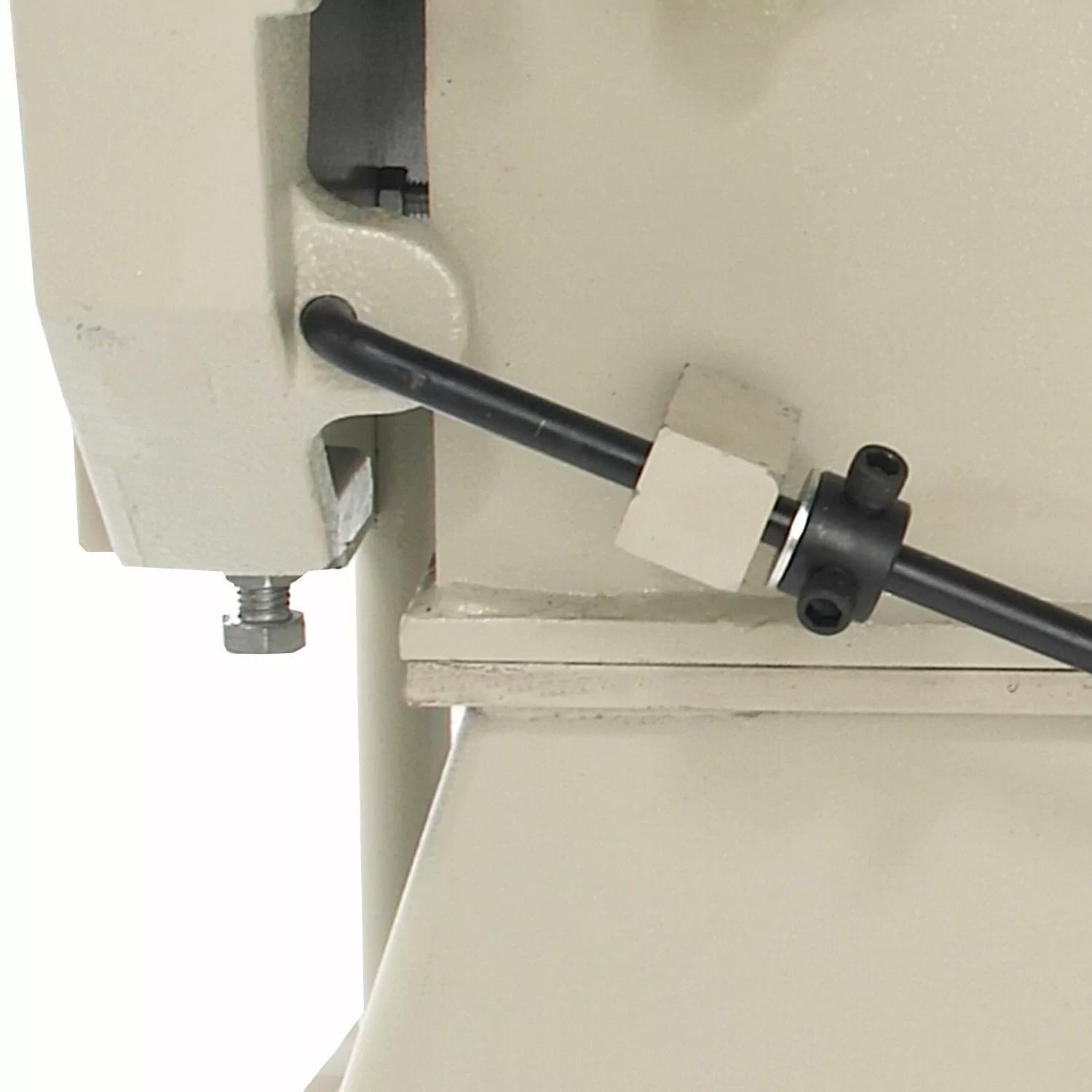

* Comes standard with a stop rod to help you easily make repeatable bends for production runs
* Top beam and bending leaf made from fully welded plate steel prevents this hand sheet metal bender from flexing and ensures accurate bends
* Steel support rods stabilize the machine
* Main pivots, supports, and clamp levers are made from high-quality cast iron, then machined to exacting tolerances
* Fully welded steel stand can bolt to the floor for even more stability
