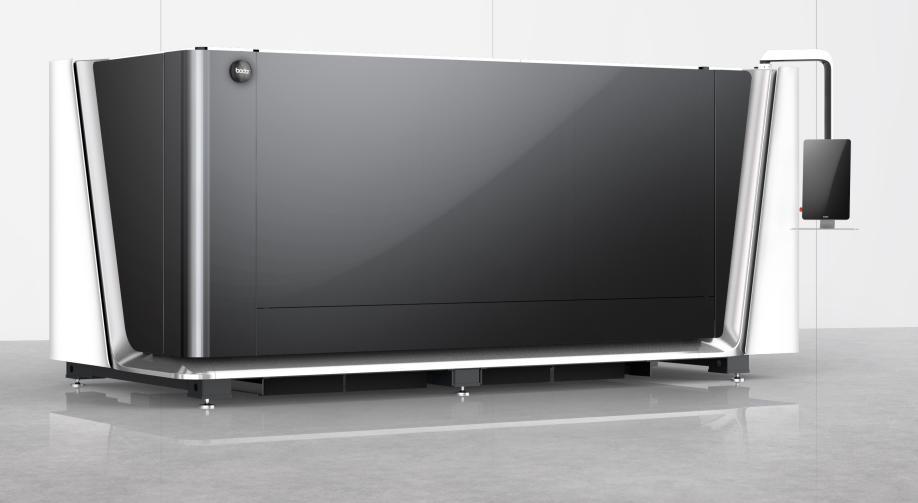

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 3kw | ||
| 6kw | ||
| 12kw | ||
| Freight&Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportantion | By Sea | |
| Loading Container | 1*40'HQ+1*20'GB | |
| Payment Terms | 30% down payment, 70% before shipment. | |
| Warranty | Five years limited warranty for main parts. One year free labor. | |
| Optional: | ||
| Fume filter | ||
| Air Compressor | 3kw、6kw | |
| 12kw | ||
| Consumables Box | ||
| Clean Bench (Flowbox) | ||
| Deburrer | ||
| Spare Laser Head | 3kw | |
| 6KW | ||
| 12KW | ||
| Basic Parameter: | ||
| Working area | 3048mm*1524mm (5'x10') | |
| Max. linkage speed | 91m/min (298'/min) | |
| Intelligent Function: | ||
| Bodor Lightning perforation technology | Yes | |
| Remnant Typesetting | Yes | |
| Touchscreen Display | Optional | |
| Air pressure intelligent control | Yes 12KW and above | |
| Automatic adjustment of cutting gas pressure | 6kW and below：O2 above 6kW：O2、N2、air |
|
| Cutting Parameter AutoMatch | Yes 12KW and above (Not available for optional scanning cutting) |
|
| Auto-focus of laser head | Yes | |
| Laser cutting technology expert database | Yes | |
| Active anti-collision function | Yes | |
| intellgent over-heat adaptation | Yes 12KW and above |
|
| Intelligent anti-shake | Yes | |
| Mineral casting anti burning | 1.5KW and above | |
| Ergonomic Remote Control (Bodor Mango®) | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Intelligent maintenance reminder | Yes | |
| WIFI internet connection | Yes | |
| Bodor Cloud sevice | Yes | |
| Performance: | ||
| Requirements for sheet | Plate thickness≥0.8mm | |
| Max. acceleration | 1.5G | |
| Table load bearing | 900kg | |
| Machine overall dimensions | 5562×2270×2388mm (≈18.24'x7.44'x7.83') | |
| Overall weight | 4200kg | |
| Z axis travel | 120mm (≈4.7'') | |
| Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | ±0.03mm | |
| Φ30mm roundness | ≤0.15mm | |
| □30mm adjacent side dimension difference | ≤0.06mm | |
| □190mm adjacent side dimension difference | ≤0.15mm | |
| □190mm diagonal size difference | ≤0.20mm | |
| Configuration: | ||
| Laser source | BodorPower | |
| Laser head | BodorGenius | |
| Bed functions | Electric bed | |
| Machine bed | Tenon and mortise structure bed | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axis、Y-axis、Z-axis、A-axis Servo motor and driver |
Bodor | |
| Protective Enclosure | Yes | |
| Control system | BodorThinker | |
| Display size | 21.5 inches | |
| Door-open Protection | Yes | |
| Intelligent alarm | Yes | |
| Water Chiller | Yes | |
| Centrifugal fan | Yes | |
| Power Requirements | 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) | |
| Total power capacity/current with 12KW source (380V) | 57.8KW/109.7A | |
| Total power capacity/current with 6KW source (380V) | 37.8KW/71.0A | |
| Total power capacity/current with 3KW source (380V) | 24.8KW/46.3A | |
