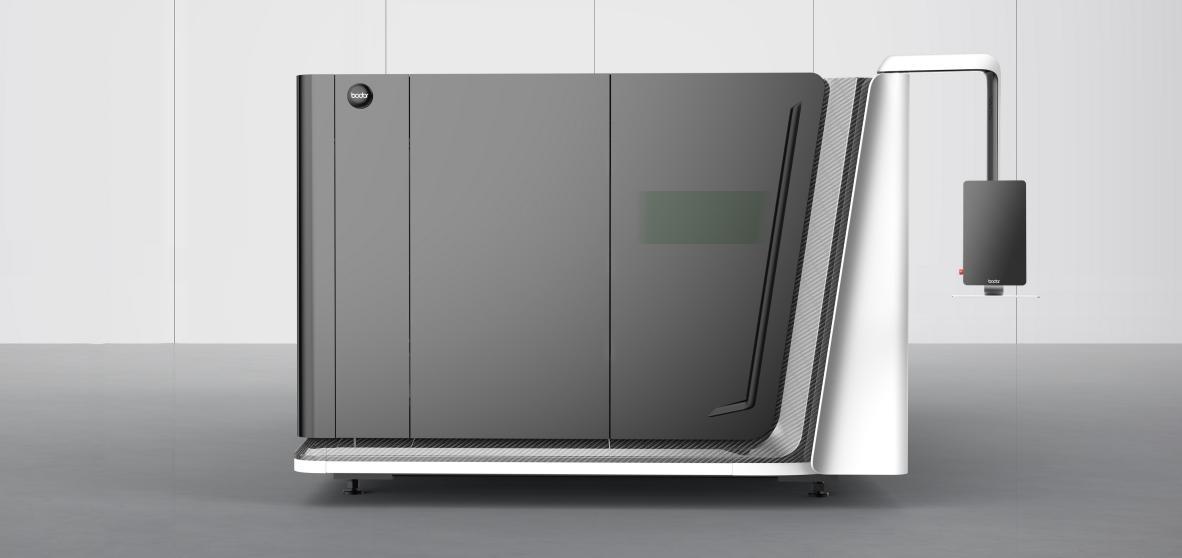

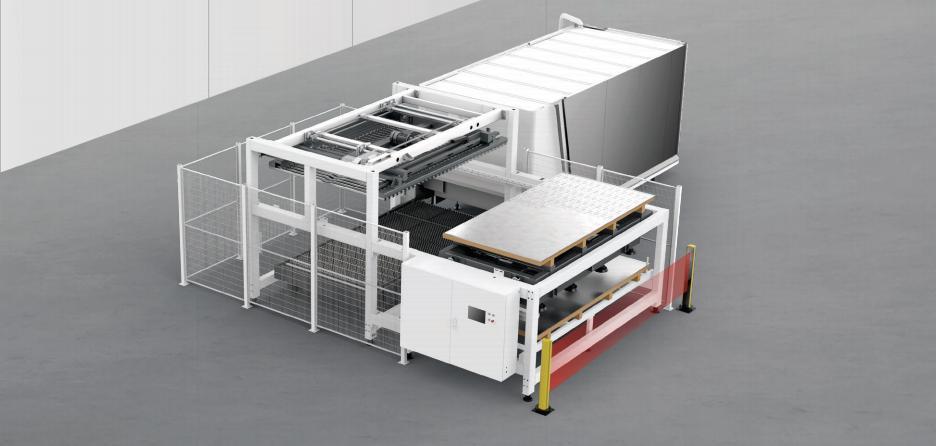

| FIBER LASER CUTTING MACHINE: |
| |
Laser Power |
|
| |
12kw |
|
| Freight&Tariff |
Included |
| Installation & Training Cost |
Included |
| Transportantion |
By Sea |
| Items included |
Safety light curtain;
Flow box & laser head filter;
Air Compressor;
Fume Filter with Spark Arrester;
Bodor Nesting software;
Consumable package;
On-site installation, commissioning and training;
One year on-site service. |
| Loading Container |
1*40'FR |
| Warranty |
Five years warranty for laser head/laser source/laser software;
Three years warranty for whole machine;
One year free labor. |
| Basic Parameter: |
| Working area |
4000mm*2000mm (≈13'x6.5') |
| Max. linkage speed |
200m/min (656'/min) |
| Intelligent Function: |
| One-click processing |
Yes |
| Visual collision detection |
Yes |
| Remnant Typesetting |
Yes |
| One-second edge search |
Yes |
| Bodor Lightning perforation technology |
Yes |
| High Speed Cutting Expert Database |
Yes |
| Automatic nozzle changer |
8 Nozzles |
| Automatic nozzle cleaning |
Yes |
| Touchscreen Display |
Yes |
| Air pressure intelligent control |
12KW and above |
| Automatic adjustment of cutting gas pressure |
O2、N2、air |
| Gas filtration alarm device |
12KW and above |
| Auto-focus of laser head |
Yes |
| Laser cutting technology expert database |
Yes |
| Ergonomic Remote Control (Bodor Mango®) |
Yes |
| Active anti-collision function |
Yes |
| Intellgent over-heat adaptation |
12KW and above |
| Intelligent anti-shake |
Yes |
| High quality Cutting Expert Database |
Yes |
| Mineral casting anti burning |
Yes |
| Anti-slag Protection |
Yes |
| Gas-saving steady flow nozzle |
Yes |
| Intelligent maintenance reminder |
Yes |
| WIFI internet connection |
Yes |
| Bodor Cloud service |
Yes |
| Performance: |
| Requirements for sheet |
Plate thickness≥0.8mm |
| Max. acceleration |
4.0G |
| Table load bearing |
2510kg |
| Machine overall dimensions |
11599mm*3380mm*2718mm |
| Overall weight |
9090kg |
| Z axis travel |
370mm (≈14.6'') |
| Positioning accuracy |
±0.05mm/m |
| Repositioning accuracy |
0.03mm |
| Φ30mm roundness |
≤0.15mm |
| □30mm adjacent side dimension difference |
≤0.06mm |
| □190mm adjacent side dimension difference |
≤0.15mm |
| □190mm diagonal size difference |
≤0.20mm |
| Configuration: |
| Laser source |
BodorPower |
| Laser head |
Bodor Genius |
| Machine bed |
Tenon and mortise structure bed |
| Gantry Structure |
Stretched Aluminum gantry |
| Linear Rails |
Bodor |
| Rack |
Bodor |
X-axis, Y-axis, Z-axis, A-axis
Servo motor and driver |
Bodor |
| Protective Enclosure |
Yes |
| Enhanced-partition Dust Removal |
Yes |
| Control system |
BodorThinker |
| Display size |
21.5 inches |
| Door-open Protection |
Yes |
| Intelligent alarm |
Yes |
| Water Chiller |
Yes |
| Centrifugal fan |
Yes |
| Power Requirements |
220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) |
| Total power capacity/current with 12KW source (380V) |
54.54.3KW/103.3KW/103.1A (Rated)
31.1A (Rated)
31.9kWh (Average Power Consumption)
- Foundation Preparation
Please use metal plates to fix machine when unloading it.
Reference documents: attached image & drawing of metal plate, foundation map.
- Power Preparation
Machine Bed – 26.7A
Laser Source – 36A
Chiller – 21A
Dust Collector – 11A
Air Compressor – 22A
- User Preparation Confirmation
Please find attached ' P-series User preparation confirmation', when you finish all preparation work, please sign it and email it back to us. At that time, please send machine pictures to us as well. After that, our service team will schedule installation time.
|
