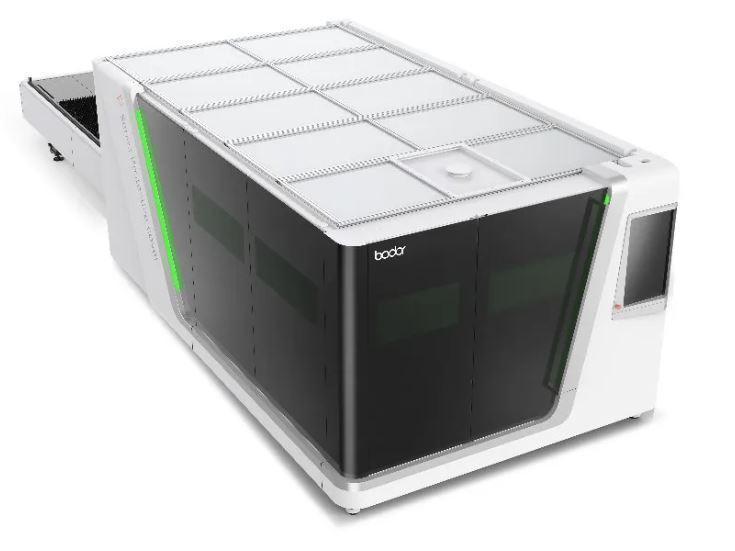

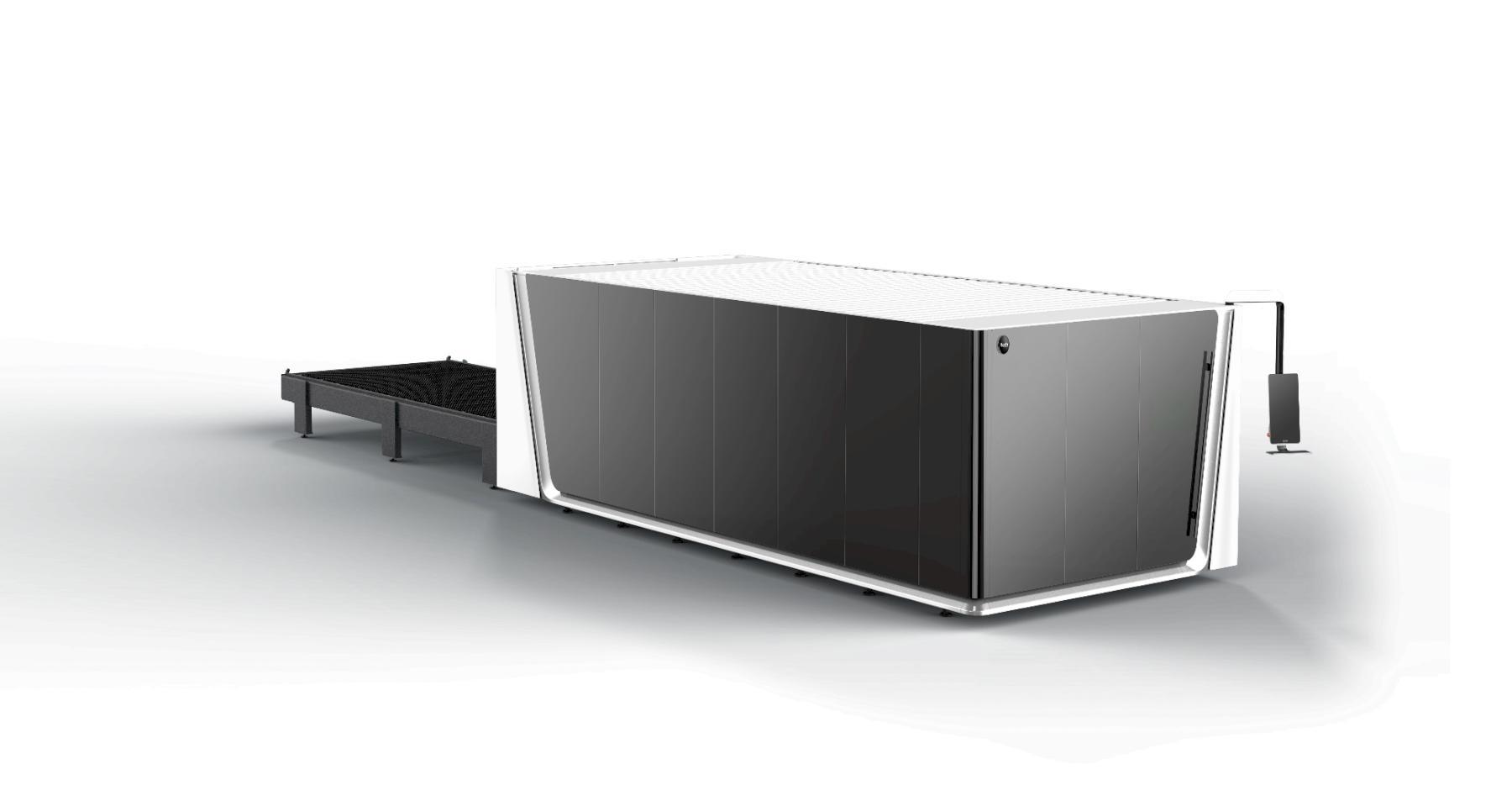

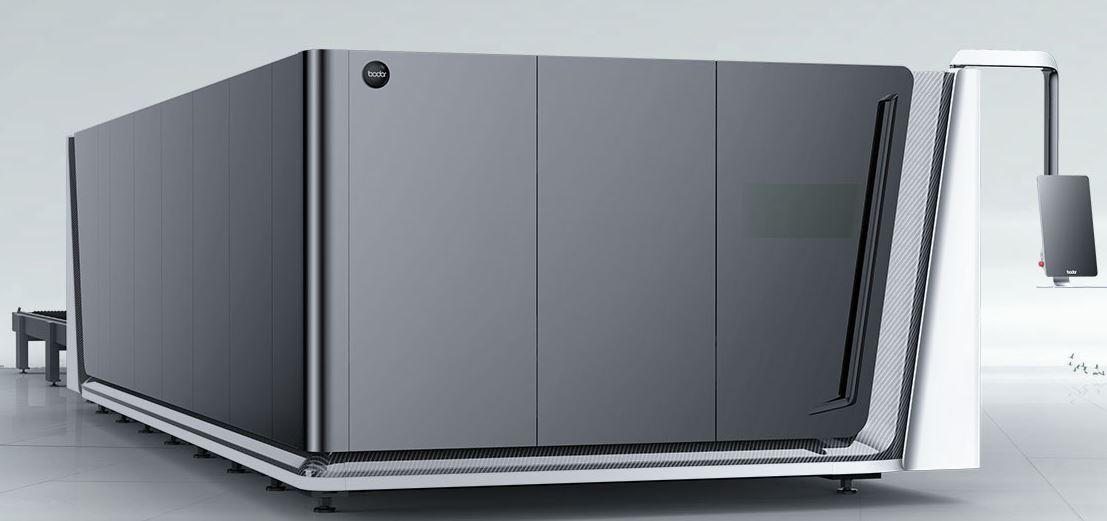

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 12kw | ||
| Freight&Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportantion | By Sea | |
| Items included | Safety light curtain; Flow box & laser head filter with sparker arrestor; Compressor with ATH filters group； Cutting head filter elements； Bodor Nesting software; Consumable package; Filters for the first maintenance; On-site installation, commissioning and training; One year on-site service. 5years warranty for laser source, cutting head and CNC system, 3years for whole machine |
|
| Loading Container | 2*40HQ | |
| Warranty | Five years warranty for laser head/laser source/laser sofaware; Three years warranty for whole machine; One year free labor. |
|
| Basic Parameter: | ||
| Working area | 3048mm*1524mm | |
| Max. linkage speed | 200m/min | |
| Intelligent Function: | ||
| One-click processing | Yes | |
| Visual collision detection | Yes | |
| Remnant Typesetting | Yes | |
| One-second edge search | Yes | |
| Bodor Lightning perforation technology | Yes | |
| High Speed Cutting Expert Database | Yes | |
| Automatic nozzle changer | 8 Nozzles | |
| Automatic nozzle cleaning | Yes | |
| Touchscreen Display | Yes | |
| Air pressure intelligent control | 22KW and above | |
| Automatic adjustment of cutting gas pressure | O2、N2、air | |
| Gas filtration alarm device | 12KW and above | |
| Auto-focus of laser head | Yes | |
| Laser cutting technology expert database | Yes | |
| Ergonomic Remote Control (Bodor Mango®) | Yes | |
| Active anti-collision function | Yes | |
| Intellgent over-heat adaptation | 12KW and above | |
| Intelligent anti-shake | Yes | |
| High quality Cutting Expert Database | Yes | |
| Mineral casting anti burning | Yes | |
| Anti-slag Protection | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Intelligent maintenance reminder | Yes | |
| WIFI internet connection | Yes | |
| Bodor Cloud sevice | Yes | |
| Performance: | ||
| Requirements for sheet | Plate thickness≥0.8mm | |
| Max. acceleration | 4.0G | |
| Table load bearing | 6-60kW:1450kg(40mm) | |
| Machine overall dimensions | 9450mm*2240mm*2520mm | |
| Overall weight | 5040kg | |
| Z axis travel | 350mm | |
| Positioning accuracy | ±0.02mm | |
| Repositioning accuracy | 0.03mm | |
| Φ30mm roundness | ≤0.15mm | |
| □30mm adjacent side dimension difference | ≤0.06mm | |
| □190mm adjacent side dimension difference | ≤0.15mm | |
| □190mm diagonal size difference | ≤0.20mm | |
| Configuration: | ||
| Laser source | BodorPower | |
| Laser head | Bodor Genius | |
| Machine bed | Tenon and mortise structure bed | |
| Gantry Structure | Stretched Aluminum gantry | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axis、Y-axis、Z-axis、A-axis Servo motor and driver |
Bodor | |
| Protective Enclosure | Yes | |
| Enhanced-partition Dust Removal | Yes | |
| Control system | BodorThinker | |
| Display size | 21.5 inches | |
| Door-open Protection | Yes | |
| Intelligent alarm | Yes | |
| Water Chiller | Yes | |
| Centrifugal fan | Yes | |
| Power Requirements | 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) | |
| Total power capacity/current with 12KW source (380V) | 52.52.8KW/100.8KW/100.3A (Rated) 30.4kWh (Average Power Consumption) |
|
