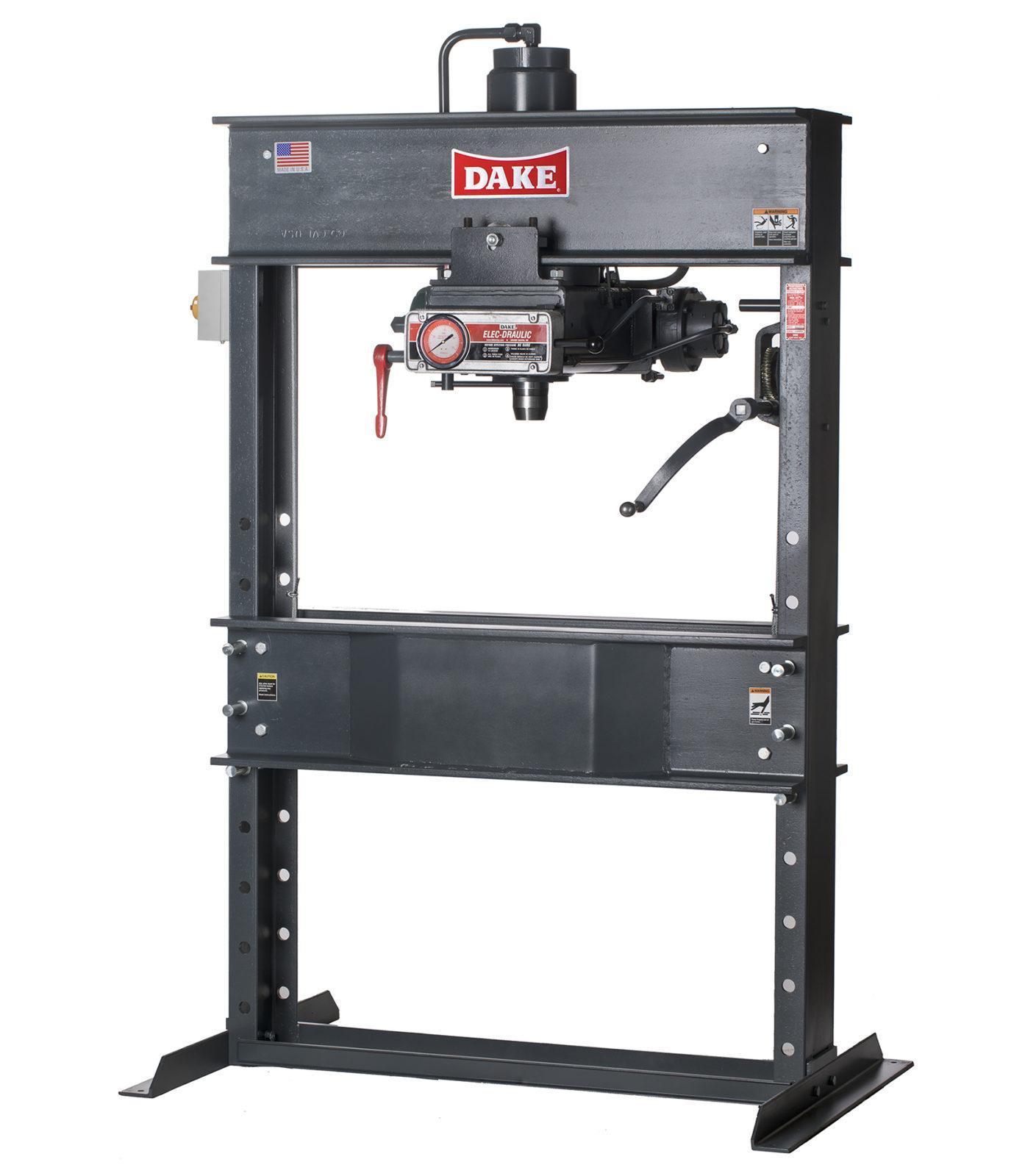

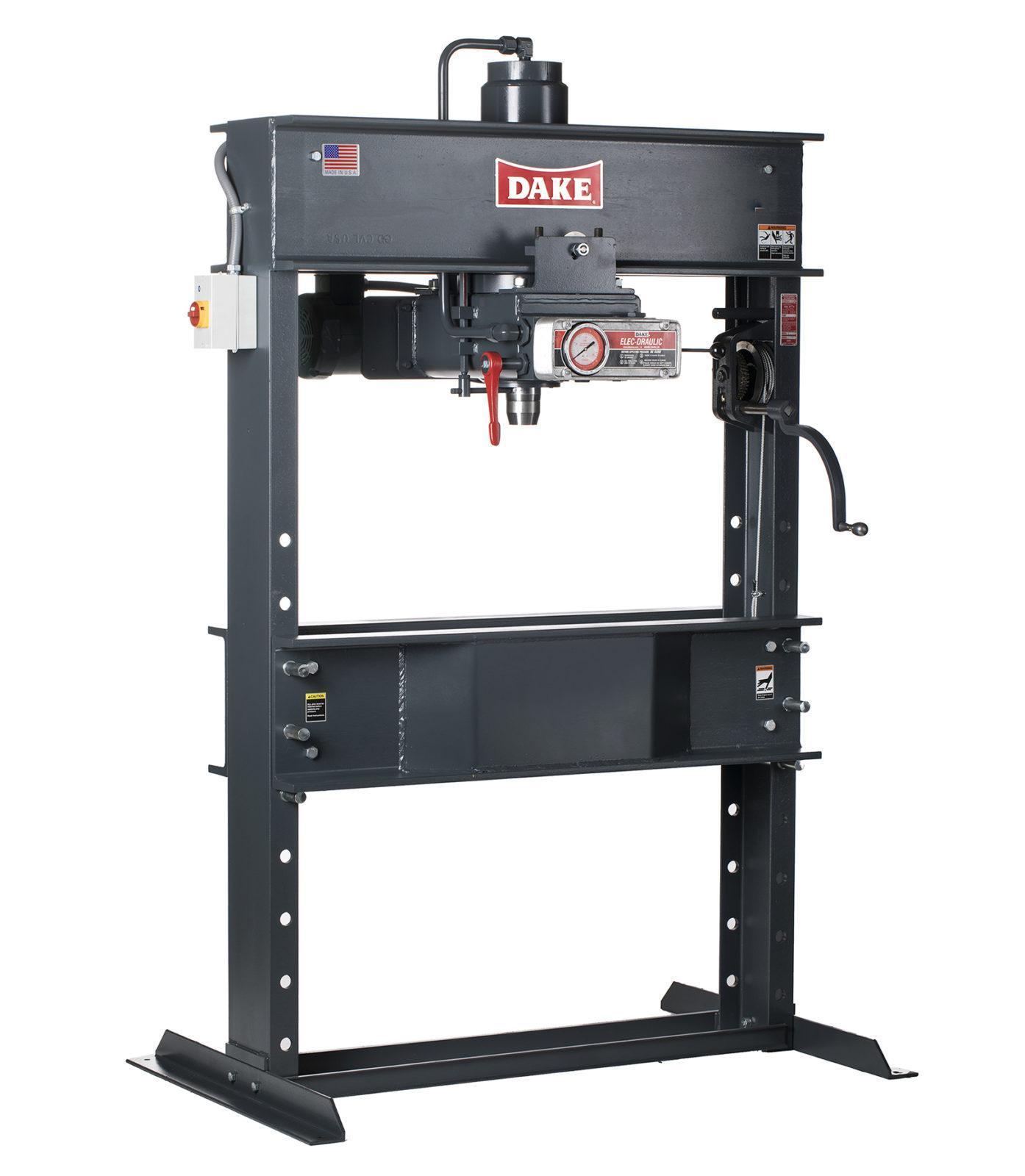

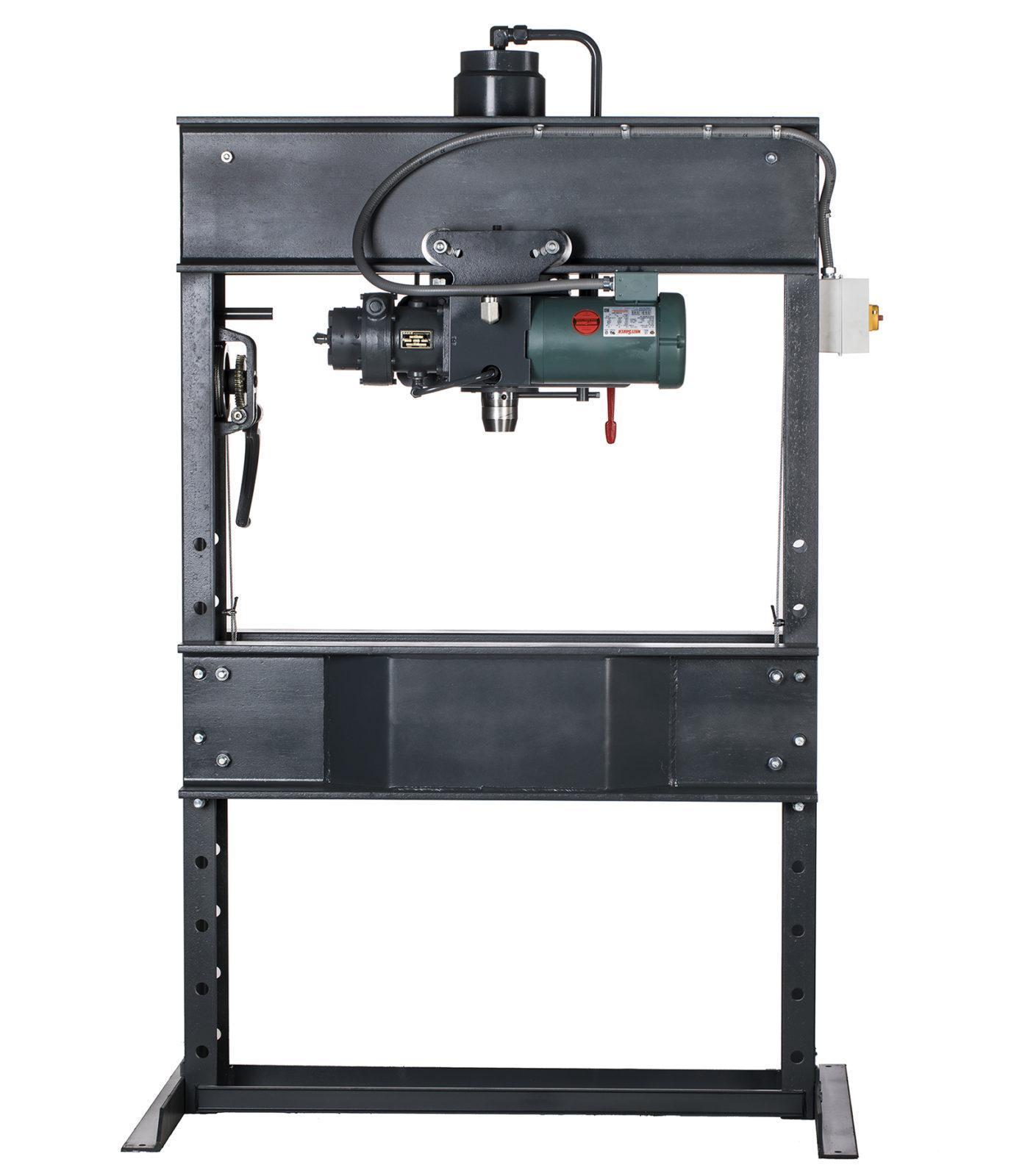

(1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
(1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
(1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
(1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
  • (1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
  • (1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
  • (1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075
  • (1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075

(1) NEW DAKE ELEC-DRAULIC I HYDRAULIC PRESS, MODEL #: 5-075

Brand
DAKE

Model
5-075

Type
Presses, Hydraulic

Stock #
76979

Condition
New

Year
N/A

Request a Quote

Files

5-075-2023-Parts-List.pdf
5-075-Manual.pdf
Capacity 75 tons
Operation Electric
Horsepower 2
Voltage 220V/440V, 3-Phase
Width between uprights 44 inches
Width between table channels 8.25 inches
Minimum ram to table 6 inches
Maximum ram to table 36 inches
Ram travel 10 inches
Screw Travel n/a
Footprint 55.5" x 36"
Height 86 inches
Weight 1650 pounds
Base 55.5" x 36"
Ram advance speed 28 ipm
Pressing speed 5 ipm
RPM 1,800

Equipped With

Features:
* Movable work-head is roller mounted on ball bearings for off-center work.
* Safety valve protects against overloads.
* Electric operation provides smooth, consistent pressing action.
* Adjustable table permits easy vertical movement by means of self-locking hoist.
* Single-acting cylinder provides fast, reliable pressing and internal spring return.
* Rapid ram approach quickly moves ram to work to save production time.
* Variable ram speed allows fingertip control of ram movement for precise pressure control.
* Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
* Stroke indicator ensures accurate ram control.
Equipped With:
* Frame
* 2 Forged Steel V-Blocks
* Flat Ram Nose
* Pressure Gauge
* Self-locking Table Hoist
* Traversing Workhead
* 2 Steel Table Plates
* V-ram Nose
* Stroke Indicator
* Safety Relief Valve
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Remote pressure regulator valve: $POR
DELIVERY:
SUBJECT TO STOCK
