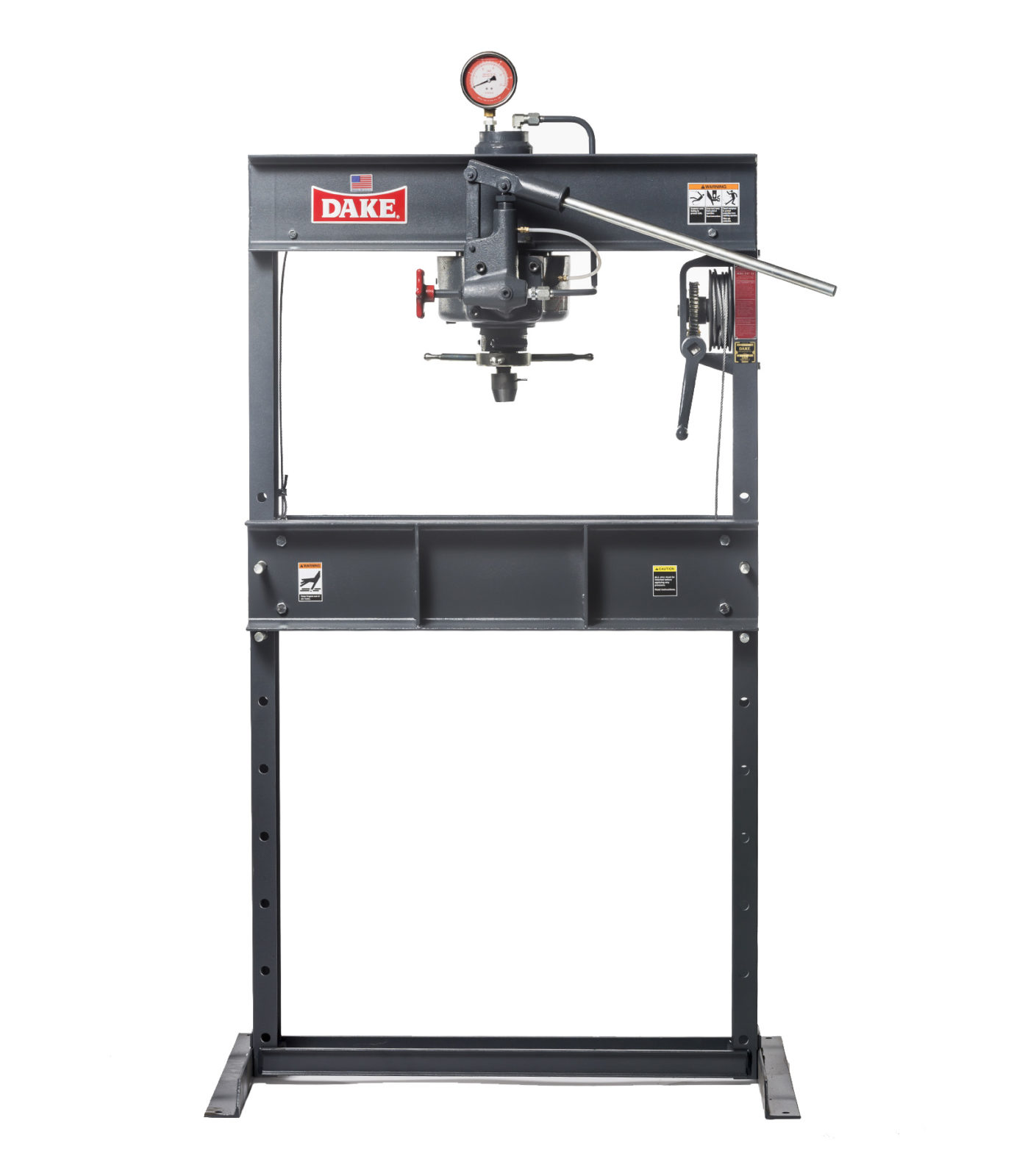

1 - NEW DAKE HAND-OPERATED H-FRAME PRESS, MODEL #: 75H

Brand
DAKE

Model
75H

Stock #
81447

Condition
New

Year
N/A

CAPACITY 75 tons
WIDTH BETWEEN UPRIGHTS 44 inches
WIDTH BETWEEN TABLE CHANNELS 8.25 inches
MIMIMUM RAM TO TABLE 6 inches
MAXIMUM RAM TO TABLE 36 inches
RAM TRAVEL 4.5 inches
HORIZONTAL WORKHEAD TRAVEL 29.625 inches
SCREW TRAVEL 7 inches
BASE 55" X 36"
HEIGHT 87 inches
WEIGHT 1245 pounds

Equipped With

FEATURES:
* HAND OPERATION FOR ECONOMICAL PERFORMANCE.
* RAPID RAM RETURN STARTS RAM RETURN AS SOON AS RELEASE VALVE IS OPENED AND MAY BE STOPPED AT ANY POINT BY CLOSING THE VALVE.
* BY-PASS HOLE PREVENTS EXCESSIVE RAM EXTENSION.
* ADJUSTABLE TABLE PERMITS EASY VERTICAL MOVEMENT BY MEANS OF SELF-LOCKING HOIST.
* RAPID SCREW TRAVERSE OF RAM PERMITS QUICK, EASY MOVEMENT OF THE RAM BY MEANS OF A CONVENIENT HANDWHEEL.
* MOVABLE WORKHEAD IS ROLLER MOUNTED ON BALL BEARINGS FOR OFF-CENTER POSITIONING.
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
SUBJECT TO STOCK
