(1) NEW ERCOLINA ANGLE ROLL, MODEL CE40H3 | Smith Machinery Company, Inc.

(1) NEW ERCOLINA ANGLE ROLL, MODEL #: CE40H3

Brand
ERCOLINA

Model
CE40H3

Type
Rolls, Angle Bending

Stock #
83198

Condition
New

Year
N/A

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

PIPE CAPACITY	2 in SCH. 40
ANGLE CAPACITY	2 in X 2 in X 1/4 in
TUBE (MAX.)	2 1/2 in - .125 WALL
ROLL SHAFT DIAMETER	40 millimeters
CENTER ROLL POSITIONING	HYDRAULIC, 10 TONS
SHAFT SPEED	10 RPM

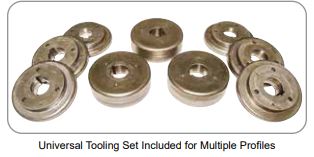

UNIVERSAL TOOLING	INCLUDED 6 5/8 in O.D.
PROGRAMMING	NC- TOUCHPAD
NUMBER OF PROGRAMS	8
DISTANCE BETWEEEN SHAFTS	10.625 inches
OPERATING VOLTAGE	220 V OR 440 V 3 PHASE
DIMENSIONS	39" X 26" X 50"
WEIGHT	850 pounds

Equipped With

FEATURES:
- 40 MM ROLL SHAFT DIAMETER
- BENDING SPEEDS 20% FASTER THAN COMPETITIVE MACHINES
- FORGED ROLL SHAFTS PRECISION GROUND AND FITTED FOR MAXIMUM PERFORMANCE AND MINIMAL DEFLECTION
- HEAVY DUTY STRUCTURE AND RIGID COMPONENTS FOR HIGH SEC
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Roll Set 1/2" Tube Fits CE35 or CE40: $1,490.00

Non Stocking Tooling C401T0250 - Roll set for 1/4" Tube Lead time 14 - 16 weeks: $1,490.00

Non Stocking Tooling 4th Roll Accessory and tooling for 1-1/4" x 1-1/4" x 3/8 Angle: $5,500.00

DELIVERY:
SUBJECT TO STOCK
