FEATURES:SB48 Bending Capacities
Material Type | Maximum Diameter | Maximum Wall Thickness
Pipe | 1.500 pipe | SCH 40
Mild steel tube | 2.000 | 0.140
Soft brass | 1.875 | 0.120
Stainless steel | 1.875 | 0.065
Hydraulic tube | 2.000 | 0.120
Hard copper & aluminum - 2.000 | 0.065
Round solids | 1.250 | NA
Rectangular solids - 0.312 x 1.875 | NA
Rectangular tube - 0.750 x 1.625 | 0.120
Square tube | 1.5 x 1.5 | 0.120
Solid square | 1.250 x 1.250 | NA

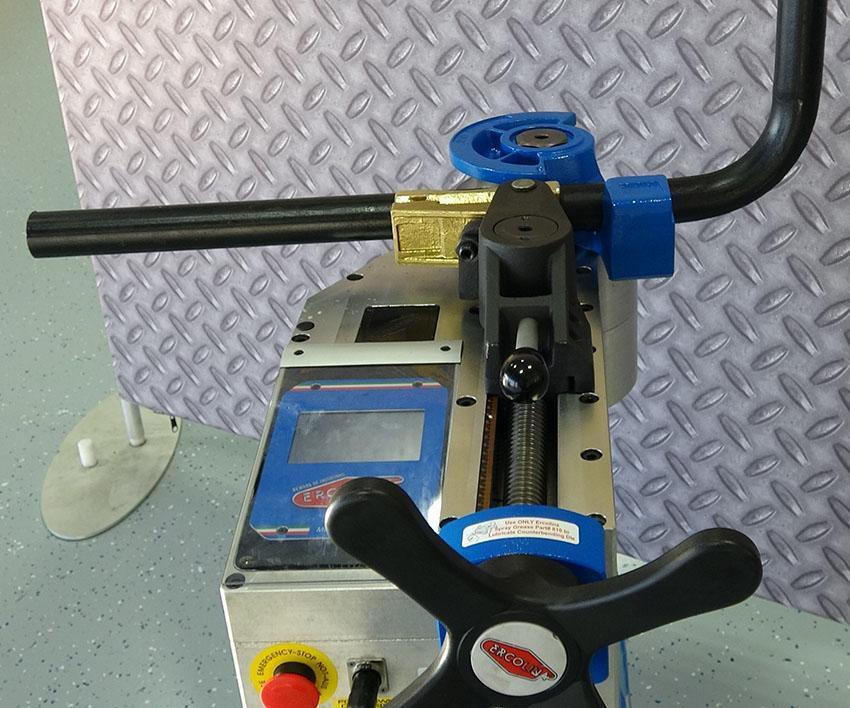

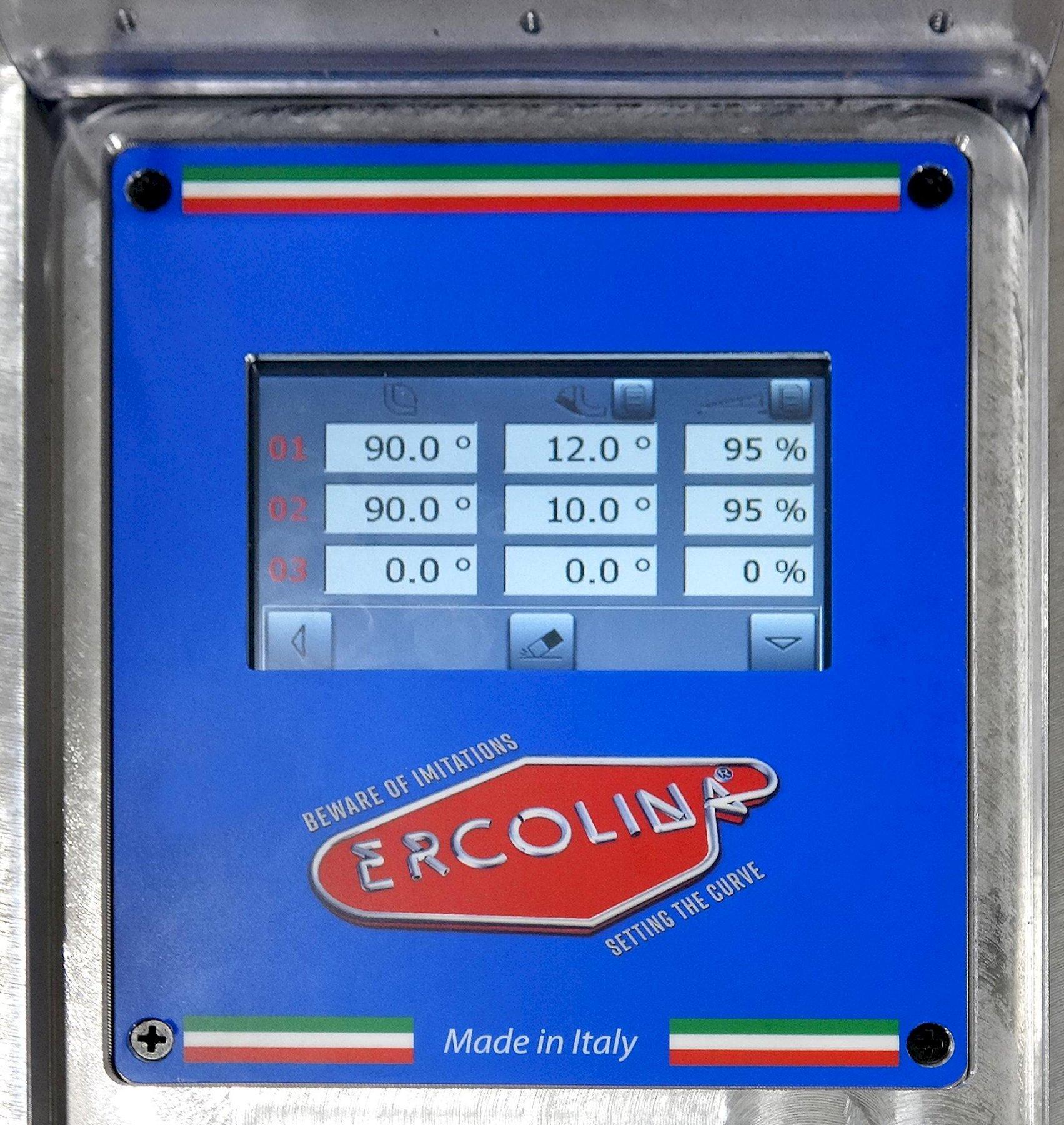

* Mild steel tube capacity 2″* Pipe capacity 1-1/2″ Sch. 40* Square tube capacity 1-1/2″ .083 wall* Maximum CLR 8-7/8″* Bend to CLR as small as 2D* Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience* Touch screen indicates bend angle, springback and bend speed for each angle within the program* Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy* Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components* Quick-change tooling system with multiple radii available* Right or left hand bending available with vise accessory* Automatically stops at desired bend angle to end cycle* Unlimited program storage for quick recall* Use control panel or foot pedal to initiate bend and return functions* Counterbending die position monitored electronically for accuracy and repeatability* Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends* No hydraulic components* Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor spaceNOTES:
SPECIFICATIONS SUBJECT TO VERFICATION
OPTIONAL FEATURES:* Center Former 67MM ( 2.6" ) CLR 1" Pipe: $660.00
Center Former 90MM ( 3.5" ) CLR 1-1/2" Tube: $880.00
* Counterbend Die Bronze, 1" Pipe: $310.00
* Center Former 100MM ( 3.9" ) CLR 1-1/2" Pipe: $930.00
* Counterbend Die Bronze, 1-1/2" Pipe: $320.00
* Ercolina Grease - 1 Can: $39.00
DELIVERY:50% DOWN, PAYMENT IN FULL PRIOR TO SHIPMENT
