| Saw | Vertical Tilt-Frame Production Band Saw |
| Saw Capacity | 18" W x 21.25" H @ 90˚ (22.25” H w/o cant) |
| Miter | 18" W x 14" H @ 45˚ (left miter) (15” H w/o cant) / 18" W x 14" H @ 45˚ (right miter) (15” H w/o cant) |
| Blade Size | 1-1/4" x 15'0" x .042” THK |
| Arm Cant | 2 degree – can be removed by adjusting arm |
| Blade Drive | 5 HP, 220V (22 amps)/3PH or 440V (11 amps)/3PH Electrical Motor Requirement. / 220V or 440V AC to be specified by the customer at the time of order. 1800 rpm, ball bearing TFC |
| Blade Speed | Variable speed drive controlled by a PLC (Program Logic Controller) and is displayed on touchscreen. |
| Air Requirements | 85 PSI, 4 – 6 CFM, equipped with air filter/lubricator |
| Hydraulics | 1 HP Hydraulic System |
| Power Programmable Tilt | Powered tilt for saw arm for miter application. The powered tilt moves the arm to any angle up to 45° left or right of 90°. Angle readout is located on the touch screen. |

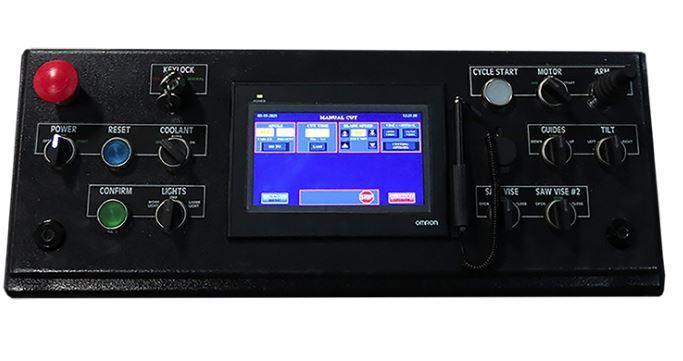

| Operator Control | Control Console is located on front of saw with 7" Omron touch screen controls, for operator convenience. Saw may be operated in semi-automatic mode. |
| Touch Screen | The touch screen display provides easy to use menu navigation to operate, select cutting options, and monitor / troubleshoot the saw. |
| Cut Stop | Forward cut-stop is mechanically linked to the vise and automatically adjusts with the vise opening. |
| Main Vise | The Main Vise is full-stroking with adjustable clamping pressure to clamp various metals. |
| Cutting Pressure | Adjustable cutting pressure/force to control the weight to be placed on the teeth of the blade. |
| Cutting Rate | Adjustable to regulate the saw arm traverse rate. This is a necessary feature to cut tubing at high rates without losing saw teeth. |
| Carbide Blade Guides | Side and back carbides are flat for maximum blade support. |
| Blade Chip Brush | Powered brush driven by an assembly mounted on the drive wheel removes chips that may become lodged in the blade gullets. |
| Powered Guide Arm | Hydraulically positioned guide arm to maintain blade stability by keeping guides close to the cut to ensure straight cuts. Movement of the guide arm is powered from the control console. |
| Powered Blade Tension | Blade Tension is air-powered, assuring and maintaining proper blade tension at all times during the cutting process. |
| Built-In Coolant System | Machine is set up for flood-style coolant system with coolant dispensed a flex-tube nozzle to flood the center of the cut. The saw is fully panned and has bolt-able side wings to return coolant to the tank. |
| Wash-Down Hose | A cutting fluid clean-up hose is provided for machine wash down. |
| Blade Break Switch | Saw will automatically shut off if the blade breaks. |
| Safety Guards | Machine is equipped with blade guards and awareness barriers for safety purposes. |
