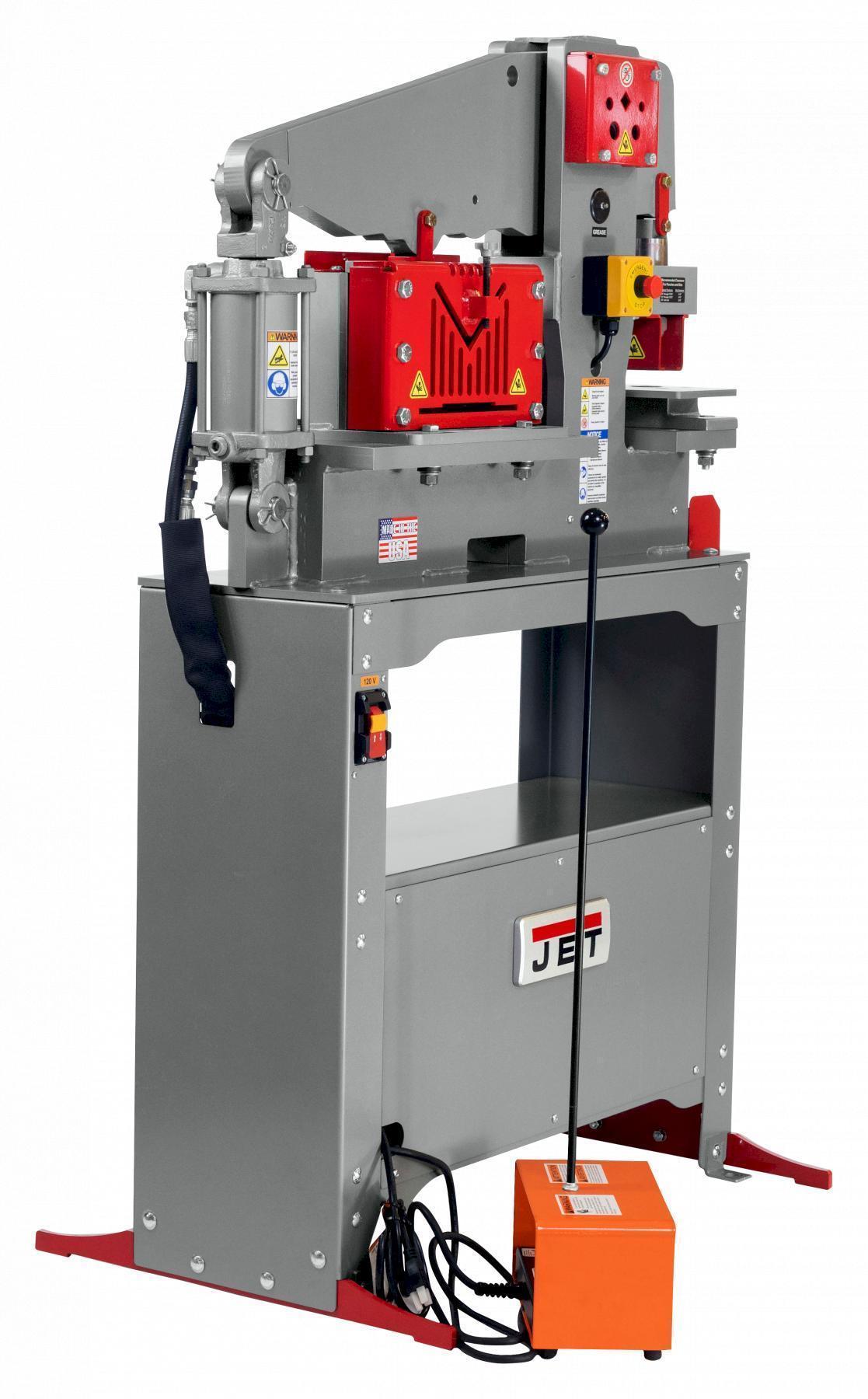

1 - NEW JET 45 TON IRONWORKER, MODEL #: JIW-45T

Brand
JET

Model
JIW-45T

Type
Ironworkers

Stock #
85749

Condition
New

Year
N/A

Request a Quote

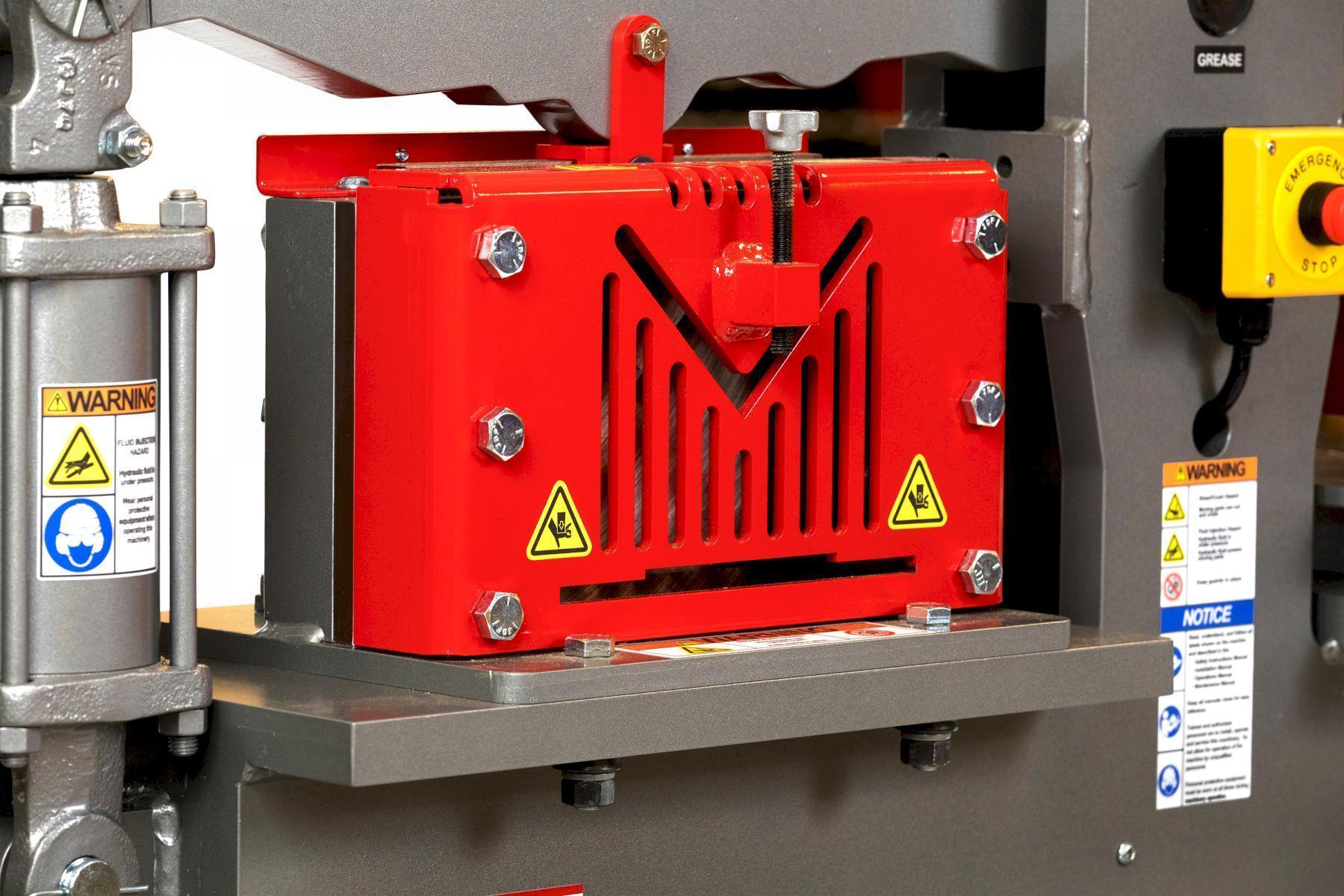

Angle Shear Max Capacity 1/4" 3" x 3"
Angle Shear Max Capacity 3" x 3" x 1/4"
Cylinder (Ram) 3.5 inches
Flat Bar Shear Max Capacity 1/4" x 8", 3/8" x 6"
Flat Bar Shear Rating 45 tons
Flat Bar Shear Work Height 40 inches
Gross Weight 802 pounds
Motor Amps 14
Motor 1-1/2 HP, 115V, 1Ph
Motor Speed 3,500 RPM
Overall Dimensions (L x W x H) 40" x 24" x 58"
Overall Height 58 inches

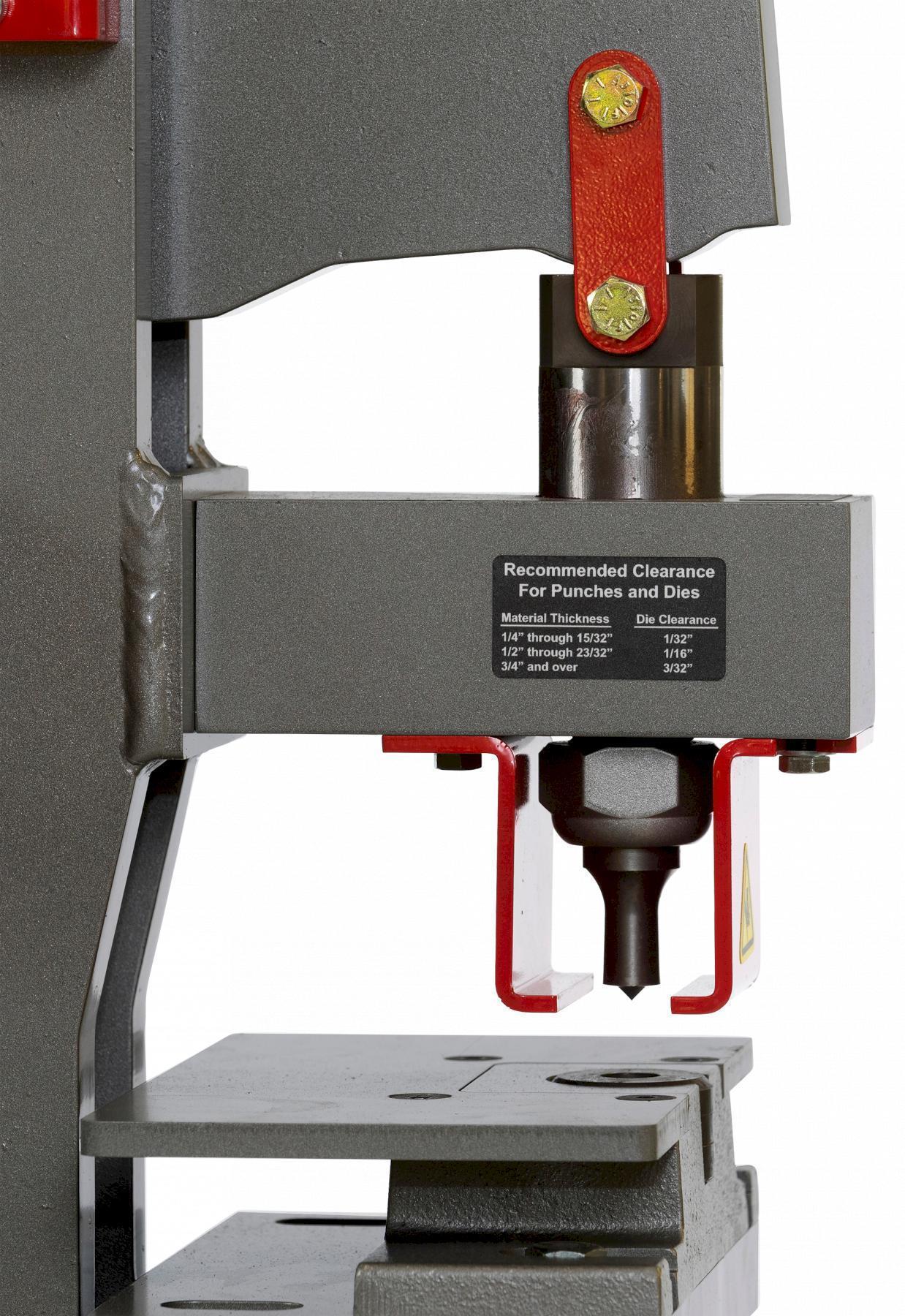

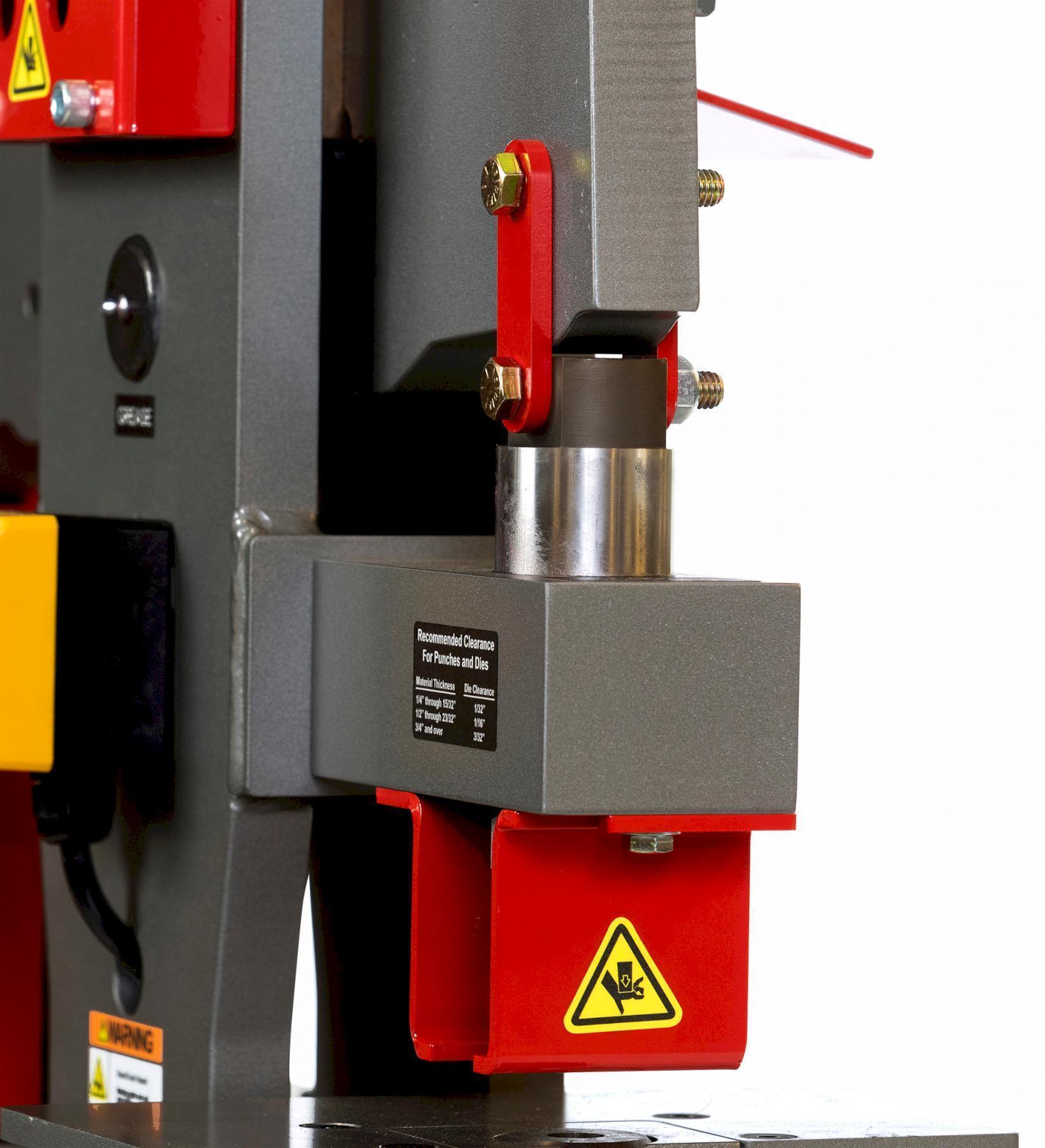

Punch Max Capacity 1 diam. In. 1/2 mild steel
Punch Rating 45 tons
Punch Stroke 1.5 inches
Punch Work Height 41 inches
Rating 45 tons
Rod Shear Max Round .75 inches
Rod Shear Max Square .625 inches
Rod Shear Work Height 54 inches
Shipping Dimensions (L x W x H) 51" x 45" x 64"
Valve Pressure 2,800 PSI
Weight 698 pounds
Throat Depth 5.75 inches

Equipped With

Features:
* Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear

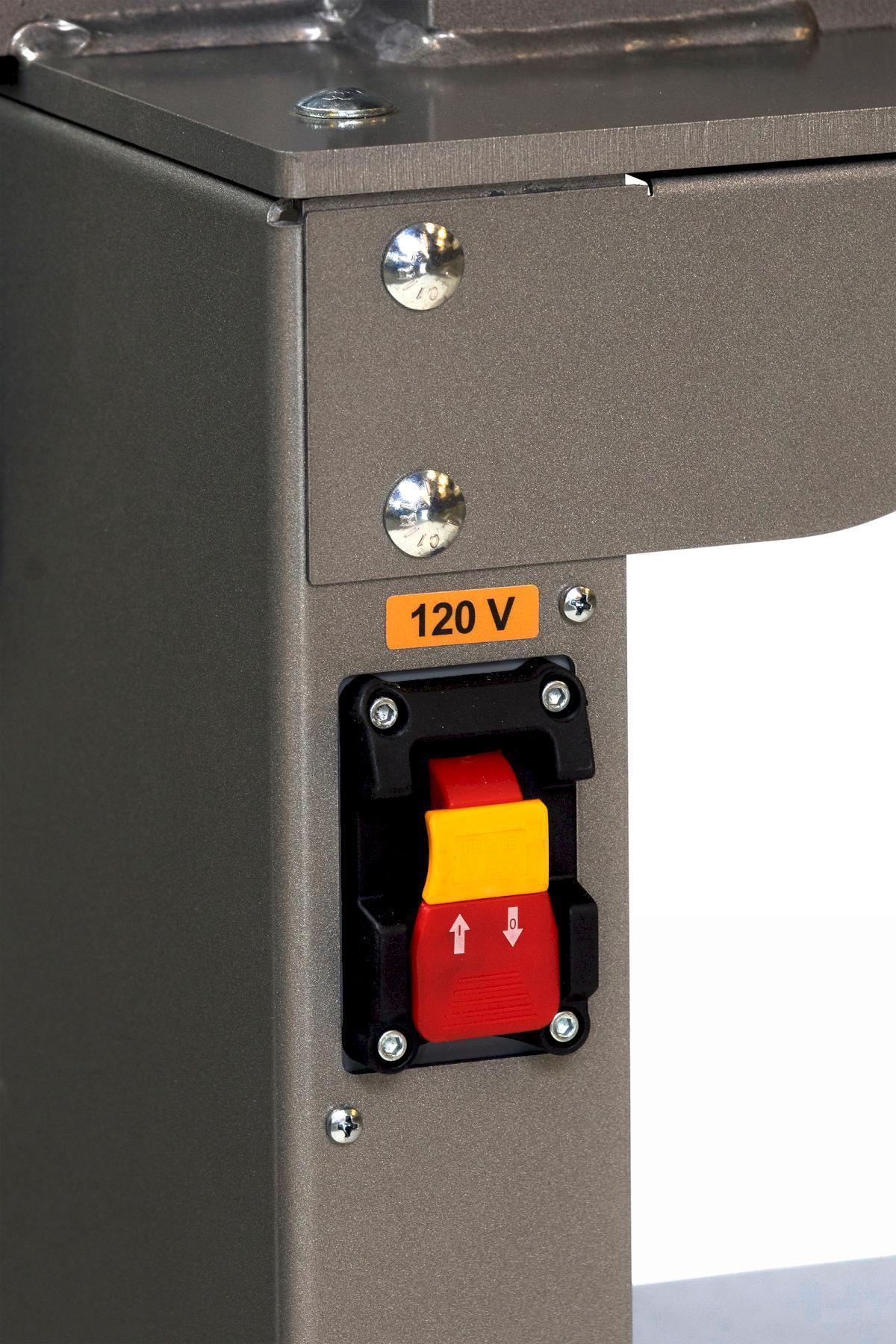

* Operates on 115V power allowing use almost anywhere
* ANSI Compliant Guarding on the Angle & Rod Shears

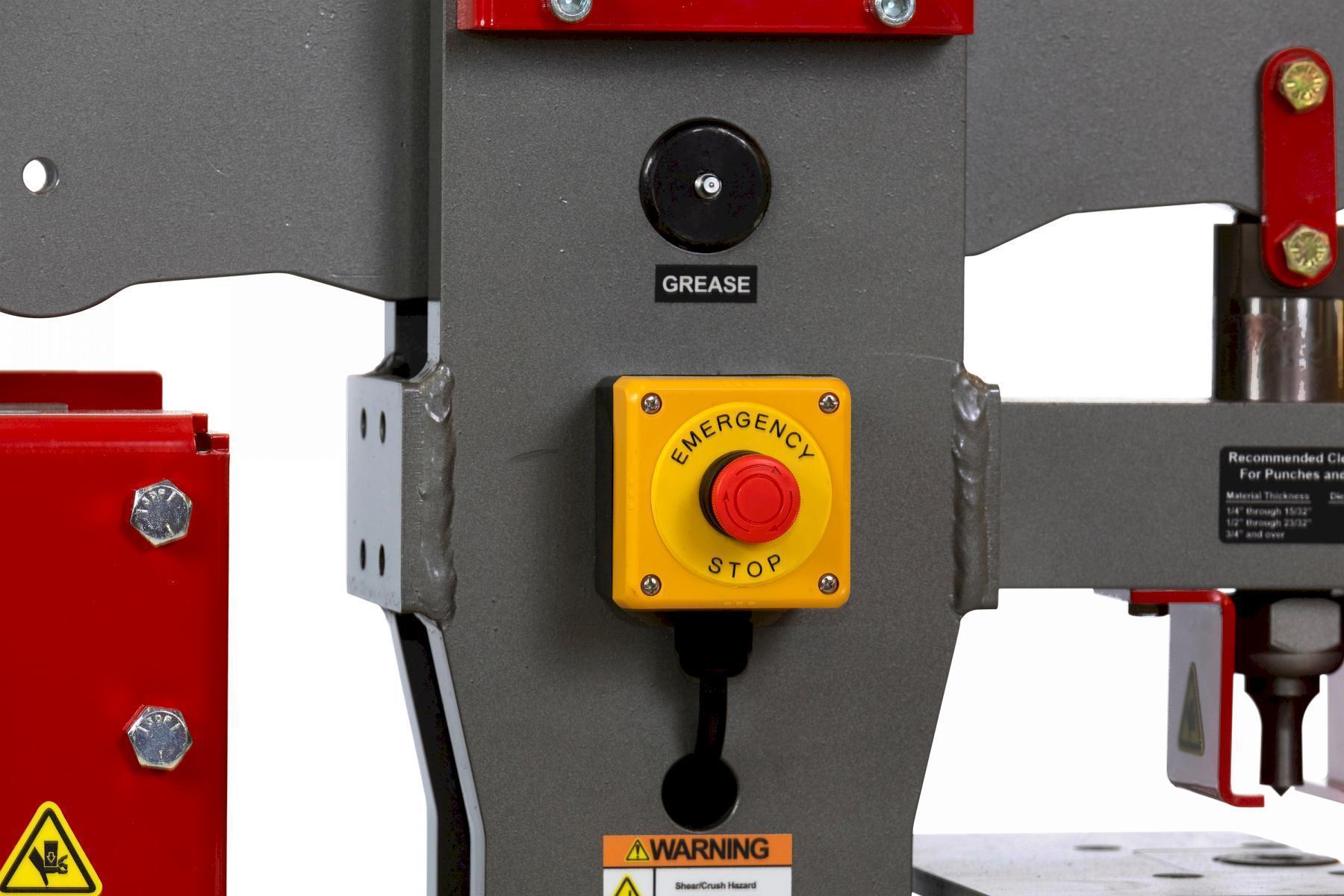

*E-stop with UL Listed compliant controls providing additional operator safety

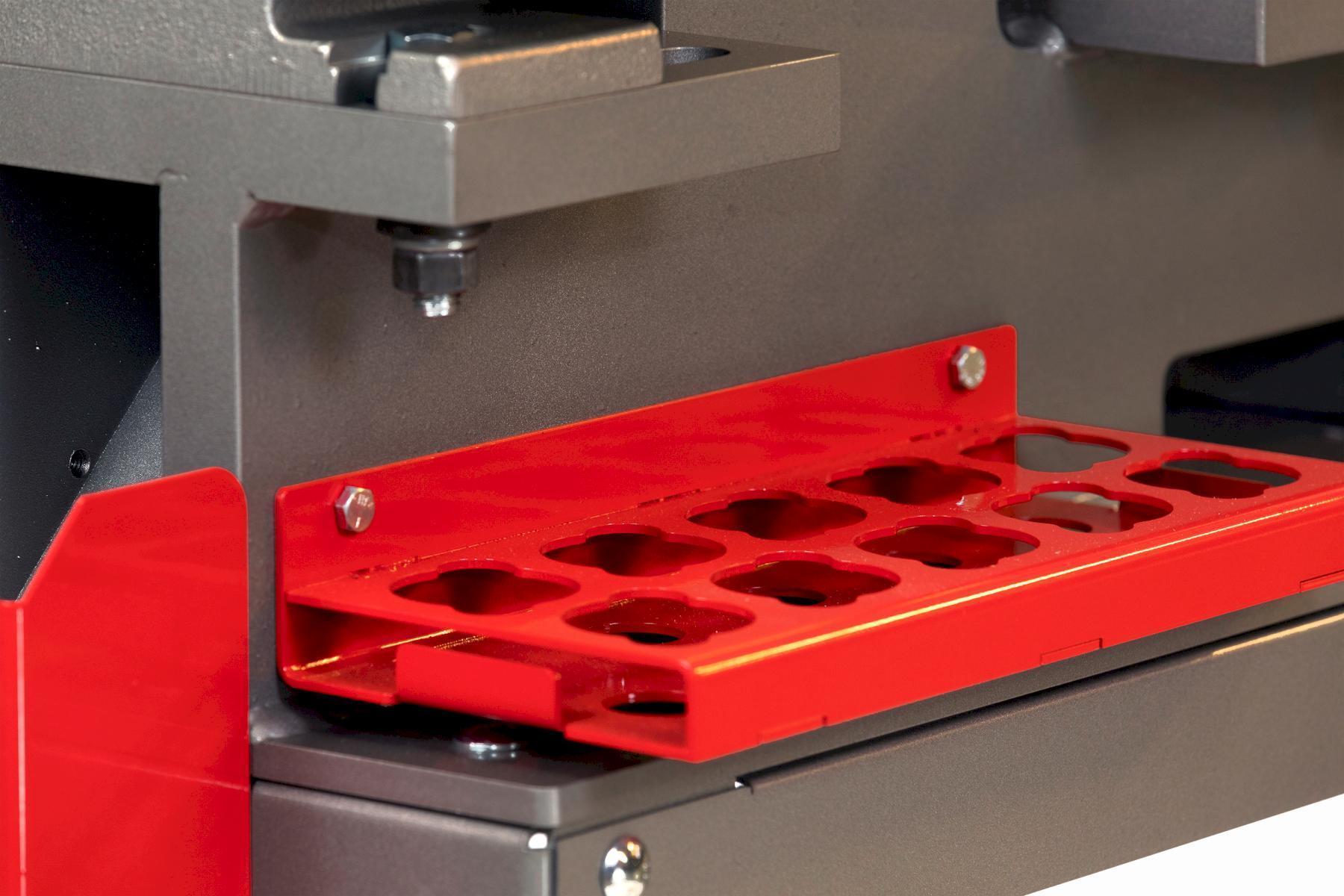

* Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets

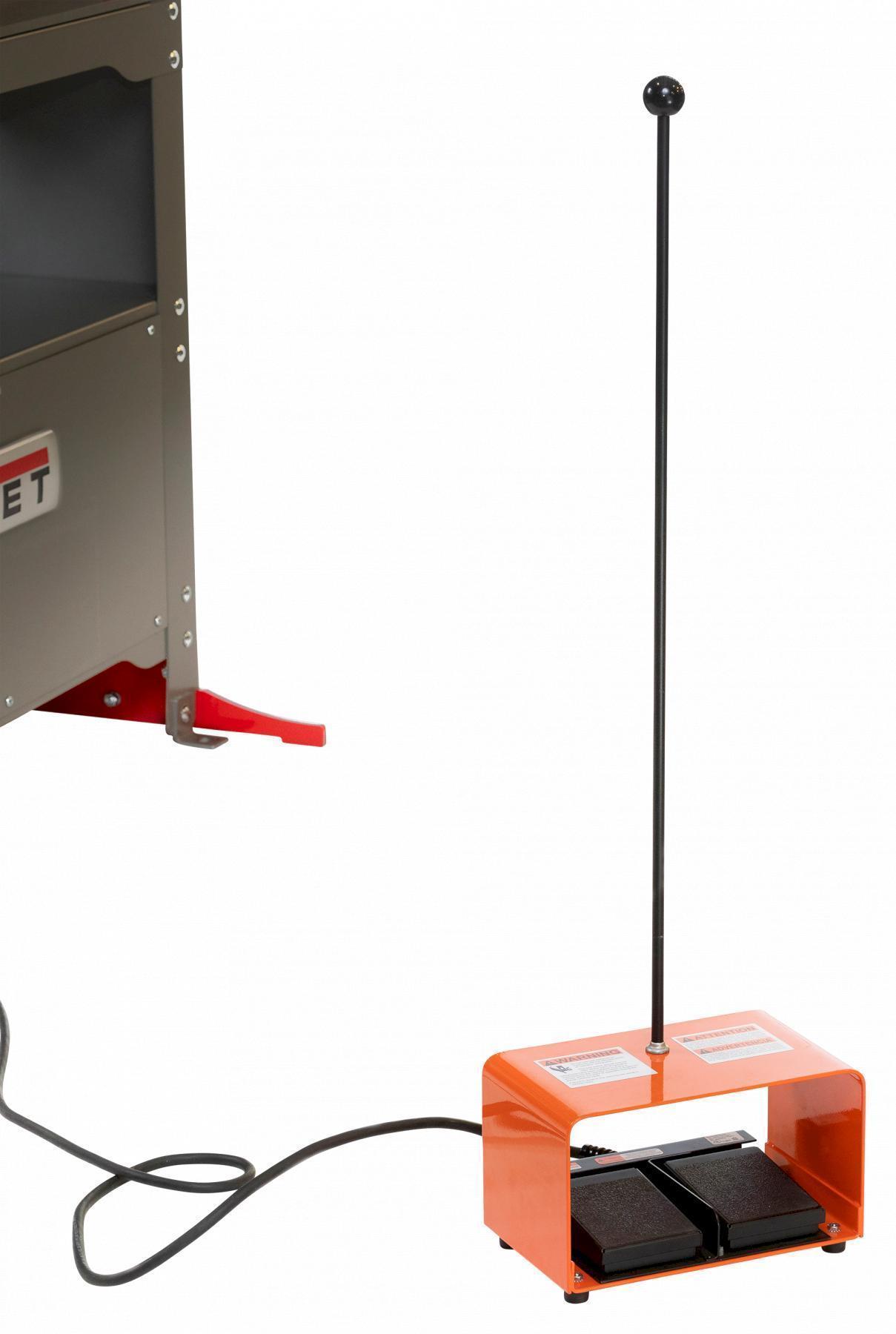

* Convenient foot control with handle is easy to move between workstations
* Optimized workstation heights reduce user fatigue
* Slug receptacle collects all punch slugs keeping work area clear
* Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
* Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
