1 - NEW JET BELT DRIVE BENCH LATHE, MODEL #: BDB-1340A

Brand
JET

Model
BDB-1340A

Type
Lathes, Bench Top

Stock #
85665

Condition
New

Year
N/A

Request a Quote

Files

BDB_1340A_Belt_Drive_Bench_Lathe.pdf
Carriage Travel 35 inches
Compound Slide Travel 2.6875 inches
Drive Belt
Length of Gap 8 inches
Max Tool Size 5/8" x 5/8"
Motor (HP) 2 HP, 230V, 1Ph
Number of Inch Threads 38
Number of Longitudinal and Cross Feed Rates 38
Number of Metric Threads 23
Number of Spindle Speeds 12
Range of Cross Feeds 0.0006-0.013 IPR
Range of Inch Threads 3.5 - 80 TPI
Range of Longitudinal Feeds 0.0018-0.0374 IPR
Range of Metric Threads 0.45-10
Range of Spindle Speeds 60 - 1,240 RPM
Size 13 x 40
Spindle Bore 1.375 inches
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)

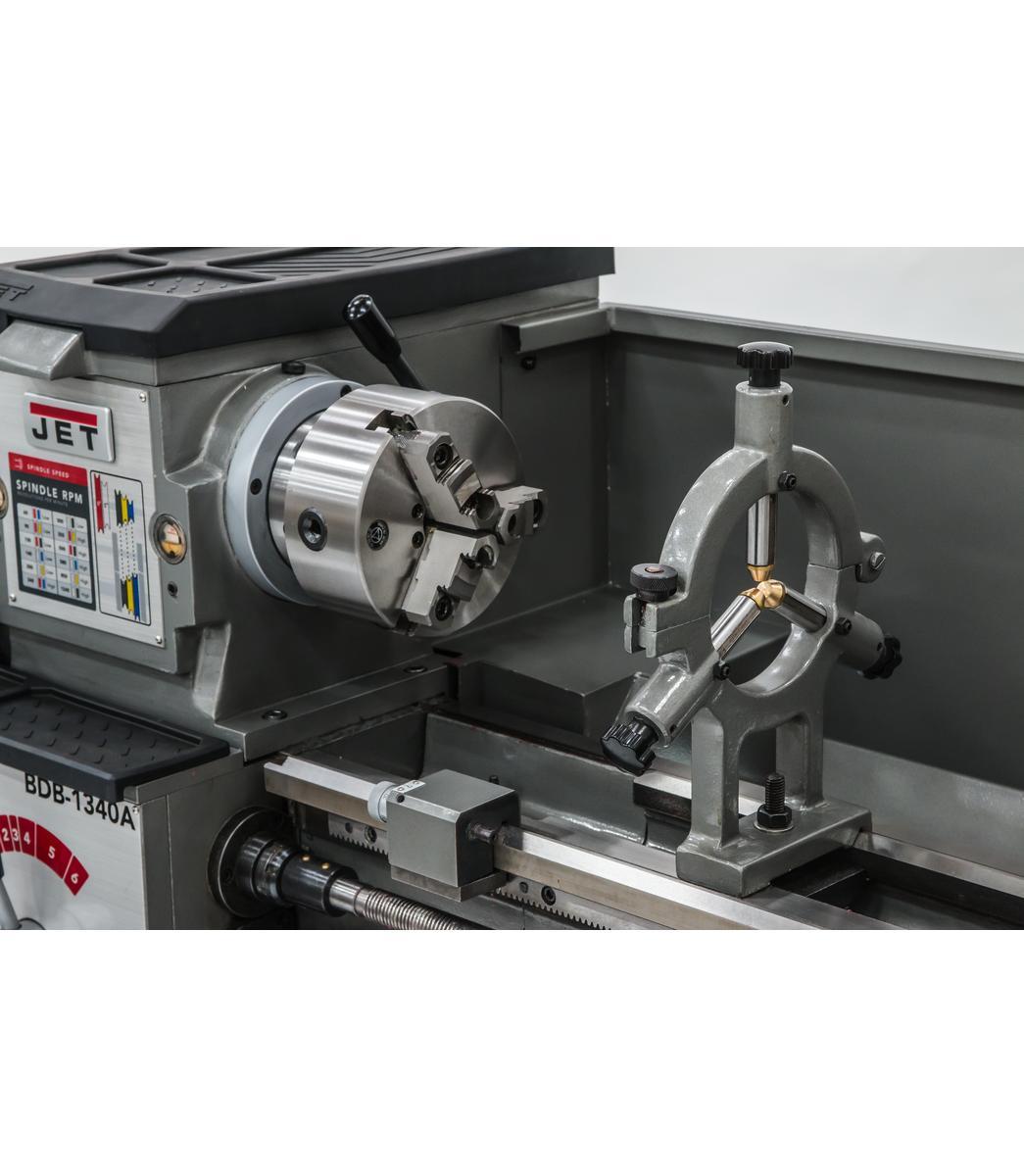

Steady Rest Capacity 2.625 inches
Style (Type) Bench
Swing Over Bed 13 inches
Swing Over Cross Slide 7.78125 inches
Swing Through Gap 18.75 inches
Tailstock Spindle Travel 3.75 inches
Taper in Tailstock Spindle MT-3
Width of Bed 7.375 inches
Overall Dimensions (L x W x H) 71" x 32" x 45"
Weight 1175 pounds

Equipped With

Details:

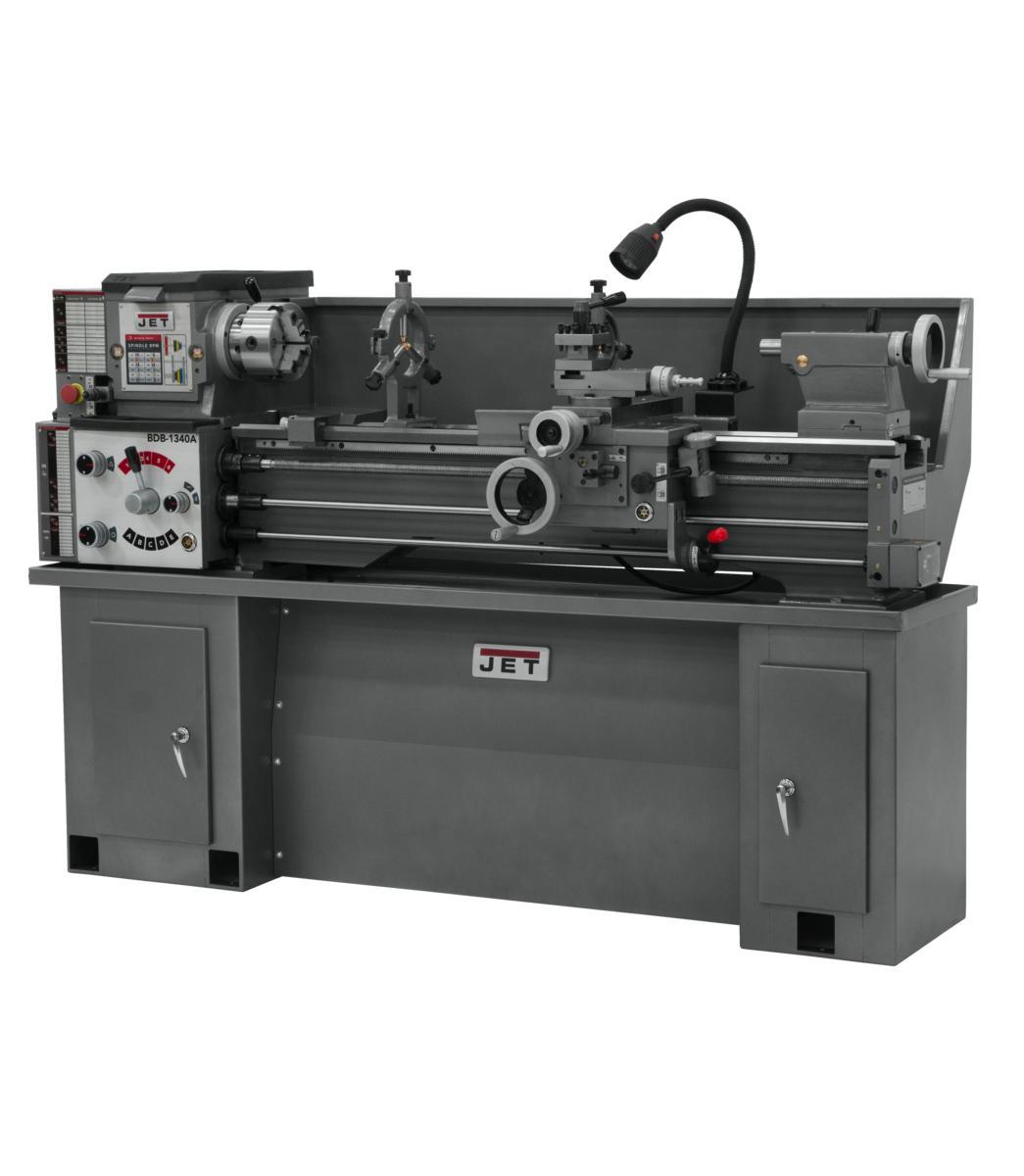

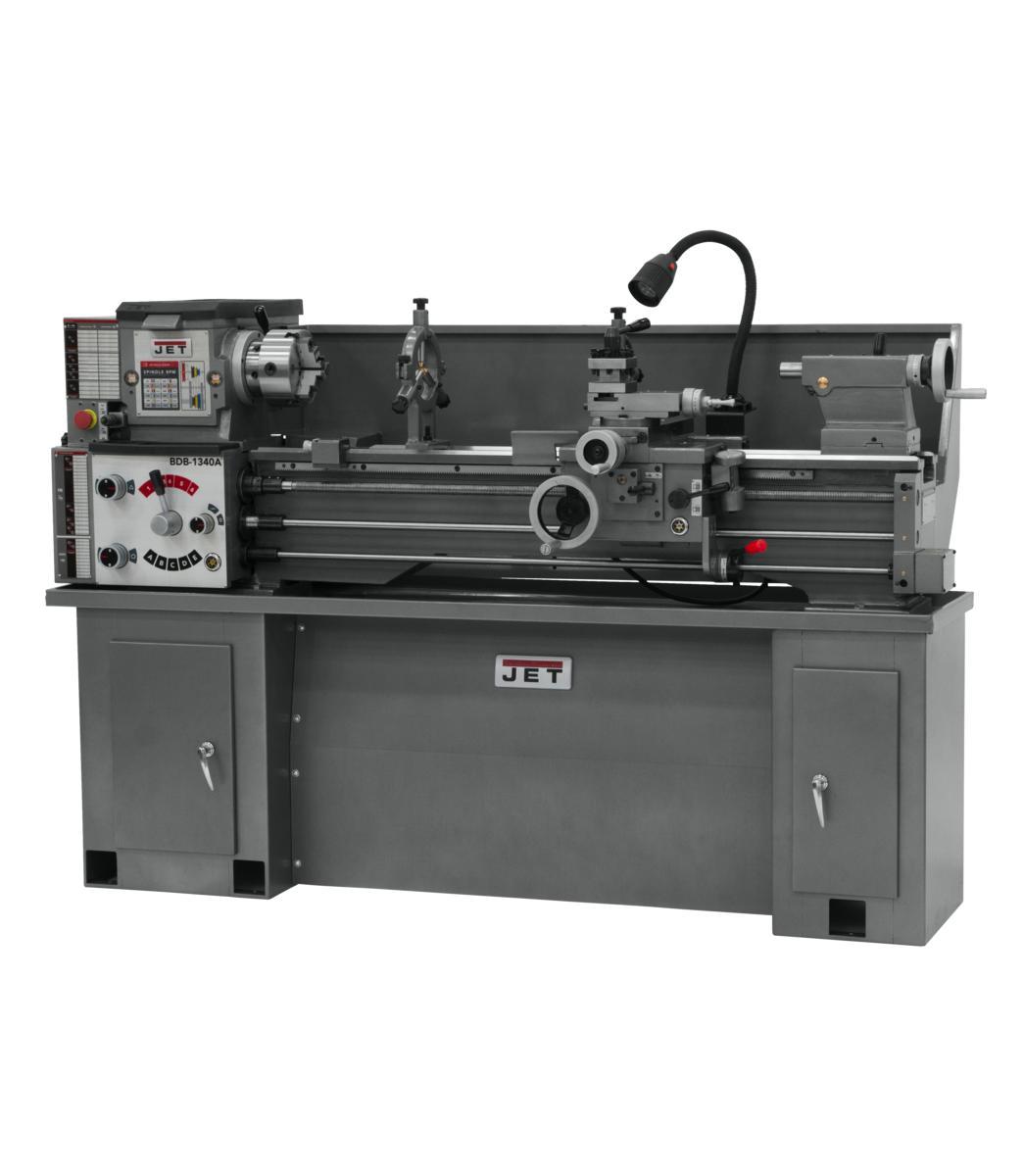

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with JET Lathes and is available for purchase. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.
Features:
* 6" 3-jaw direct mount scroll chuck with top reversing jaws
* Automatic feeding and threading are fully interlocked
* Carriage mounted spindle control lever
* Centers and headstock center sleeves
* Feed selectors travel in grooved ways
* Independent lead screw and feed rod
* Low voltage motor controls
* Spindle is supported by precision tapered roller bearings
* Tailstock may be offset for turning taper
* Tolerance test certificate included
