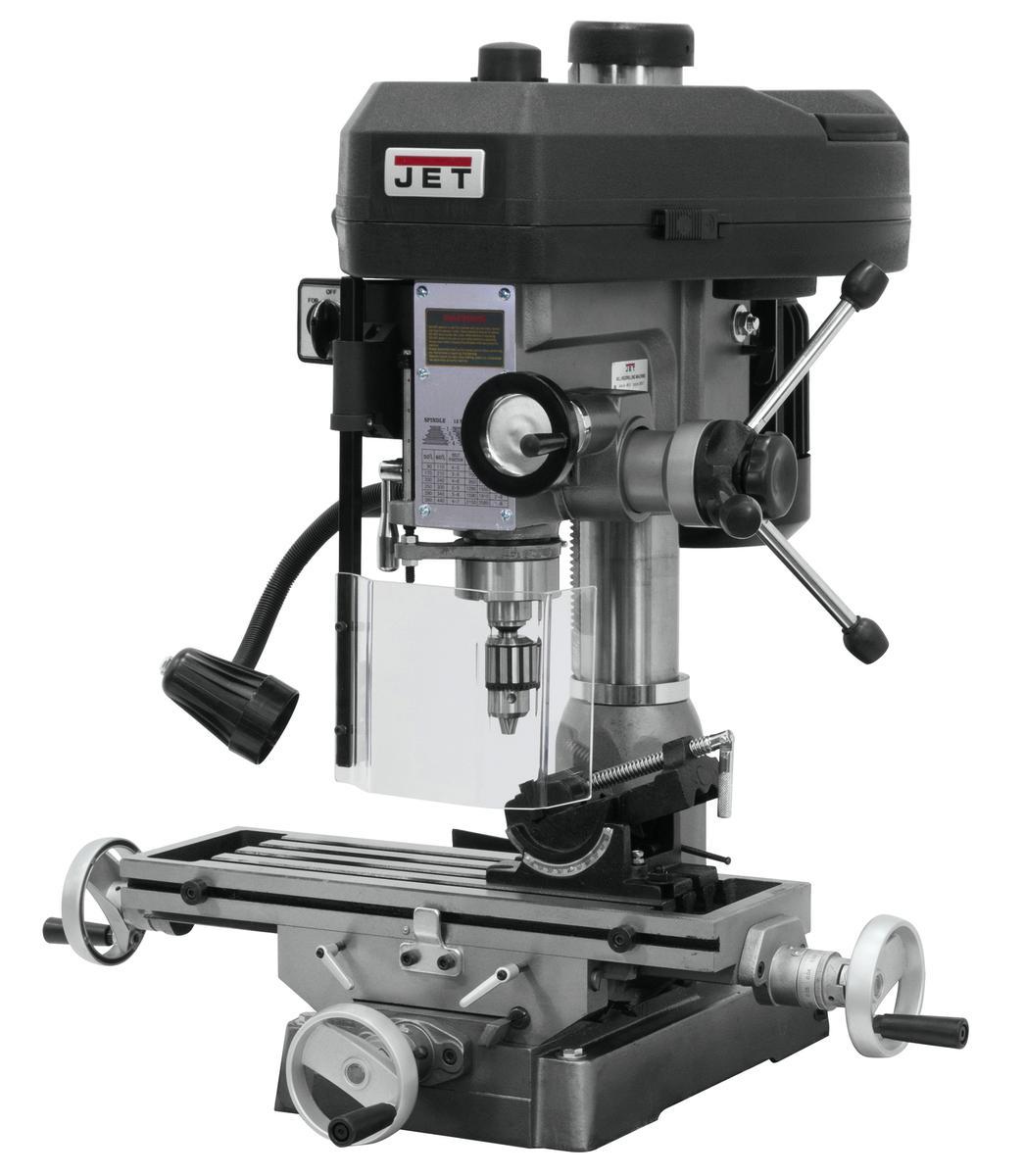

1 - NEW JET DRILL PRESS, MODEL #: JMD-15

Brand
JET

Model
JMD-15

Type
Presses, Drill

Stock #
85662

Condition
New

Year
N/A

Request a Quote

Files

JMD_15_Mill_Drill_With_R_8_Taper_115_230V_1Ph.pdf

Jet JMD-15 Mill-Drill Manual.pdf

SPECIFICATIONS
FILES & ATTACHMENTS

Base Dimensions	12.5" x 19.75"
Column Diameter	3.625 inches
Drilling Capacity	1 inches
Max Distance Spindle to Table	14.5 inches
Motor (HP)	1 HP, 115/230V, 1Ph
Number of Spindle Speeds	12
Quill Diameter	2.44 inches
Range of Spindle Speeds	110 - 2,580 RPM
Spindle Taper (In. x TPI)	R-8
Spindle Travel	3.5 inches
Swing	14.5 inches
T-Slot Centers	1.81 inches
T-Slots Number and Size	4 and 9/16
Table Longitudinal Travel	14 inches
Table Size (L x W)	7.5" x 23"
Work Table Weight Capacity	350 pounds
Overall Dimensions (L x W x H)	38" x 37.5" x 42"
Weight	440 pounds

Equipped With

DETAILS:

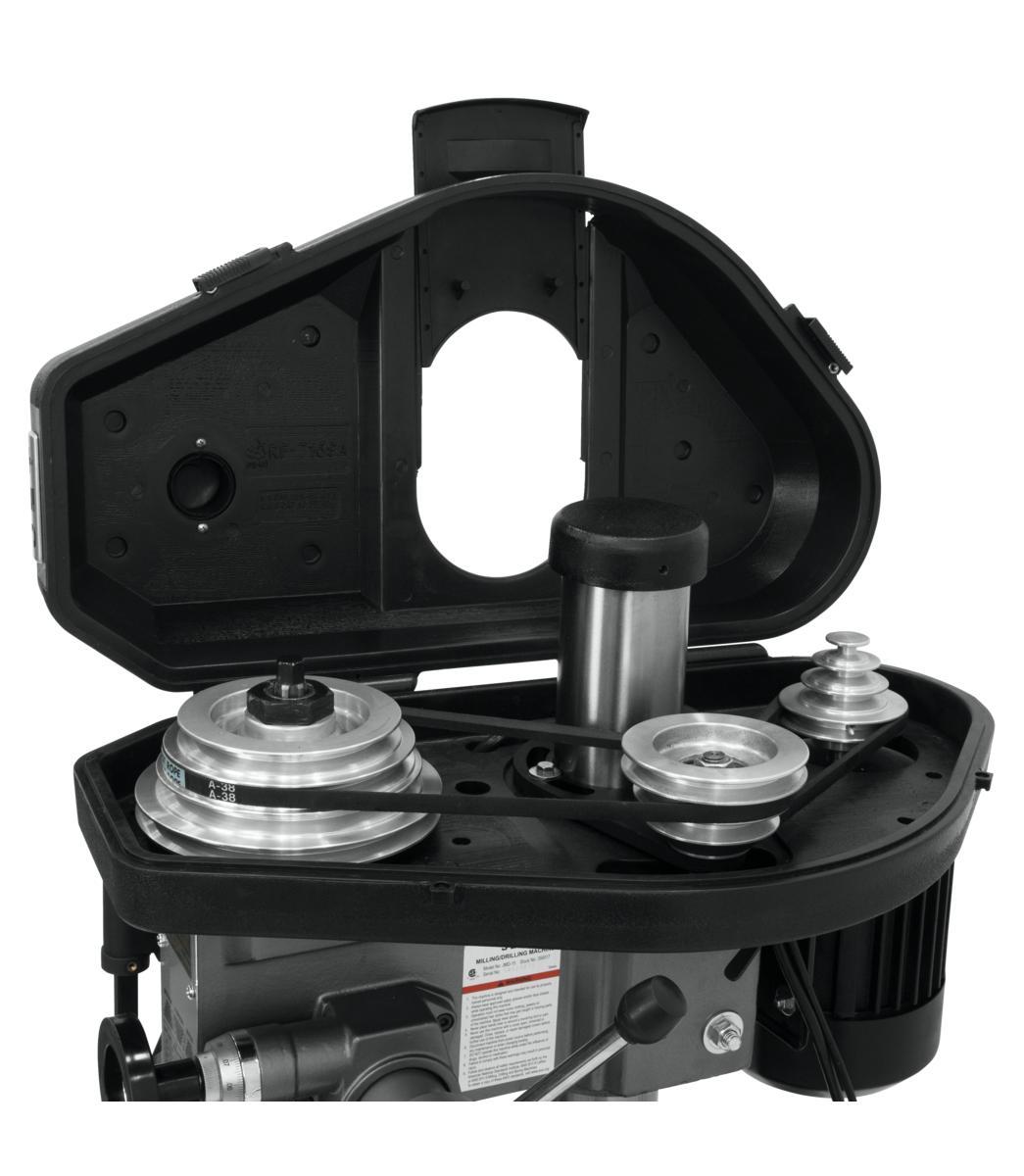

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
FEATURES:
* 1/2” Drill chuck, chuck arbor
* 360° head swivel
* Adjustable carbide facemill
* Base taper allows for easier clean up

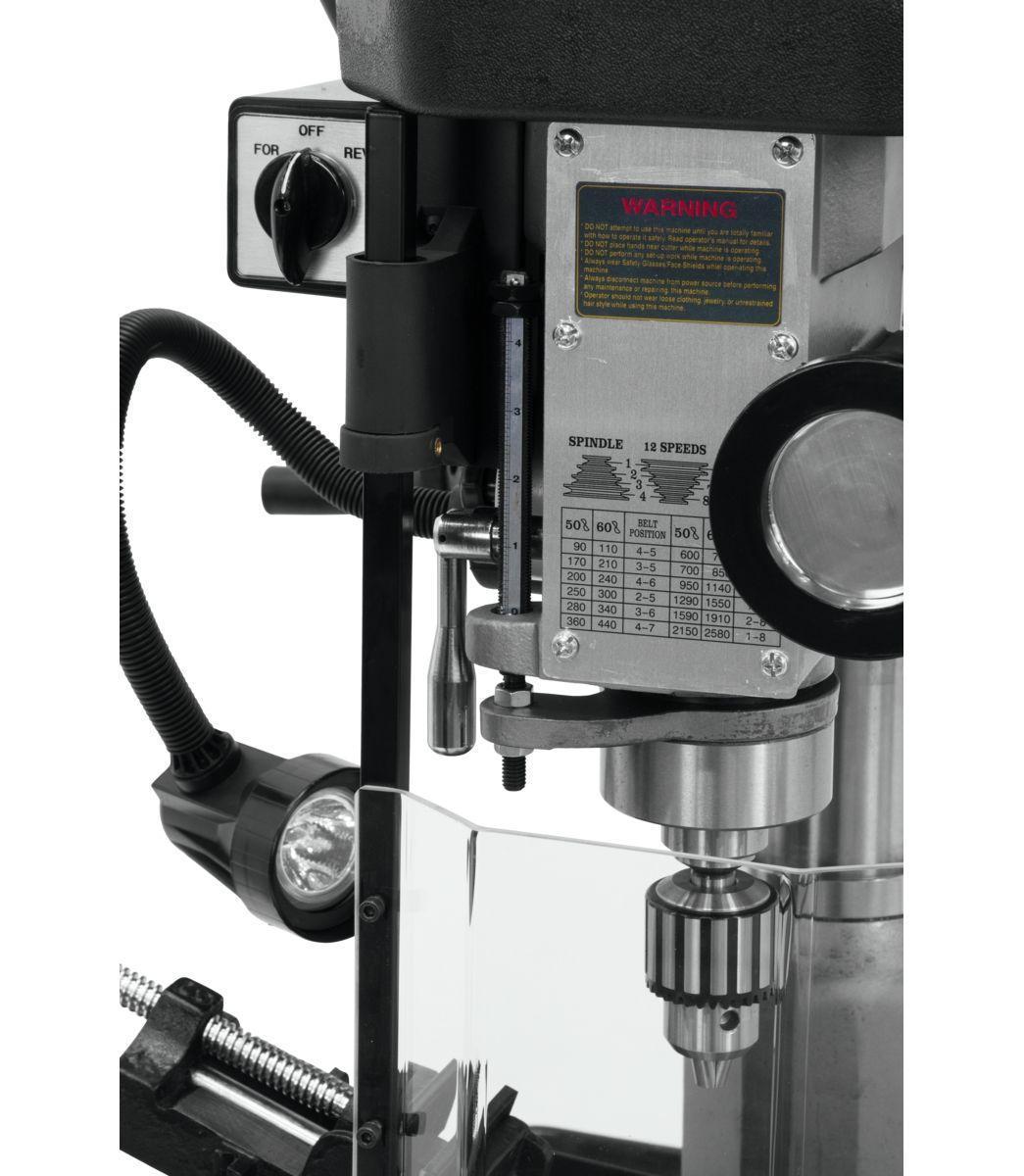

* Easy to read external depth gauge

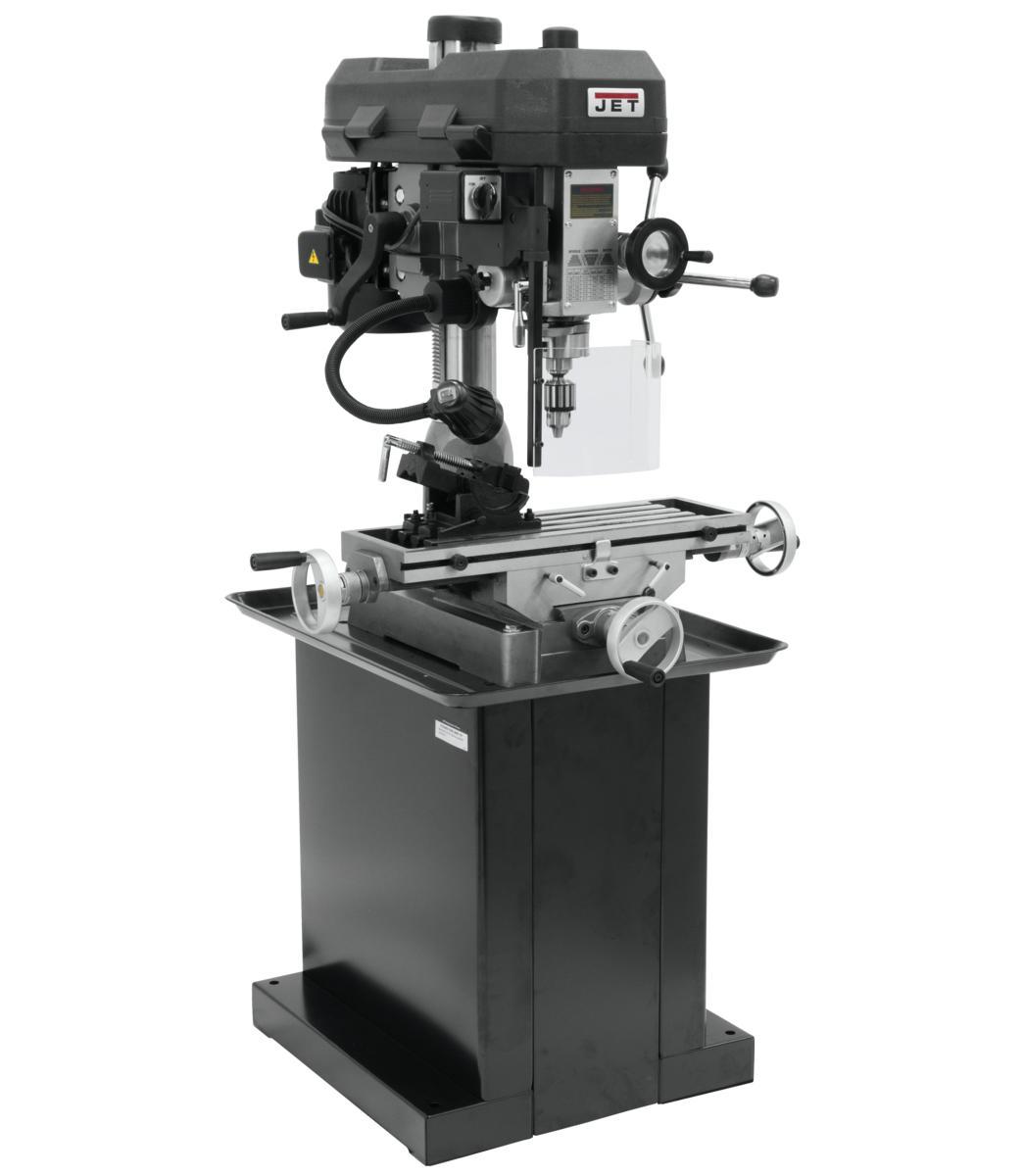

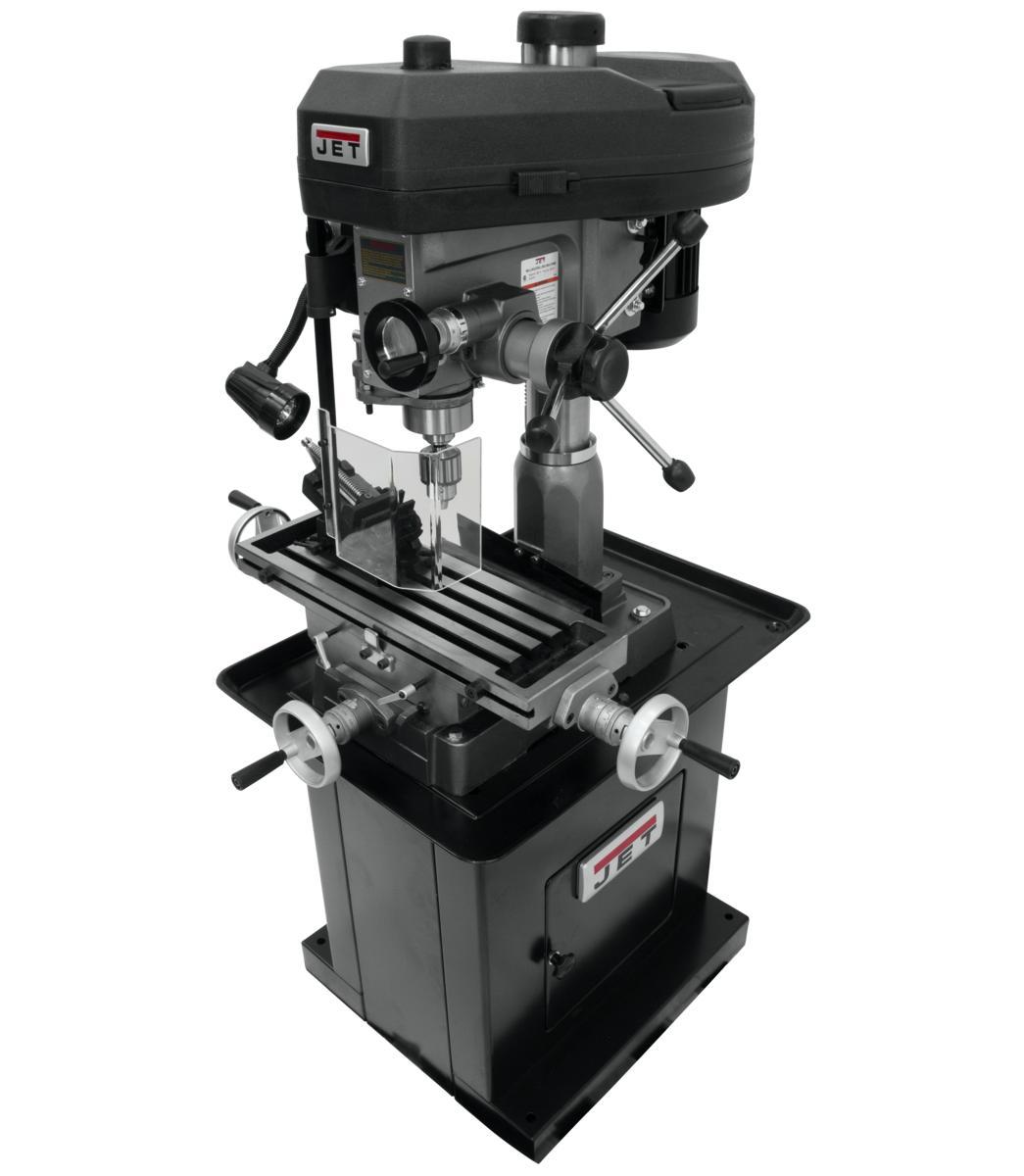

* Mill Drill Stand, p/n 350045, shown in some images, is optional
* One-piece cast iron column for added support
* UL Listed

Files

JMD_15_Mill_Drill_With_R_8_Taper_115_230V_1Ph.pdf

Jet JMD-15 Mill-Drill Manual.pdf
