1 - NEW JET GEARED HEAD LATHE, MODEL #: GH-1440-1

Brand
JET

Model
GH-1440-1

Type
Lathes, Vertical, CNC

Stock #
85582

Condition
New

Year
N/A

Request a Quote

Files

GH_1440_1_Geared_Head_Lathe.pdf
Jet GH-1440-1 Geared Head Lathe Manual.pdf
Carriage Travel 37.5 inches
Compound Slide Travel 3.5 inches
Length of Gap 9.375 inches
Max Tool Size 5/8" x 5/8"
Motor 3HP, 230V, 1PH
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 40
Number of Metric Threads 23.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) 74-4/5" x 28" x 46"
Range of Cross Feeds 0.0004 - 0.0103 IPR
Range of Inch Threads 4-112 TPI
Range of Longitudinal Feeds 0.0012 - 0.0294 IPR
Range of Metric Threads 0.45-7.5
Range of Spindle Speeds 40-1,800 RPM
Spindle Bore 1.5 inches
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity 3.5 inches
Swing Over Bed 14
Swing Over Cross Slide 8.2 inches
Swing Through Gap 20 inches
Tailstock Spindle Travel 4.75 inches
Taper in Tailstock Spindle MT-3
Weight 2336 pounds
Width of Bed 10.2 inches

Equipped With

Details:

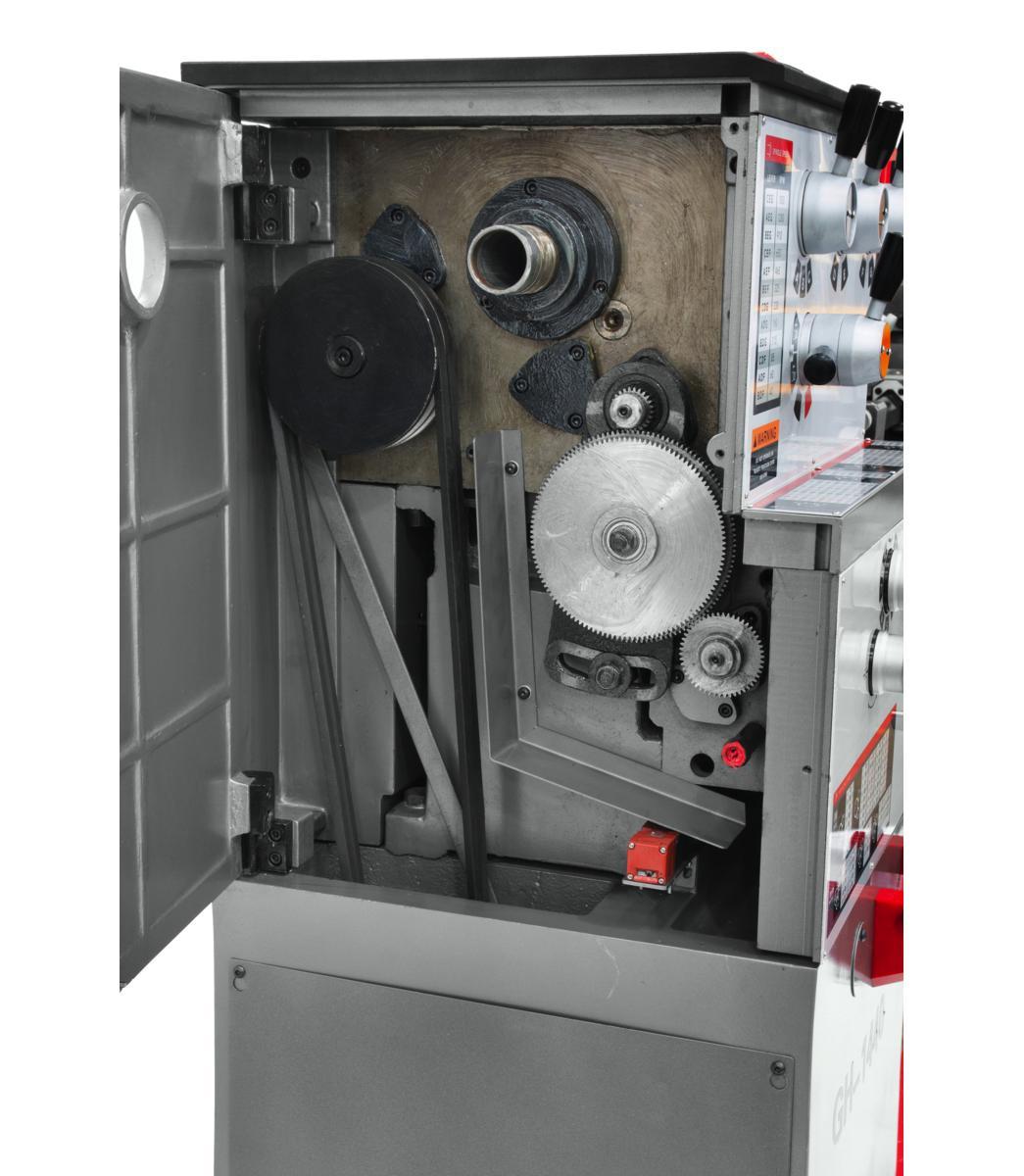

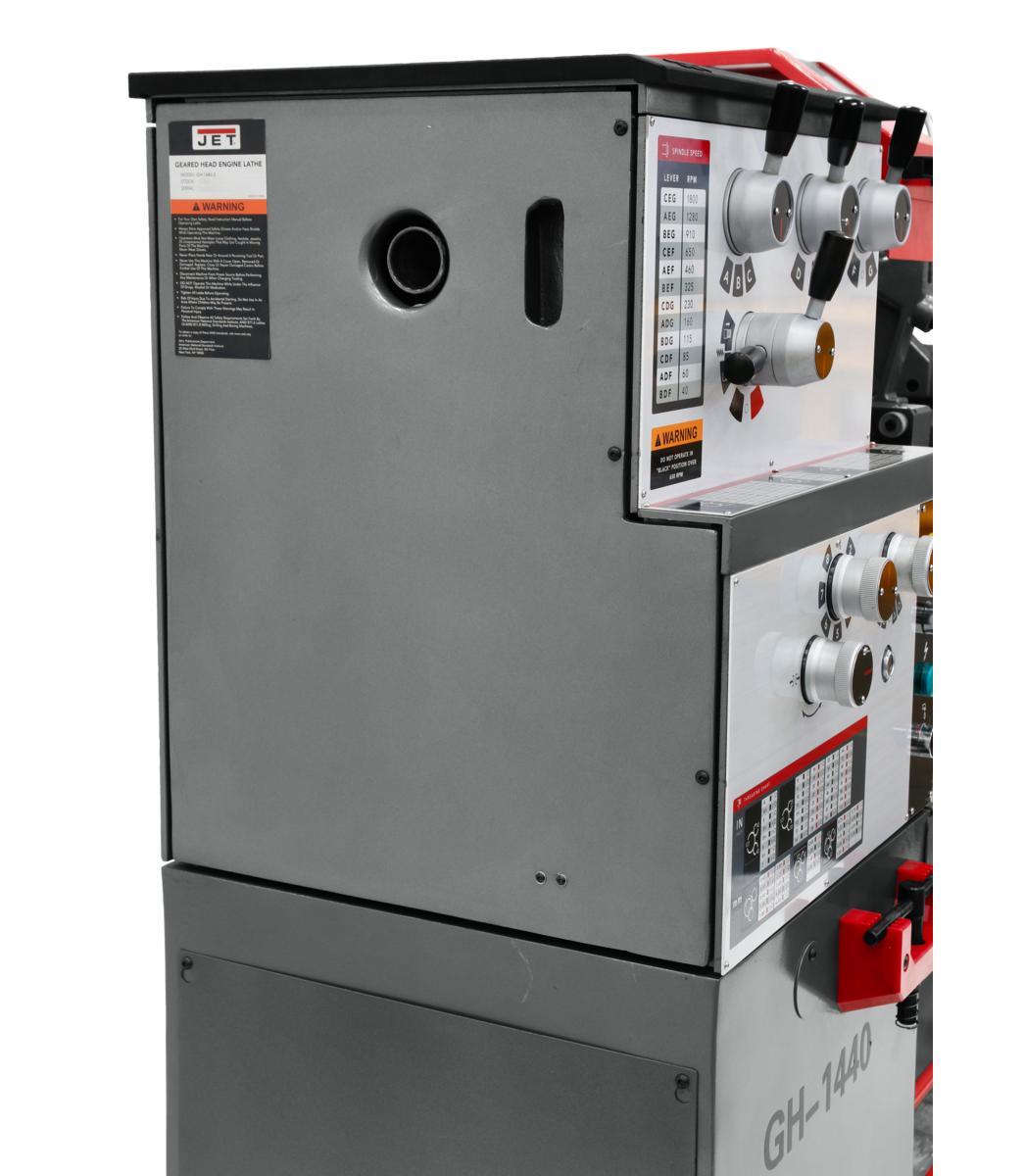

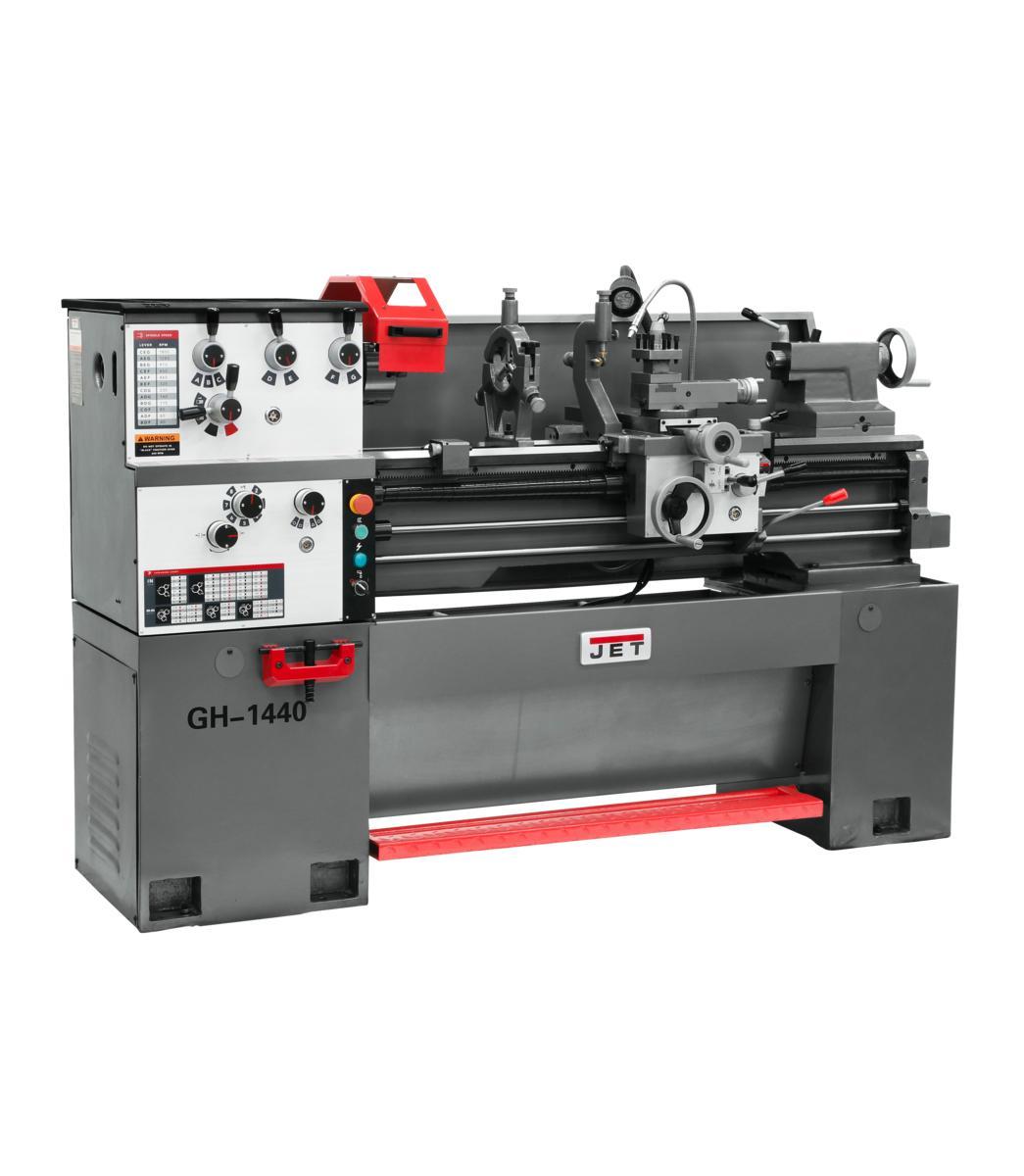

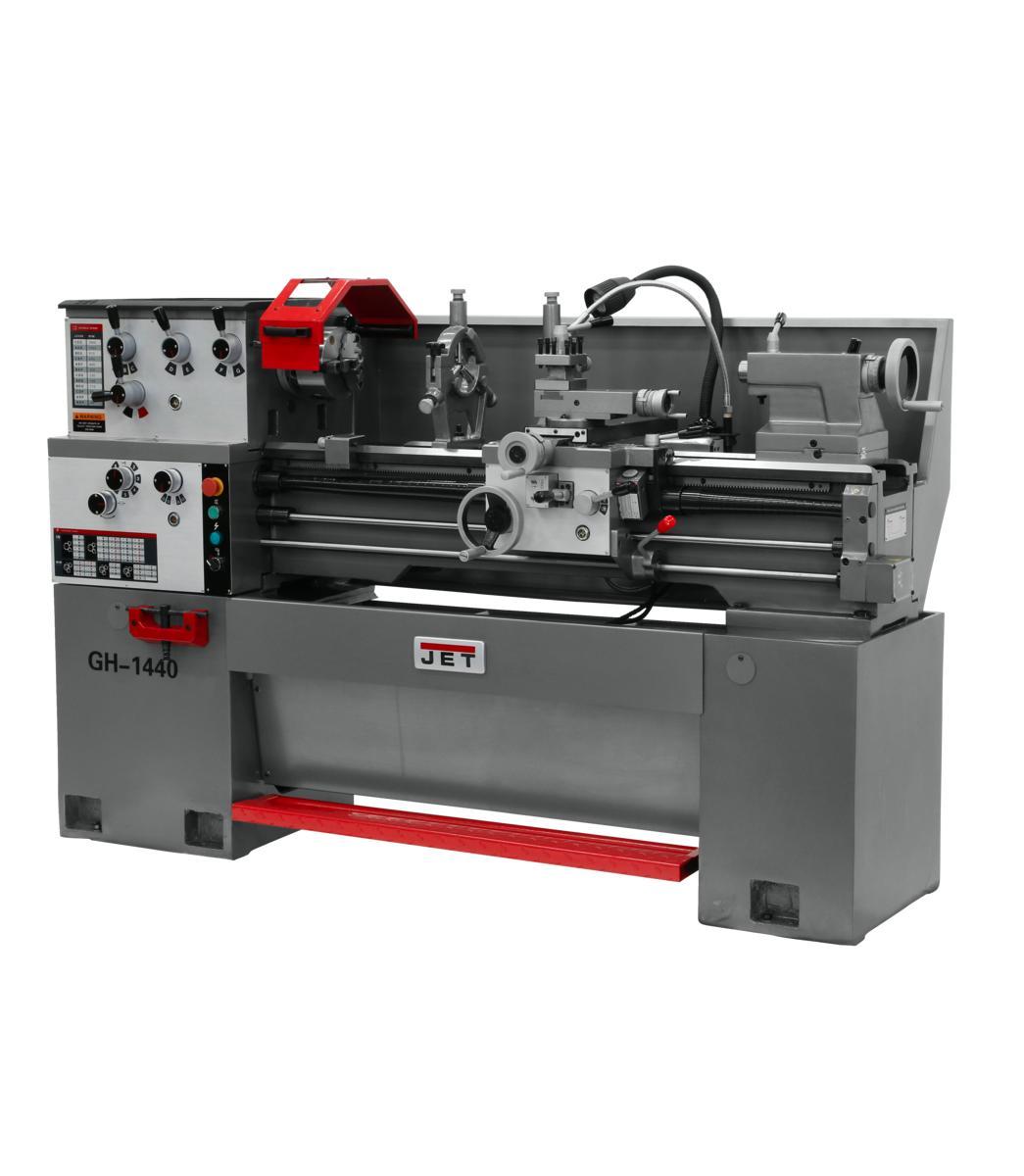

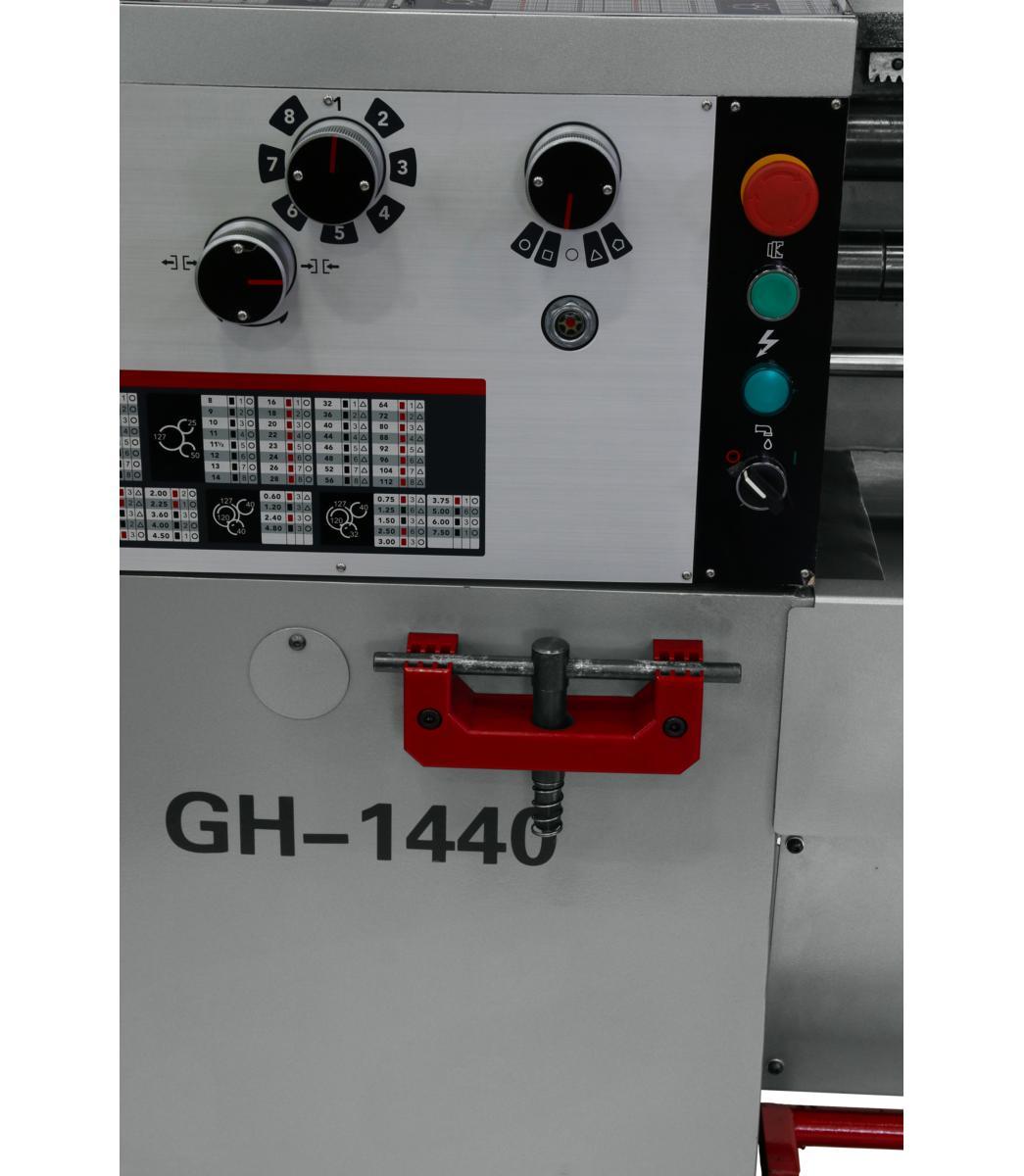

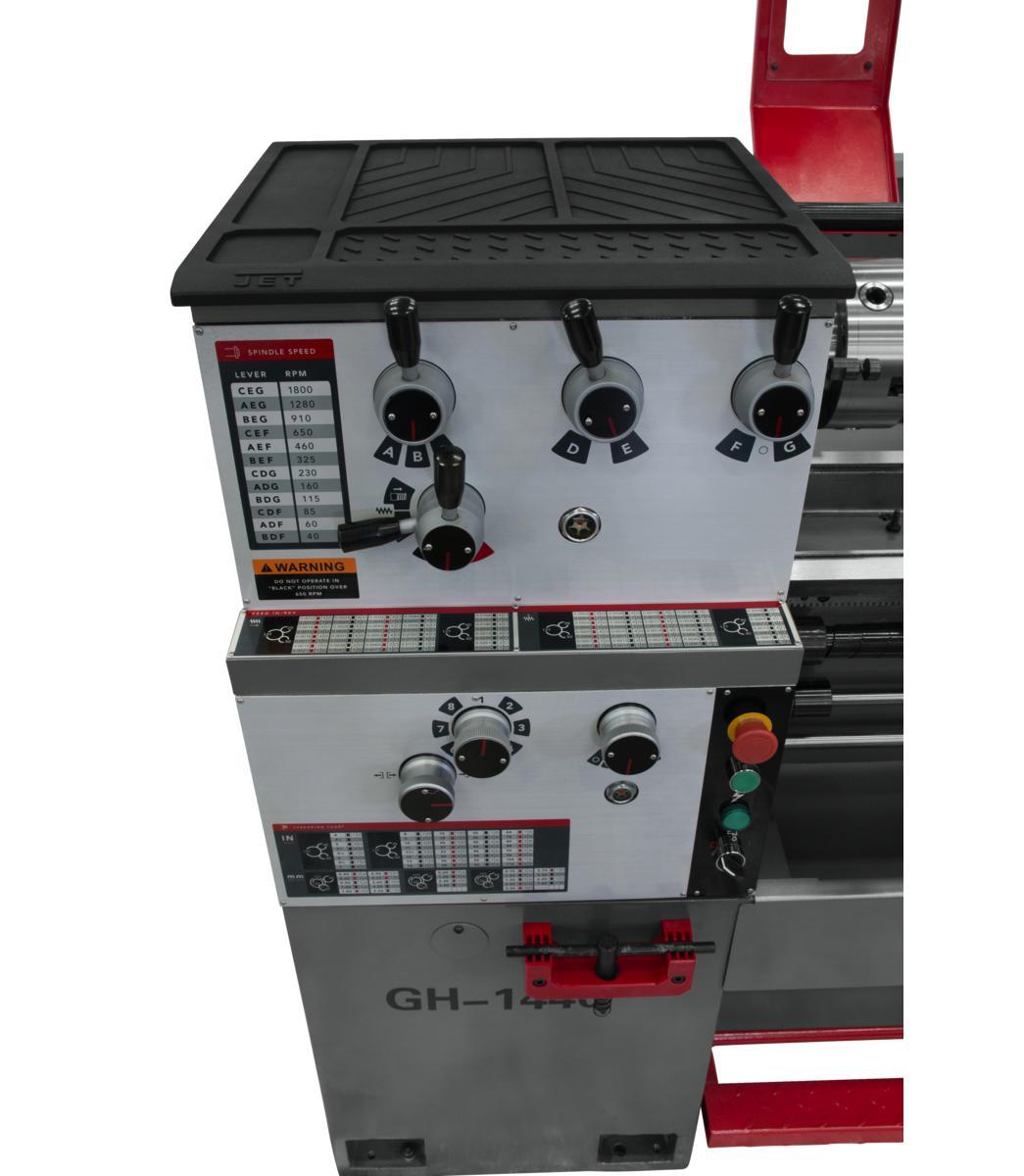

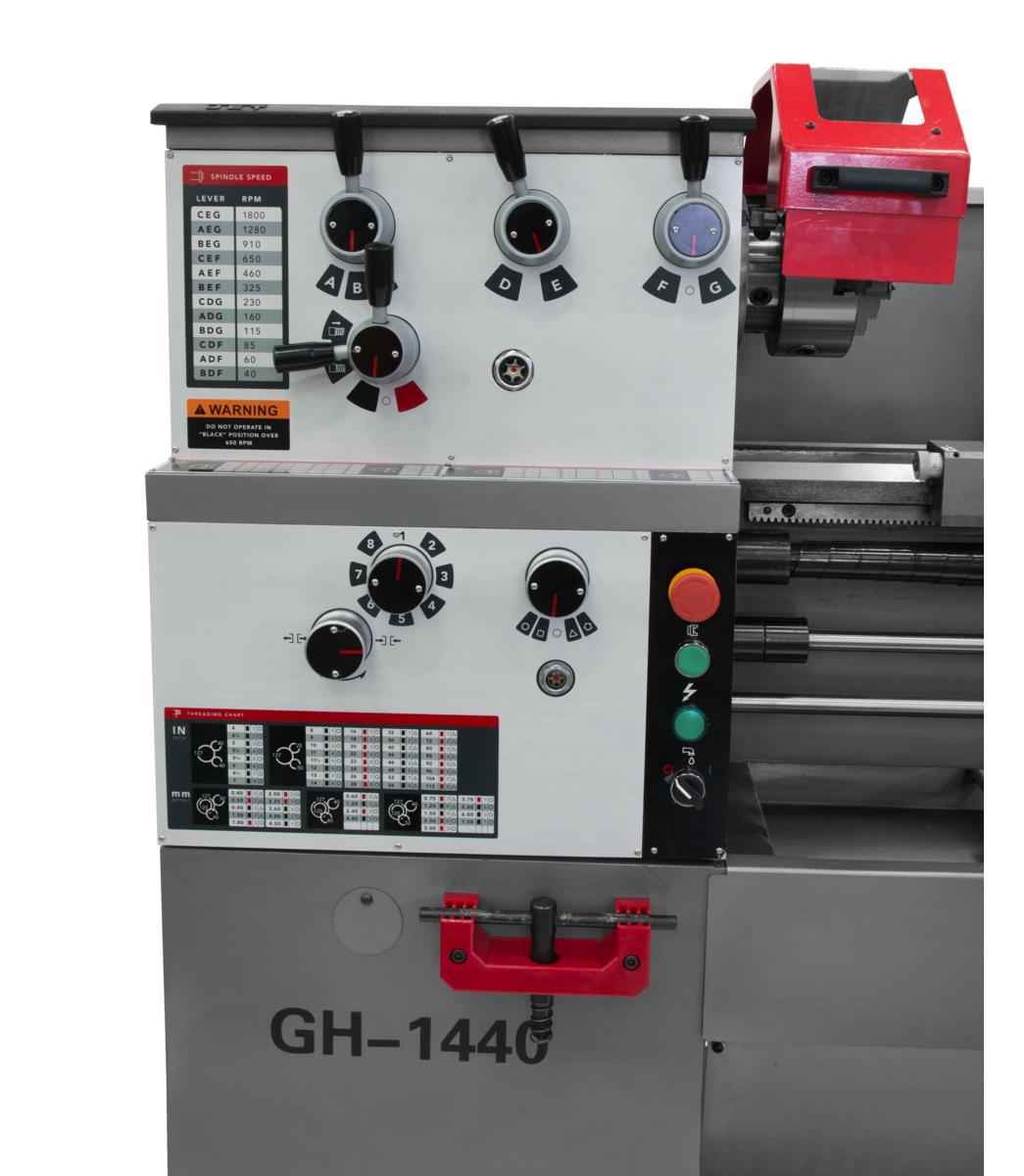

        The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.
Features:
* Compound and cross slide have backlash elimination
* Front Removable Chip Tray
* Full Length Splash Guard
* Inch-metric dials are standard
* Independent lead screw and feed rod
* Safety on/off switch

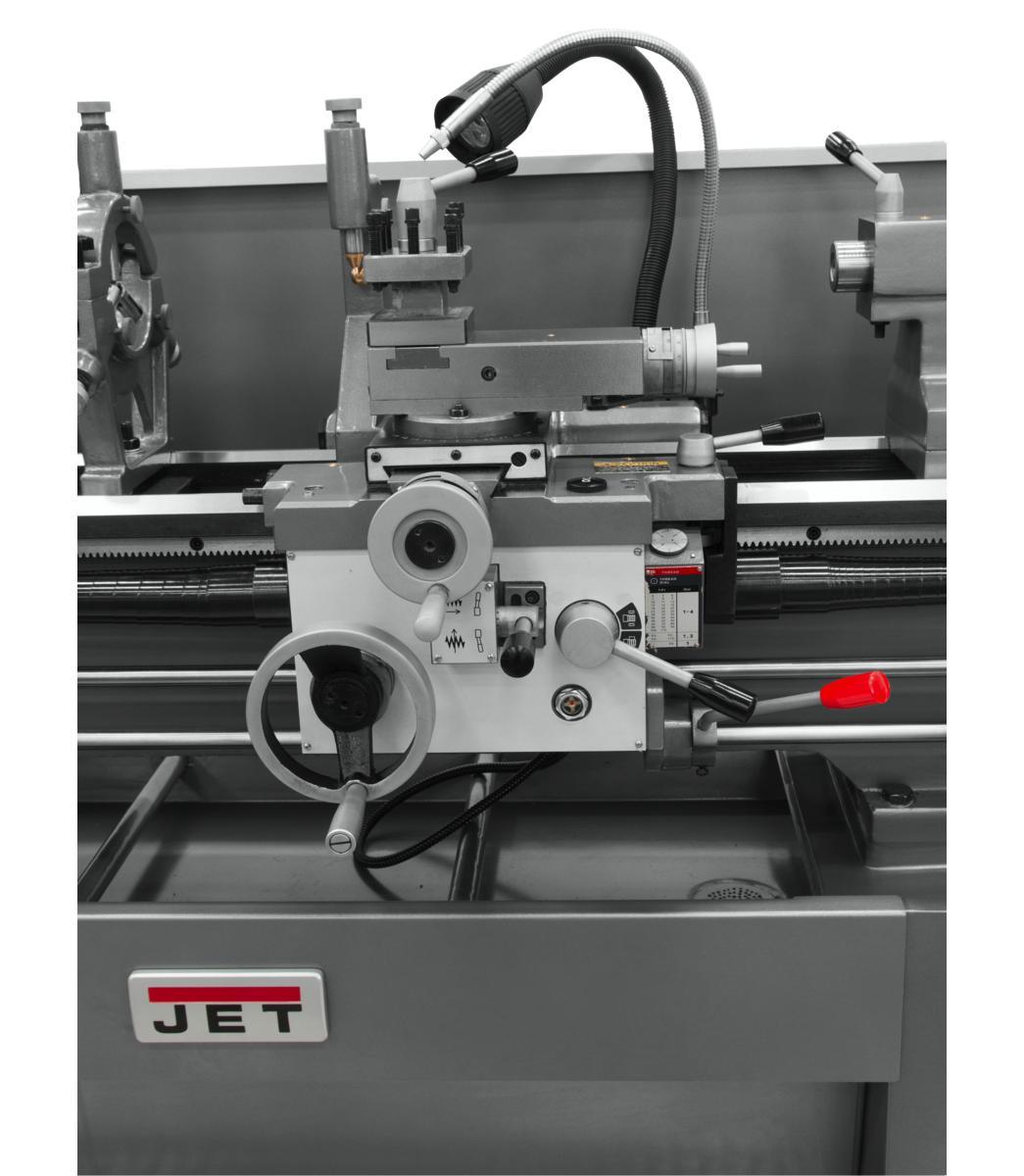

* Spindle actuation control is apron mounted
* Spindle jog button for easy gear engagement and spindle inching
* Splined, not keyed, shafts are utilized

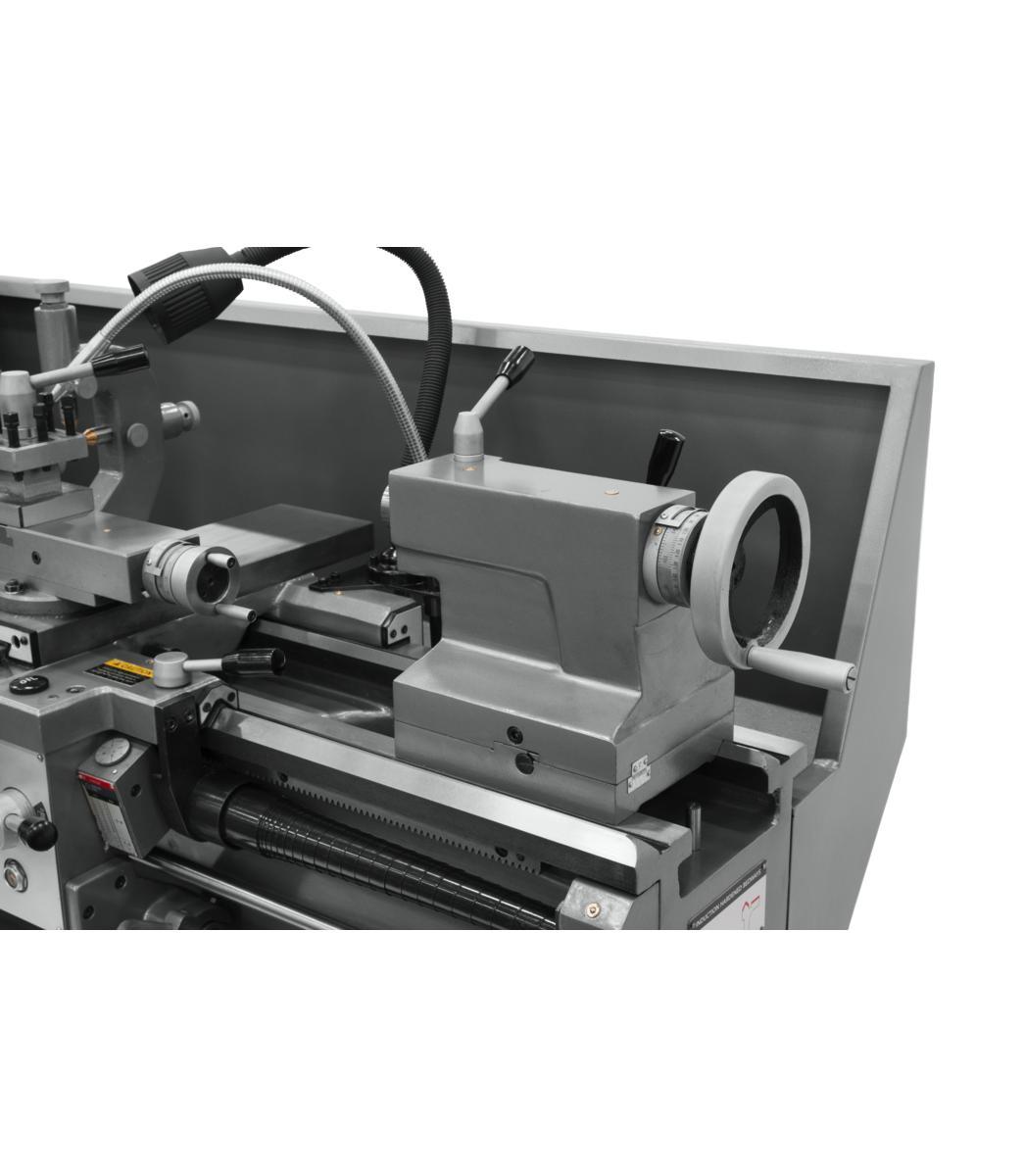

* Tailstock may be offset for turning taper

Contents of shipping container

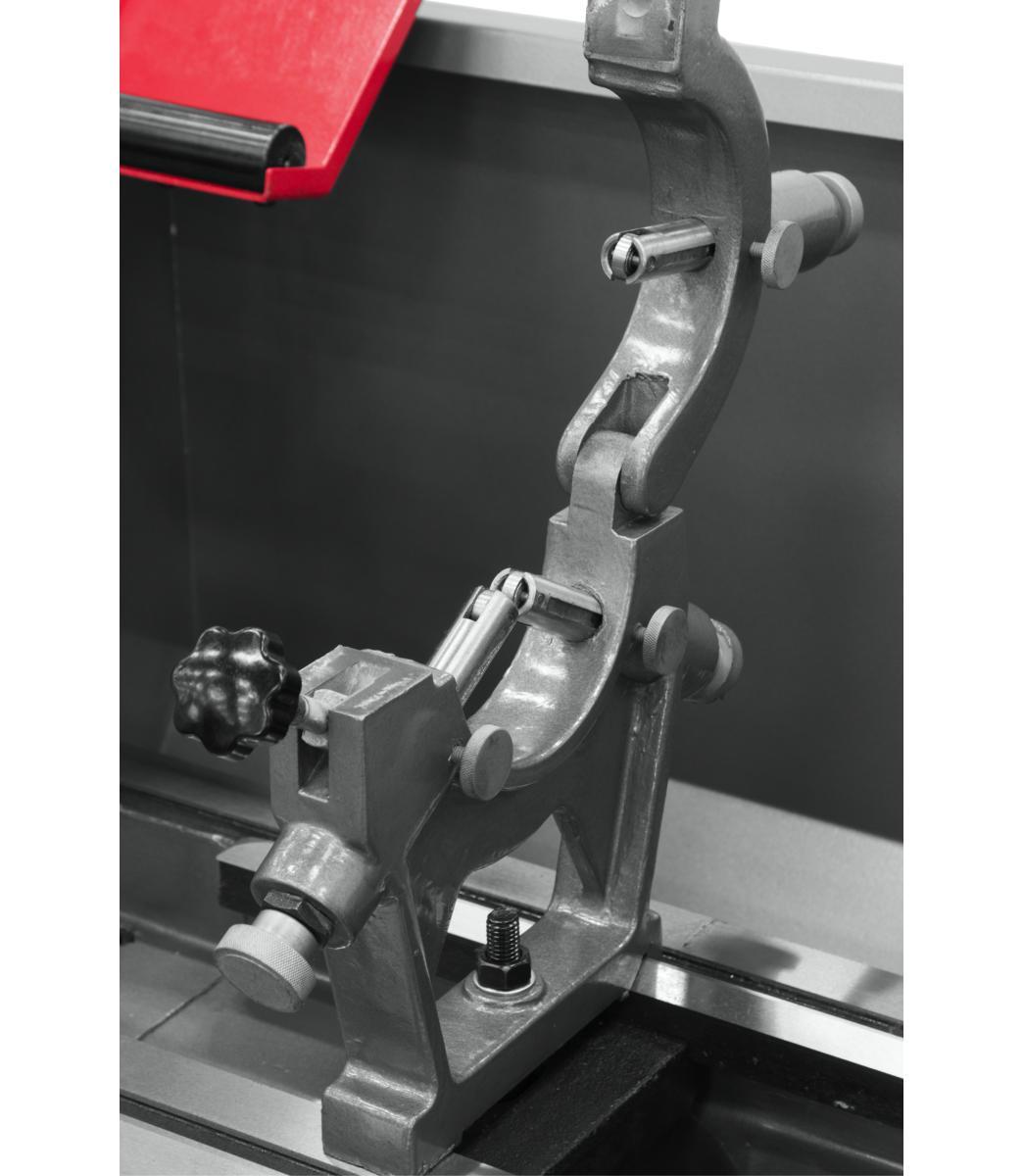

Steady Rest (mounted on lathe)
1 Follow Rest (mounted on lathe)
1 6" Three Jaw Chuck w/ Top Reversing Jaws (mounted on lathe)

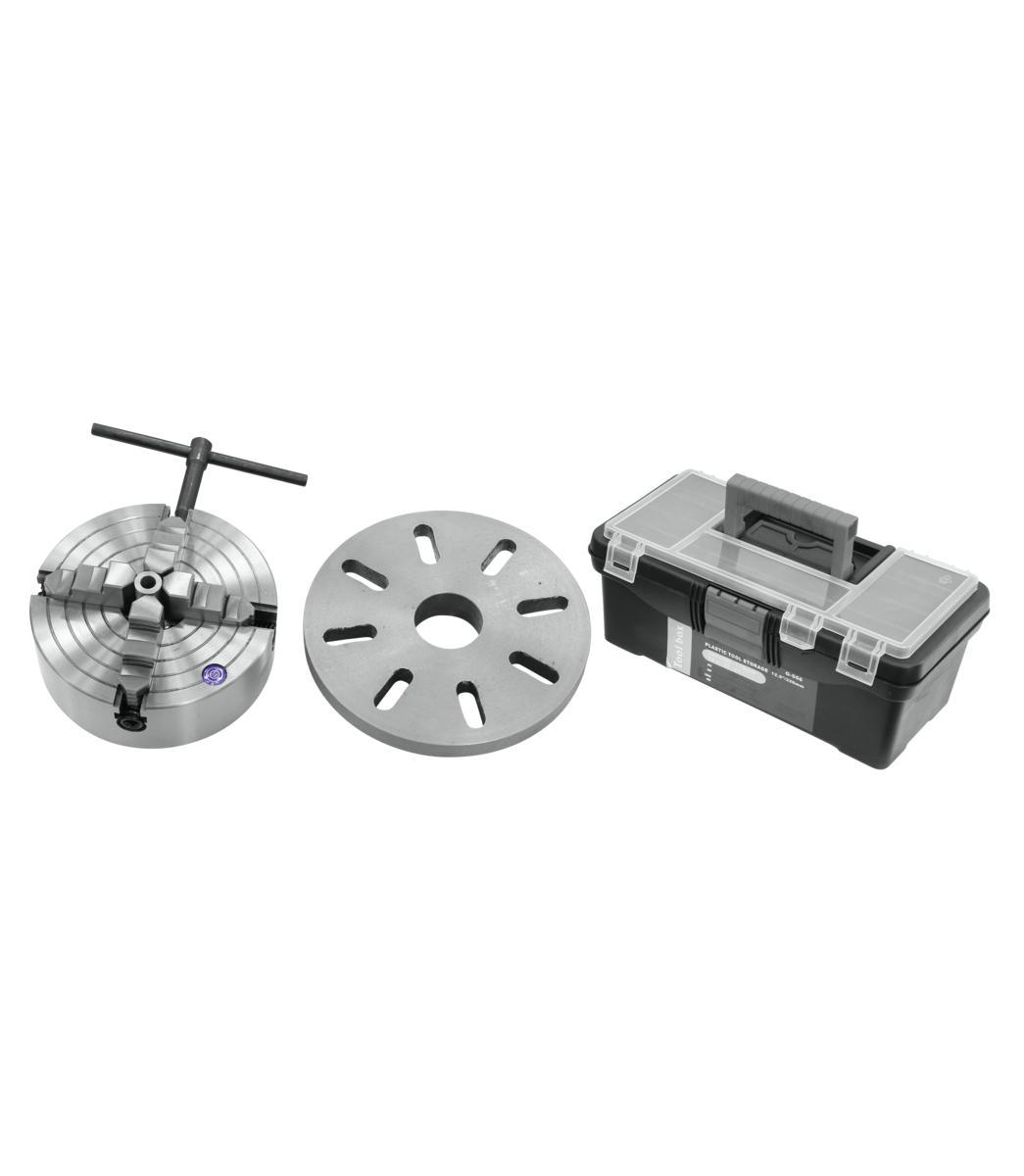

1 8" Four Jaw Chuck with Backplate (strapped to container)
1 12" Face Plate (strapped to container)
1 Backplate
1 Tool Box (p/n GH1440-TBCP)

Tool Box Contents (p/n GH1440-TBCP): (Fig. 1)
1 No. 1 Cross Point Screwdriver
1 No. 1 Flat Blade Screwdriver
4 Open End Wrench (9-11, 10-12, 12-14, 17-19mm)
7 Hex Socket Wrench (2,2.5, 3, 4, 5, 6, 8mm)
2 Shear Pins
1 30T Change Gear
1 32T Change Gear
2 40T Change Gear
2 Handles
1 Can, Gray Touchup Paint
1 Oil Gun
1 Live Center
2 No. 3 Morse Taper Dead Center
1 No. 5 to No. 3 Spindle Sleeve
6 Leveling Pads
6 Leveling Bolts with Hex Nuts
2 Hex Socket Cap Screw
1 Chuck Key
1 Key for Cam Locks
1 Tool Post Wrench
1 Taper Piece
1 Operating Instructions and Parts Manual
1 Product Registration Card
