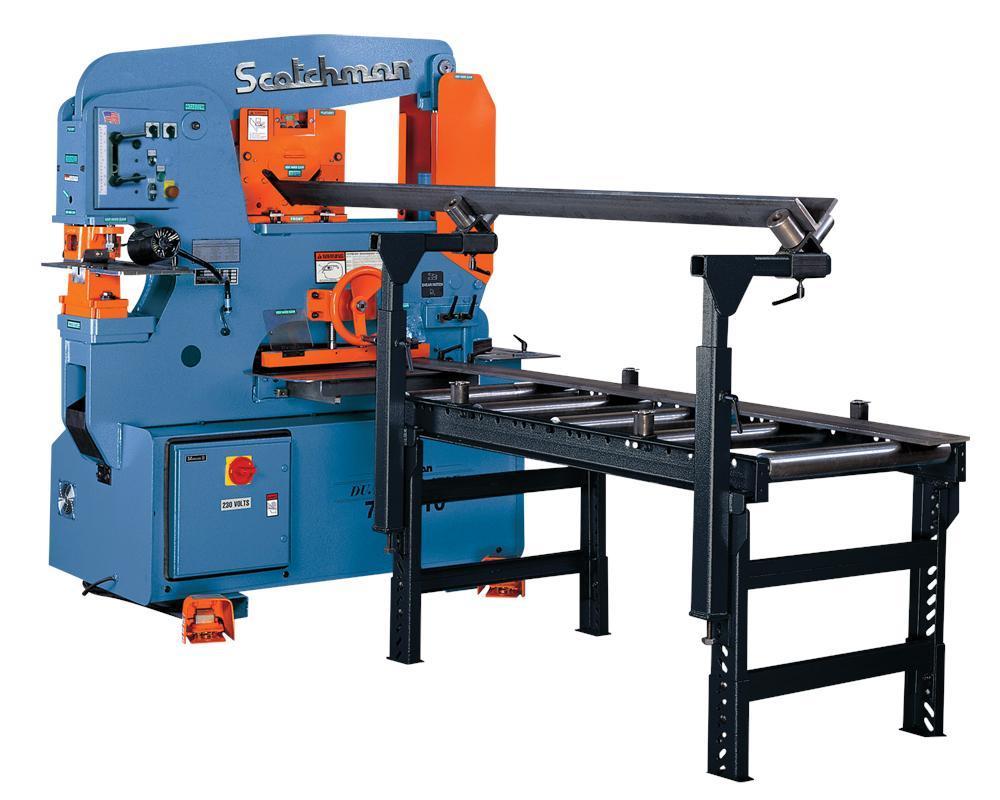

1 – NEW SCOTCHMAN IRONWORKER, MODEL #: DO150-24M

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

SPECIFICATIONS:

Punching Capacity 150 ton

1-7/8" in 1"

2-1/2" in 3/4" 136 mt

47 in 25 mm

64 in 19 mm

Special Tooling 4" Max. Dia. 102 mm Max. Dia.

Throat Depth 12" 305 mm

Flat Bar Shear

(Sabre Blade - Standard) 24" Length

1" x 14"

3/4" x 24" 610 mm

25 x 356 mm

19 x 610 mm

Angle Shear 90 degree 6" x 6" x 1/2" 152 x 152 x 12 mm

Angle Shear 45 degree

w/Tool

w/Bar Shear

3" x 3" x 3/8"

4" x 4" x 1/2"

76 x 76 x 10 mm

102 x 102 x 12 mm

Brake 12" 90 ton 81.6 mt

Brake 24" 70 ton 63.5 mt

Open End Brake Max. 1/4" x 5"

[Flat or Angle Iron] 6 x 127 mm

Pipe Notcher

Schedule 40 3/4", 1", 1-1/4", 1-1/2", 2"

Rectangle Notcher 3" x 5-3/4" x 1/2" 76 x 146 x 12 mm

90 degree V-Notcher 6" x 6" x 5/16"

3" x 3" x 1/2" 152 x 152 x 8 mm

76 x 76 x 12 mm

Notching in Leg of Channel 6" to 10" 152 to 254 mm

Channel Shear 2" to 6" adj. 51 to 152 mm adj.

Unistrut Shear Samples Required

Rod Shear

Round (max.)

Square (max.)

9 Cavity - 1/4" to 1-1/4"

1 Cavity - 1/4" to 1"

6 to 32 mm

6 to 25 mm

Square Tube Shear 1/2" to 2"

12 gauge 12 to 51 mm

0.105" / 2.7 mm

Picket Tool 1/2", 3/4" & 1"

16 gauge 12, 19, & 25 mm

0.06" / 1.5 mm

Weld Coupon Bender (max.) 2" wide x 3/8" 51 x 10 mm

Offset Die Holder Max. 40 ton Max. 36 mt

Strokes per Minute in Light Material 44 spm [Punch Station] 1/4" Stroke

Strokes per Minute in Heavy Material 17 spm [Punch Station] 3/4" Stroke

Hydraulics 3,500/3,500 psi 241/241 bar

Motor Standard 10 hp

208/230/460, 380/575v; 3ph 7.46 kW

Motor Optional 10 hp

220v, 1 ph 7.46 kW

Dimensions L: 83"

W: 38-1/2"

H: 77-1/4" L: 211 cm

W: 98 cm

H: 196.5 cm

Shipping Weight (may vary) 6,404 lbs 2,905 kg

Standard Features

Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
150 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
LED work lights now standard equipment!
Jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Angle shear
Rectangle notcher with table, scale and guides
Flat bar shear with sabre blade
Shear table with miter fence
Tool table work area
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

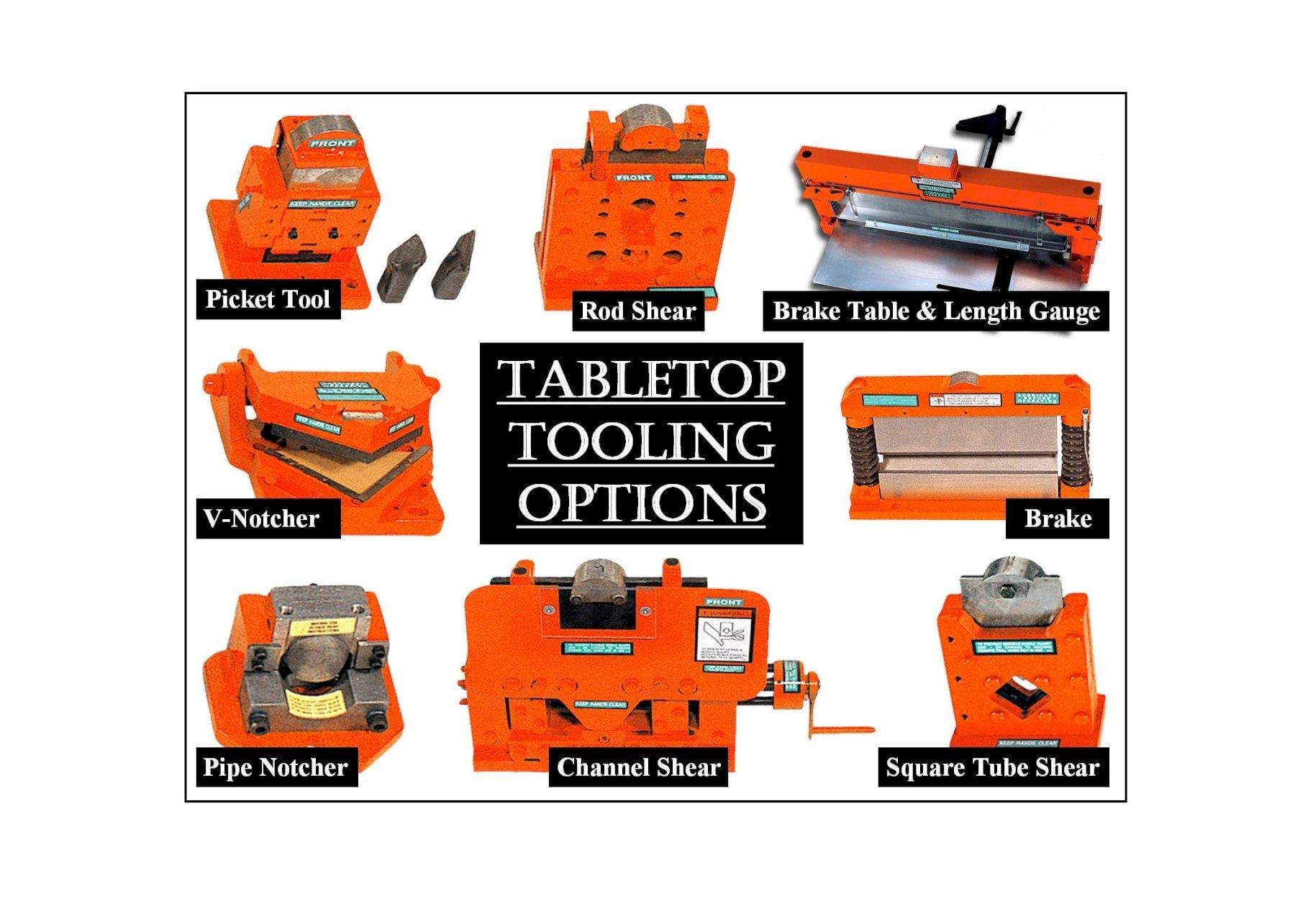

OPTIONAL TOOLING:
093501 PUNCH & DIE TOOL CART 995.00
533210 #20 P and D STORAGE DRAWER ASSY 275.00
032995 #40 P AND D STORAGE DRAWER ASSY 275.00
093541 P & D DEEP TOOL DRAWER ASSEMBLY PACKAGE 275.00
093543 P & D SHALLOW PARTS TRAY ASSEMBLY PACKAGE 275.00
033264 D.O. SHEAR LASER INSTALLED 1,285.00
026765 PUNCH EXTENSION TABLE SALES 335.00
029291 36" LHE MULTI-LOC PUNCH GA SYS 890.00
029291 36" LHE MULTI-LOC PUNCH GA SYS 890.00
029289 36" RHE MULTI-LOC PUNCH GA SYS 890.00
029292 85" LHE MULTI-LOC PUNCH GA SYS 1,670.00
029293 85" RHE MULTI-LOC PUNCH GA SYS 1,670.00
032980 #40 TOOL TABLE EXT. W/ DRAWER 890.00
025603 DELUXE BACK GAUGE 48" 925.00
026620 48" DO ELECTRIC BACK GAUGE 2,760.00
026786 LG-MEASURING PKG (SO-DO) 595.00
026980 INFEED CONVEYOR 24" X 5' 3,680.00
026299 12" BRAKE W/2" DIES AND CAP XL 026300-026211 2,595.00
026305 24" BRAKE W/2" DIES AND CAP XL 026303-026211 3,620.00
026865 12" BRAKE TABLE W/SCALE 480.00
026880 24" BRAKE TABLE W/SCALE 560.00
026800 BRAKE LENGTH GA. W/SCALE 255.00
001359 OPEN END BRAKE W/ 001365 CAP 001360-001365 1,815.00
001195 PIPE NOTCHER HOUSING ASSY 425.00
001220 3/4" SCH. 40 PIPE DIES 700.00
001222 1" SCH. 40 PIPE DIES 725.00
001224 1-1/4" SCH. 40 PIPE DIES 725.00
001226 1-1/2" SCH. 40 PIPE DIES 725.00
001228 2" SCH. 40 PIPE DIES 760.00
081200 PUSHER/RISER PIPER NOTCHER 081205-340025 160.00
001207 TOOL TABLE PUSHER P/N 180.00
016615 90° V NOTCHER 120XL-DO120 3,625.00
026371 6" CHANNEL SHEAR W/ 016575 MOUNT PACK 026372-016575 5,150.00
026773 ROD SHEAR 1" SQ 1-1/4 RD W/ 026247 CAP 026774-026247 2,655.00
026348 SQUARE TUBE SHEAR XL W/ 016595 MOUNT PACK 026350-016595 1,820.00
001288 PICKET TOOL HOUSING W/ CAP AND PUSHER 001293-001163-080835 1,430.00
001248 1/2" UPPER AND LOWER PICKET DIES 001150-001249 450.00
001291 3/4" UPPER AND LOWER PICKET DIES 001190-001292 450.00
001263 1" UPPER AND LOWER PICKET DIES 001162-001264 450.00
080220 #45 RETAINING NUT (120/135/150) 105.00
037020 #49 RETAINING NUT (120/135/150) 130.00
080895 HEAVY DUTY SR RETAINING NUT (120/135/150) 535.00
018507 WRENCH HEAVY DUTY NUT 65.00
037115 #86 DIE INSERT (2-1/2") DO135/150 310.00
037120 3"OD DIE INSERT DO135/150 310.00
028260 6X6 DIE HOLDER WITH SPACER 1,070.00
028280 6X6 DIE HOLDER TABLE ASSEMBLY 495.00
013186 OFFSET DIE HOLDER 2" DIE 975.00
018450 #40 URETHANE PUNCH STRIPPER 90.00
026071 URETHANE STRIPPER KIT 12012 AND UP 3,120.00
016238 66 DEGREE UPPER BLADE 570.00
016239 70 DEGREE UPPER BLADE 570.00
016240 74 DEGREE UPPER BLADE 570.00
016241 80 DEGREE UPPER BLADE 570.00
026708 QUICK CHANGE 6" A.S. 470.00
026727 ANGLE SHEAR 6 X 6 X 3/8" 2,560.00
026737 6" A.S. MITER ATTACHMENT ASSY 85.00
024495 MULTISHEAR XL-DO SPECIAL 4,420.00
024749 WELD COUPON BENDER W/ PUSHER 024700-024750 2,040.00
017585 HYDRAULIC HOLDDOWN DO120/150 INSTALLED 2,785.00
002543 #40/82 ROUND P AND D PACK(16TH) 420.00
002544 #40/82 ROUND P AND D PACK (METRIC) 450.00
002855 #40/82 DELUXE P AND D PACKAGE 1,385.00
002322 12" BRAKE PACKAGE 2,765.00
002330 24" BRAKE PACKAGE 3,765.00
002305 PIPE NOTCHER PACKAGE 1,560.00
002352 CHANNEL SHEAR PACKAGE 5,850.00
002368 PRODUCTIVITY PACKAGE (MANUAL) 3,990.00
002369 PRODUCTIVITY PACKAGE (ELECTRIC) 5,650.00
