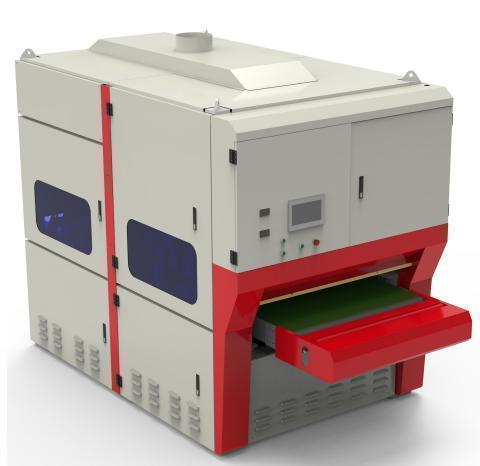

1 - NEW SMC DEBURRING MACHINE, MODEL #: SSD630

Brand
SMC

Model
SSD630

Type
Deburring Machines

Stock #
86501

Condition
New

Year
N/A

Request a Quote

Equipped With

Basic Parameter:
Structure Two sides sand belt and four edge rounding rollers, magnetic table
Working Width 630mm (24.8")
Configuration:
Working Width Range 10mm-630mm (0.4" -24.8")
Metal Piece Thickness  1mm-50mm (0.04"-1.97")
Minimum Piece Size 50mm*50mm*1mm (1.97" * 1.97" * 0.04")

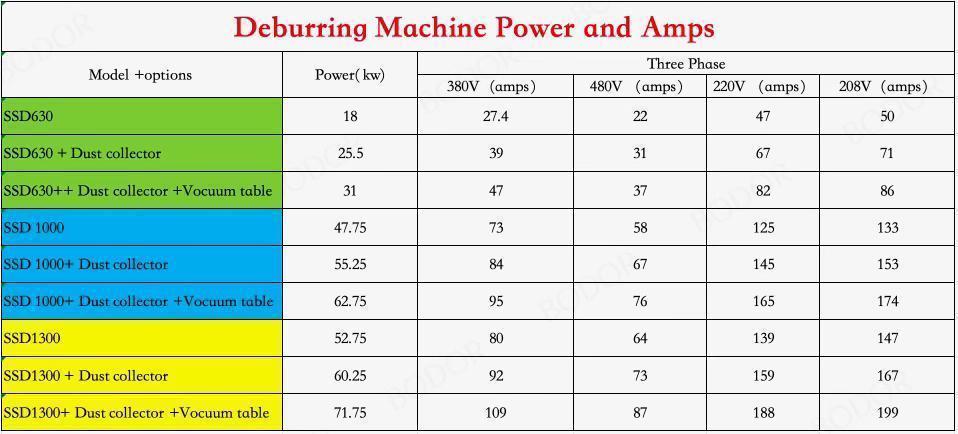

Total Power 18kw
Sand Belt Speed 1600r/min
Edge-Rounding Roller Speed (adjustable) 300-1400r/min
Conveyor Running Speed 1-5m/min
Repositioning Accuracy 0.02mm (0.00079")
Working Air Pressure  0.4kp-0.7kp
Control Mode Automatic(NON CNC)
Edge-Rounding Roller Size 280mm*50mm*40mm*12P (11.024" x 1.97" x 1.58")
Sand Belt Size 1640mm*640mm (64.57" x 25.20")
Conveyor Size 5760mm*630mm*7mm (226.77" x 24.80" x 0.28")
Machine Weight  1862kg (4105 lbs)
Machine Overall Dimensions 2600mm*1100mm*2000mm (102.36" x 43.31" x 78.74")

Optional Features:
Dust Collector (7.5kw): $6,500.00
Vacuum Table: $5,500.00
Transformer: $POR (depends on incoming voltage)
