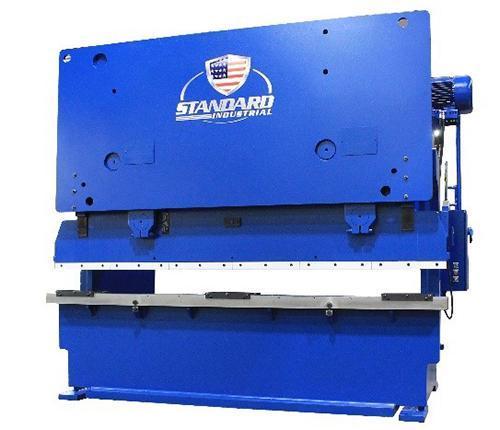

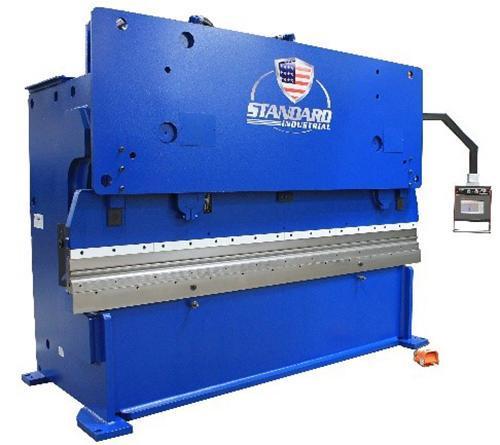

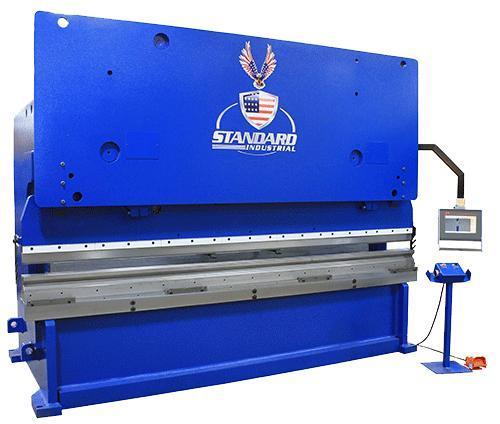

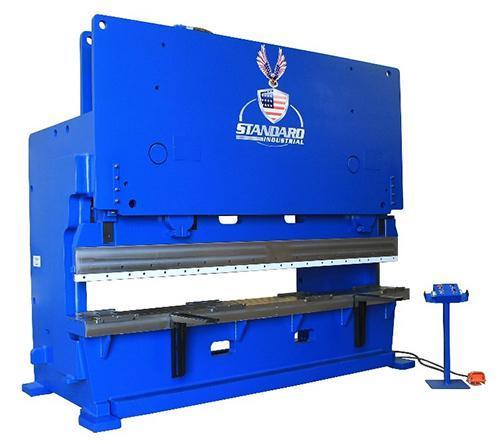

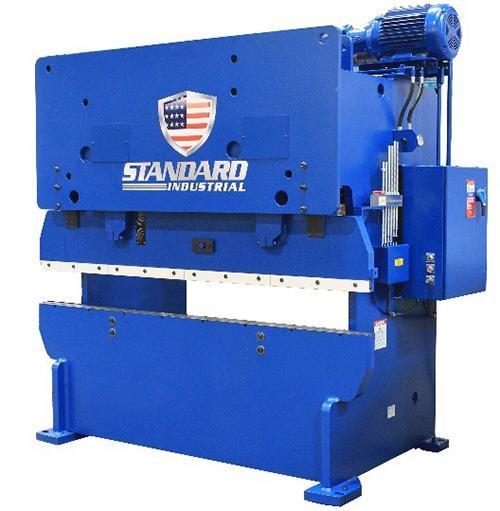

AB200-12 PRESS BRAKE

KEY SPECIFICATIONS:

• TONNAGE FORMING/PUNCHING: 200 / 133
• DISTANCE BETWEEN HOUSINGS: 10’-5”
• BED/RAM LENGTH: 12’
• BELOW GRADE: NO
• WEIGHT: 28,000 LBS
• TOP BED HEIGHT: 38”
• BED WIDTH: 5”
• THROAT DEPTH: 10”
• RAM STROKE: 8” (FULLY ADJUSTABLE)
• OPEN HEIGHT: 14” (MAXIMUM)
• CLOSED HEIGHT: 6” (MINIMUM)
• HORSEPOWER: 20
• RAM SPEEDS:
  • APPROACH: 109 INCHES PER MINUTE
  • PRESS: 25 INCHES PER MINUTE
  • RETURN: 175 INCHES PER MINUTE

FEATURES:

• GROOVE IN BED AND RAM CLAMPS FOR AMERICAN STYLE TOOLING
• PERFECT FOR FULL LENGTH AND OFF-CENTER LOADING APPLICATIONS
• FULL TONNAGE ACROSS BED AND RAM
• FULL TONNAGE THROUGHOUT STROKE
• SIMPLE MECHANICAL LIMIT SWITCHES CONTROL OPEN HEIGHT, SPEED CHANGE POINT, AND LOWER LIMIT/ANGLE OF THE BEND (CNC OPTIONAL)
• COUNTERBALANCE FOR PUNCHING APPLICATIONS
• UL508A COMPLIANT
• TYPICAL +, - .001” REPEATABILITY
• 5 YEAR PARTS WARRANTY + 5 YEAR LIMITED ONSITE LABOR WARRANTY
• LIFETIME TELEPHONE SUPPORT AT NO CHARGE
• (2) 24” WORK SUPPORT ARMS
• MANIFOLD CENTRALIZED LUBE SYSTEM
• HAND/FOOT SEQUENCE W/FOOTSWITCH
• T-SLOT ACROSS FRONT EDGE OF BRAKE BED

HIGHLIGHTS:

• PRECISION AND RELIABILITY: ACHIEVE HIGH PRECISION WITH TYPICAL +, - .001” REPEATABILITY.
• VERSATILITY: PERFECT FOR FULL LENGTH AND OFF-CENTER LOADING APPLICATIONS.
• SUPPORT AND WARRANTY: ENJOY PEACE OF MIND WITH A 5-YEAR PARTS WARRANTY, 5-YEAR LIMITED ONSITE LABOR WARRANTY, AND LIFETIME TELEPHONE SUPPORT AT NO CHARGE.
• COMPLIANCE: UL508A COMPLIANT FOR SAFETY AND RELIABILITY.

AB200-12 w/ features listed above for $102,200.00

(fob Clarksdale, MS)
