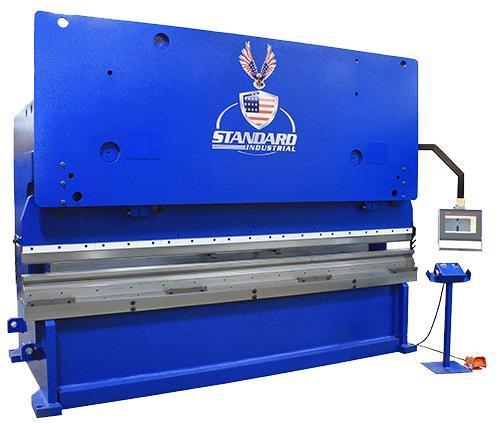

AB500-12 PRESS BRAKE

KEY SPECIFICATIONS:

• TONNAGE FORMING/PUNCHING: 500/330
• DISTANCE BETWEEN HOUSINGS: 10’-5”
• BED/RAM LENGTH: 12’
• WEIGHT: 75,000 LBS
• BED WIDTH: 14”
• BED HEIGHT: 38”
• OVERALL HEIGHT: 160”
• THROAT DEPTH: 10”
• RAM STROKE: 10” (FULLY ADJUSTABLE)
• OPEN HEIGHT: 20” (MAXIMUM)
• CLOSED HEIGHT: 10” (MINIMUM)
• HORSEPOWER: 50
• RAM SPEEDS:
  • APPROACH: 70 INCHES PER MINUTE
  • PRESS: 18 INCHES PER MINUTE
  • RETURN: 127 INCHES PER MINUTE

FEATURES:

• POWER RAM TILT
• GROOVE IN BED AND RAM CLAMPS FOR AMERICAN STYLE TOOLING
• PERFECT FOR FULL LENGTH AND OFF-CENTER LOADING APPLICATIONS
• FULL TONNAGE ACROSS BED AND RAM
• FULL TONNAGE THROUGHOUT STROKE
• SIMPLE LIMIT SWITCH RAM CONTROL (CNC OPTIONAL)
• COUNTERBALANCE FOR PUNCHING APPLICATIONS
• UL508A COMPLIANT
• TYPICAL +, - .001” REPEATABILITY
• 5 YEAR PARTS WARRANTY + 5 YEAR LIMITED ONSITE LABOR WARRANTY
• LIFETIME TELEPHONE SUPPORT AT NO CHARGE
• (2) 24” WORK SUPPORT ARMS
• MANIFOLD CENTRALIZED LUBE SYSTEM
• HAND/FOOT SEQUENCE W/FOOTSWITCH
• T-SLOT ACROSS FRONT EDGE OF BRAKE BED

HIGHLIGHTS:

• PRECISION AND RELIABILITY: ACHIEVE HIGH PRECISION WITH TYPICAL +, - .001” REPEATABILITY.
• VERSATILITY: PERFECT FOR FULL LENGTH AND OFF-CENTER LOADING APPLICATIONS.
• SUPPORT AND WARRANTY: ENJOY PEACE OF MIND WITH A 5-YEAR PARTS WARRANTY, 5-YEAR LIMITED ONSITE LABOR WARRANTY, AND LIFETIME TELEPHONE SUPPORT AT NO CHARGE.
• COMPLIANCE: UL508A COMPLIANT FOR SAFETY AND RELIABILITY.

AB500-12 w/features listed above for $240,000.00

(fob Clarksdale, MS)
