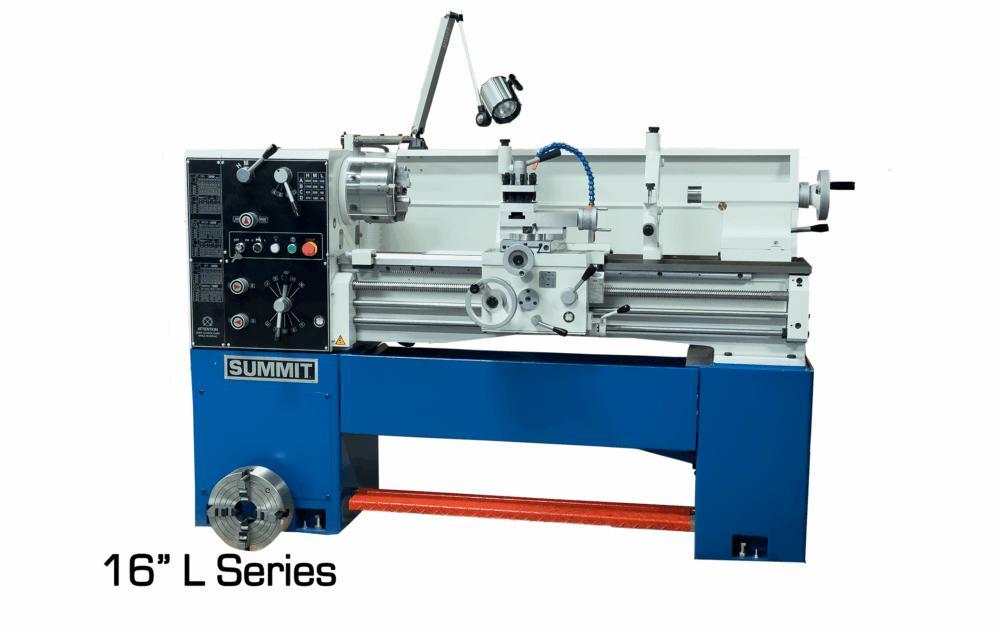

(1) NEW SUMMIT PRECISION ENGINE LATHE, MODEL #: 16-2 x 40L

SPECIFICATIONS
FILES & ATTACHMENTS

Equipped With

SPECIFICATIONS:
Capacities
Swing over bed                                     16”
Swing over cross slide                           10”
Swing over gap                                     21.75”
Length of gap in front of 4 jaw chuck       5”
Headstock
Spindle speeds (no.) range RPM            (12) 46-2000
Hole through spindle                             2.125”
Spindle nose                                         D1-6 Camlock
Headstock Spindle Reducer                   #4 MT
Quick Change Gearbox
Threads per inch (no.) range      (32)       4 - 56
Metric threads (no.) range          (32)       .4 - 7
Module threads (no.) range        (32)       ..2 – 3.5
Diametral Pitch (no.) range        (32)       8 – 120
Longitudinal feeds (no.) range    (32)       .0017” - .0242”
Cross feeds (no.) range             (32)       .0005” - .008”
Leadscrew (Dia) range               (1.187”)     4TPI
Carriage & Apron
Cross slide travel                                   8”
Compound rest travel                            3.75”
Tailstock
Travel of spindle barrel                          5”
Diameter of spindle barrel                      2”
Taper of center                                     #4 MT
Bed
Width of bed                                         10”
Hardness of bed (Rockwell C)                44 - 50
Motors
Main Drive                                            5 HP
Coolant pump                                       1/8 HP
Shipping Data
Overall width                                         34”
Overall height                                        60”
Overall length                                        82”
Weight                                                  2,112lbs

Electrics
220/440/3/60
Standard Features:
Big 2.125” thru hole
Single position bed stop
Automatic lubrication system
Inch/metric threads w/single switch lever
Cuts most inch/metric threads without change gears
Hardened & ground bedways
Forced lubrication to the headstock, carriage and bedways
Removable gap
Precision (3) bearing spindle
T Slotted Compound
Included Accessories:
Ø Steady Rest
Ø Follow Rest
Ø Thread Dial
Ø Coolant System
Ø 8” 3 Jaw Chuck
Ø 10” 4 Jaw Chuck
Ø Chuck Guard
Ø 4 Position Tool Post
Ø Carriage Stop
Ø Work Light
Ø Full Length Splash Guard
Ø Foot Brake

NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
Options:
Taper Attachment                                  $1,000
10” Steel Body 3-Jaw Precision Chuck w/2 Piece Reversible Jaws in Lieu of Standard Chuck                                 $2,200
15 ¾” Semi-steel 4 Jaw Chuck               $3,800
15 ¾” Steel Body 4 Jaw Chuck w/2 Piece Reversible Jaws                 $4,500
Aloris Quick ChangeTool Post w/Holders (2#1, 2#2)                           $1,300
Newall 2 Axis Digital Readout Installed   $3,500
Hand Wheel Operated 5C Collet Closer Installed                   $2,000
**Installation Assistance                        TBD
DELIVERY:
SUBJECT TO STOCK
