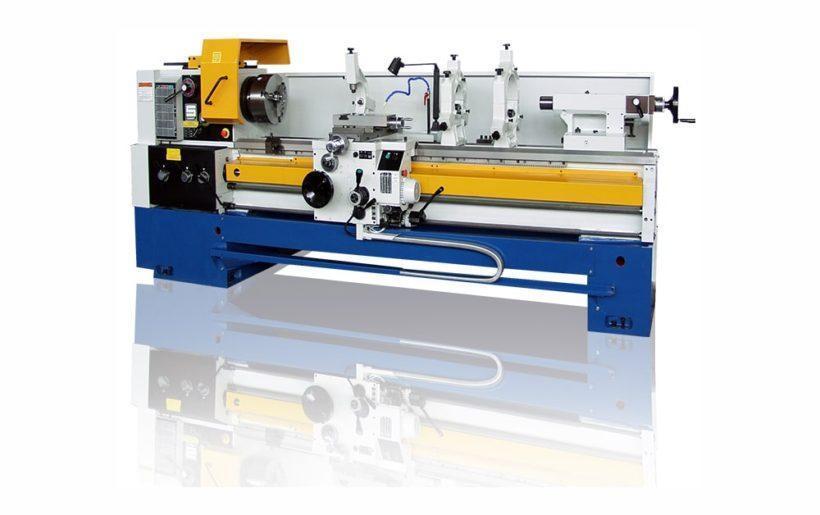

SPECIFICATIONS:
Capacities:
Swing over bed 22”
Swing over cross slide 12 ½”
Swing over gap 32”
Length of gap 16”
Length of gap in front of 4 jaw chuck 8”
Workpiece Weights:
At the headstock 550 lbs.
Between centers 1,320 lbs.
Between centers s/ steady rest 4,400 lbs.

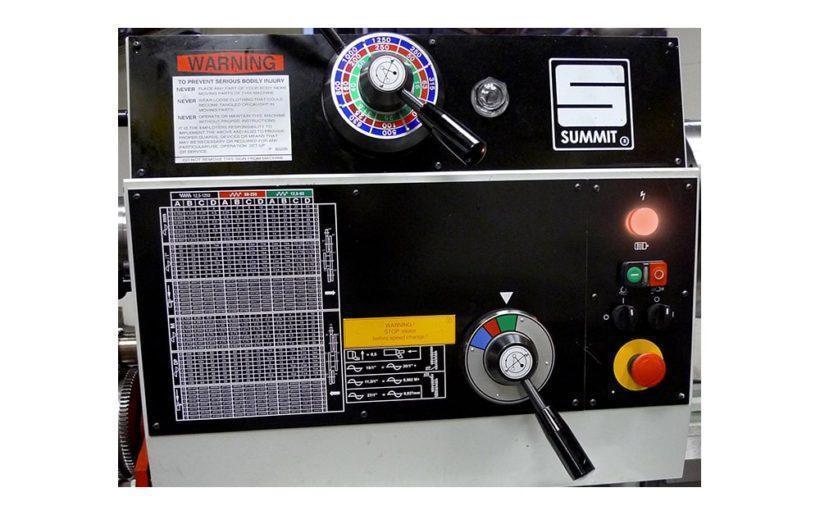

Headstock:
Spindle speeds (no.) range RPM (12) 35 – 1250
Hole through spindle 4 1/8”
Spindle nose D1-8 Camlock
Headstock Center #5 MT
Quick Change Gearbox:
Threads per inch (no.) range (36) 2 - 28
Metric threads (no.) range (65) .8 - 14
Module threads (no.) range (22) .5 - 7
Diametral Pitch (no.) range (36) 4 - 56
Longitudinal feeds (no.) range (23) .001” - .027”
Cross feeds (no.) range (23) .0005” - .0135”
Leadscrew (Dia) range (1 ¾”) 2 TPI
Feed rod diameter 1 ¼”

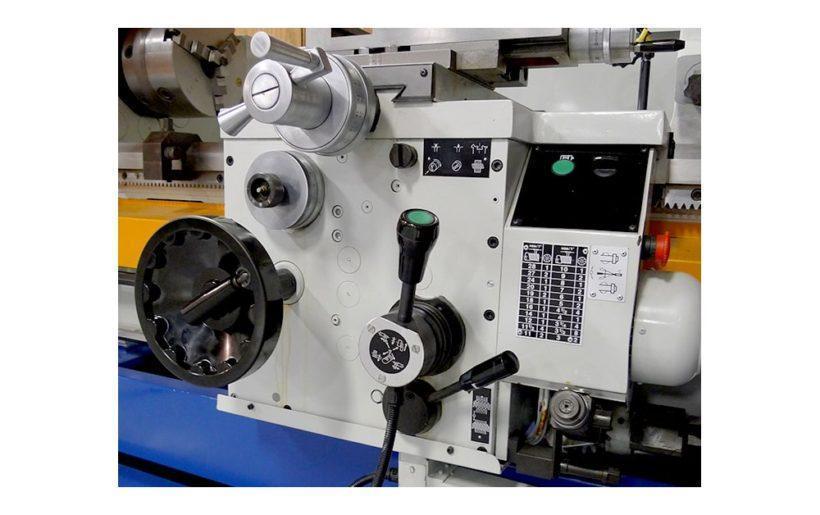

Carriage & Apron:
Cross Slide Travel 14 ¾”
Compound rest travel 10”
Graduation of apron handwheel .010
Graduation of cross slide handwheel .001
Tailstock:
Travel of spindle barrel 6 ½”
Diameter of spindle barrel 3”
Taper of center #5 MT
Bed:
Width of bed 16”
Depth of bed 16 ¼”
Hardness of bed (Rockwell C) 44 - 50
Taper Attachment:
Degrees of taper +/- 10 Degrees
Maximum turning length per setting 16”
Motors:
Main Drive 15 HP
Coolant pump ¼ HP
Steady and Follow Rest:
Steady rest ½” – 8 ¼”
Follow rest 3/8” – 3”
Shipping Data:
Overall width 58”
Overall height 68”
Overall length 183”
Weight 8,800 lbs
Electrics:
220/440/3/60
FEATURES:
* Big 4 1/8” thru hole
* Inch/metric threads w/single switch lever
* Cuts most inch/metric threads without change gears
* Hardened & ground bedways
* Force lubrication to the headstock, carriage and bedways
* Mechanical disc clutch
* Removable gap
* Precision (3) bearing spindle
* Feed reversing at the apron
* 4-way rapid traverse
* Single lever control for feeds and rapids
* Two Speed Tailstock
Included Accessories:
➢ Standard Steady Rest
➢ Follow Rest
➢ Thread Dial
➢ Coolant System
➢ Taper Attachment
➢ 12” 3 Jaw Chuck w/2 Piece Jaws
➢ 15 ¾” 4 Jaw Chuck
➢ Carriage Stop
➢ Work Light
➢ Full Length Splash Guard
NOTES:SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
* 12” Steel Body Precision Chuck w/2 Piece Jaws in Lieu of Standard Chuck: $2,600.00
* 20” Semi-steel 4 Jaw Chuck: $6,000.00
* 20” Steel Body 4 Jaw Chuck w/2 Piece Reversible Jaws: $7,000.00
* Aloris Quick Change Tool Post w/Holders (2#1, 2#2): $1,400.00
* Fagor 2 Axis Digital Readout Installed: $4,550.00
**Installation Assistance TBD
(**Installation Assistance: Installation assistance is defined as the services provided by a Summit Technician to assist the buyer’s riggers, millwrights and maintenance personnel in setting in place, rough leveling, anchoring and erecting the subject Summit machine. The machine will then be put under power and all machine functions will be tested by the Summit Technician. Final leveling will be completed by the Summit technician after machine functions are verified.
The charges for installation assistance include all labor, travel and lodging expenses incurred by the Summit Technician(s).
INSTALLATION ASSISTANCE DOES NOT INCLUDE RIGGING, FOUNDATION PREPARATION (INCLUDING CORE HOLE DRILLING), BRINGING POWER TO THE MACHINE, EXTENSIVE PROGRAMMER TRAINING OR ANY REQUIRED LUBRICATION AND HYDRAULIC FLUIDS.
Installation Assistance includes basic operator and maintenance training to insure safe and trouble free operation of the subject Summit machine.)
DELIVERY:
SUBJECT TO STOCK
