Specifications:

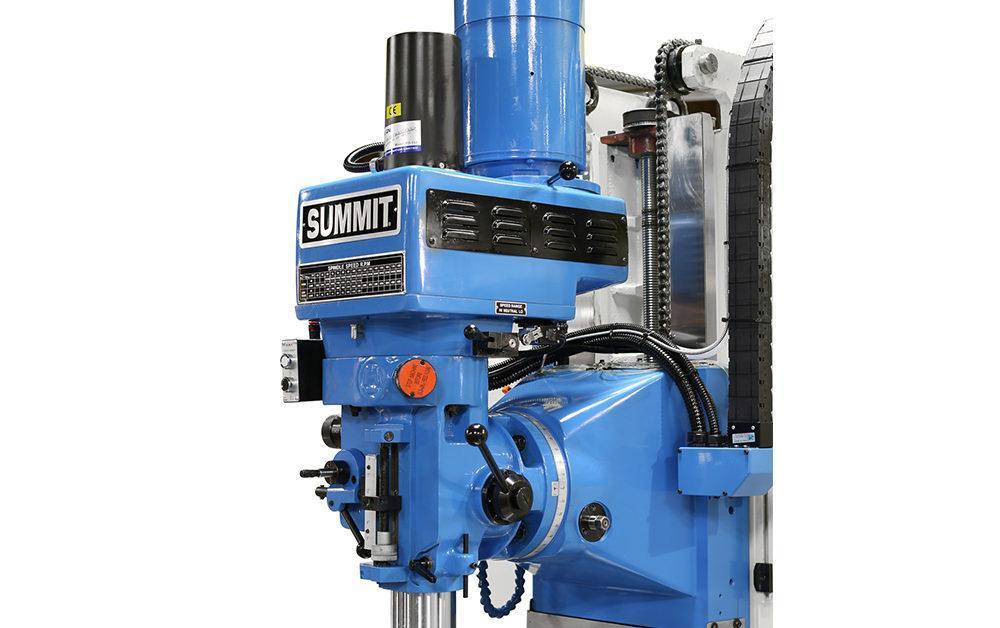

Vertical Head:
Motor Size: 7.5 HP
Number of Spindle Speeds: Inf. Variable
Speed Range (RPM): 0 – 3650
Vertical Travel (Z Axis): 23.6”
Feed Range: Infinitely Variable
Feed Rate: 0 – 43.7 IPM
Head Movement Side to Side: +/- 90°
Spindle Nose to Table: 2.5” – 30”
Spindle Nose to Column: 23.62”
Spindle Taper: #40
Quill Traverse: 5 1/2”
Quill Feed: .0016 - .0031 - .0059 IPR

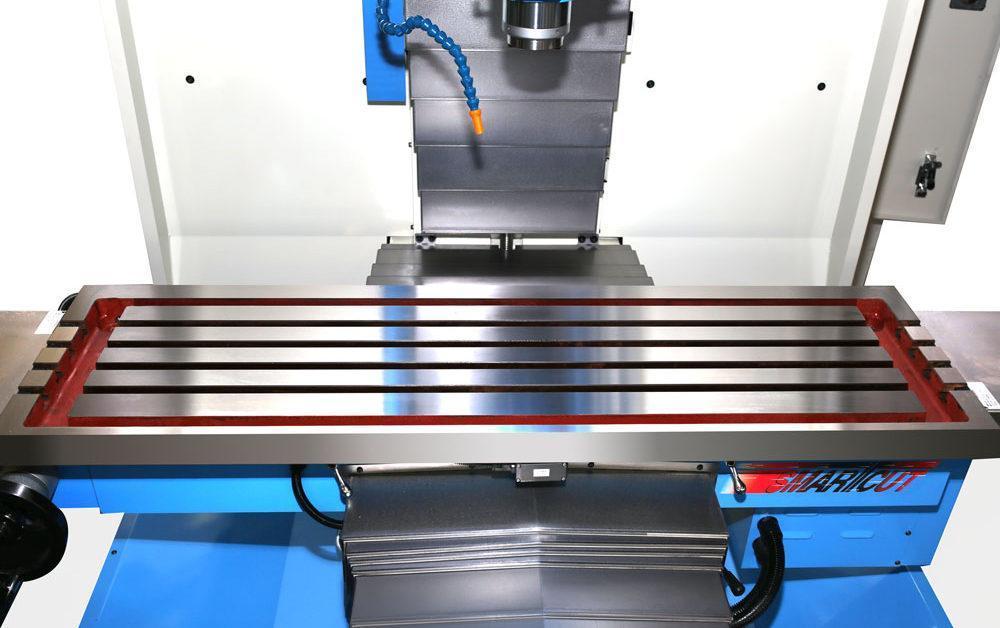

Table:
Table Size: 16.9”x60”x3 1/8”
Maximum Weight of Workpiece: 2,200 lbs.
Table Longitudinal Feed (X Axis): 51.1”
Saddle Cross Feed (Y Axis): 23.62”
Feed Rate: 0 – 43.7 IPM
Miscellaneous:
Weight: 6,500 lbs.
Electrics: 220/3/60
Standard Features:
➢ Heavy Meehanite Cast Iron Construction
➢ Huge Box Ways on Bed
➢ “Turcite – B” Inserted Guideways
➢ Double Table Locks
➢ Wipers on Saddle and Column
➢ Head Swivels Left and Right
➢ Built in Coolant Syste
➢ Automatic Lubrication
➢ Precision ground ball- screws X, Y and Z Axis
➢ Complete Electrics with Low Voltage Controls
➢ Inverter Duty, High Energy – High Efficiency Motors
➢ Compact AC Inverter Spindle Drive
➢ AC Servos and Drives
➢ Electronic Inverter Controlled Braking

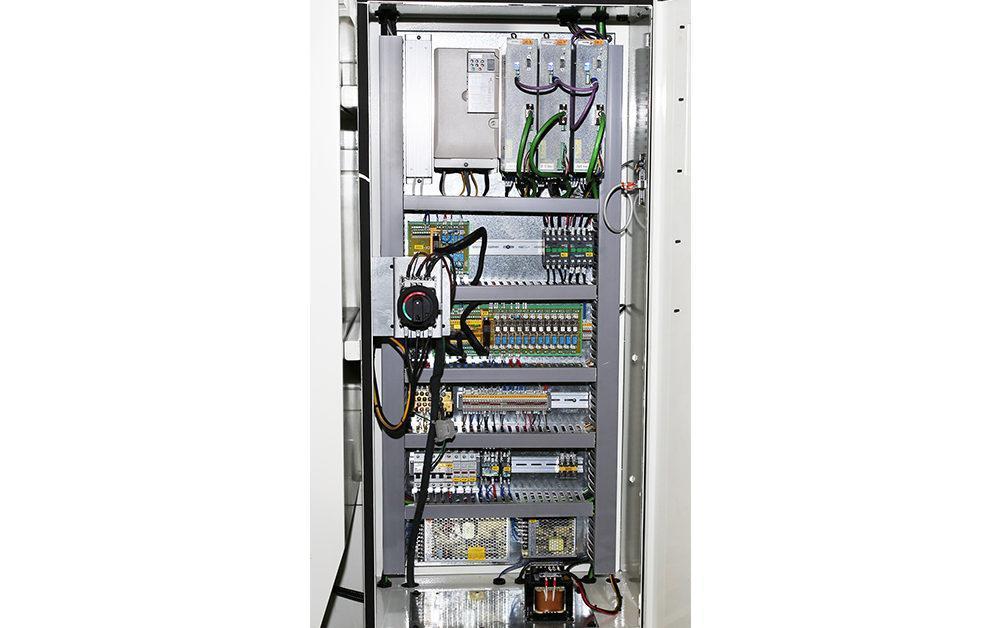

➢ Fan Cooled Electrical Enclosure
Included Accessories:
➢ Oil Gun
➢ Clamping Kit
➢ Anchor Bolts
➢ Power Draw Bar
➢ Open End Wrench Set
➢ Box End Wrench Set
➢ Hex Key Wrench Set
➢ Way Covers
➢ Halogen Work Light
➢ Air Operated Power Draw Bar
Option:
➢ Newall 3 Axis Digital Readout Installed $6,500.00
➢ 440 Volt Electrics $1,000.00
