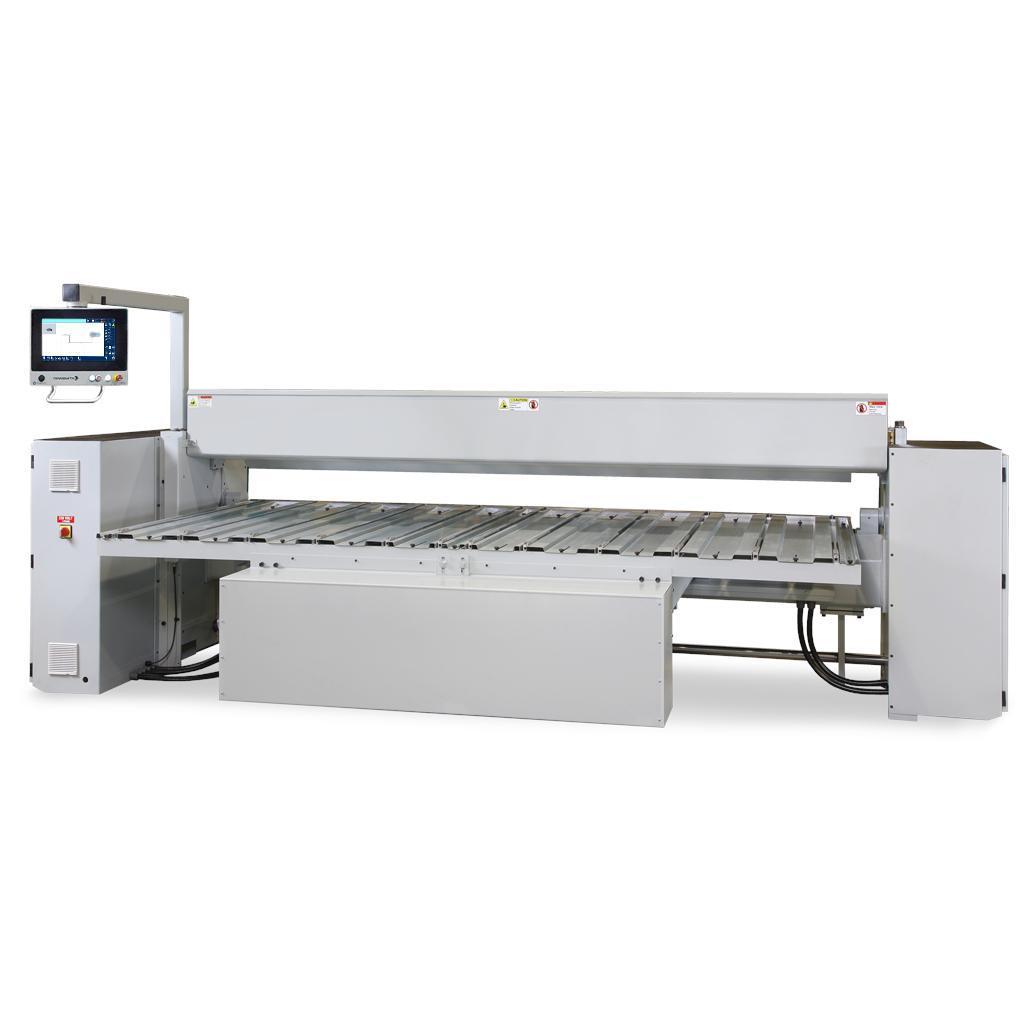

1 – NEW TENNSMITH 126″ X 14 GA STRAIGHT FOLDING MACHINE, MODEL #: SBS126-14-60

SPECIFICATIONS
FILES & ATTACHMENTS

Bending Capacity (Mild Steel)	14 Ga.
Bending Capacity (Stainless)	16 Ga.
Bending Length	126 inches
Bending Bars	1 " bending bar x 126" / 7/16" bending bar x 126"
Crowning of the Folding Beam	3-Point 0”-0.030” Adjustment
Folding Beam Adjustment	1 inches
Clamping Beam Opening Height	7 inches
Clamping Beam Tooling	30°
Back gauge Depth (Standard)	61 inches
Working Height	34 inches
Back Gauge Motor	3/4 hp
Clamping Beam Motor	2 hp / 1.5 kw
Bending Beam Motor	2 + 2hp / 3 kw
Machine Dimensions	180" x 96" x 72"
Machine Weight	9020 pounds
Shipping Weight	9450 pounds
Clamping Beam Speed	2.5” per second
Folding Beam Speed	80° per second
Back gauge Speed (0.375” to 41”)	5 seconds

Equipped With

Control Features:
• SBS126-14 with SYNERGY Control and 61” back gauge
• Windows 8.1 imbedded industry pro.
• Automatic sequencing of the part that is drawn.
• Possibility of saving programs in folders and subfolders.
• 3D Part display.
• Part simulation to verify bends sequence, material handling and collisions.
• A search function is used to make it easier to identify a part.
• Calculates the stretch out of the part.
• Export of programs, library materials and back up to USB stick.
• The actual values of the axis are shown on the display, as well as the motion of the machine in real time.
• There are 3 different hems: Open Closed or Tear Drop.
• Capable of importing DXF files.
• Konstruct offline programming
• Konnect online service and operator assistance.
• Accepts Eagleview® files
Optional Features:

Tooling 126-14
	786120607	126-14 Folding Beam Rail (0.250” /6mm)	$2,022.00
	783020067	126-14 - 20 Degree Upper Clamping Beam Rail	$2,150.00
	783020067	126-14 - 45 Degree Upper Clamping Beam Rail	$2,150.00
	783990004	126-14 Radius Upper Clamping Beam Rail 1/16^th”	$3,419.00
Safety Enhancements 126-14
	286940040	10’ Light Curtain System	$6,750.00
	260009714	10’ Laser Scanner	$14,200.00
	260009669	Second Operator Foot Pedal	$2,400.00
	660092132	Rear Operator Foot Pedal	$2,800.00
Training & Service
	899011016	126-14Installation & Training 2 days Pacific Time Zone	$6,800.00
	899021016	126-14 Install & Training 2 days Cont. US East/Mountain Time Zone	$5,200.00
	899031016	126-14 Installation & Training 2 days Continental US Central Time Zone	$4,800.00
	899041016	126-14 Installation & Training 2 Days Canada	$9,500.00
	899051016	126-14 Installation & Training 2 days Alaska & Hawaii	$9,500.00

	660193237	18.5 Inch Touch Screen Monitor Upgrade	$2,000.00
	660000642	Synergy Offline Programming 1 Seat	$1,150.00
	660000641	Konstruct Software	$1,700.00
	660000639	Konstruct Mobile Software Package	$575.00/yr.

Delivery:
Approx. 2-3 Weeks

Files

Tennsmith SBS126-14.pdf
