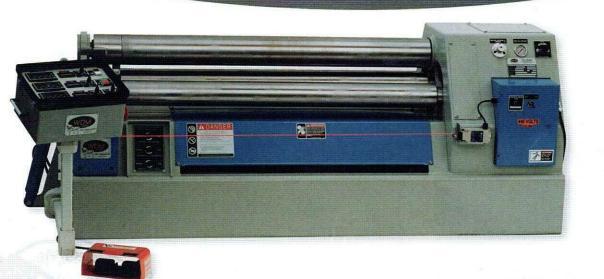

SPECIFICATIONS:
NOMINAL ROLL DIAMETER -------------------- 10"
RATED ROLLING CAP. (MILD STEEL) ---------- 0.41” mild steel plate to 40” diameter x 8' wide
MOTOR ------------------------------------ 10 HP
VOLTAGE ---------------------------------- 230/460/3PH TEFC
APPROXIMATE WEIGHT ----------------------- 14,200 LBS
FEATURES:
• 1045 carbon rolls
• Hydraulic driven roll which provides instant start, stop, and reverse
• NEMA 12 control cabinet with fused control transformer
• Electrics meet NFPA 79 specifications
• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Electronic overload protection
• Two roll drive
• SKF spherical roller bearings on all main bearings
• LSHT type hydraulic drive motor with high volumetric and overall efficiency
• Infinitely variable speed from 0-22 FPM
• Safety cable around perimeter of machine
• Beta 4 roving pendant control. Push button control of main functions and 3 digital readouts to show the position of the 3 lower rolls.
• Rolls driven through planetary or spur gear type speed reducers with brake(s)
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
• Cone Attachment
• Hardened and Polished Rolls
• Pinch Roll Trim
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
• Cone Attachment - $2,150
• Heavy Duty Cone Attachment - $4,000
• Hardened Only Rolls - $10,400
• Hardened and Polished Rolls - $18,950
• Pinch Roll Trim - $3,300
• Circular Grooves 3/8, 1/2, 5/8 - $1,000
• Starting Groove - $450
• Side Support Each - $9,050
• Overhead Support 12' Max - $10,000
• Pre 4.2 Control - $12,650
• Auto 4.2 Control - $29,100
DELIVERY:
4-6 Weeks
