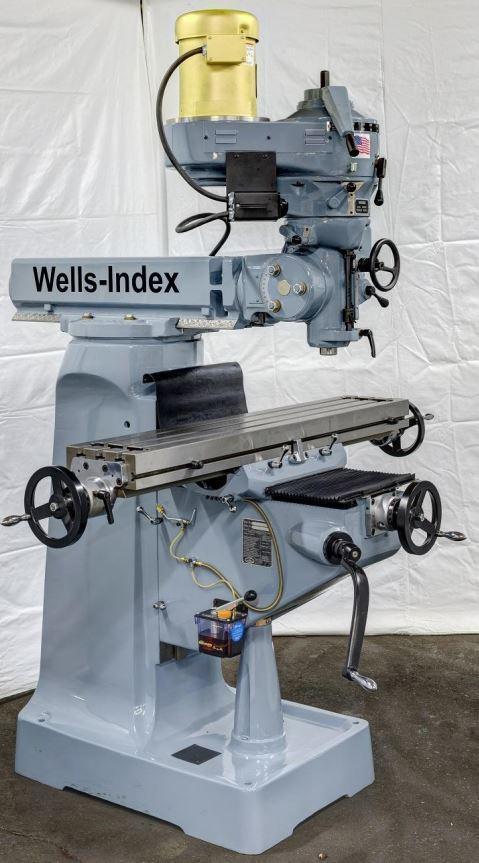

1 – NEW WELLS INDEX MILL, MODEL #: 747 | Smith Machinery Company, Inc.

SPECIFICATIONS
FILES & ATTACHMENTS

Size Overall	9" x 49"
T-Slots Number	3
T-Slot Size	0.625 inches
Distance Between	2.5 inches
Dial Graduations	0.001 inches
Longitudinal	34 inches
Cross	12.5 inches
Vertical Knee	17.2 inches
Center of Table to Column Face - Max	17.5 inches
Center of Table to Column Face - Min	5 inches
Quill Travel	5.25 inches
Head Tilt - Forward & Backward	45°
Head Rotation - Side to Side	90°
Turret Rotation on Column	360°
Spindle Nose to Top of Table - Max	18.2 inches
Spindle Nose to Top of Table - Min	1.0 inches
Center of Spindle to Column Face - Max	23.0 inches
Center of Spindle to Column Face - Min	7.25 inches
Spindle Taper (uses drawbar)	R-8 or 30 NMTB
Spindle Rotation	Forward and Reverse
Spindle Motor (continuous duty)	3 HP
Spindle Speeds - Infinitely Variable	Back Gears: 50-525 RPM, Direct Drive: 400-4,200 RPM
Quill Feeds (3) - Per Spindle Revolution	.0015”, 0.003”, 0.006”

Equipped With

FEATURES:

The Model 747-2 is a massive, rigid machine made from high tensile strength close grained cast iron. The Model 747-2 is assembled in the USA and inspected in every area to provide years of optimum performance at lower cost.

The ram, turret, column, knee, saddle and table have cross ribbing to insure maximum stiffness. All joints are accurately machined and hand scraped to provide accurate mating and insure the close tolerances for which this machine was built.

In addition, each joint (table to saddle, saddle to knee, and knee to column) is provided with an adjustable gib to insure long life and accuracy.

A few of the standard features on the Model 747-2 included at no extra cost are:

A. Power feed on the vertical quill. Available at all spindle speeds and rated for a 5/8” drill.

B. A one-shot lubrication system.

C. Hardened and ground ways

D. Way covers.

E. Precision Acme lead screws and nuts

F. 3HP continuous duty spindle drive motor.
EQUIPPED WITH:
* Way Covers
* One Shot Lube
* 3 HP Baldor Motor

OPTIONAL FEATURES:

* 1 ea. Acu-Rite DRO200 2 Axis digital readout system: $2,875.00

* Add third axis to quill or knee: $793.75

* 1 ea. Newall DP700 2 Axis digital readout system: $2,368.75

* Add third axis to quill or knee: $743.75

* 1 ea. Fagor 20iM 2 Axis digital readout system: $1,868.75

* Add third axis to quill or knee: $743.75

* 1 ea. 101-501-101 Table Power Feed Type 150: $1,437.50

* 1ea. 101-502-101 Saddle Power Feed Type 150: $1,437.50

* 1 ea. 101-504-101 Knee Power Feed Type 200: $1,677.50

* 1 ea. Power Drawbar: $1,122.50

* 1 ea. 5HP Vector Drive Technology: $1,695.00

* 1 ea. 4” Riser Block: $806.25

* 1 ea. 6” Riser Block: $872.50

* 1 ea. 8” Riser Block: $975.00

* 1 ea. Chip pan flood coolant: $1,497.50

* 1 ea. Micro Drop Coolant System, Double Line 110V: $2,156.25

* 1 ea. Flexible Arm Machine Lamp, Model “M”: $73.75

* 1 ea. ACU-RITE MillPWR G2 Control, with (3) axis CNC/3 axis DRO control on the table, saddle, and knee (X & Y & Z), installed: $28,997.00
