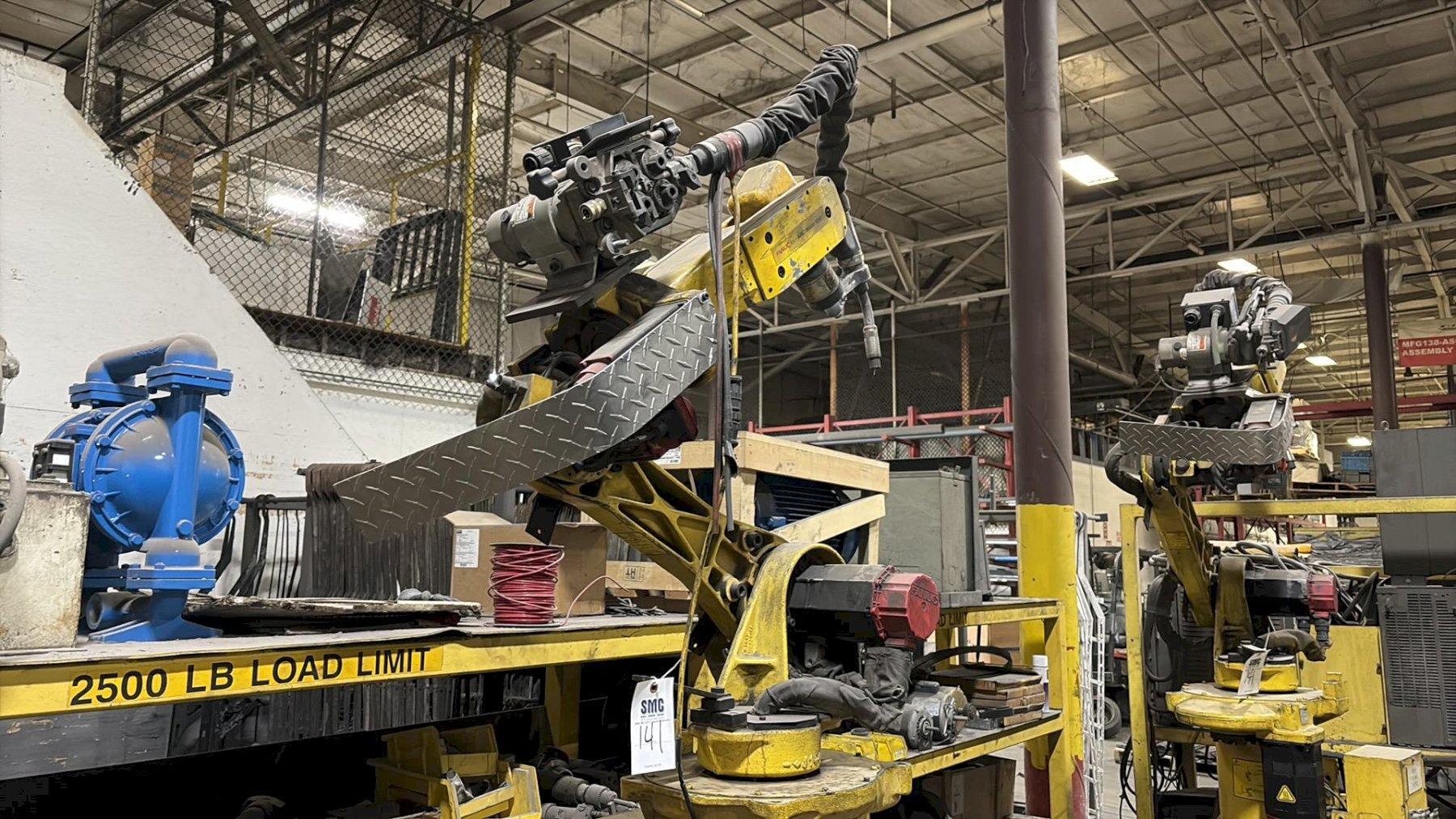

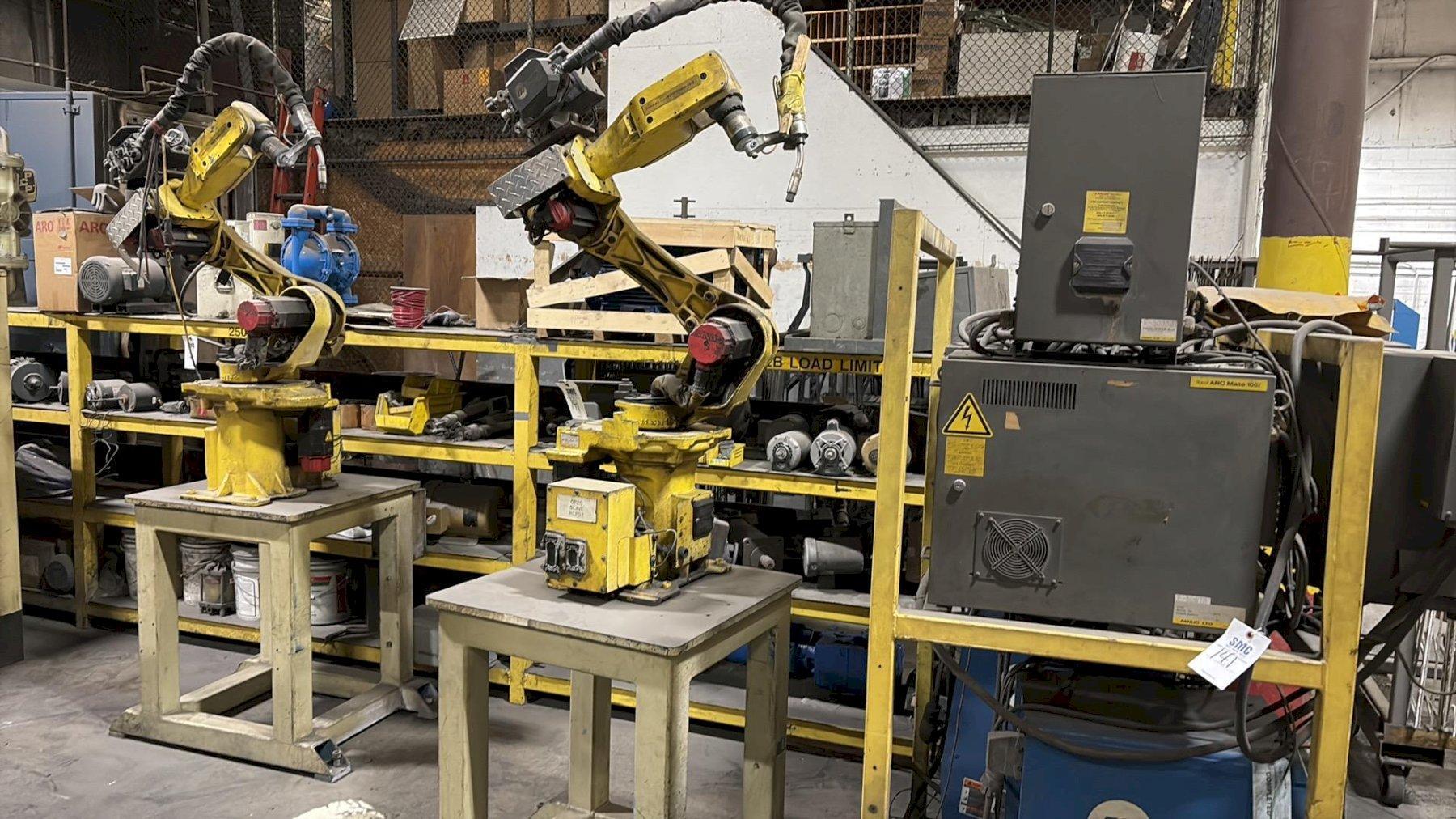

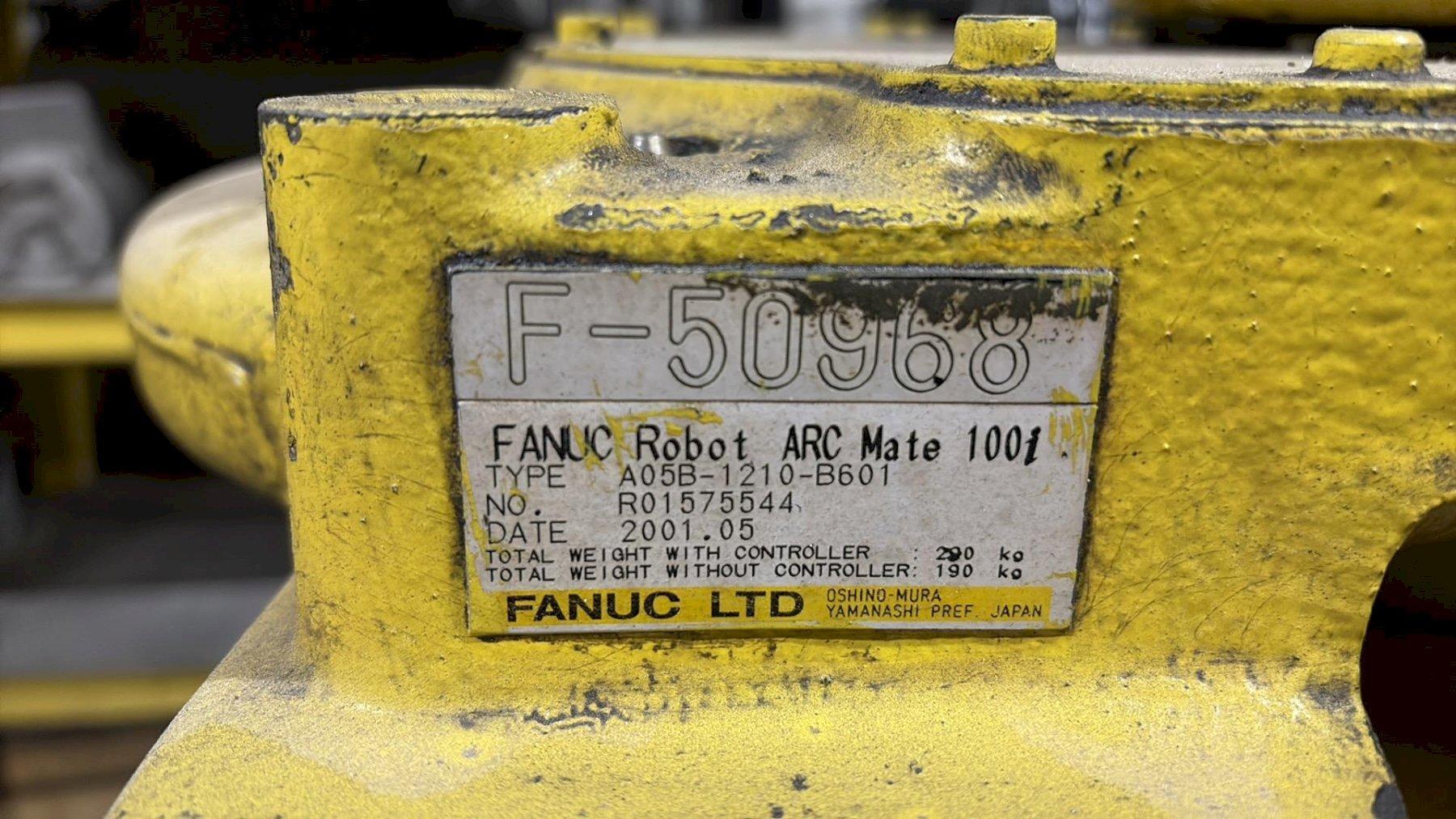

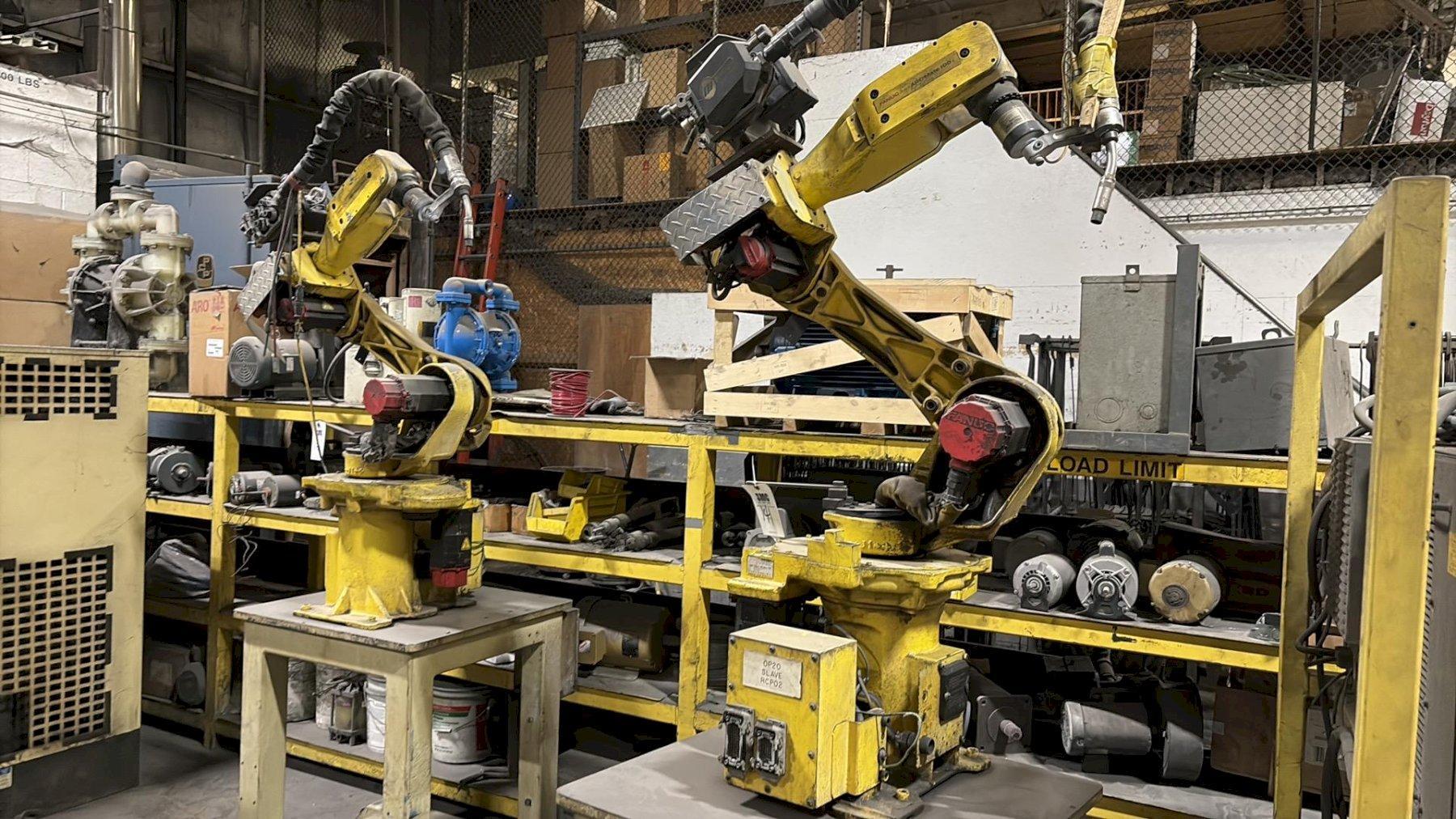

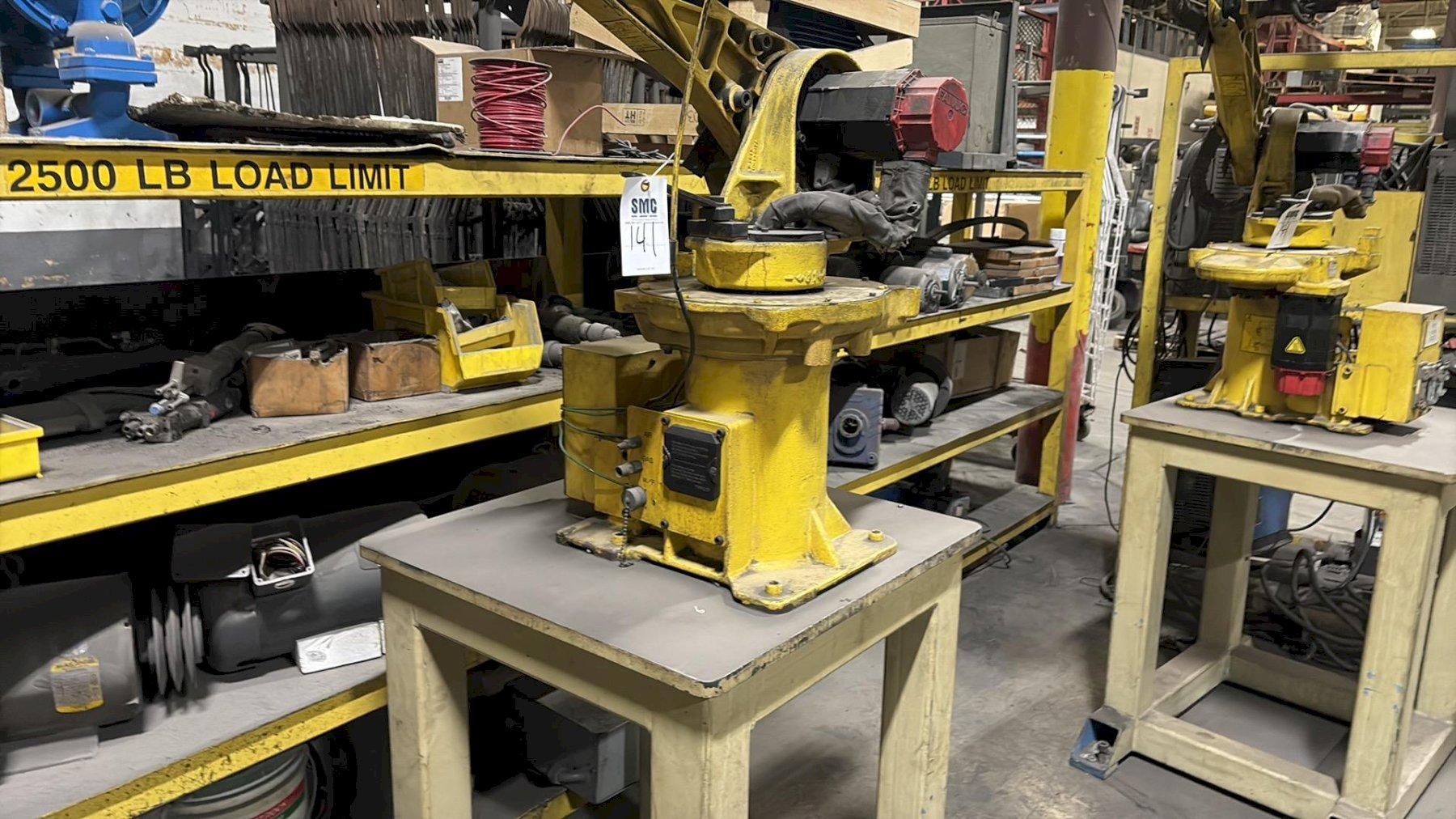

Robot: FANUC ARC Mate 100i

• Axes: 6

• Payload: 6 kg (13.2 lbs)

• Horizontal Reach: 1368 mm (53.9 inches)

• Repeatability: ±0.1 mm

• Robot Mass: 290 kg (639 lbs)

• Structure: Articulated

• Mounting Options: Floor, Inverted, or Angle

• Motion Speed:

  • J1: 120°/s

  • J2: 120°/s

  • J3: 120°/s

  • J4: 360°/s

  • J5: 360°/s

  • J6: 450°/s

• Motion Range:

  • J1: ±165°

  • J2: +135° to -75°

  • J3: +150° to -149°

  • J4: ±190°

  • J5: ±140°

  • J6: ±320°

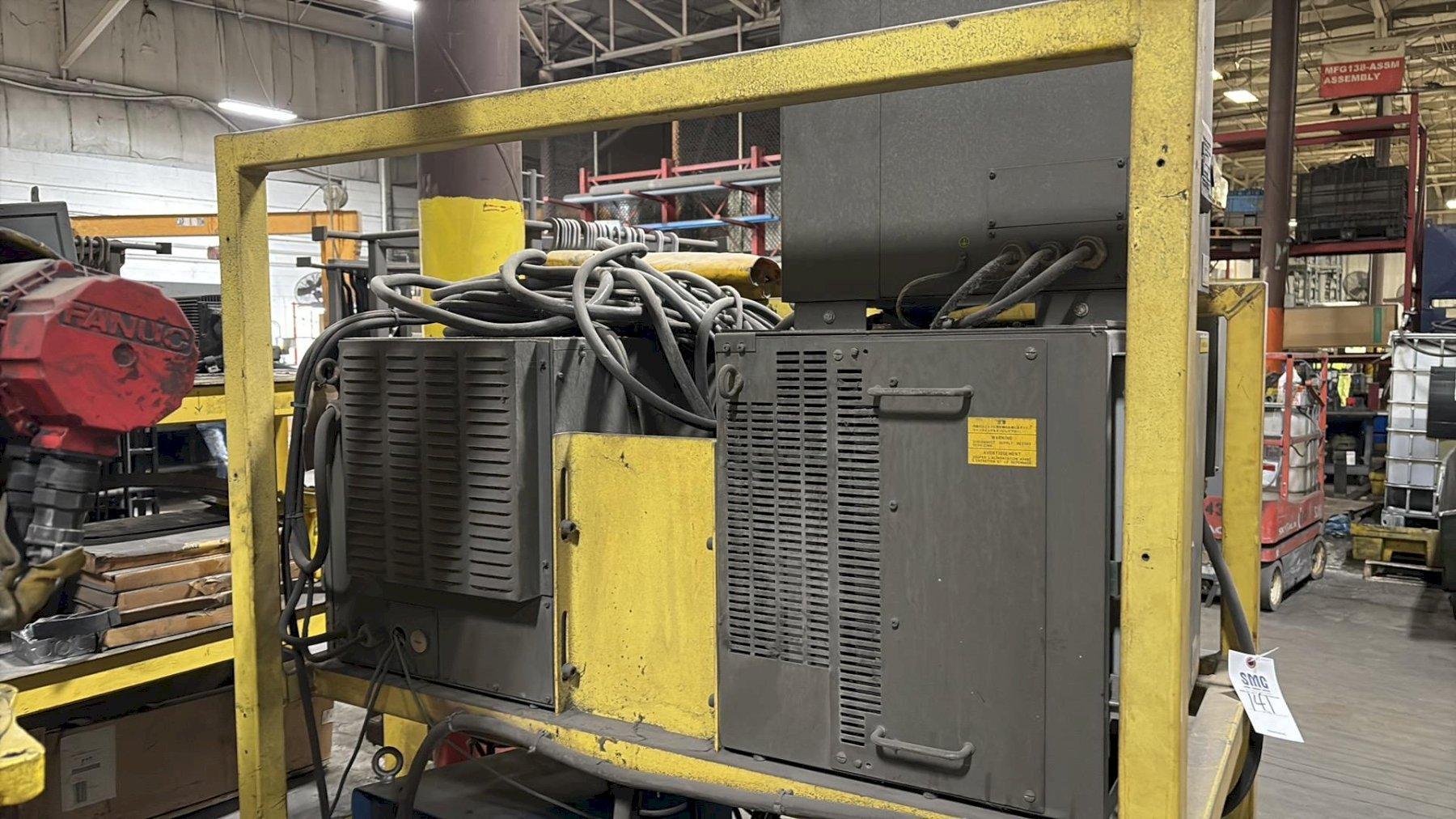

Controller: FANUC System R-J3

• Power Supply: Three-phase, 200-575 VAC ±10%, 50/60Hz ±1Hz

• Controlled Axes: Supports up to 16 axes across three motion groups

• CPU: 32-bit dual processor architecture with real-time clock/calendar

• Communication: Built-in Ethernet (10BaseT), FTP support, and three RS-232 ports (one configurable as RS-422)

• Teach Pendant: Ergonomically designed, lightweight, with a back-lit LCD display

• Operating Environment:

  • Ambient Temperature: 0-45°C

  • Humidity: 75% RH or less (non-condensing)

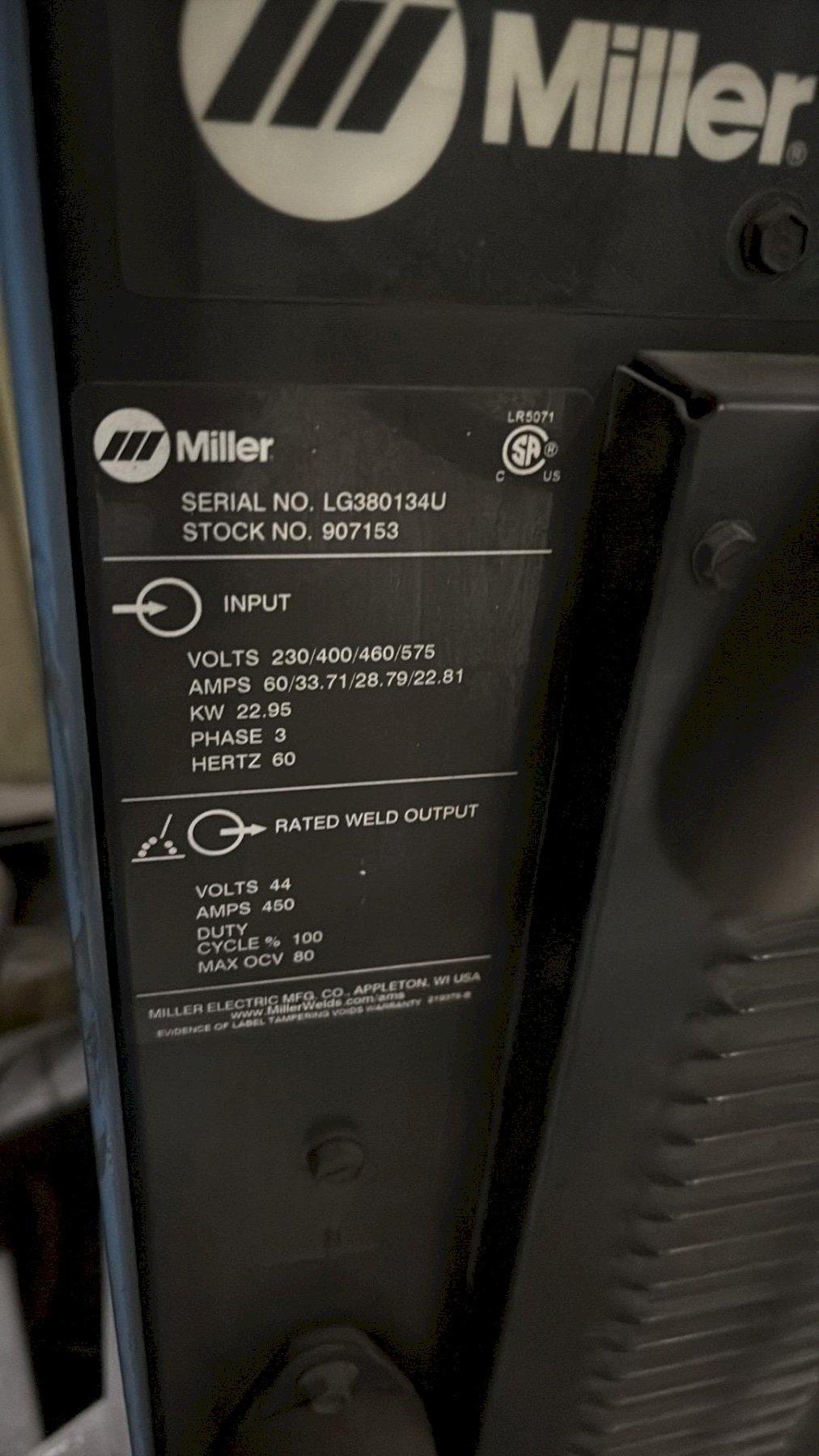

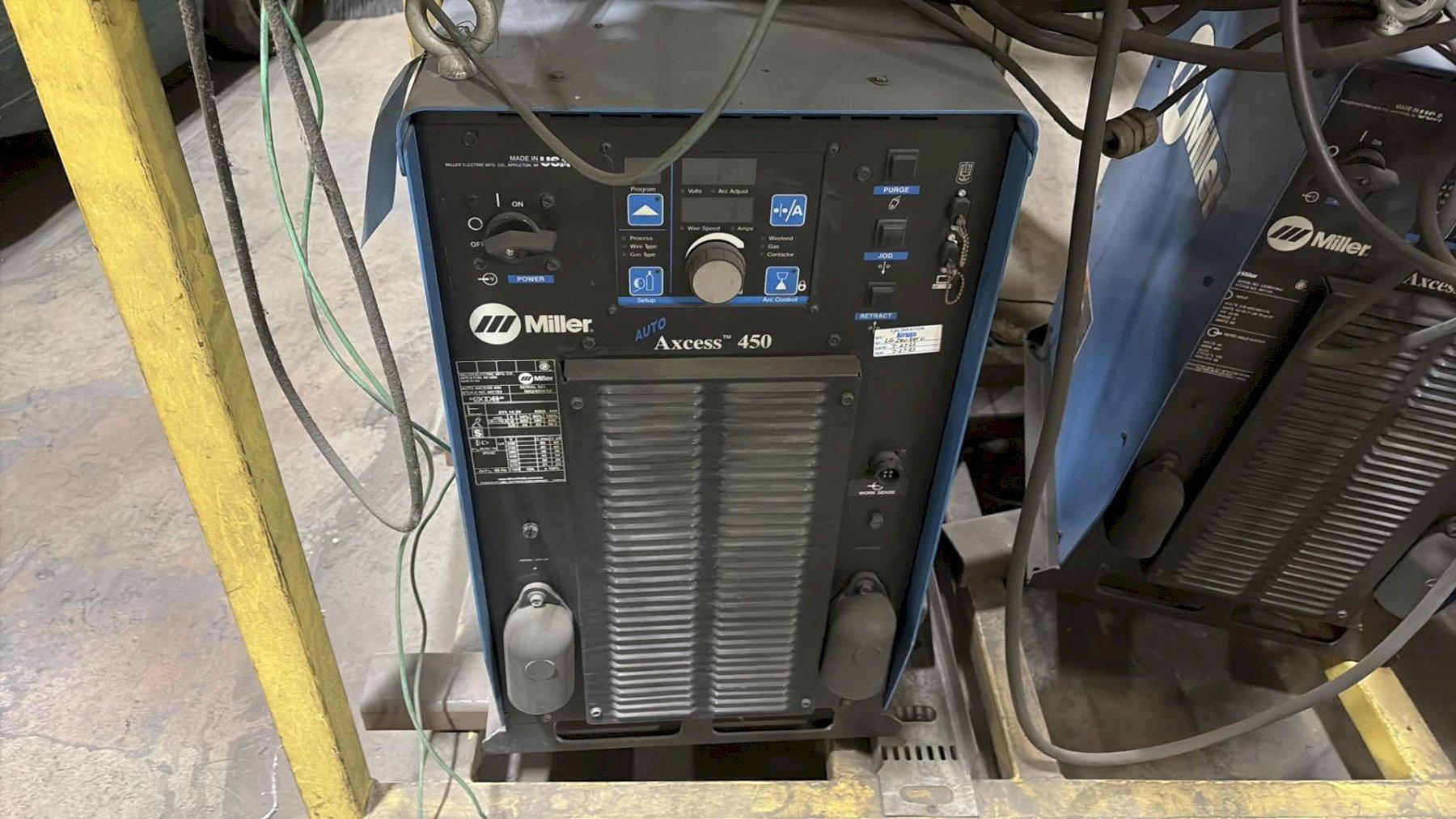

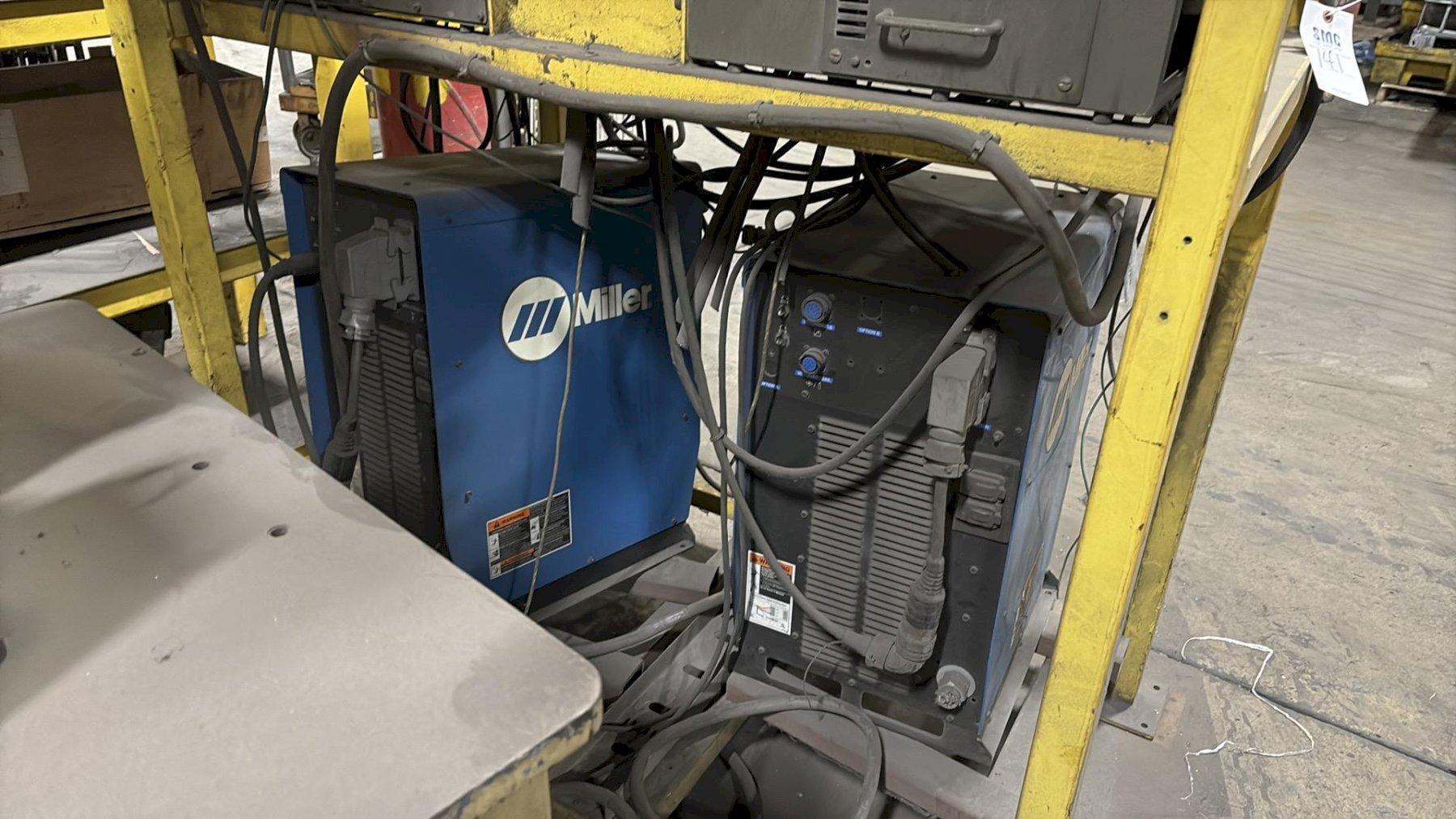

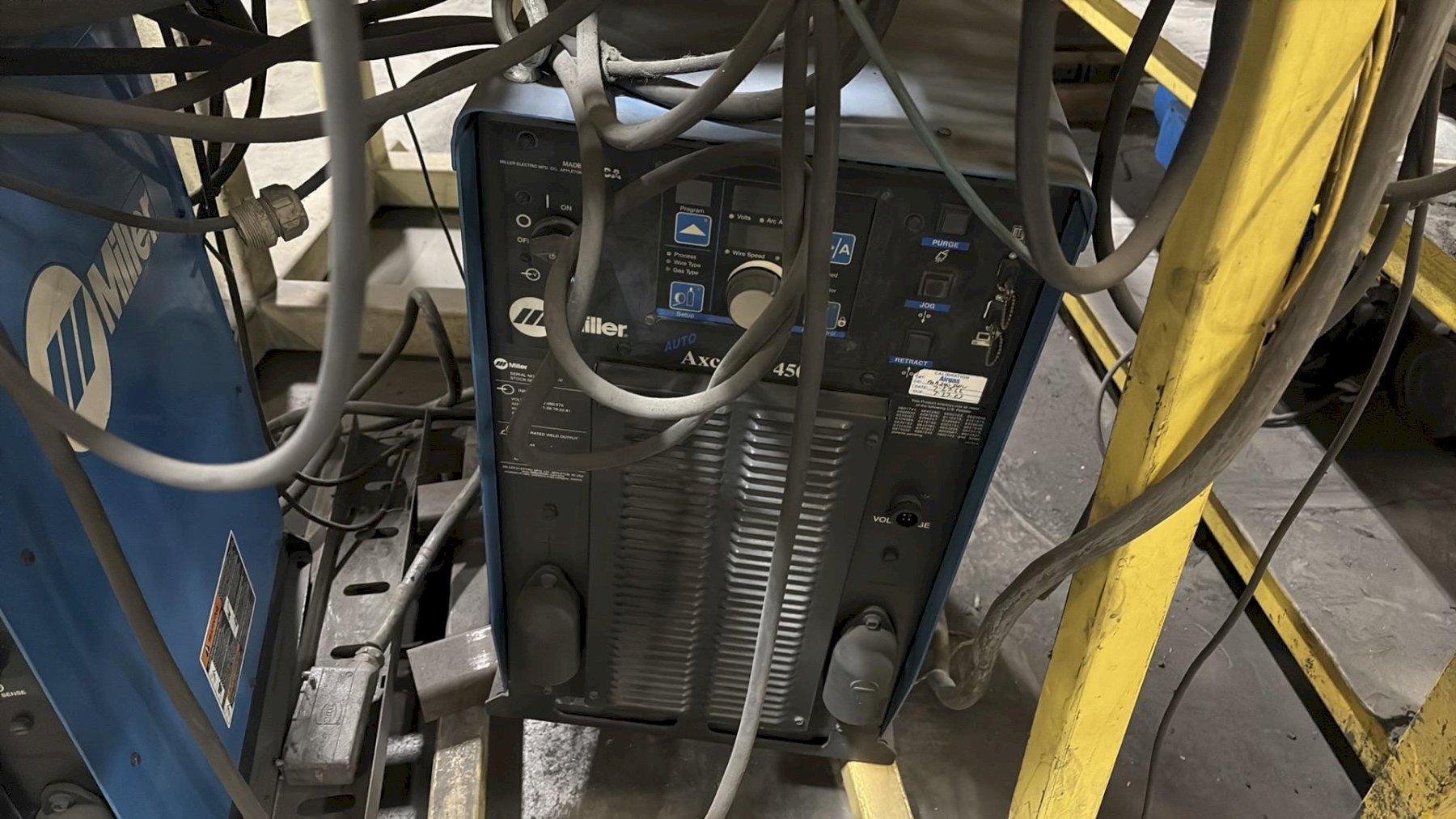

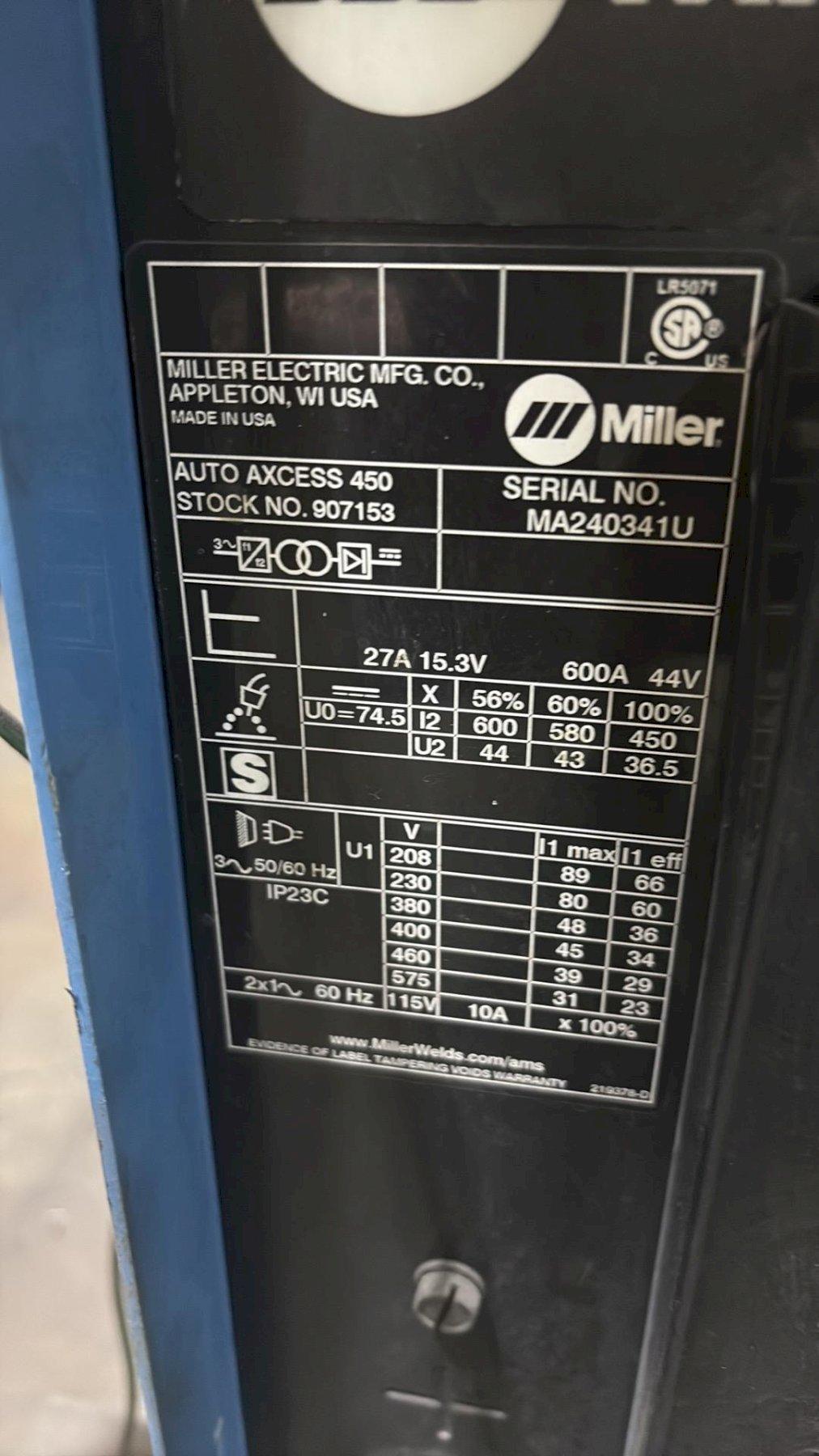

Welder: Miller Axcess 450

• Processes: MIG (GMAW), Pulsed MIG (GMAW-P), Flux Cored (FCAW)

• Input Power: 3-phase, 460V

• Output Range: 10-45V

• Rated Output: 450A at 100% duty cycle

• Wire Feed Speed: Adjustable from 50 to 780 inches per minute

• Dimensions: 30 inches (H) x 18 inches (W) x 36 inches (D)

• Weight: Approximately 150 lbs
