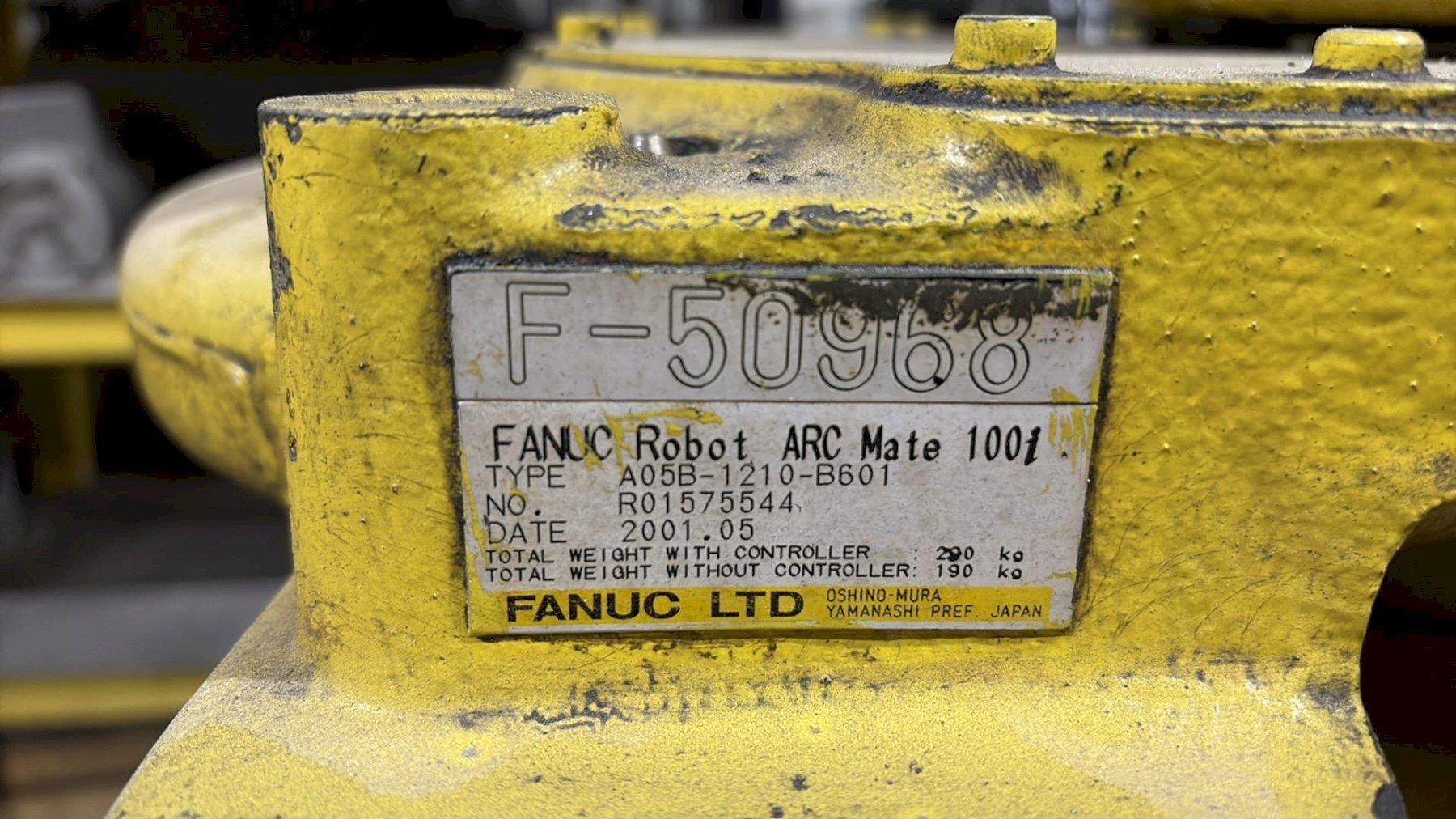

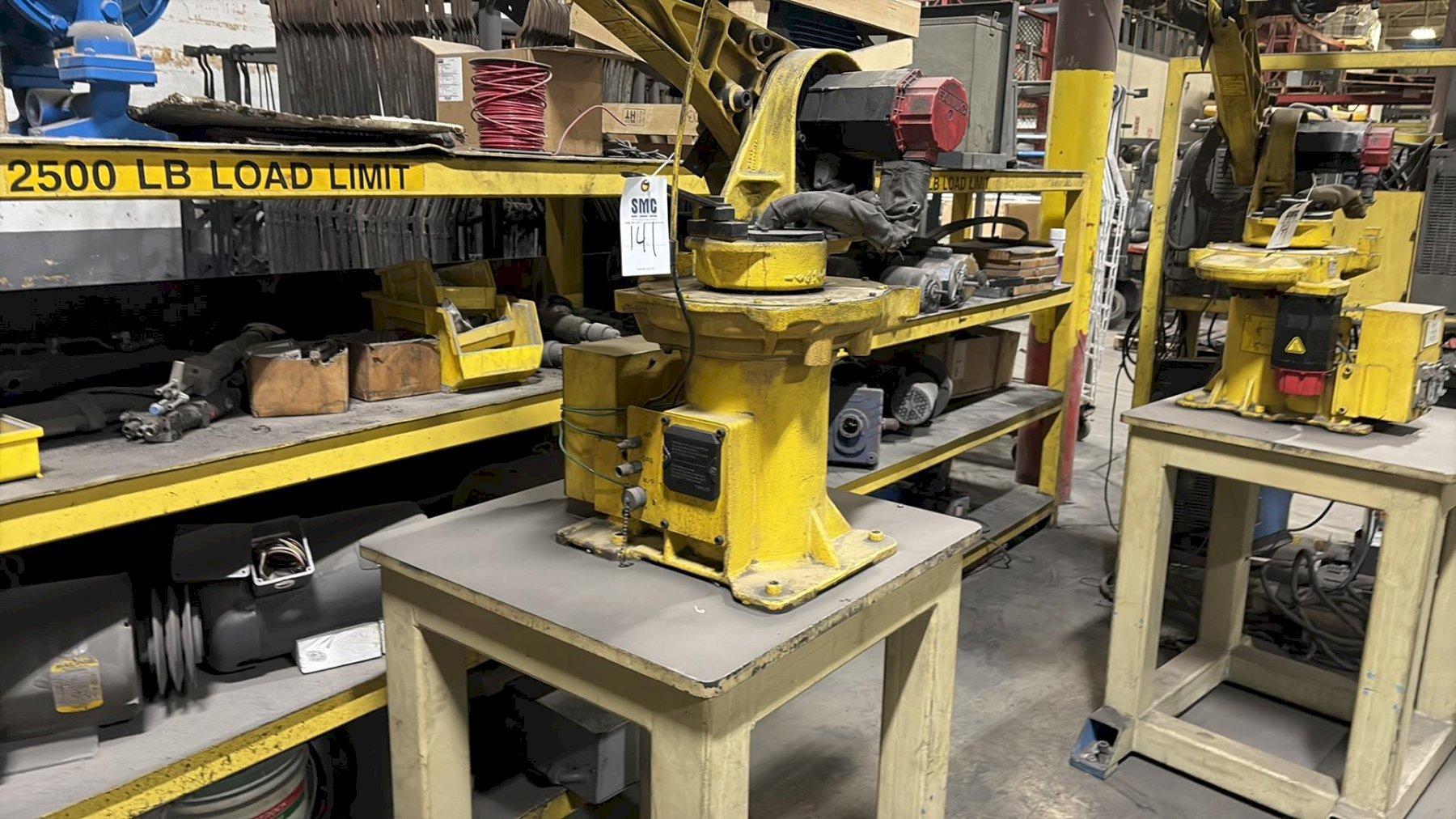

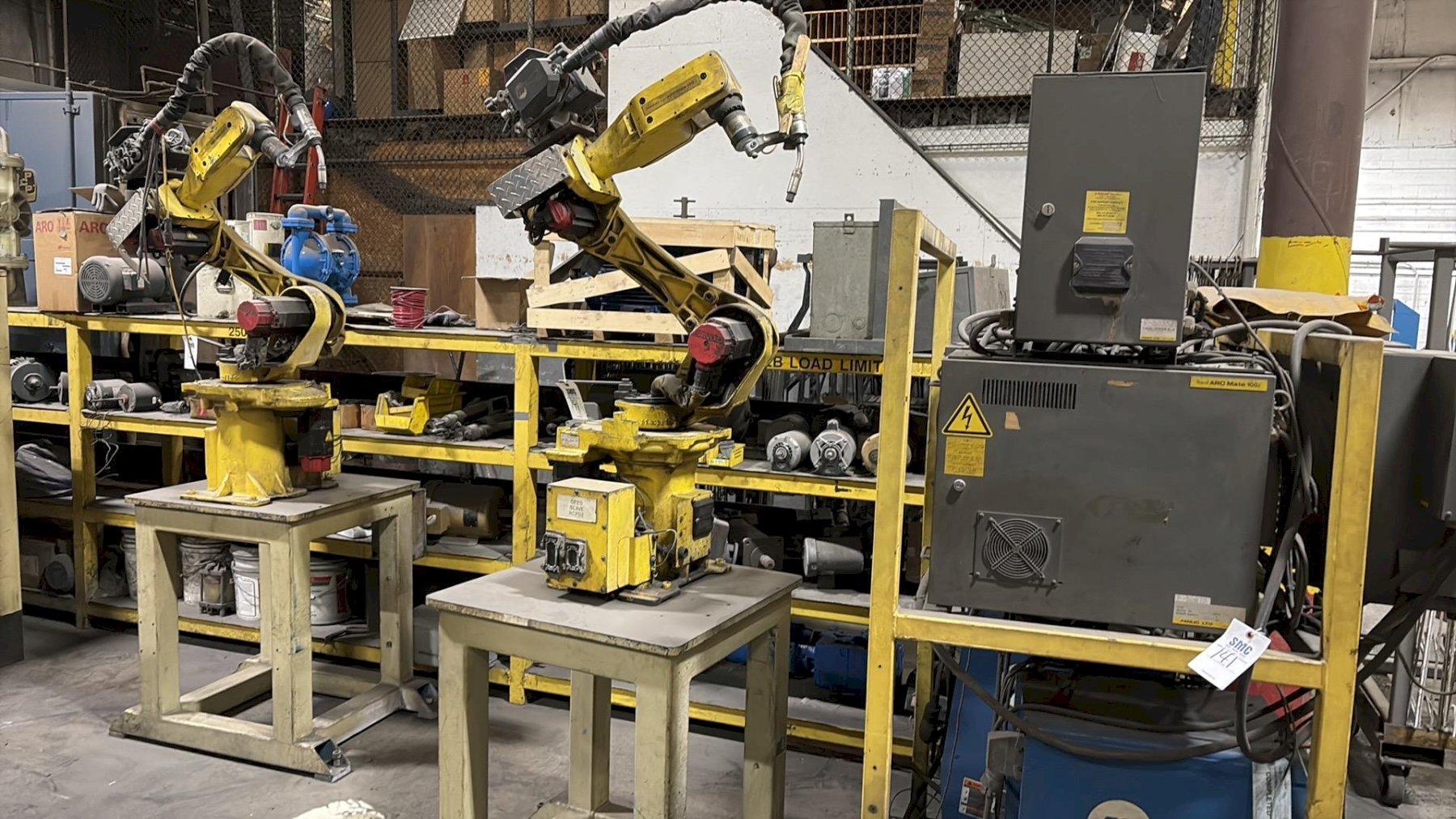

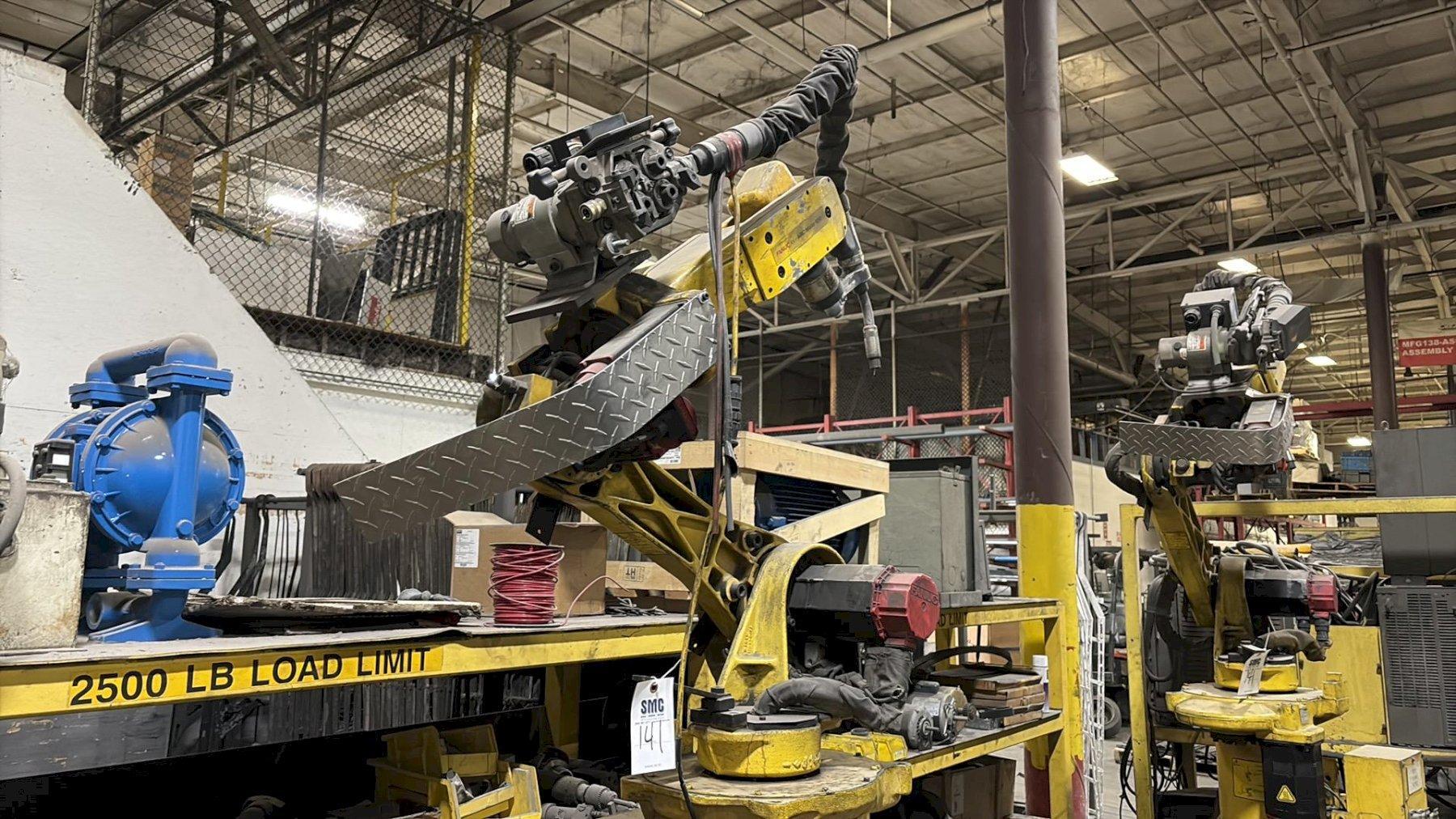

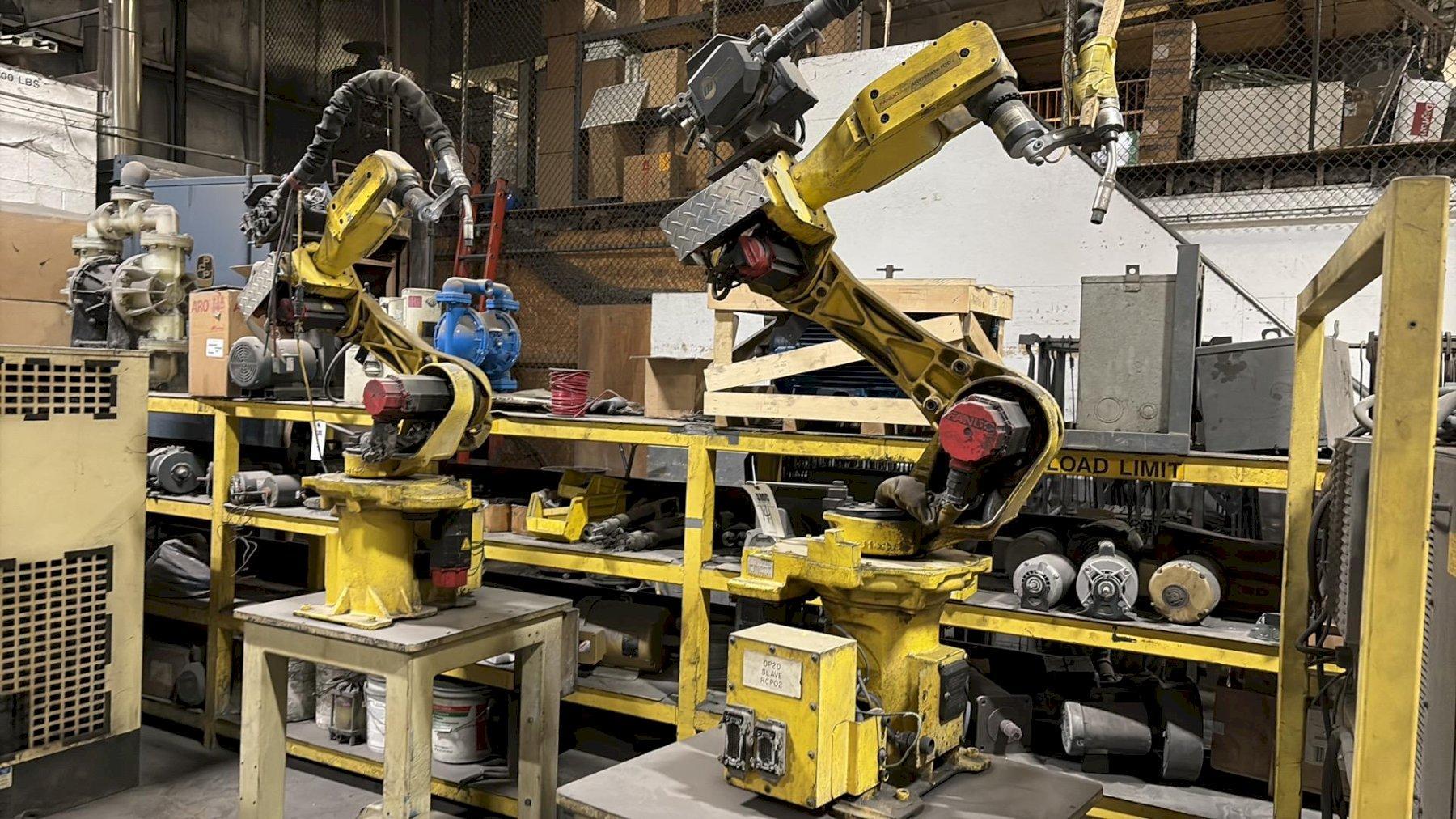

Robot: FANUC ARC Mate 100i

• Axes: 6

• Payload: 6 kg (13.2 lbs)

• Horizontal Reach: 1368 mm (53.9 inches)

• Repeatability: ±0.1 mm

• Robot Mass: 290 kg (639 lbs)

• Structure: Articulated

• Mounting Options: Floor, Inverted, or Angle

• Motion Speed:

  • J1: 120°/s

  • J2: 120°/s

  • J3: 120°/s

  • J4: 360°/s

  • J5: 360°/s

  • J6: 450°/s

• Motion Range:

  • J1: ±165°

  • J2: +135° to -75°

  • J3: +150° to -149°

  • J4: ±190°

  • J5: ±140°

  • J6: ±320°

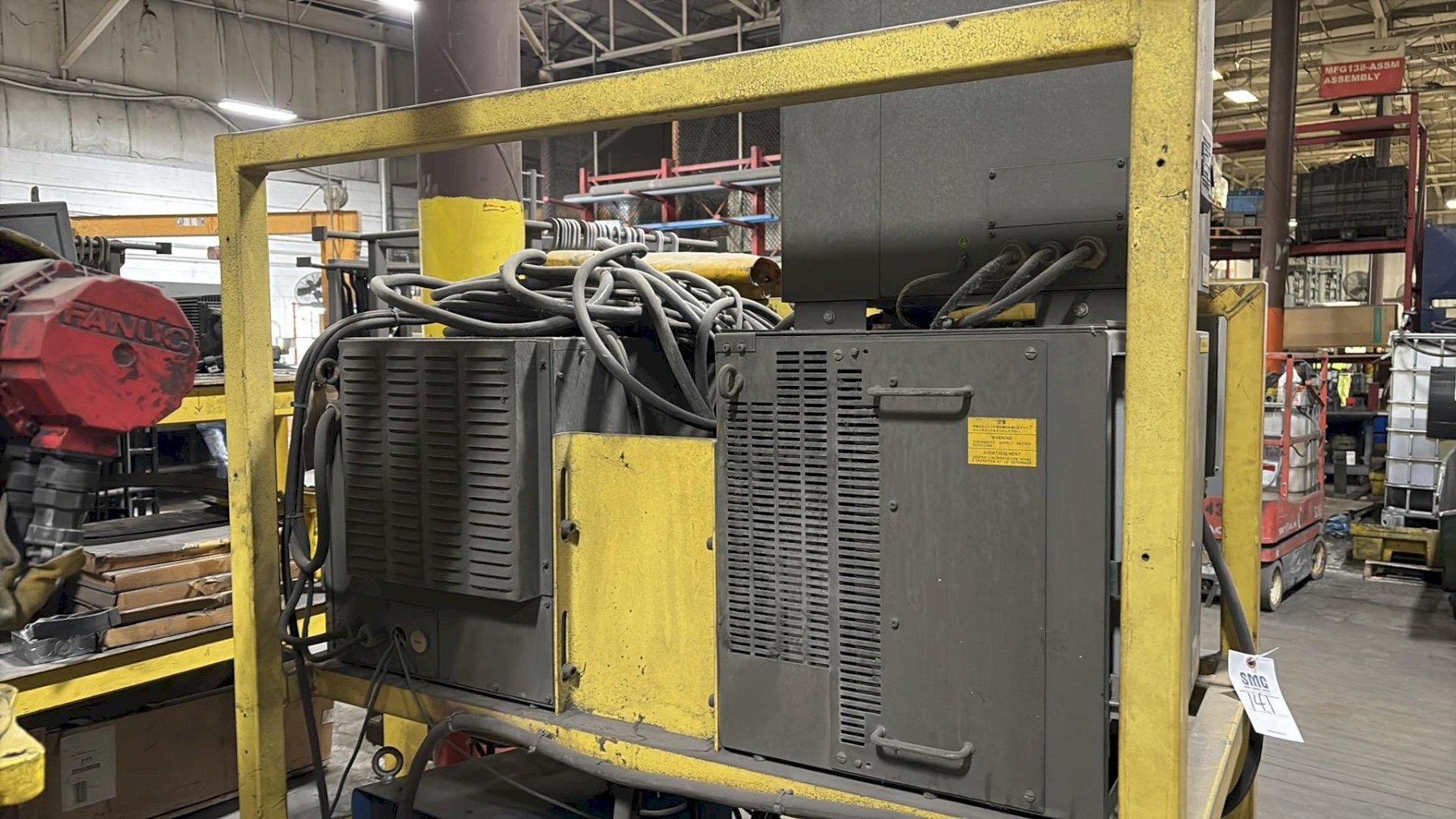

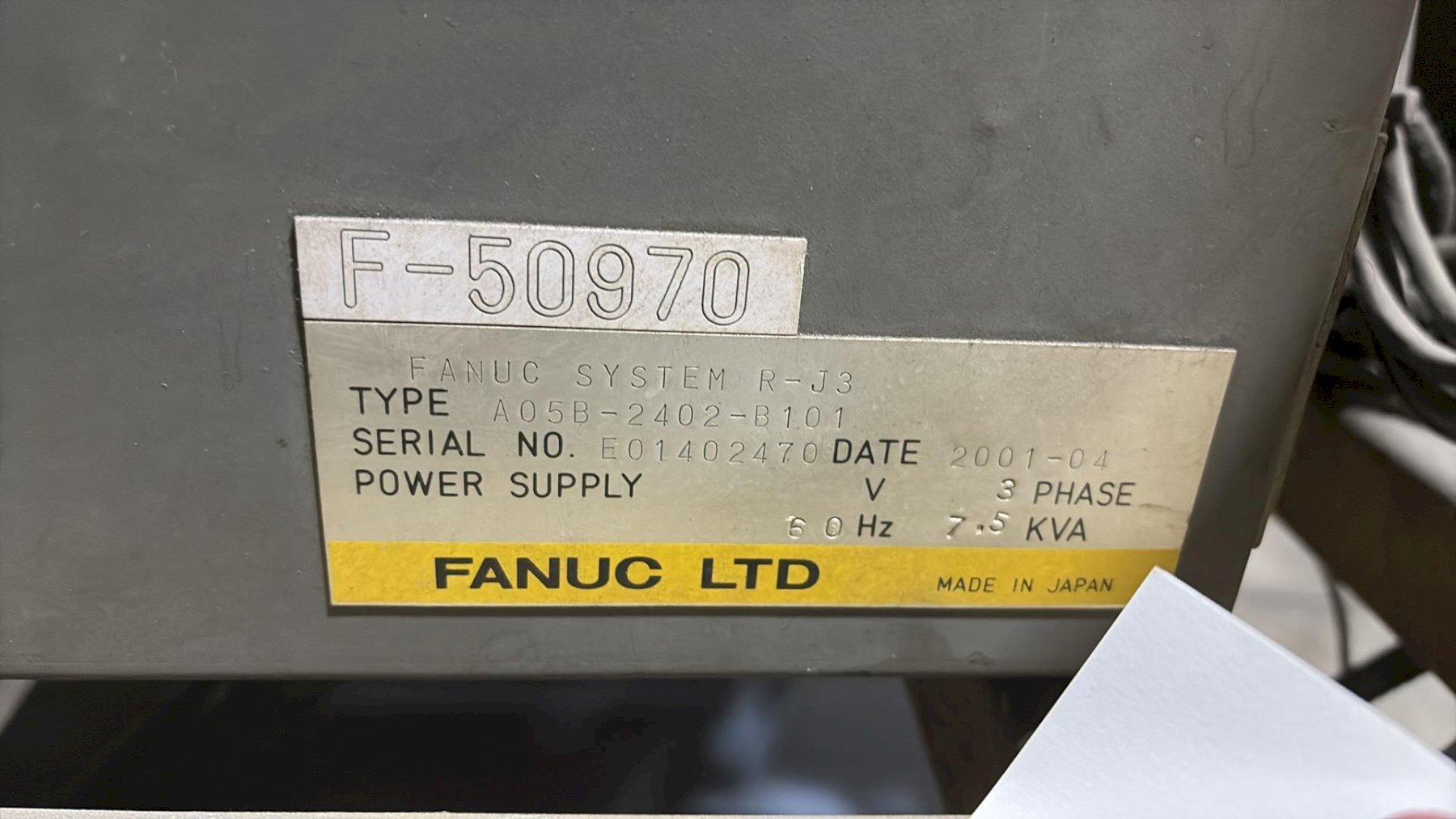

Controller: FANUC System R-J3

• Power Supply: Three-phase, 200-575 VAC ±10%, 50/60Hz ±1Hz

• Controlled Axes: Supports up to 16 axes across three motion groups

• CPU: 32-bit dual processor architecture with real-time clock/calendar

• Communication: Built-in Ethernet (10BaseT), FTP support, and three RS-232 ports (one configurable as RS-422)

• Teach Pendant: Ergonomically designed, lightweight, with a back-lit LCD display

• Operating Environment:

  • Ambient Temperature: 0-45°C

  • Humidity: 75% RH or less (non-condensing)

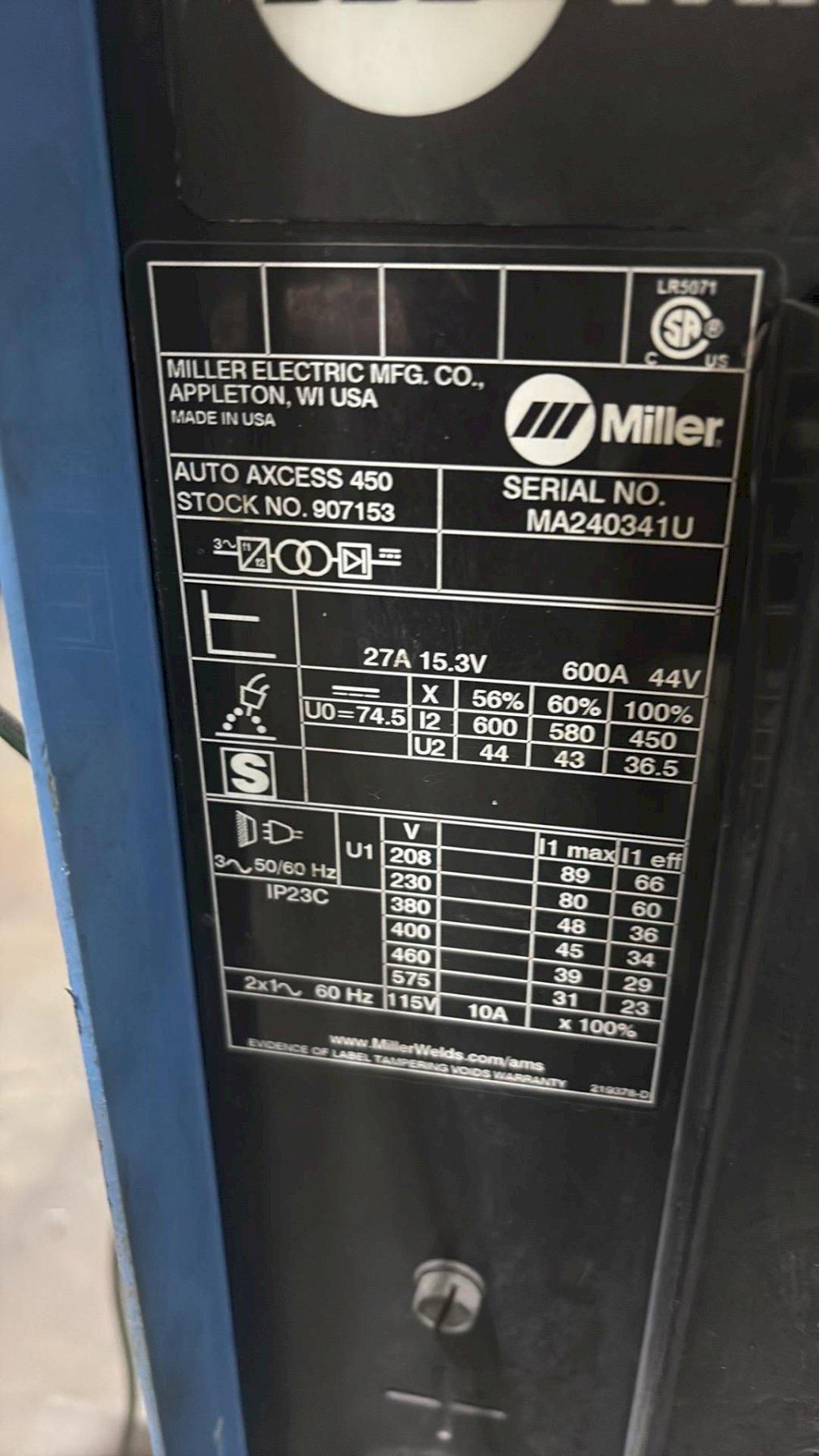

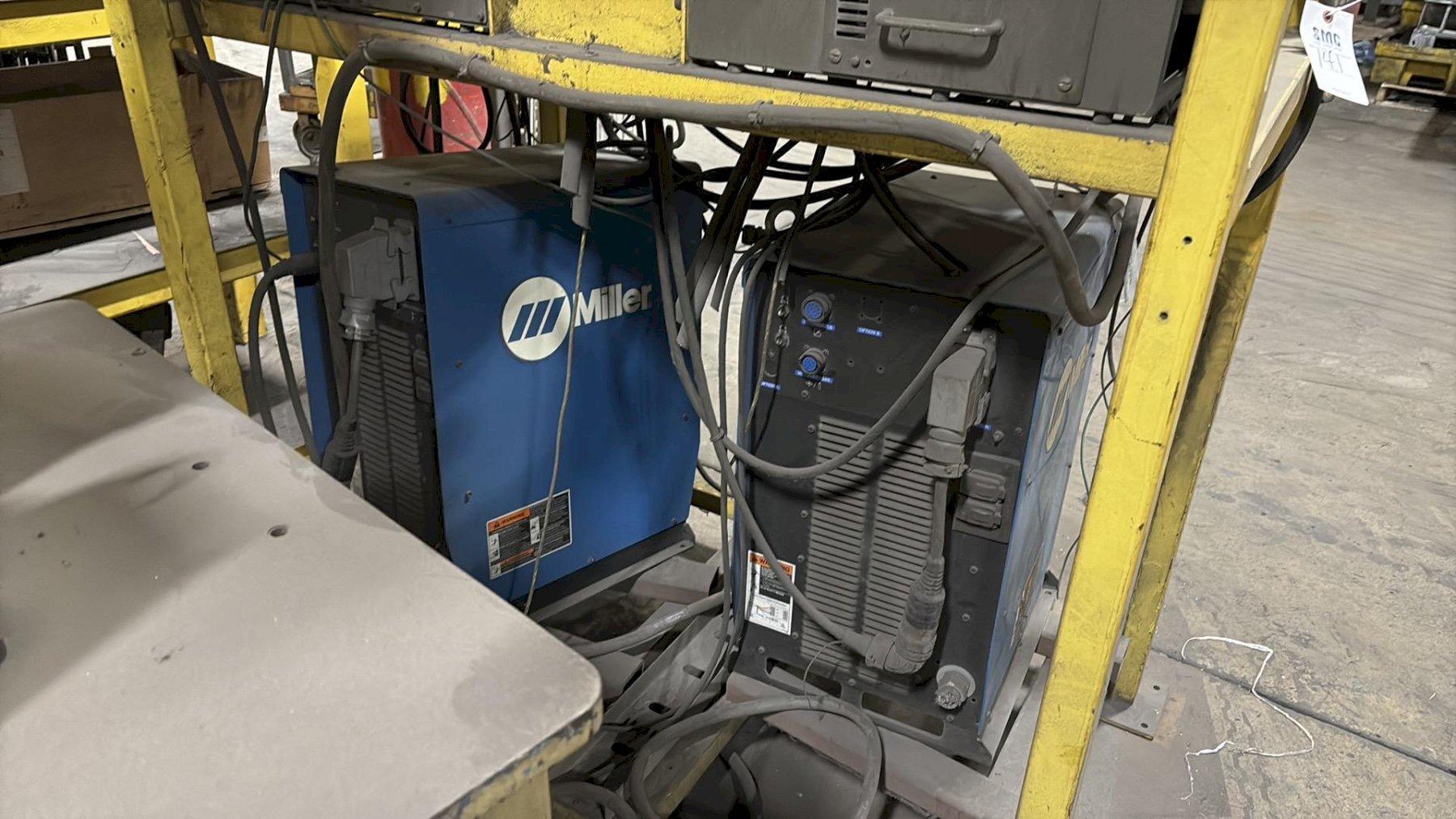

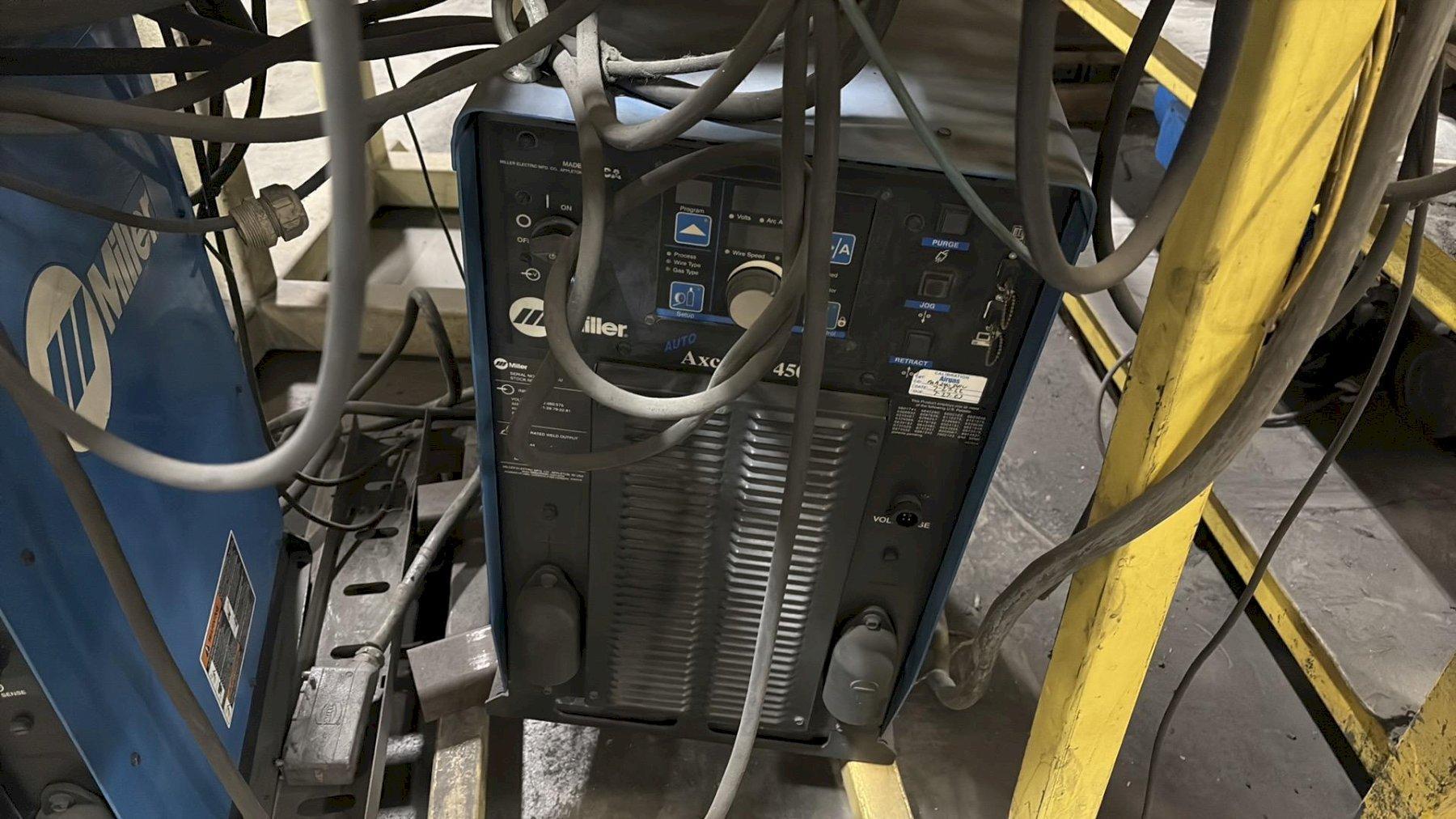

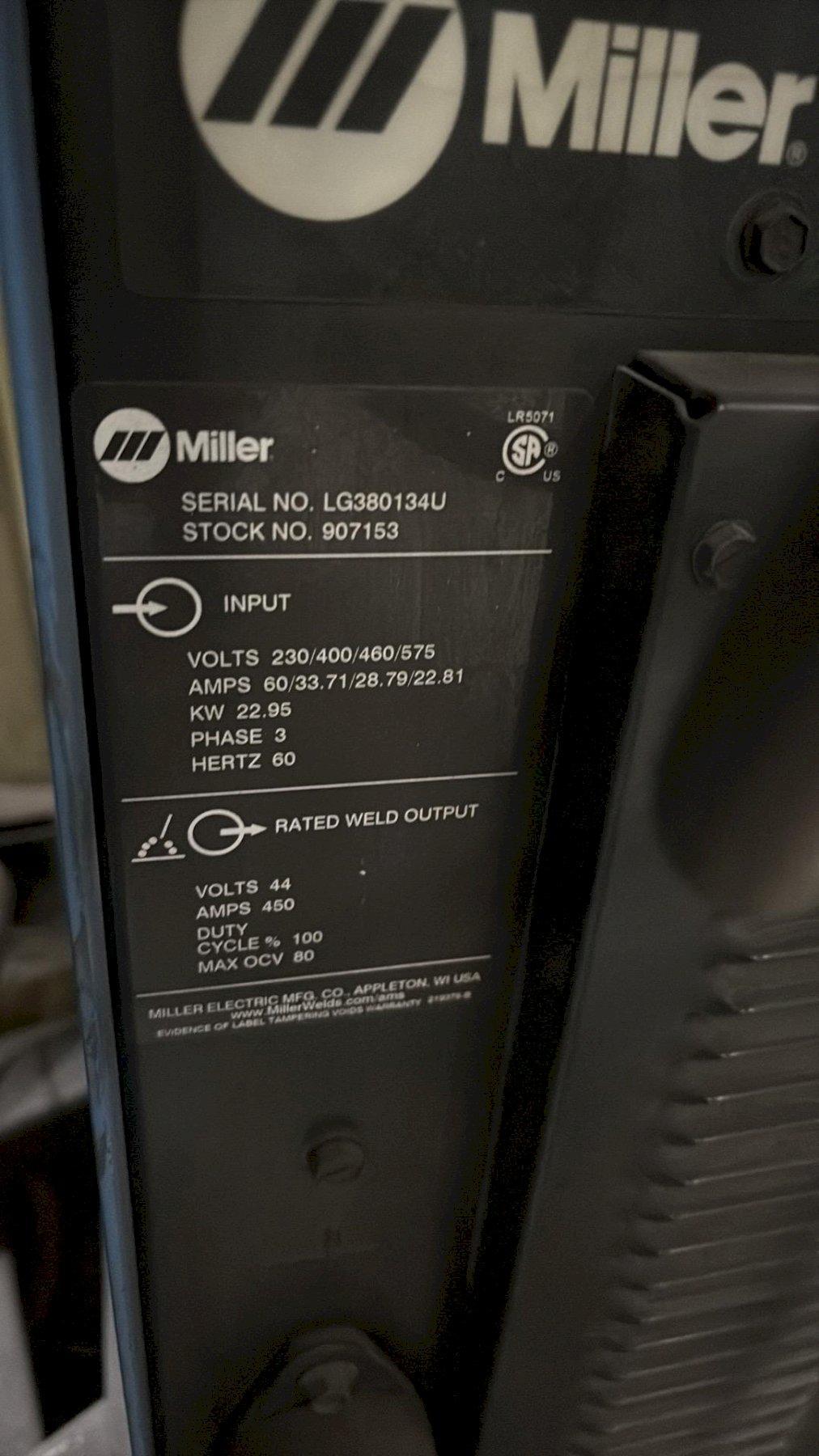

Welder: Miller Auto Axcess 450

• Processes: MIG (GMAW), Pulsed MIG (GMAW-P), Flux Cored (FCAW)

• Input Power: 3-phase, 460V

• Output Range: 10-45V

• Rated Output: 450A at 100% duty cycle

• Wire Feed Speed: Adjustable from 50 to 780 inches per minute

• Dimensions: 30 inches (H) x 18 inches (W) x 36 inches (D)

• Weight: Approximately 150 lbs

  Contact Us: Interested in this robotic welding system? Reach out to us today to learn more or schedule a viewing. We’re happy to provide additional details and help you determine if this equipment is the right fit for your operations.

  Disclaimer: The information provided in this listing, including specifications, features, and descriptions, is based on available resources and is believed to be accurate. However, it is recommended to verify all details with the manufacturer or official documentation prior to purchase. We are not liable for any discrepancies or errors in the information presented.
