| Spindle bore | 4 inches |
| Bar capacity, maximum | 4 inches |
| Swing over apron, maximum | 30 inches |
| Swing over cross slide | 14.5 inches |
| Maximum cutting diameter | 16 inches |
| Between centers | 39 inches |
| Maximum cutting length | 34 inches |
| Spindle nose | A2-8 |
| X-axis cross slide travel | 11.3 inches |
| Z-axis carriage travel | 34 inches |
| X-axis rapid traverse | 710 IPM |
| Z-axis rapid traverse | 710 IPM |
| Spindle speeds, range | to 2,400 RPM |
| Spindle motor, horsepower | 40 HP |
| Overall Dimensions (L x W x H) | 162" x 77" x 74" |

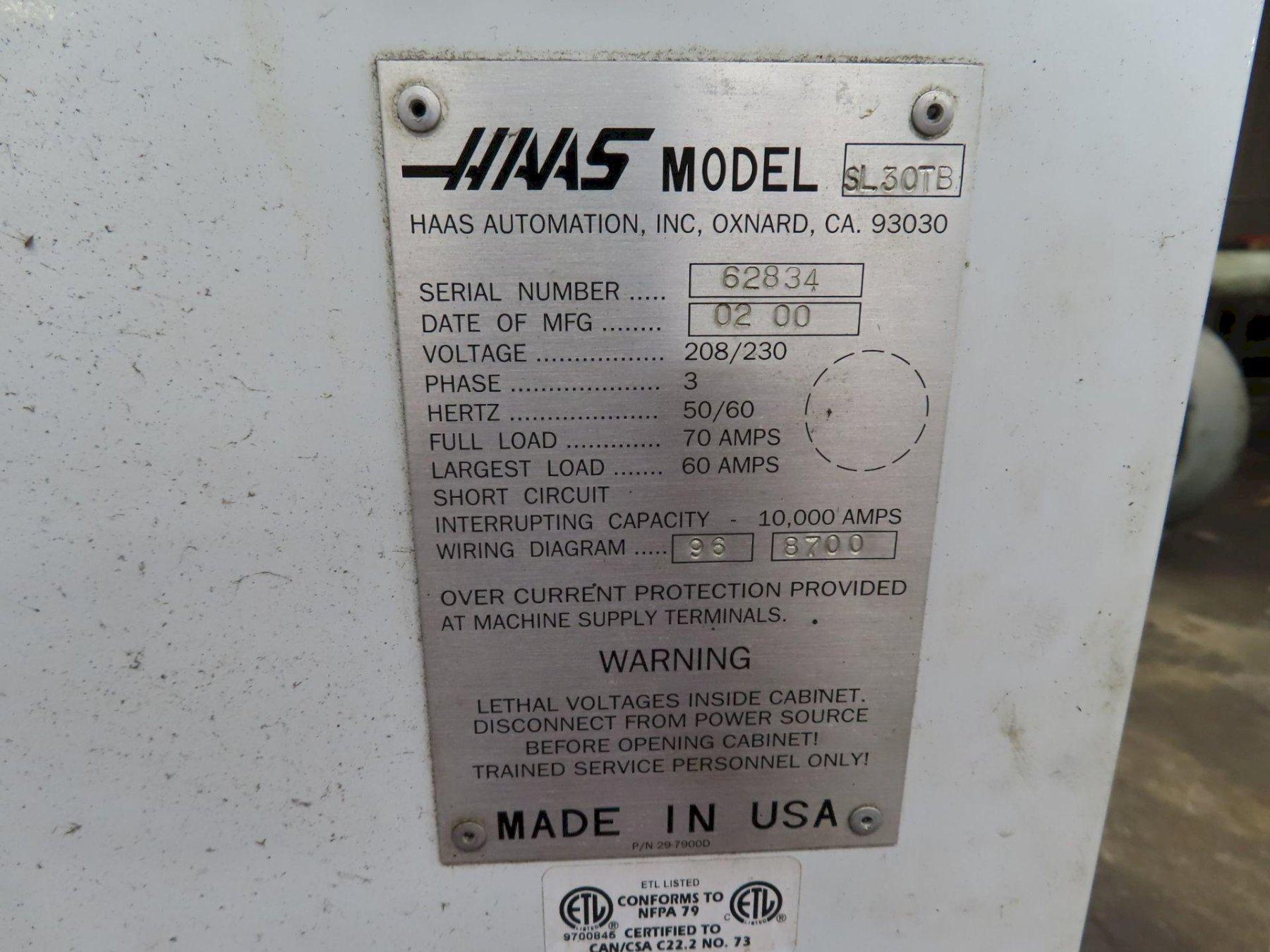

| Motor | 208/230 Volts, 3 Ph, 50/60 Hz, |
| Full Load | 70 Amps |
| Largest Load | 60 Amps |
| Interrupting Capacity | 10,000 Amps |
| Weight Approximately | 16000 pounds |
Our knowledgeable staff will assist you with all of you questions.
