| Rating | 220 kVA |
| Phase | Three phase |
| Frequency | 60Hz |
| Enclosure type | NEMA-3R |
| Impedance (std) | 3.5% - 6.5% |
| Seismic compliance | IBC 2018 (Sds=2.0, z/h=0, lp=1.5) |

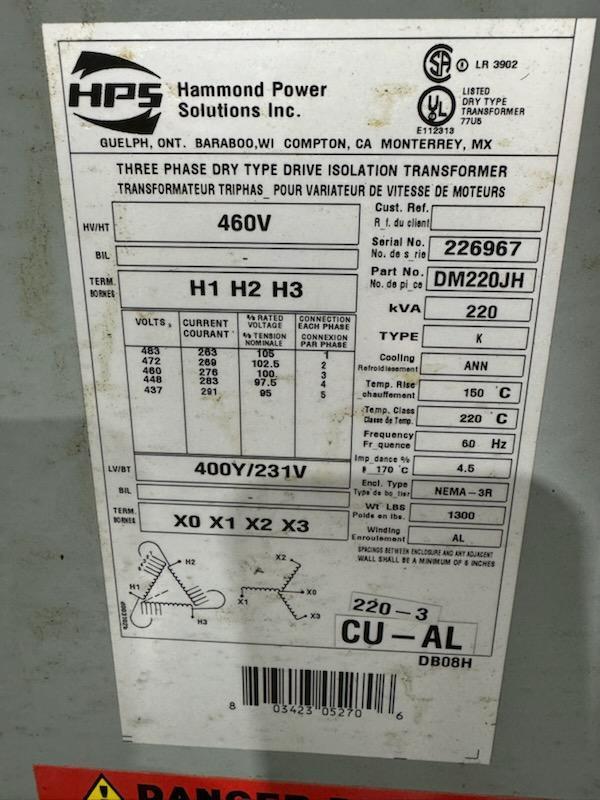

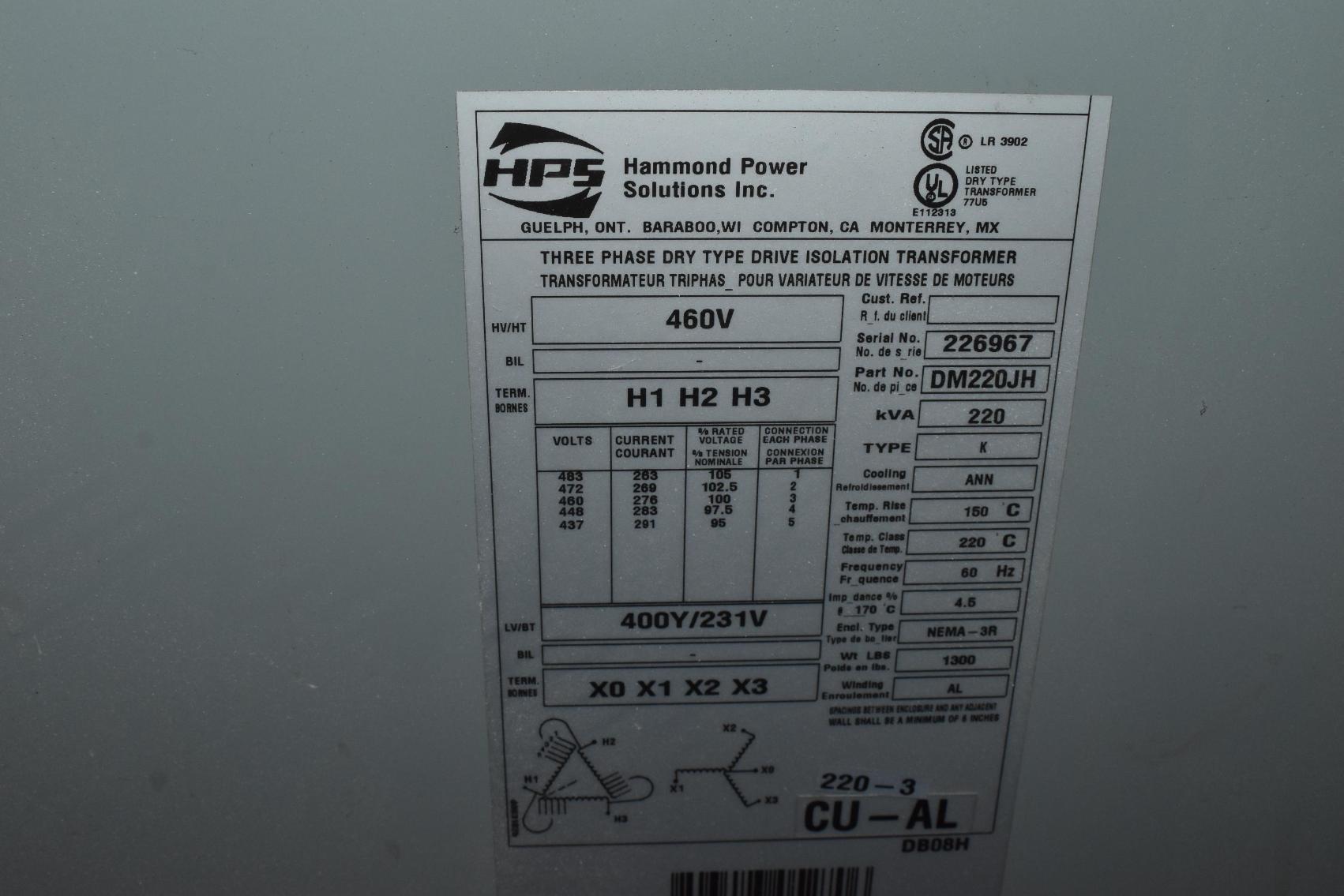

| Drive isolation transformer | 3ph 220kVA 460V-400Y/231V 60Hz AL |
| Number of secondaries | 1 (6-pulse) |
| Sound level | 55 dBA (NEMA ST-20) |
| Primary voltage | 460D |
| Primary connection | Delta |
| Primary FCAN (NPL) | 2x2.5% |
| Primary FCBN (NPL) | 2x2.5% |
| Secondary voltage | 400Y/231 |
| Secondary connection | Wye-N |
| Secondary termination (NPL) | Mounting pads |
| Insulation class | 220°C |
| Vector configuration | Dyn1 (-30°) |
| Temperature rise | 150°C |
| Dimensions | 32" x 27" x 41" Tall |
| Total Height | 8 feet |
| Weight | 1300 pounds |
