SPECIFICATIONS: KEYWAY CUTTING CAPACITY ---------------- 1/16 in TO 1-1/2 in
THROAT DEPTH --------------------------- 19 in
MAX WORK HEIGHT ------------------------ 12 in
MAX CUT LENGTH ------------------------- 16 in CUTTER / 4 in
20 in CUTTER / 8 in
24 in CUTTER / 12 in
30 in CUTTER / 18 in

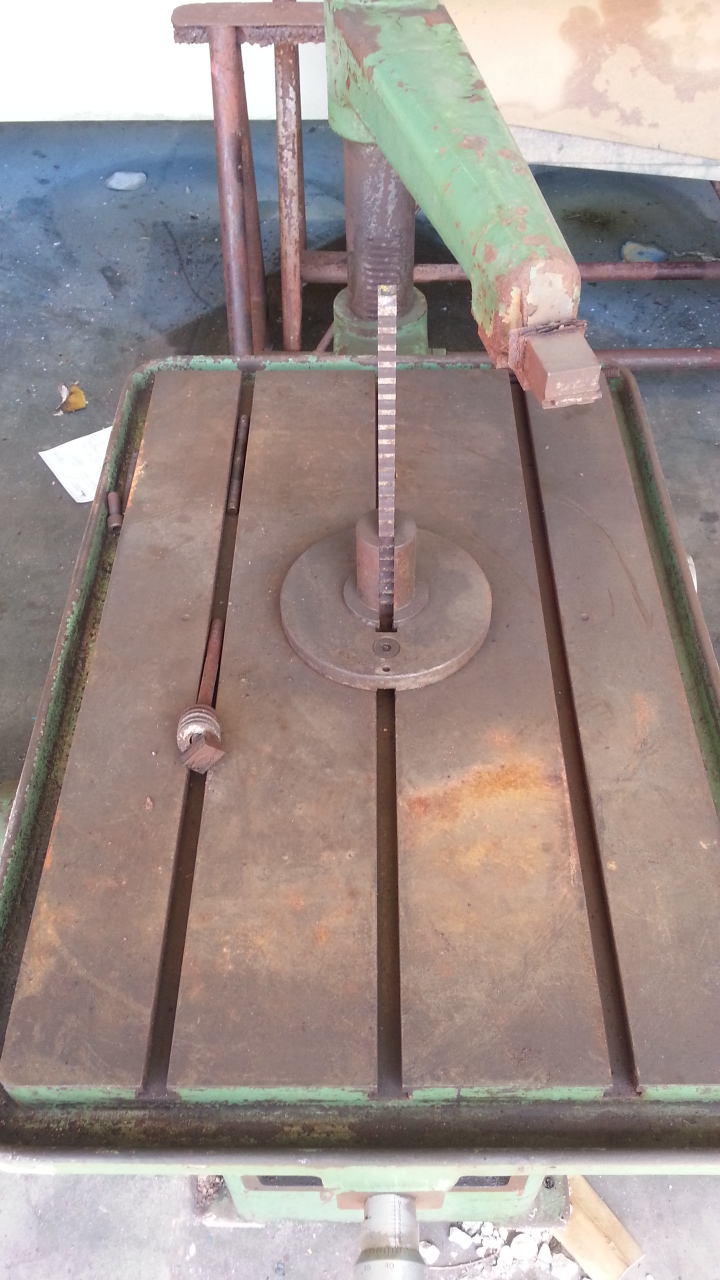

TABLE SIZE ----------------------------- 20 in X 31 in
TABLE TRAVEL --------------------------- 1-1/2 in
STROKE --------------------------------- 4-1/2 in
STROKES PER MINUTE --------------------- 45

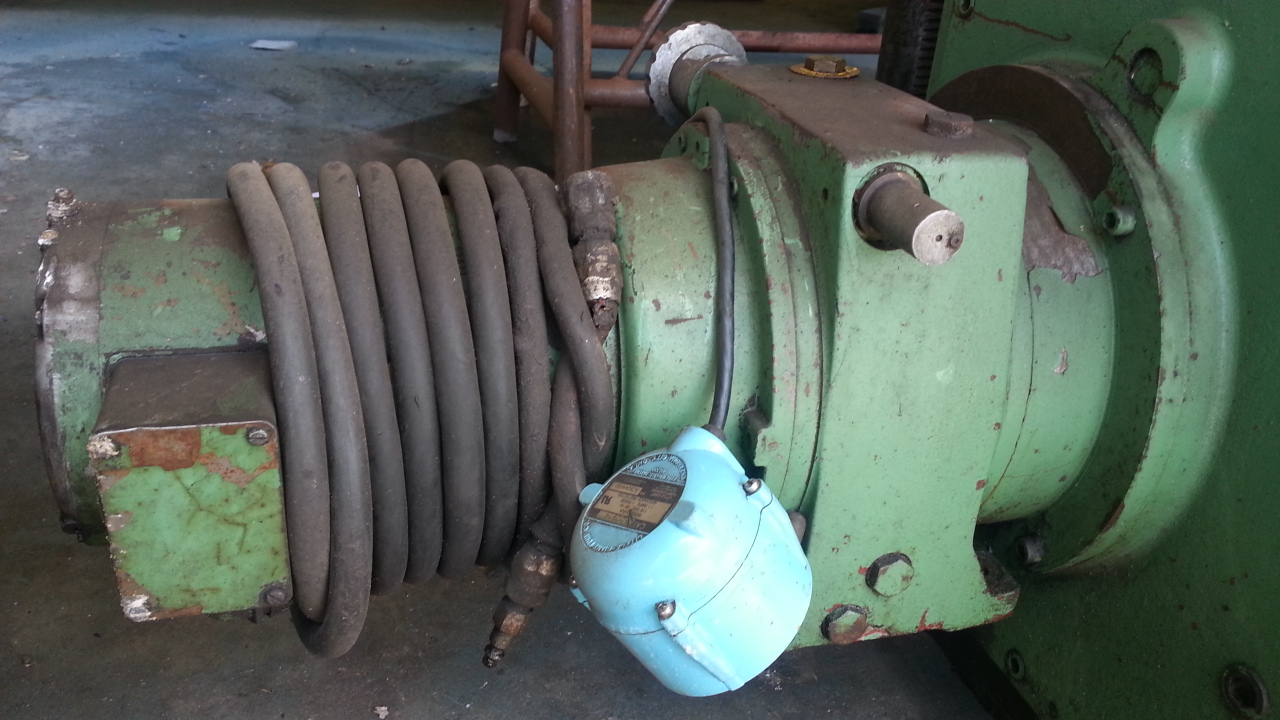

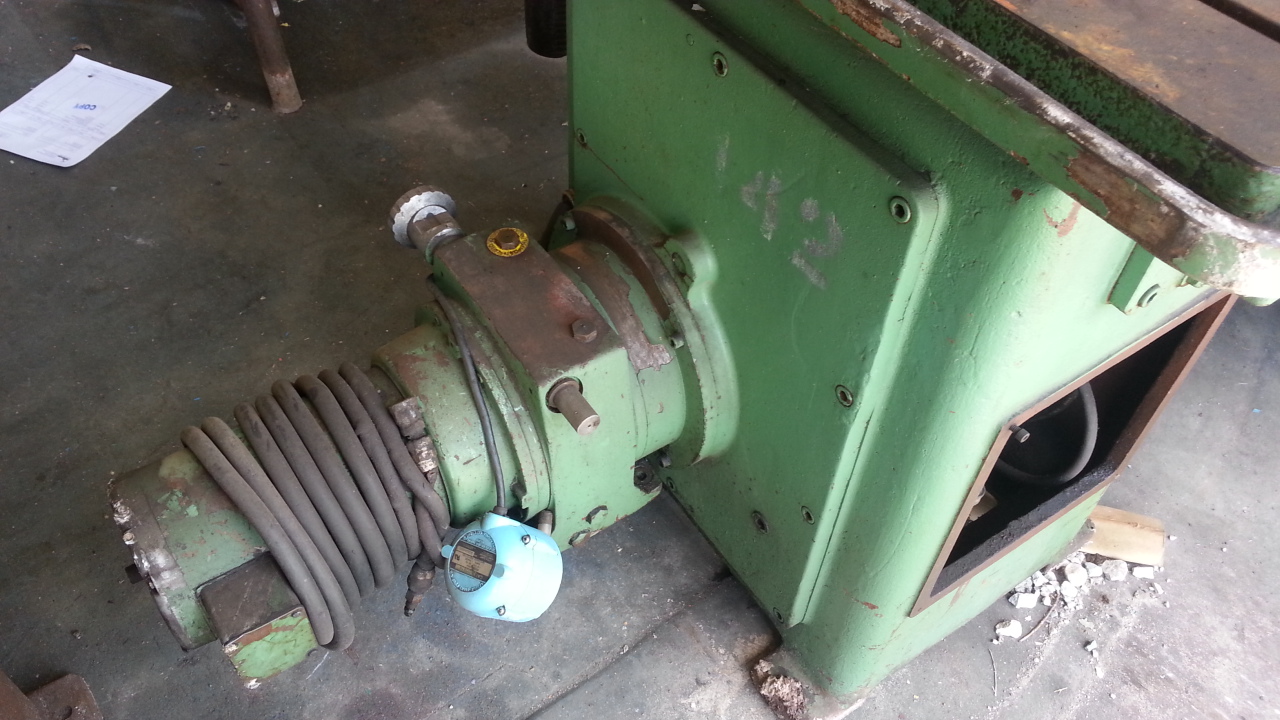

MOTOR ---------------------------------- 2 HP

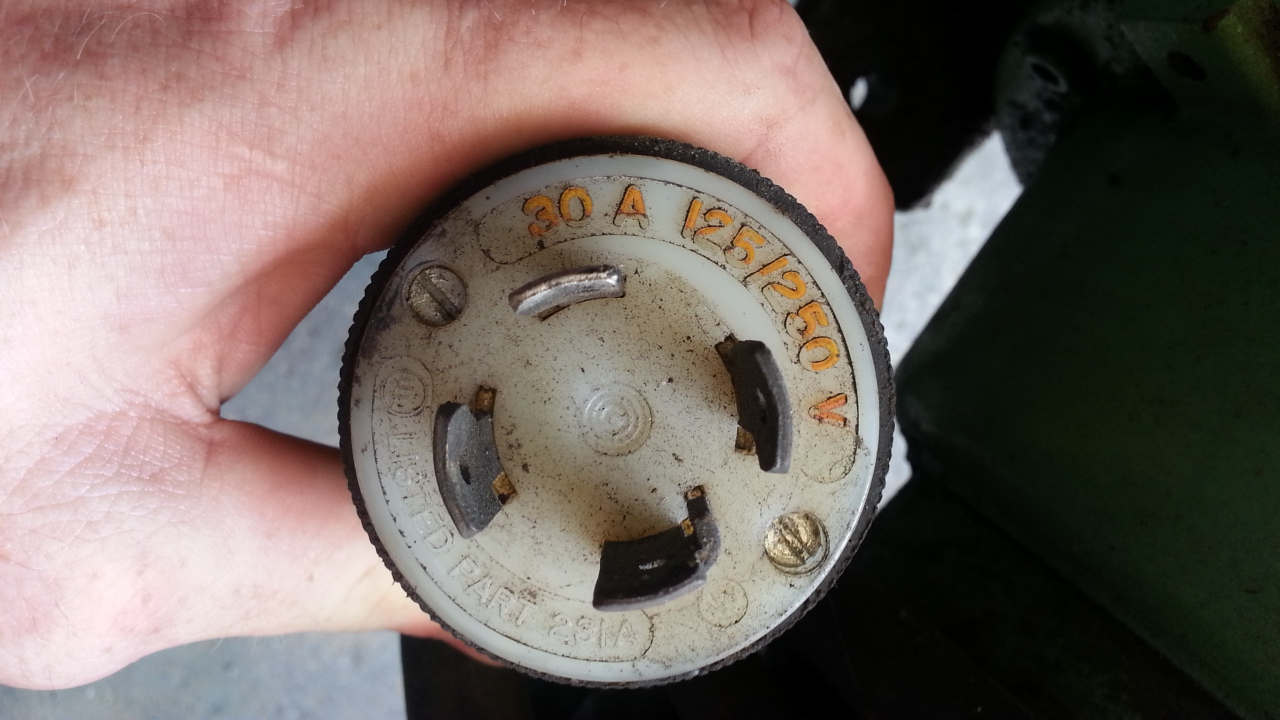

ELECTRICS ------------------------------ 220V, 3PH
WEIGHT --------------------------------- 1,250 LBS
DIMENSIONS ----------------------------- 40 in X 44 in X 48 in EQUIPPED WITH: COOLANT PUMP
AUTOMATIC FEED SPECIFICATIONS SUBJECT TO VERIFICATION DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
