| Throat Depth | 14 inches |
| Rated Capacity | 42 tons |
| Max. Dia. Thru Max. Thickness | 5/16″ Thru 9/16″ |
| Max Stroke Length | 11 inches |
| Table Height | 37 inches |
| Die Block Height | 43.2 inches |
| Ram Speed | 1/2” Down, 1/2” Up 20 |
| Ram Diameter | 3 inches |

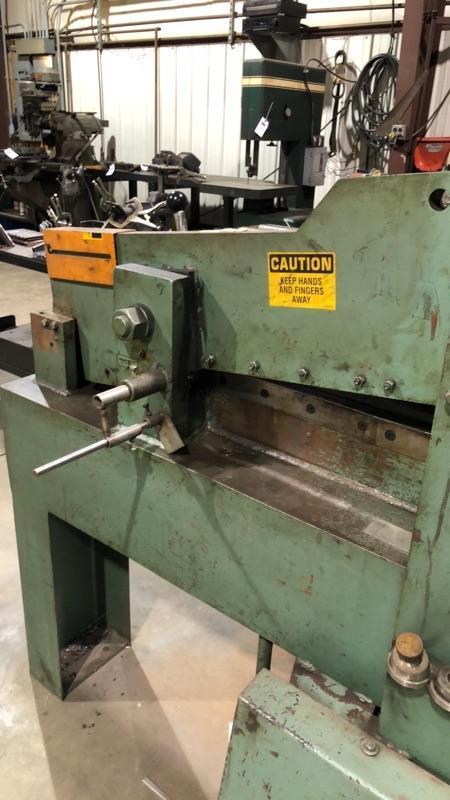

| Blade Length | 20 inches |

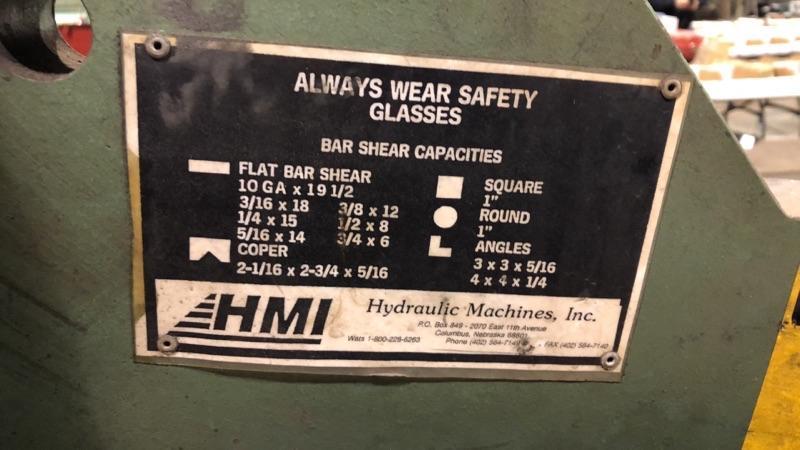

| Flat Bar | 3/4” x 6″; 1/2” x 8″; 3/8″ x 12″; 1/8″ x 19.5″ |
| Working Height | 37.625 inches |
| Round | 1 inches |
| Square | 1 inches |
| Shearing Type | @ 90º 3″ x 3″ x 5/16″; 4″ x 4″ x 1/4” |
| Working Height | 33.75 inches |
| Material Thickness | 0.3125 inches |
| Motor | 460v 3 Hp. 3 Ph. |
| Hydraulics | 2 Stage Gear 7.95/1.81 G.P.M. |
| Press Max. Psi | 3000 |
| Shear Bar Psi | 2750 |
| Dimensions (LxWxH) | 34.5" x 75.6" x 84" |
| Weight | 3267 pounds |
