| Capacity (Round) | 12 inches |
| Capacity (Rectangular) | 12" x 12" |

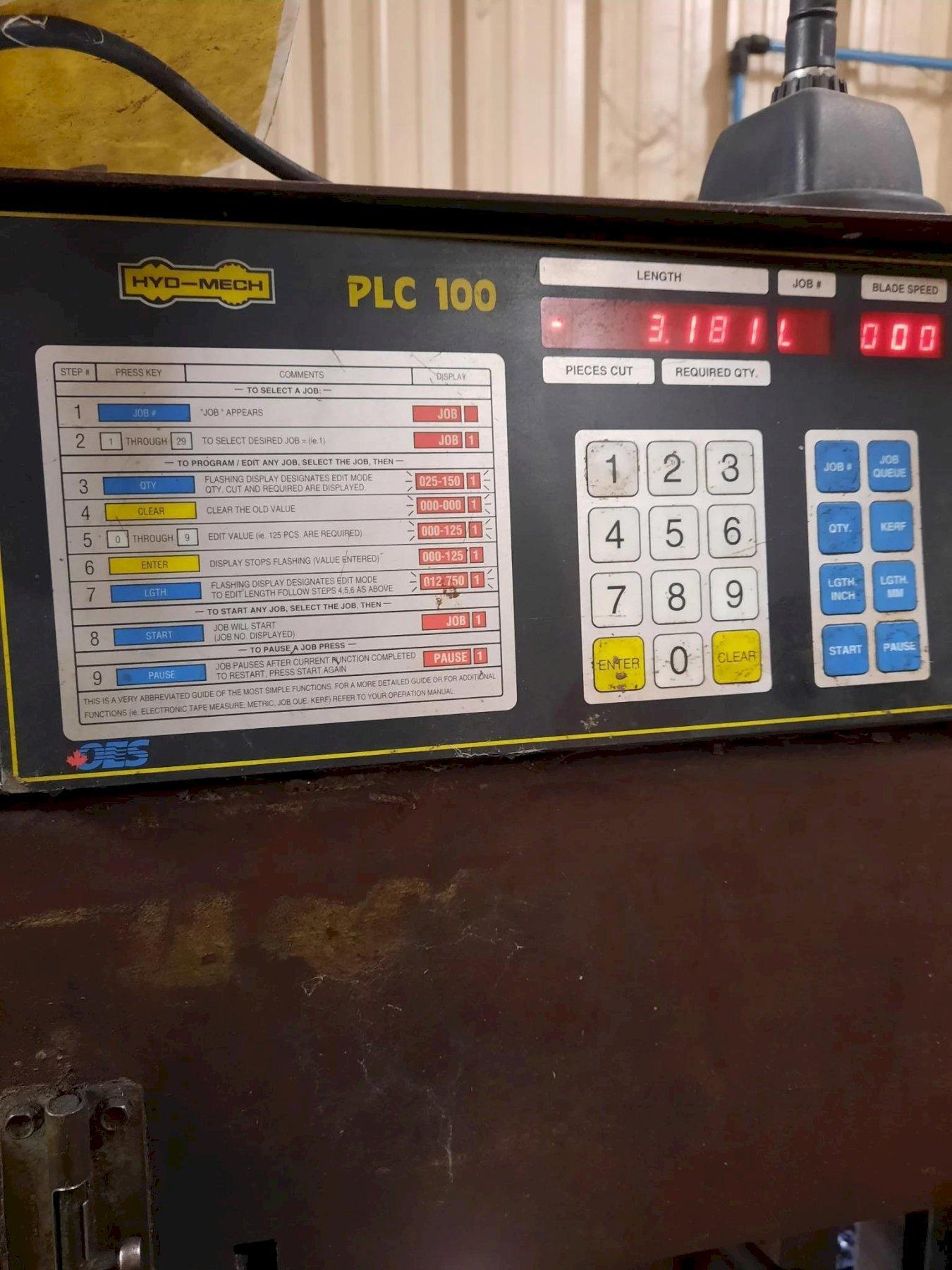

| Length Control | Programmable up to 29 Jobs |
| Blade Length | 13' 6" |
| Blade Thickness | 1.25" x 0.042" |
| Blade Speed | 75-400 FPM |
| Blade Tension | Manual (26,000 PSI) |
| Blade Guides | Carbides (Coolant Lubricated) |
| Blade Wheel Diameter | 16 inches |
| Blade Drive Motor | 5 HP |
| Hydraulic Motor | 2 HP |
| Hydraulic Pump | 6.5 GPM (Pressure Compensated) |
| Coolant Pump | 3.5 GPM (150W) |
| Hydraulic Tank Capacity | 7.5 Gallons |
| Coolant Tank Capacity | 14 Gallons |
| Hydraulic System Pressure | 700 PSI |
| Vise Control | Hydrailic |
| Shuttle Stroke | 0"-40" Single Stroke Multi Shuttle Capability |
| Table Height | 31 inches |
| Control Panal | Shoulder Height |
| Outfeed Table | 27.75" L x 22" W |

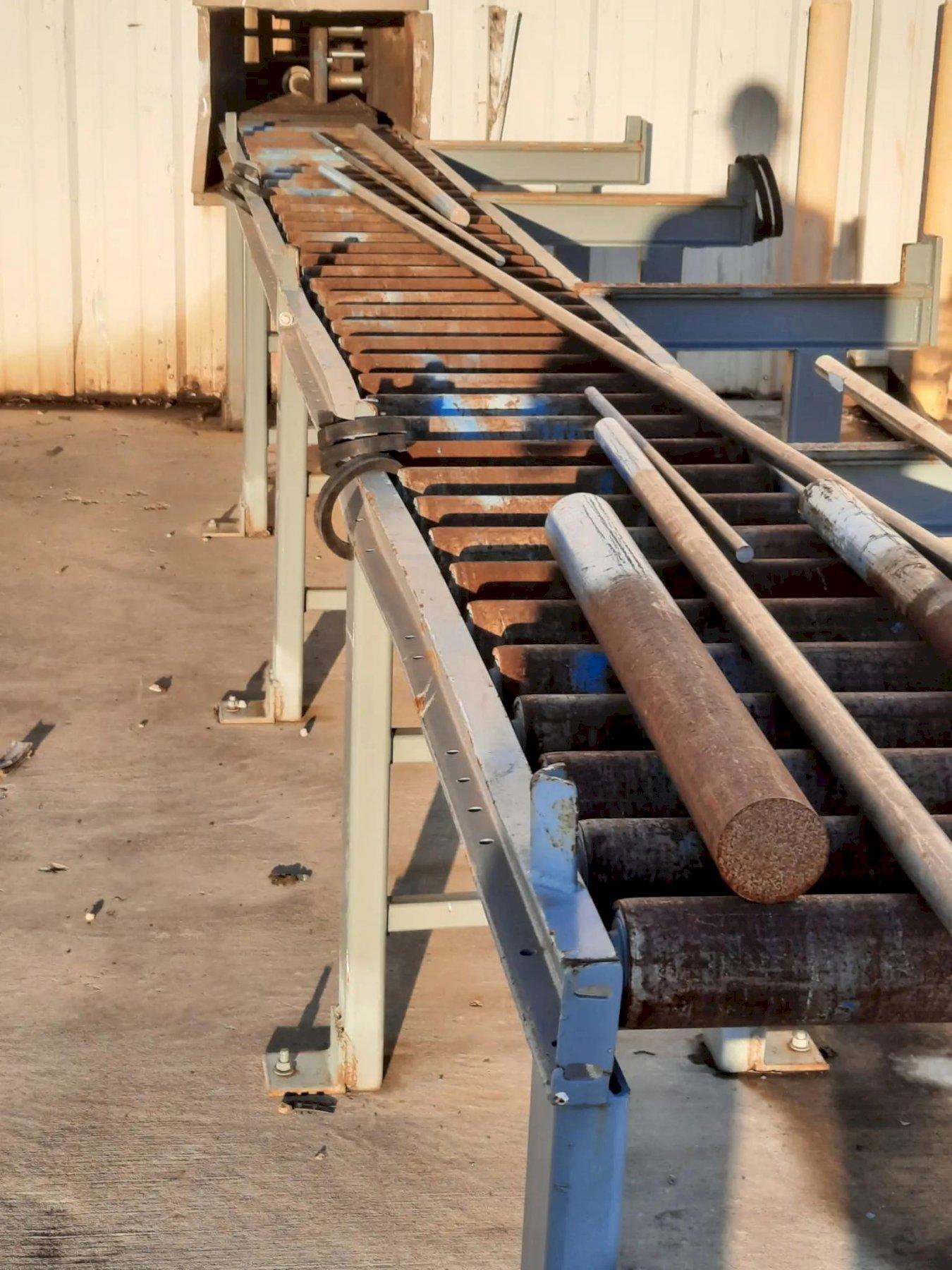

| Infeed Idler Conveyor | 60" L x 17" W |
| Maximum Workload | 6000 pounds |
| Overall Dimensions (L x W x H) | 96" x 88" x 66" |
| Machine Weight | 4300 pounds |
