| Max Swing Over Bed | 18.9 inches |
| Max Swing Over Cross Slide | 6.69 inches |
| Max Part Diameter | 5.9 inches |
| Max Part Length | 7.9 inches |
| Standard Chuck Size | 6 inches |
| Cross Travel (X-Axis) | 9.8 inches |
| Longitudinal Travel (Z-Axis) | 15.7 inches |
| Rapid Traverse Rate (X-Axis) | 1,181 IPM |
| Rapid Traverse Rate (Y-Axis) | 1,181 IPM |

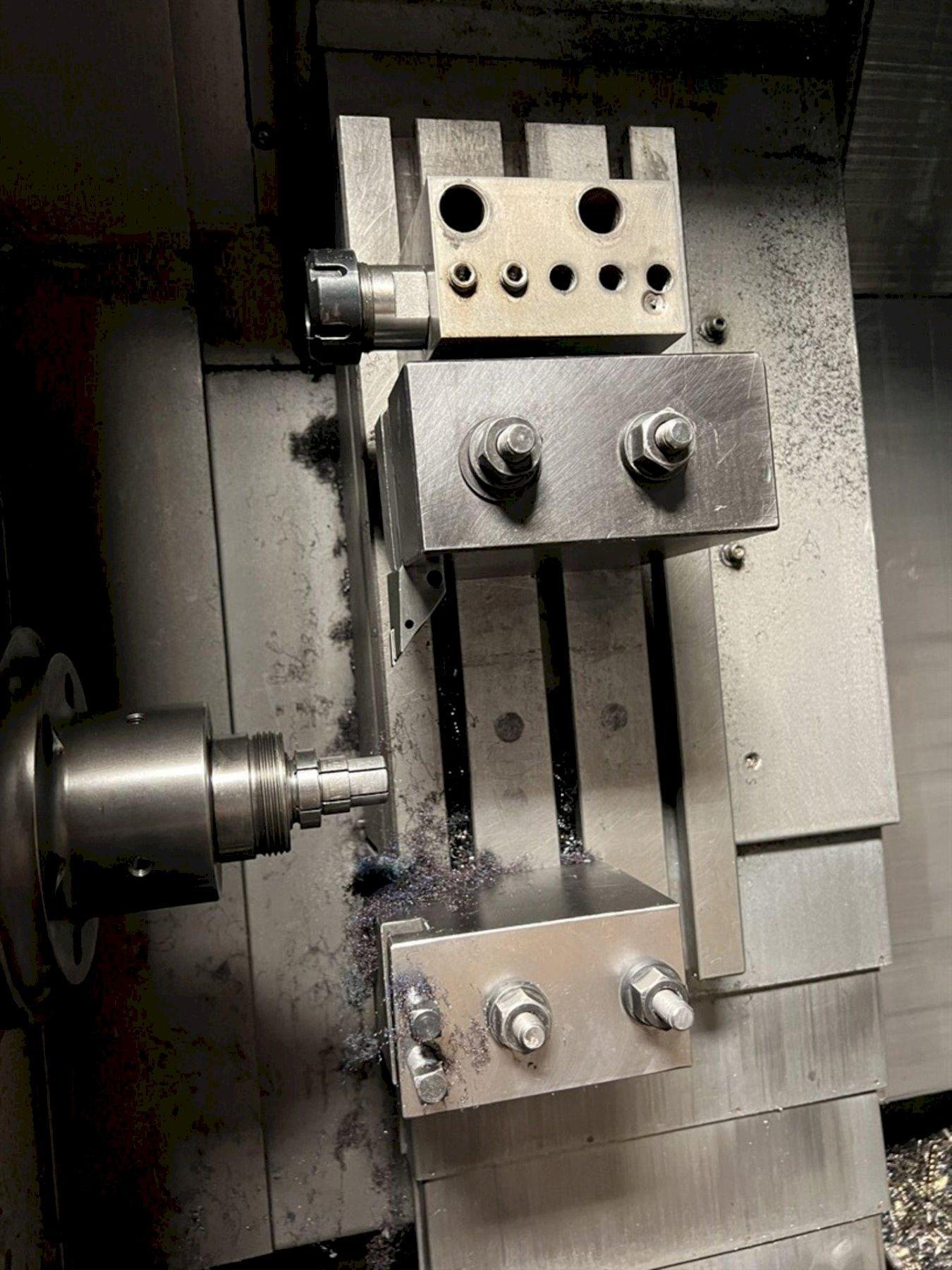

| Type of Tool Support | Gang |
| Gang Positions | 8 |
| Bar Capacity | 1.5 inches |
| Spindle Speed Range (1 RPM Increments) | 50-5,000 RPM |
| Spindle Horsepower | 7.5 HP |
| Approximate Machine Dimensions | 84" x 57" x 66" |
| Approximate Machine Weight | 6173 pounds |
