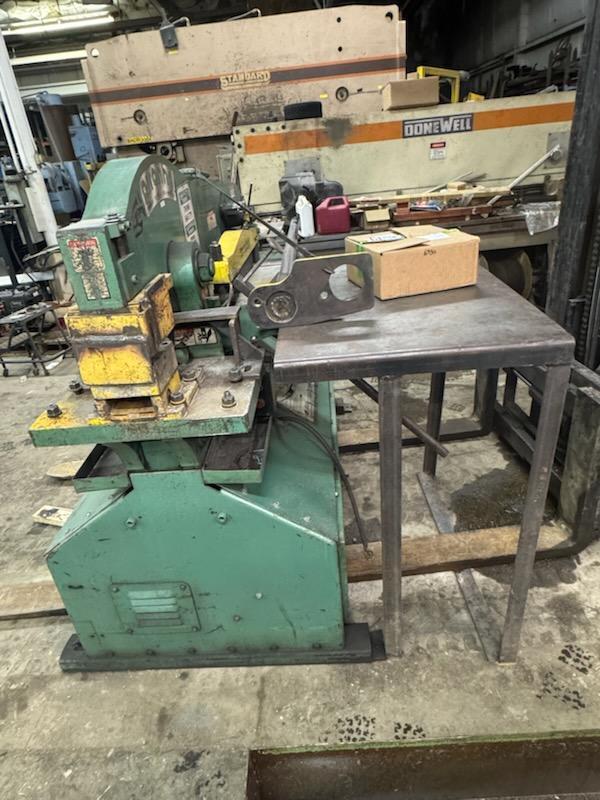

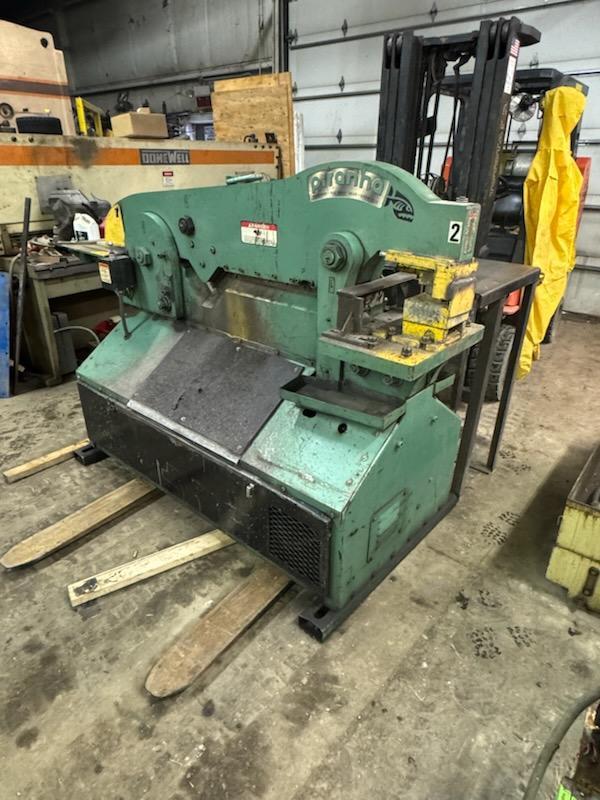

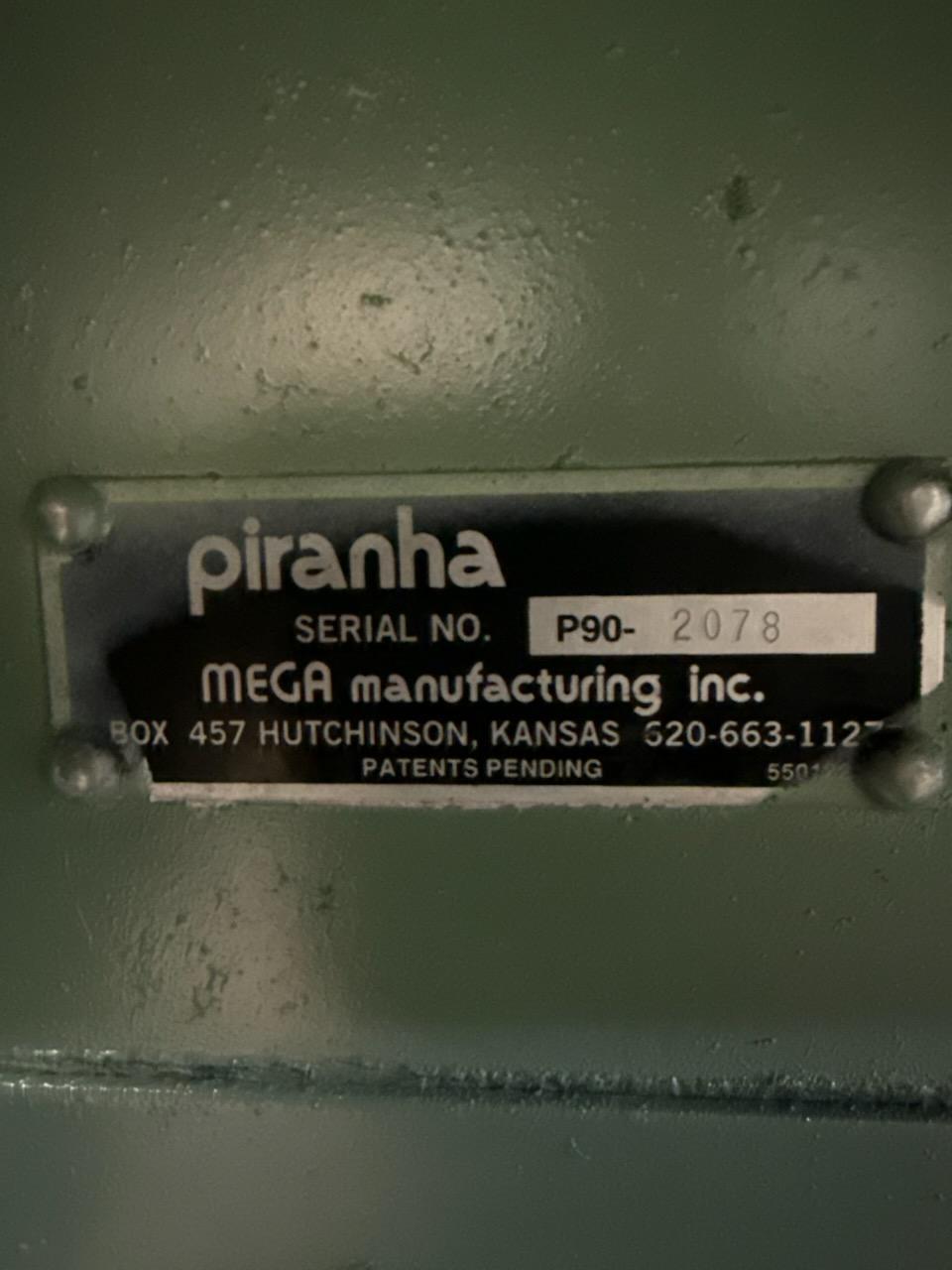

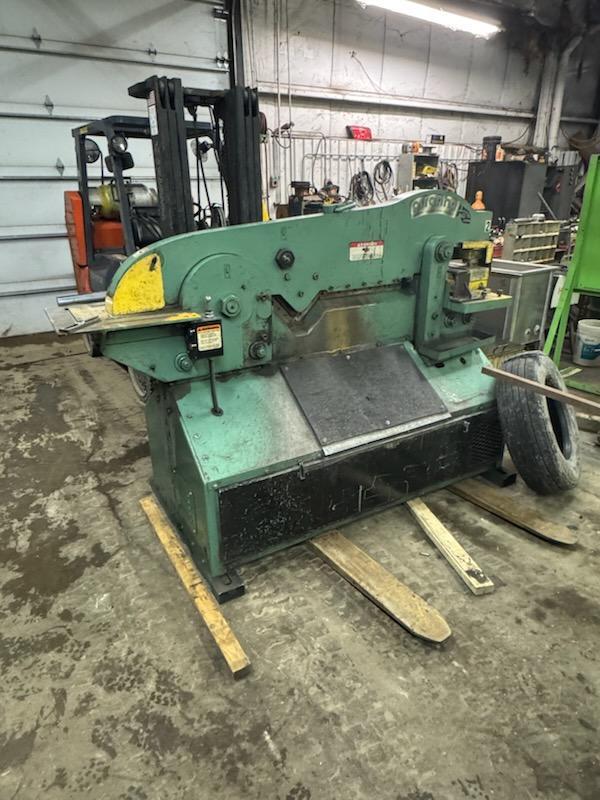

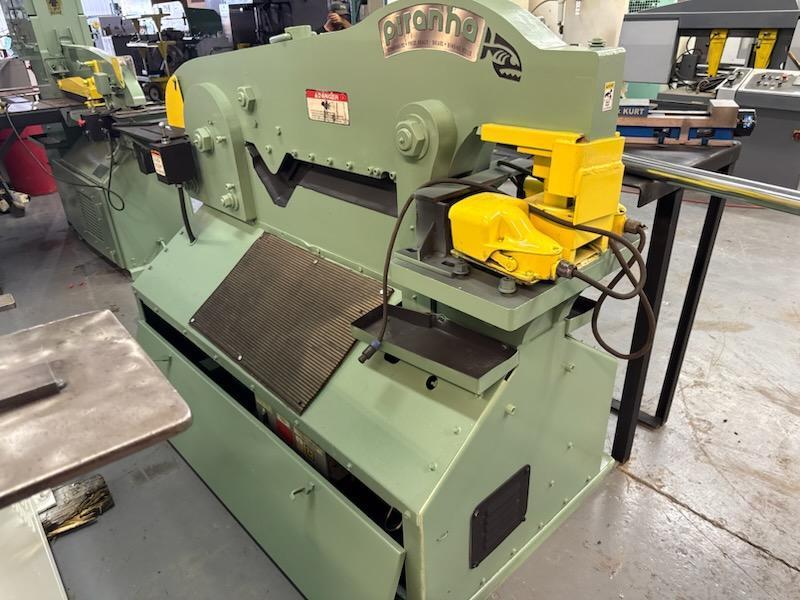

1 - PREOWNED PIRANHA HYDRAULIC IRONWORKER, MODEL #: P90, S/N: 2078

Brand
PIRANHA

Model
P90

Stock #
86660

Condition
Used

Year
2011

PUNCHING 11/8 in DIA THROUGH 1 in PLATE
THROAT DEPT 10 inches
BENDING 12" UP TO 24 in W/4-WAY DIE BLOCK
ROUND BAR SHEAR 1/2" THROUGH 2"
SQUARE BAR SHEAR 1/2" THROUGH 1 3/8"
PLATE SHEAR 18" X 1/2" , 12" X 3/4" , 8" X 1"
ANGLE SHEAR 5" X 5" X 1/2"
COPING/NOTCHING 3 1/2" X 5" X 3/8" BLADE
MOTOR 10 HP
WEIGHT 4250 pounds

Equipped With

FEATURES:
1. Urethane Stripper Attachment- keeps material flat through the punching process, eliminating distortion. The shorter required stroke gives you a faster punching cycle.
2. Automatic Urethane Hold-downs- clamps and releases material automatically with each stroke. Part movement is eliminated by clamping the part throughout the entire shearing cycle.
3. Visibility- a direct line of sight over the hold down bar allows the operator to easily and accurately line up cuts to the shear blades.
4. Flat Bar Shear- the low rake angle shear design results in flatter and higher quality sheared parts. Shear blades have four useable edges giving you a longer life and less expensive blades.
5. Angle Shear- the floating upper blade seats in the center of the angle prior to cutting minimizing distortion giving you a higher quality cut.
6. Coper Notcher- the low rake angle keeps part flat and under control during notching.
7. Quick Change Tooling- the unique Piranha dovetail design allows for quick installation and removal of all standard and optional tools.
NOTES:
SPECIFICATION SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO STOCK
