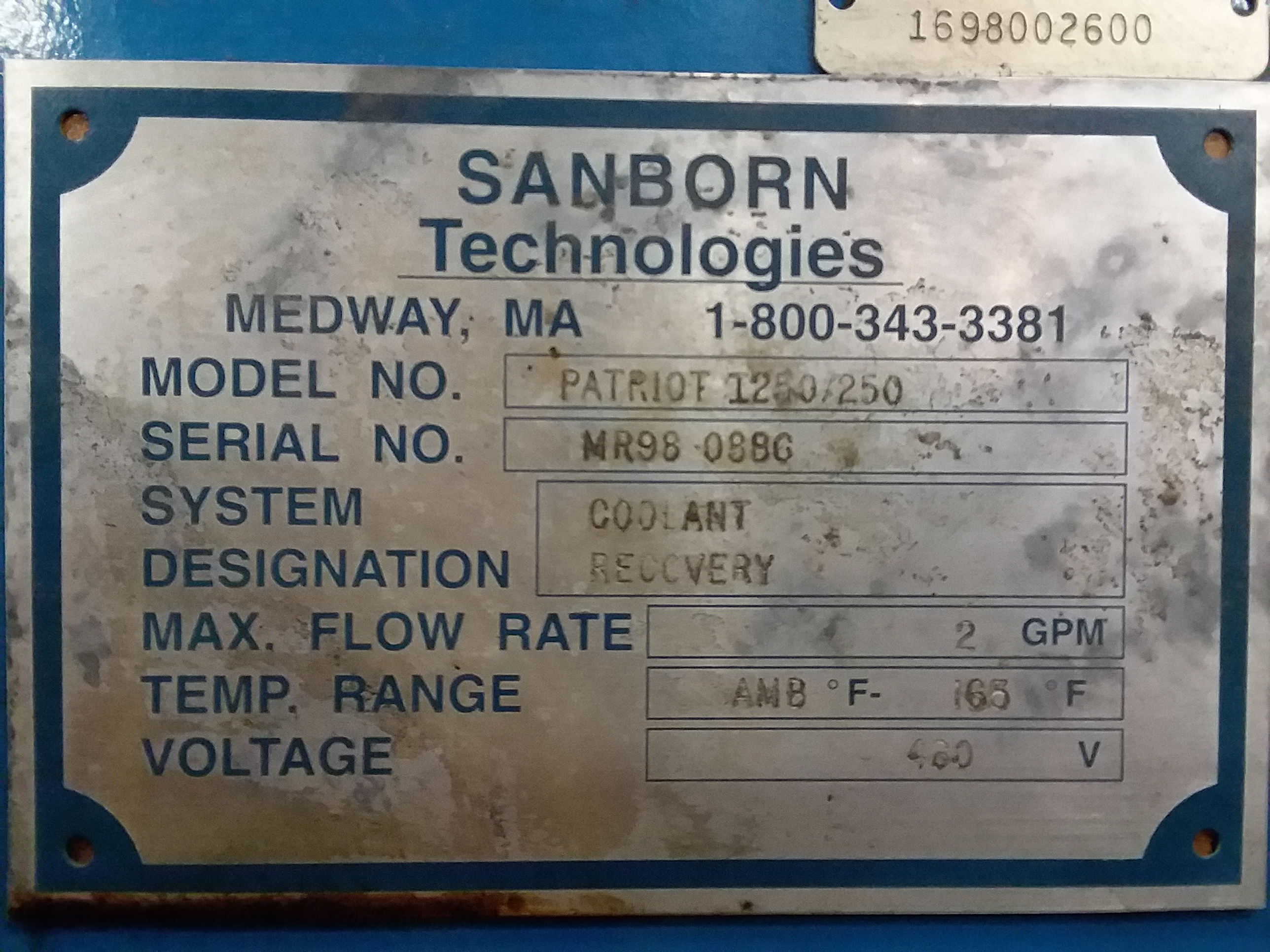

SPECIFICATIONS:
MAX FLOW RATE ---------------------- 2 GALLONS PER MINUTE
CAPACITY --------------------------- 250 GALLON
ELECTRICS -------------------------- 480V, 3PH
DIMENSIONS ------------------------- 9 ft X 5 ft X 8 ft TALL
WEIGHT ----------------------------- 2,500 LBS
FEATURES:

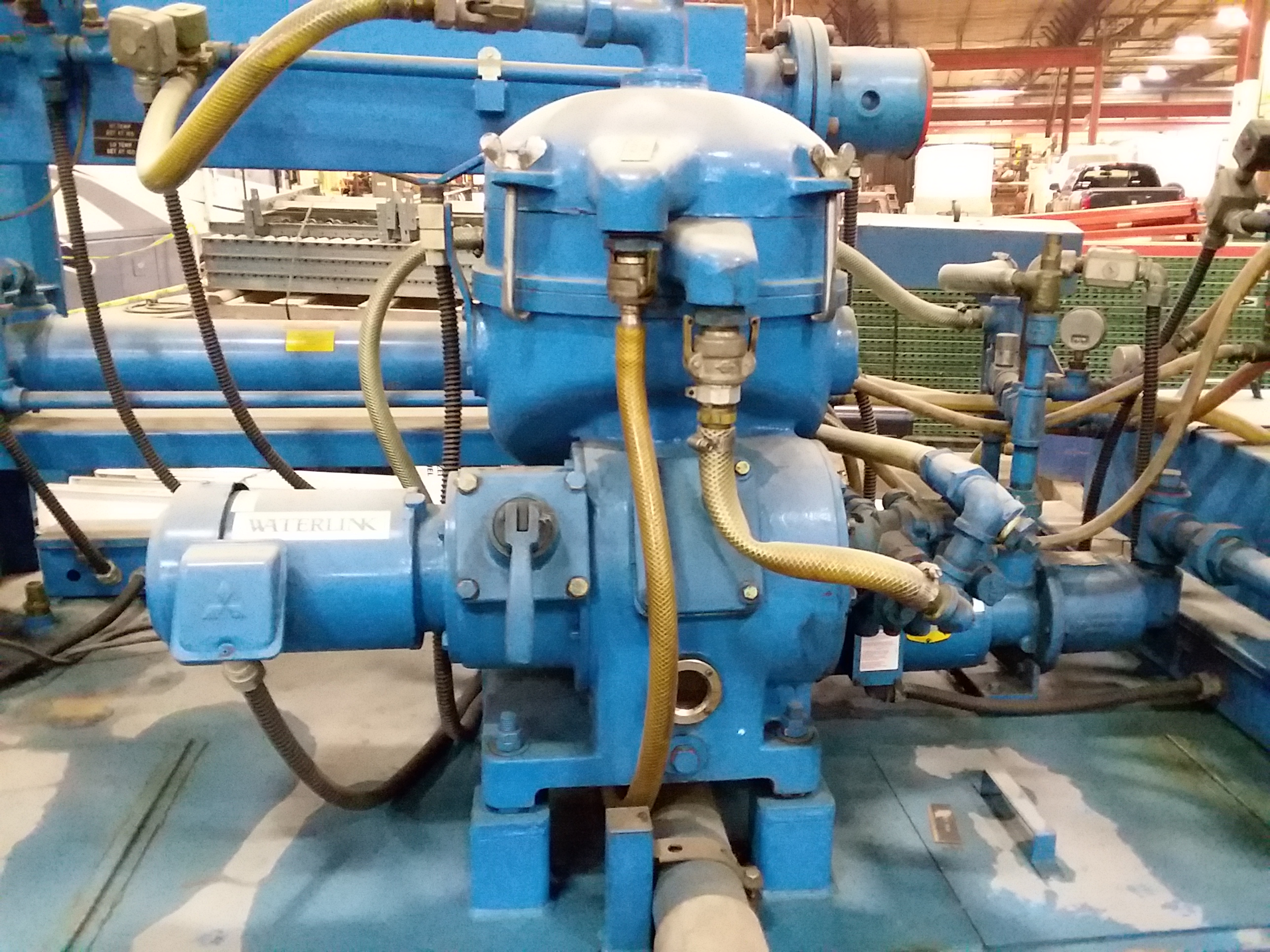

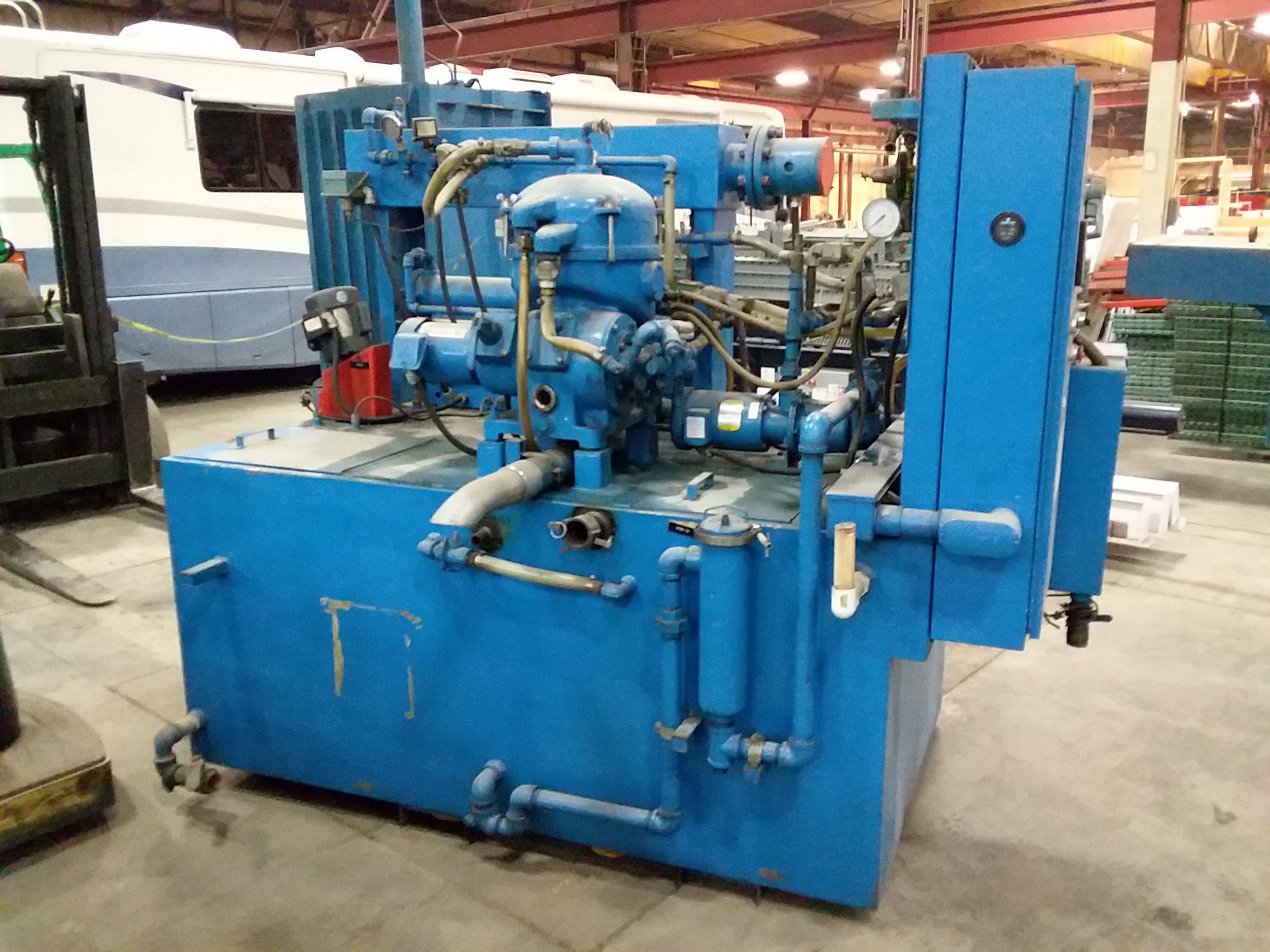

CENTRIFUGE - MITSUBISHI HIGH-SPEED, DISC-TYPE CENTRIFUGE, WITH SEPARATION FORCES AT 9000 X GRAVITY AND 2 GPM CAPACITY, DESIGNED, FOR COOLANT SERVICE, AND AUTOMATIC SOLIDS EJECTION, TEFC MOTOR AND STARTER

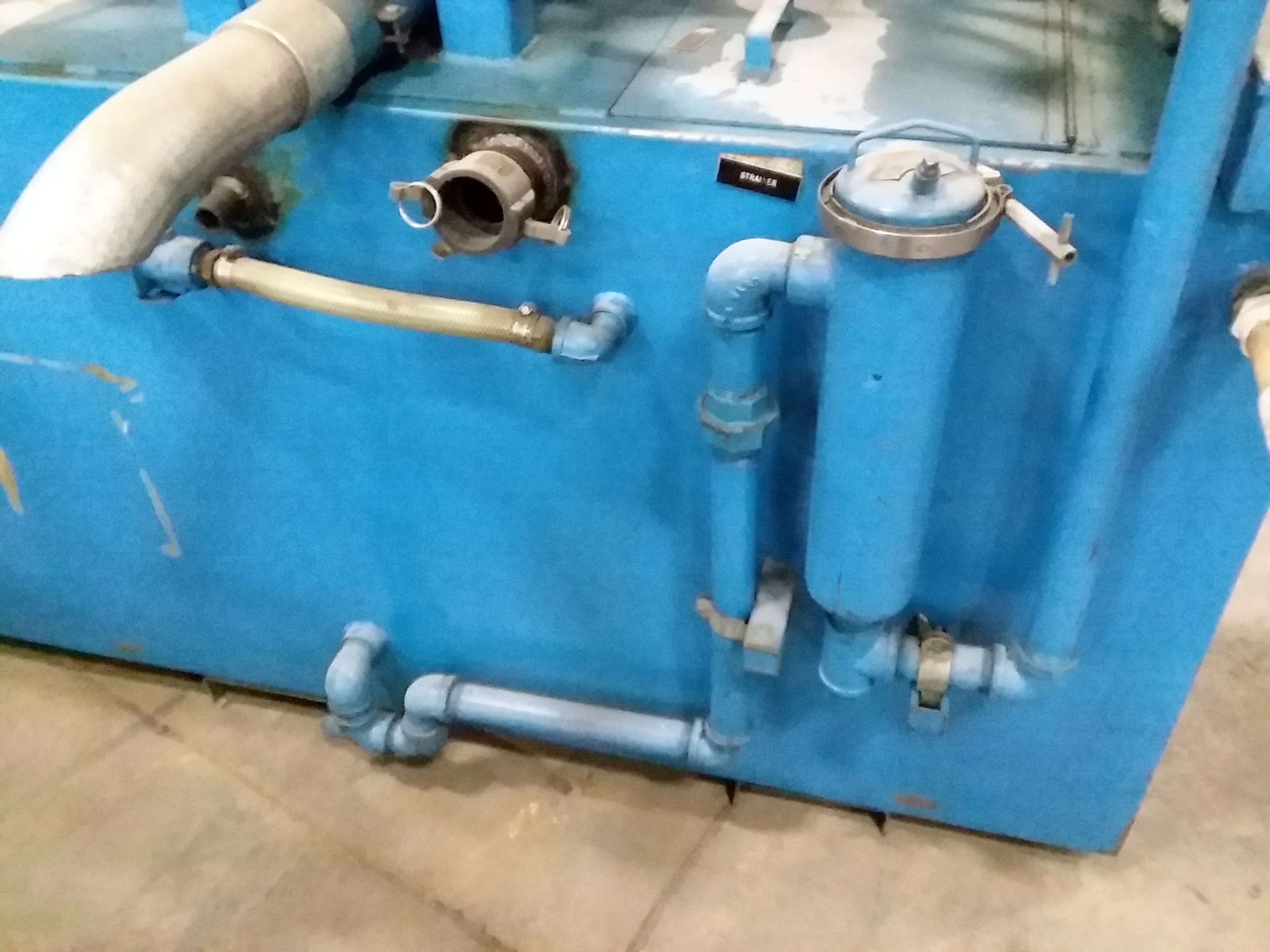

STRAINER - BASKET TYPE, FOR EASE OF CLEANING, TO REMOVE COARSE SOLIDS
FEED PUMP - POSITIVE DISPLACEMENT, CHOSEN FOR ITS WEAR CHARACTERISTICS WITH DIRTY COOLANTS
SWARF TANK - TWO COMPARTMENT STEEL TANKS FOR COLLECTION OF HYDROCYCLONE AND BOWL DISCHARGE SWARF.
EQUIPPED WITH:
DUMP VALVE FOR DISCHARGE TO A SUITABLE CONTAINER
NO-FLOW SWITCH - FOR FEED PUMP PROTECTION. PROTECTS FEED PUMP
FROM RUNNING DRY. AUTOMATIC SHUT DOWN OF SYSTEM WHEN DIRTY TANK EMPTIES

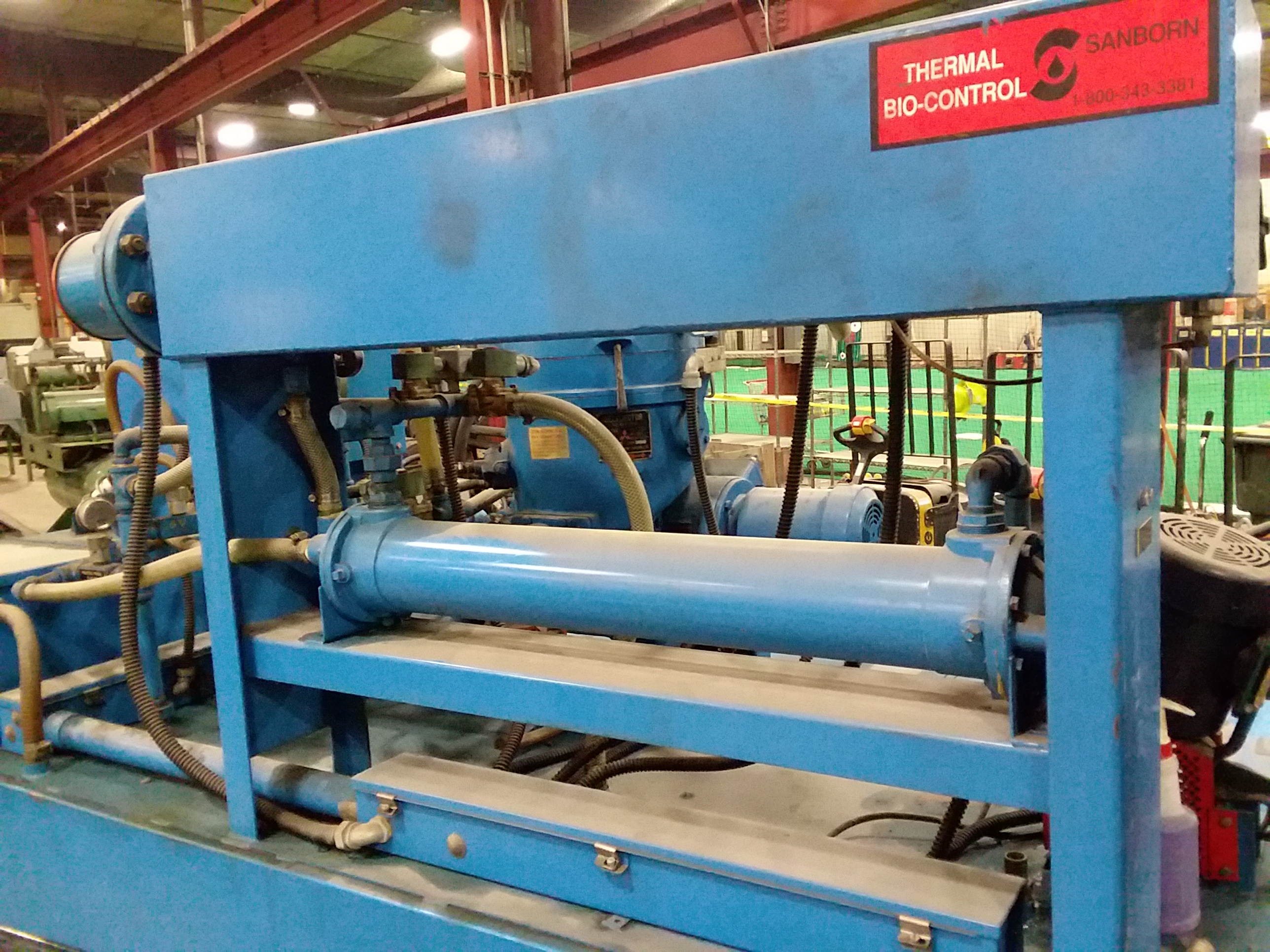

THERMAL BIO-CONTROL (HEATER) - LOW WATT DENSITY HEATER IN STEEL WELDED HOUSING WITH DRAIN

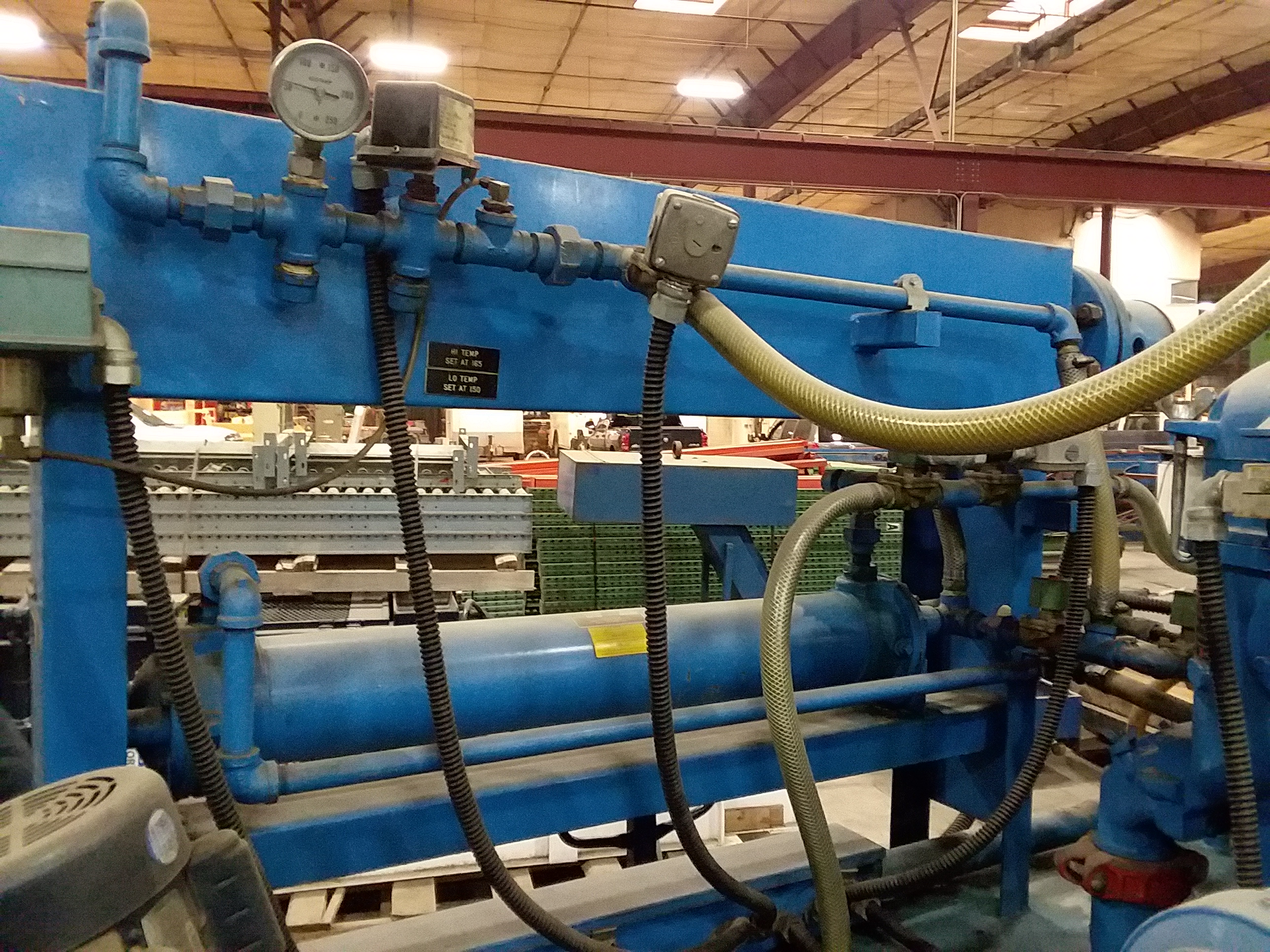

ECONOMIZER (HEAT EXCHANGER) PREHEATS DIRTY COOLANT AND AFTER-COOLS CLEAN COOLANT, REDUCING ENERGY CONSUMPTION
AUTOMATIC FEED VALVE - ELECTRICALLY CONTROLLED, PNEUMATICALLY ACTUATED, FITTED WITH TEFLON SEATS TO STOP FEED TO THE SYSTEM
NO FLOW SWITCH - FOR PASTEURIZER PROTECTION
TANKS (DIRTY/CLEAN) -500 GALLON TOTAL CAPACITY FOR THE
250/250 SYSTEM OR 1000 GALLON CAPACITY FOR THE 500/500
SYSTEM, FULLY ENCLOSED WELDED STEEL CONSTRUCTION WITH
HINGED LID, SLOPED BOTTOM, AND INTEGRAL DRAIN. HYDRAULIC AGITATION
SUPPLIED IN BOTH RESERVOIRS

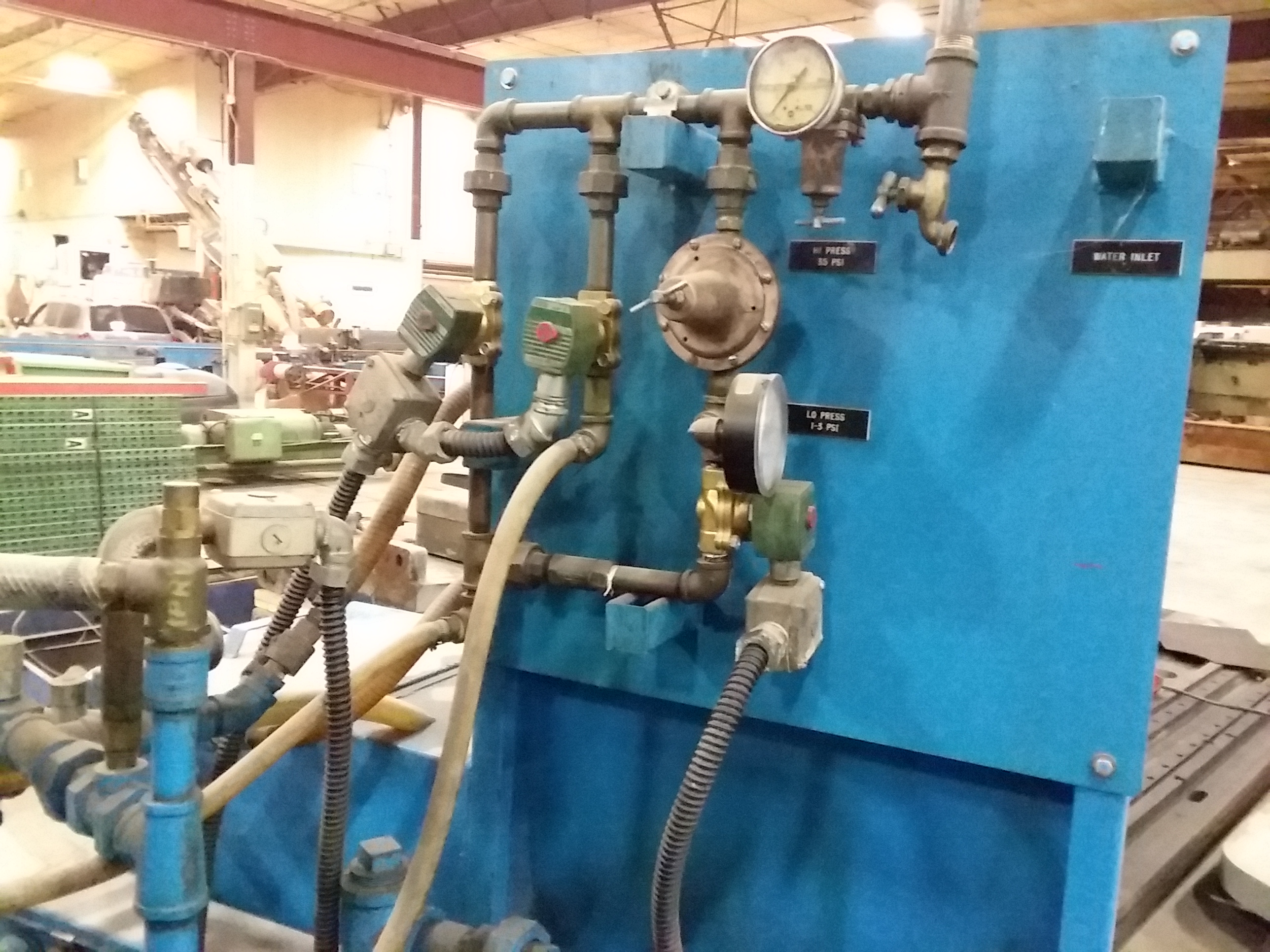

CENTRIFUGE BOWL FLUSH SYSTEM - FOR AUTOMATIC SOLIDS
DISCHARGE DURING OPERATION, INCLUDES PLUMBING, SOLENOIDS, WATER
FILTER AND REGULATORS

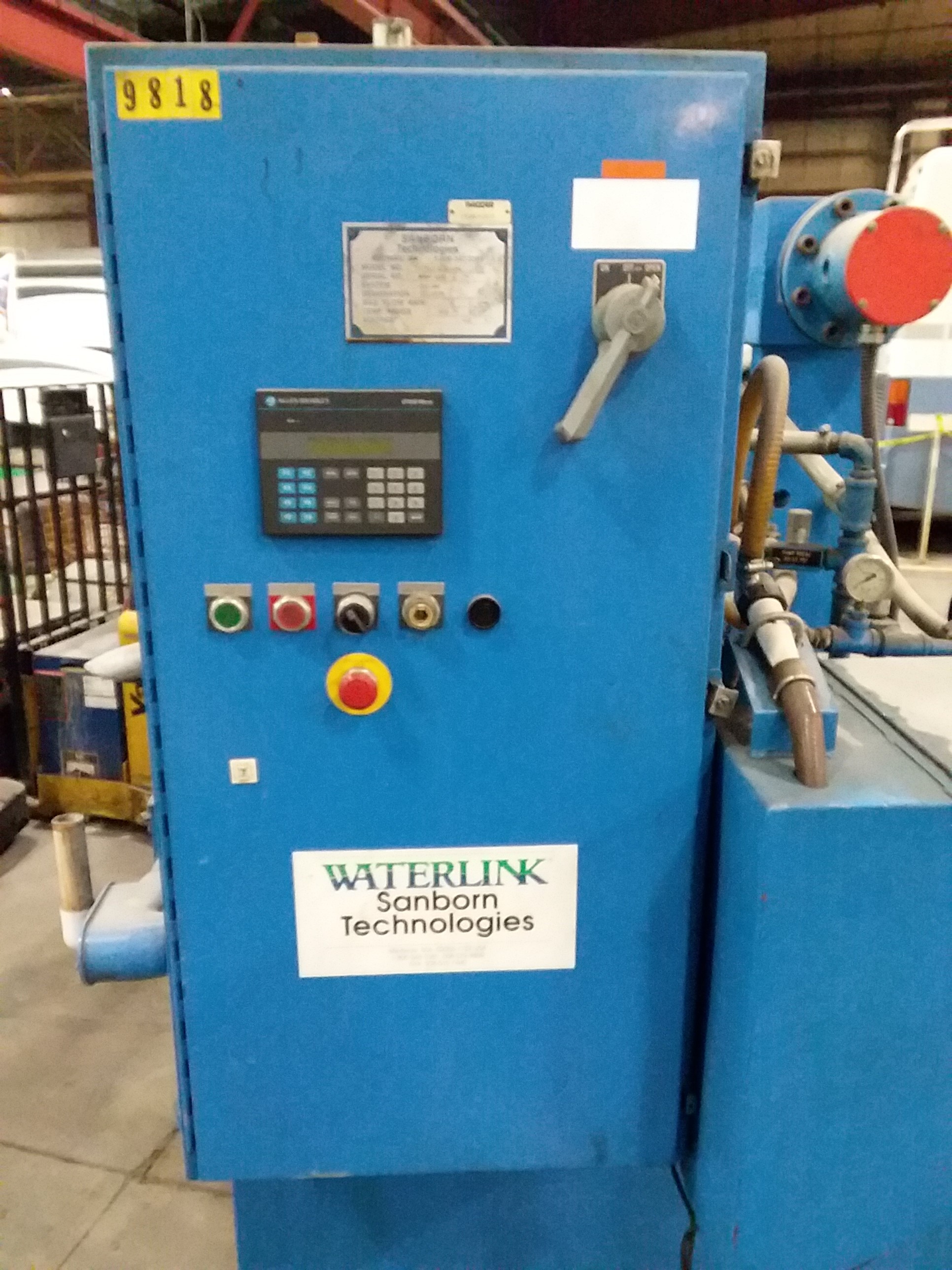

PROGRAMMABLE CONTROLLER AND INDICATING PANEL - NEMA 12
ENCLOSURE DESIGNED FOR 460 VAC, 3 PH, 60 HZ. THE CONTROL

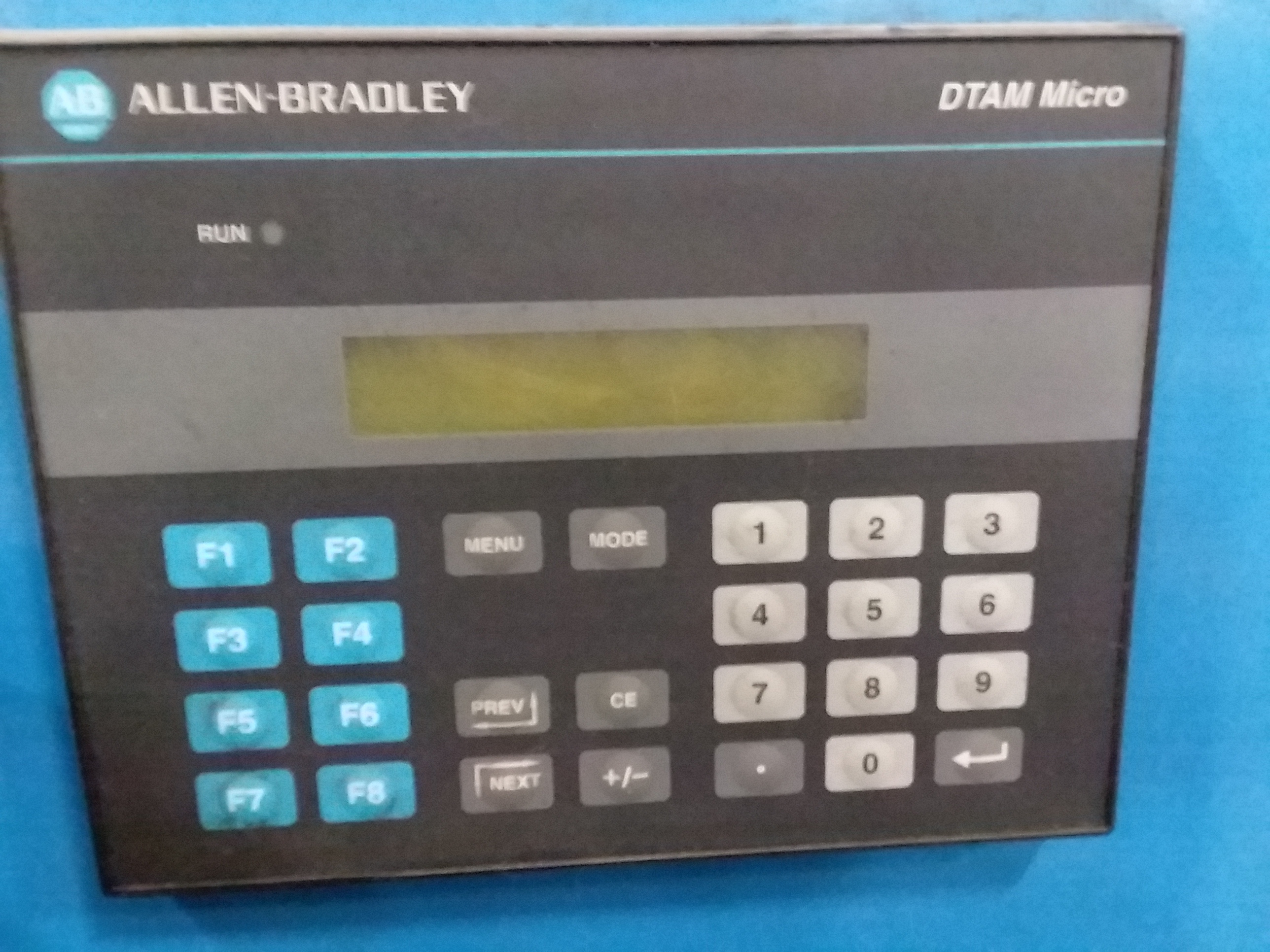

CIRCUIT IS 115 VAC AND IS DESIGNED FOR UNATTENDED OPERATION EQUIPPED WITH: ALLEN BRADLEY DTAM MICRO CONTROL

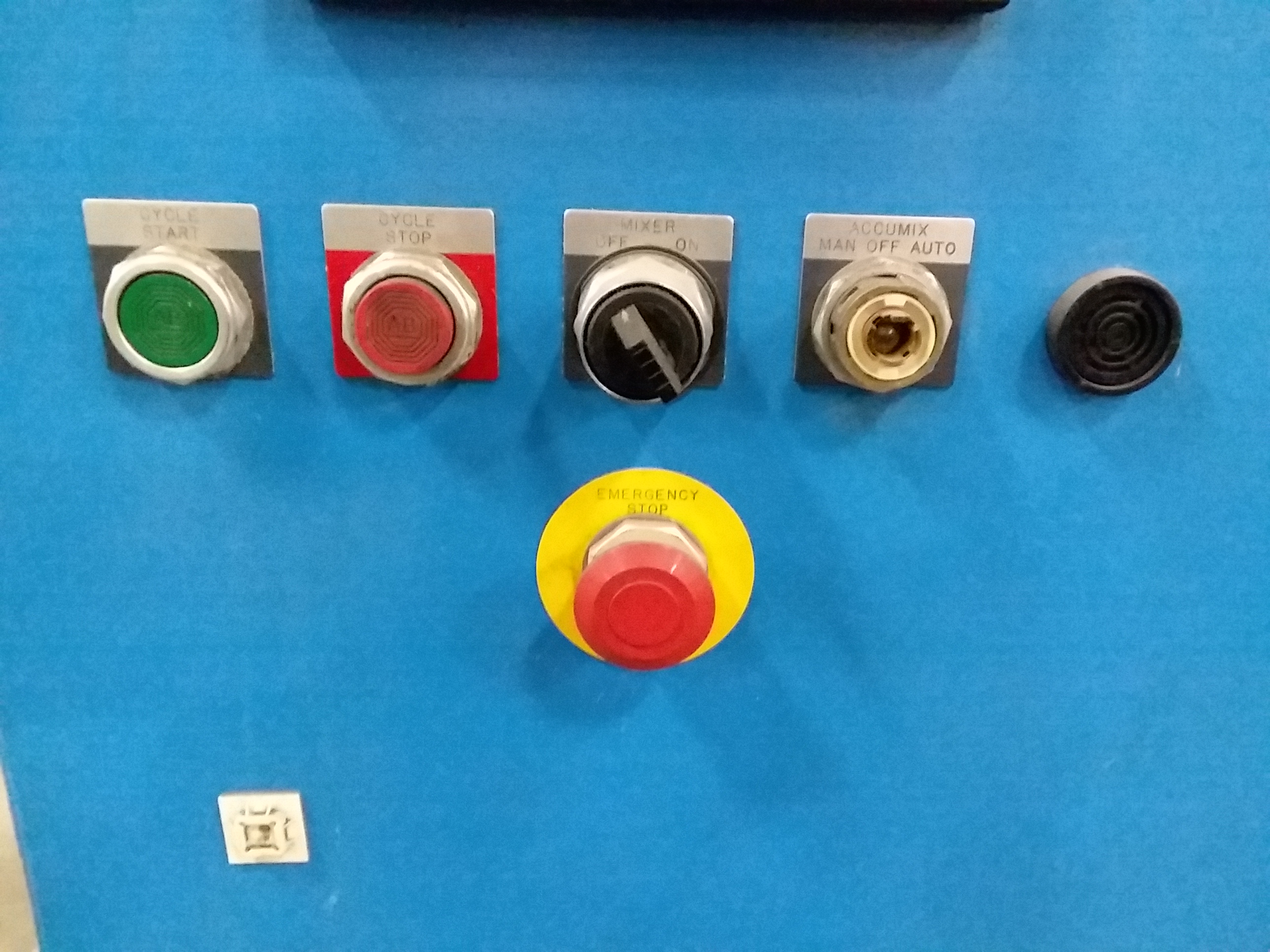

START/STOP BUTTONS

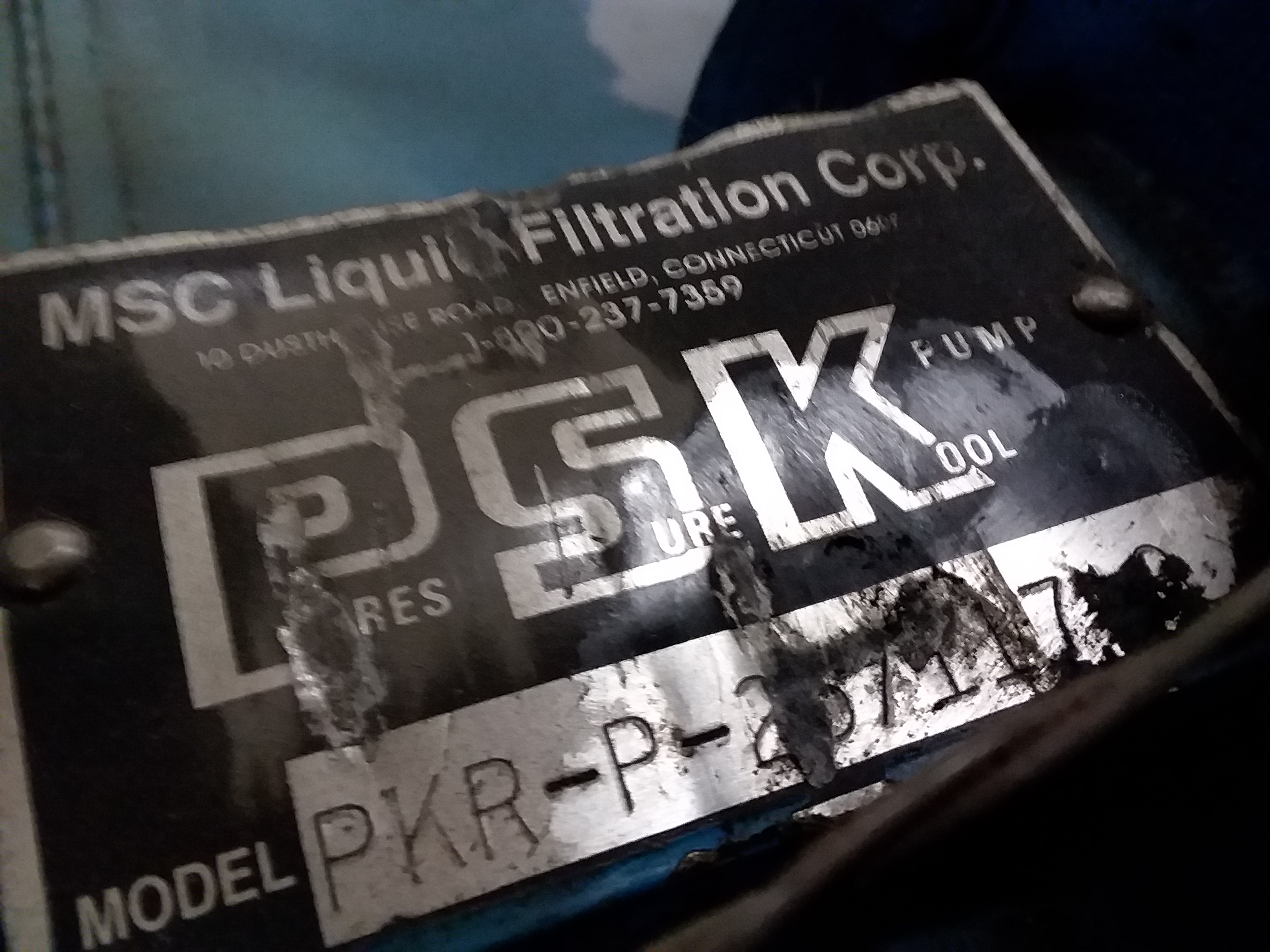

MSC FILTRATION PSK FLUID PUMP (MODEL PKR-P-25)

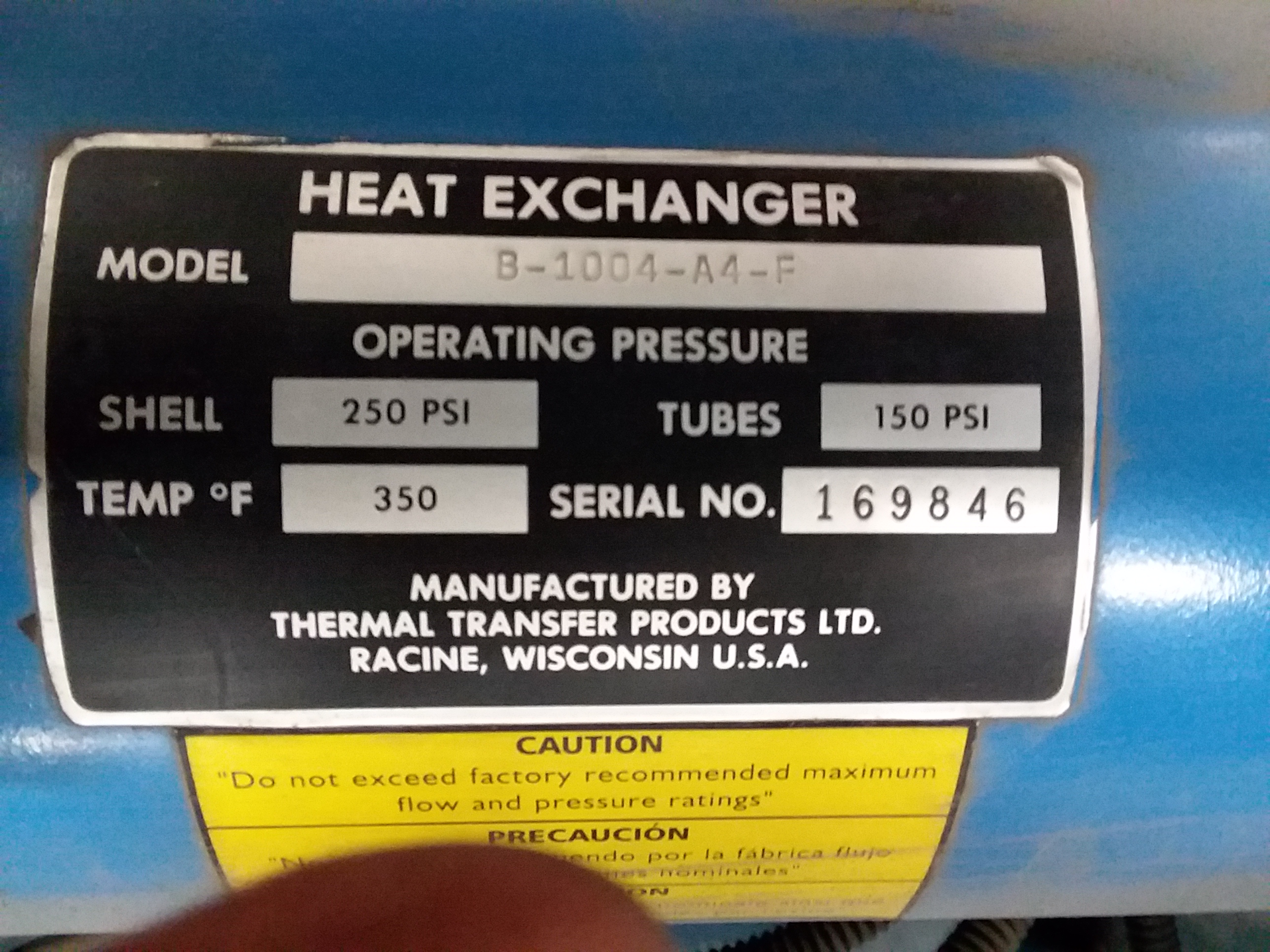

HEAT EXCHANGER (MODEL B-1004-A4-F)

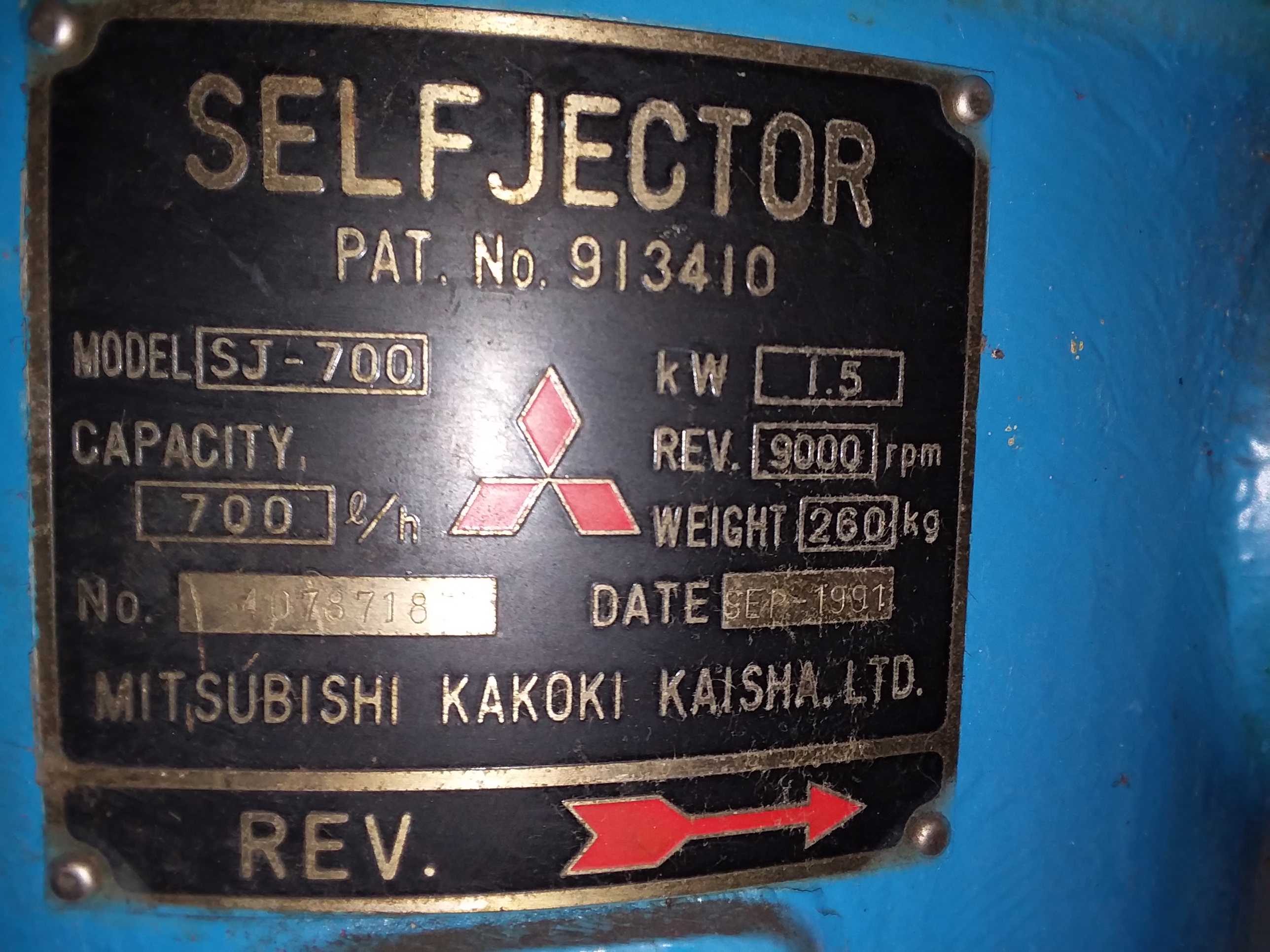

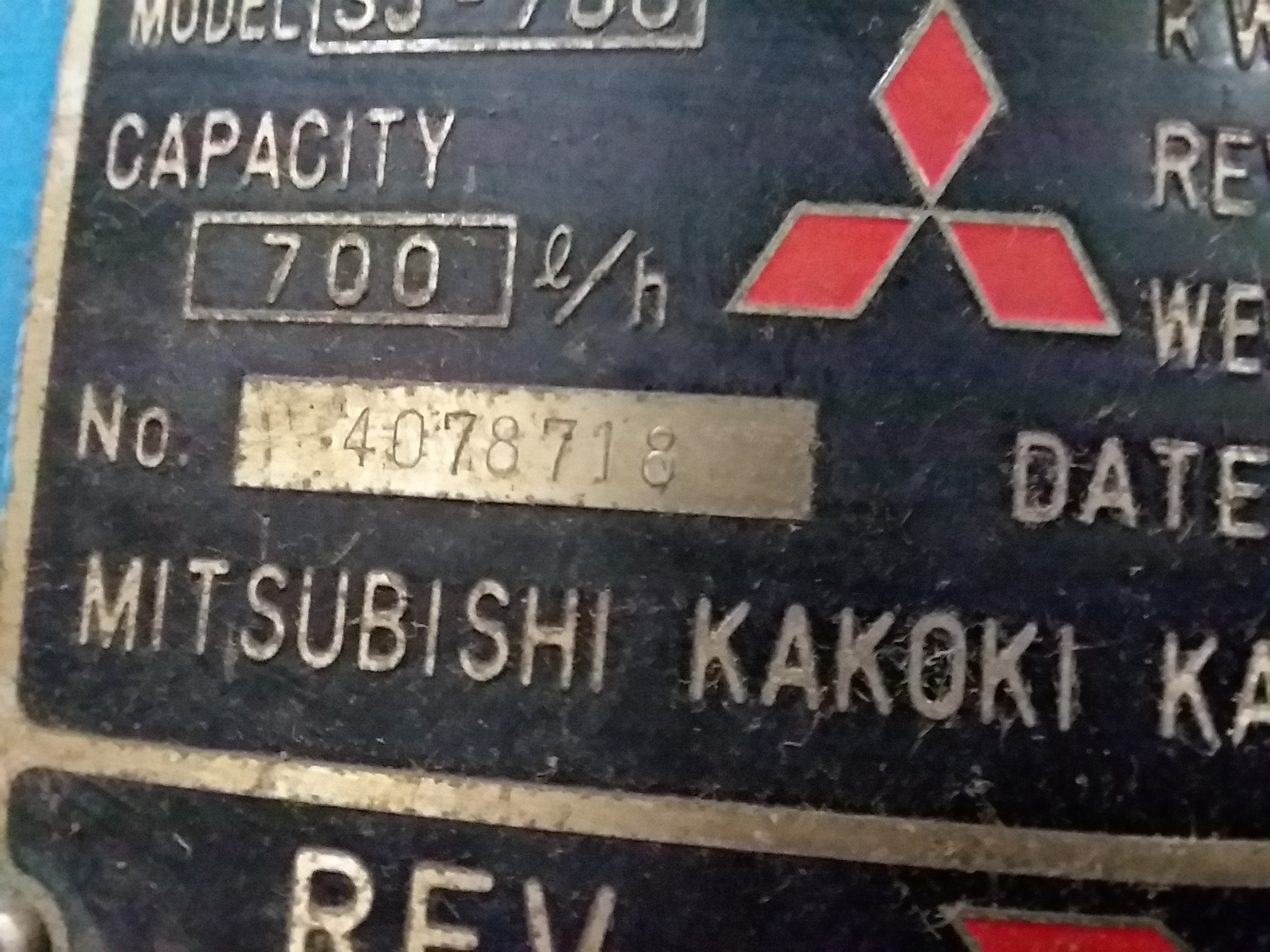

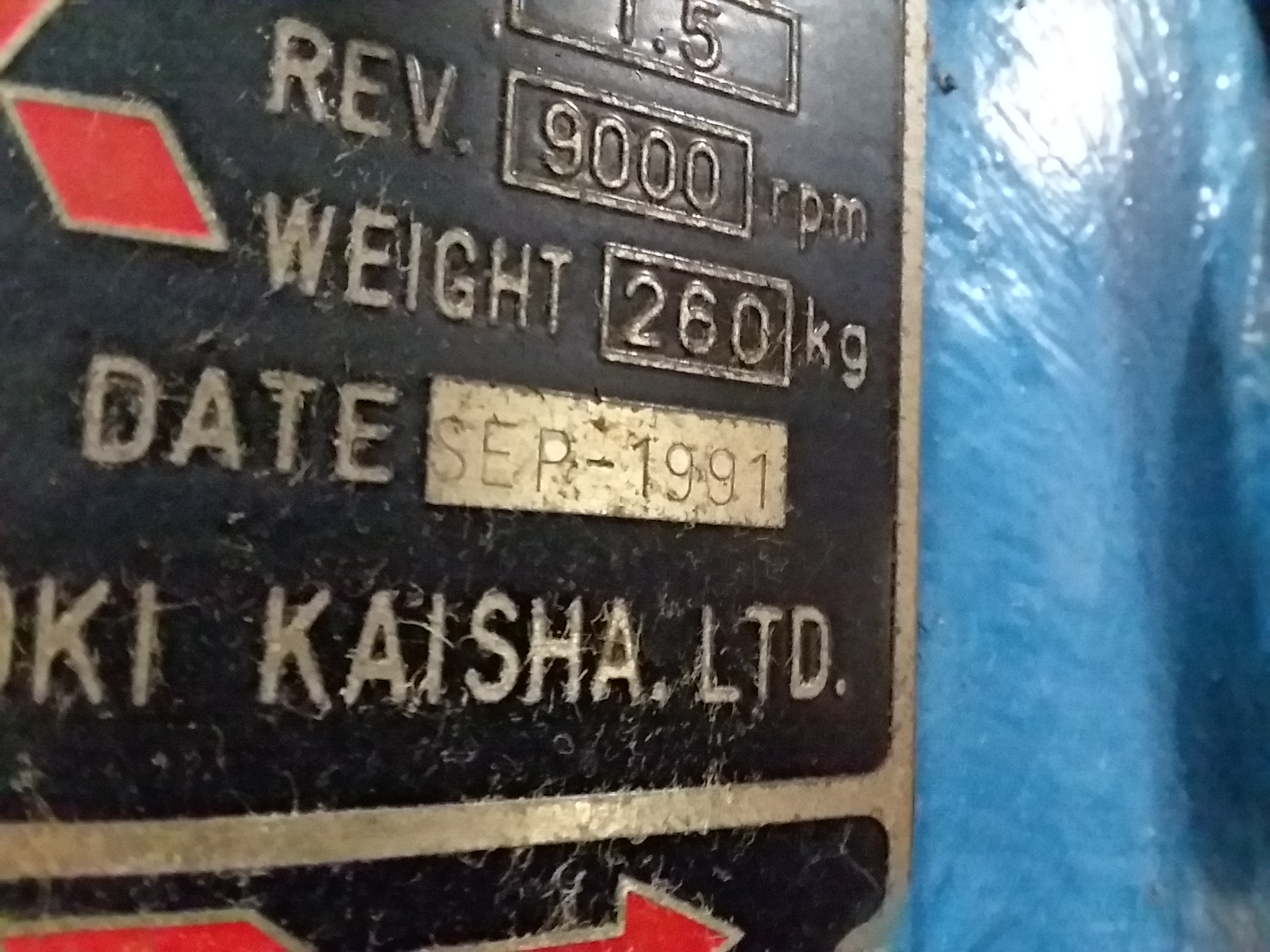

SELFJECTOR (MODEL SJ-700)
NOTES:
SPECIFICATIONS SUBJECT TO VERICIATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
