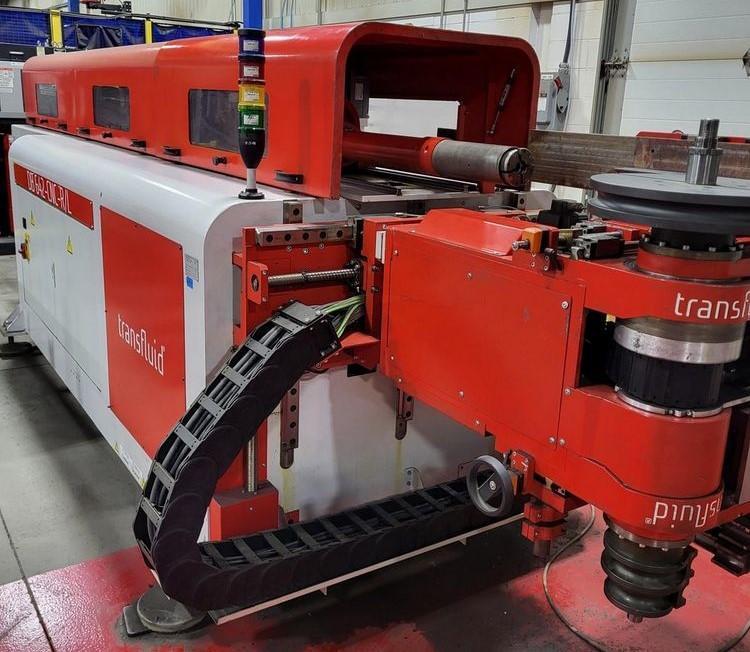

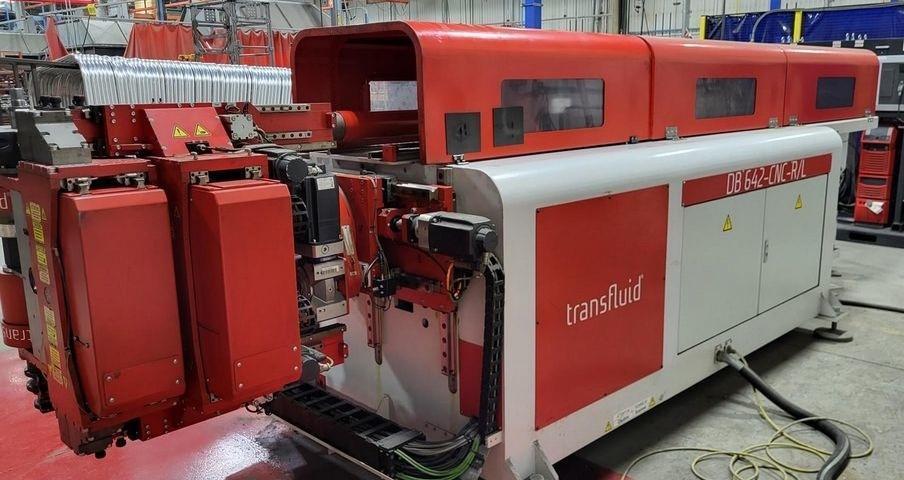

1 – PREOWNED TRANSFULID TUBE BENDER, MODEL #: EDB 642-CNC-R/L

1 - PREOWNED TRANSFULID TUBE BENDER, MODEL #: EDB 642-CNC-R/L

Brand
TRANSFLUID

Model
EDB 642-CNC-R/L

Type
Benders, Pipe, Tube & Bar

Stock #
85810

Condition
Used

Year
2020

Request a Quote

SPECIFICATIONS
FILES & ATTACHMENTS

Round Tubing Mild Steel	1.65" x 0.118"
Round Tubing Stainless Steel	1.65" x 0.059"
Maximum Moment of Resistance	3.4 cm3 (S235)
Bending Angle up To	180° +10° Spring Back
Bending Time	Maximum 180°/Sec (Front Feed)
Speed of Front Feed	1600 mm sec
Speed of Rotation	Maximum 450°/Second
Repetition Tolerance Bending	+/-0.05°
Repetition Tolerance Length	+/-0.05 mm
Repetition Tolerance Rotation	+/-0.05°
Arbor Length/Usable Length	120 inches
Radii (Max.)	6.61 inches
Bending Height	45.27 inches
Boosting Force Length Positioning	2.5 kN
Approximate Dimensions	296" x 63" x 63"
Approximate Weight	12100 pounds

Equipped With

FEATURES:
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length

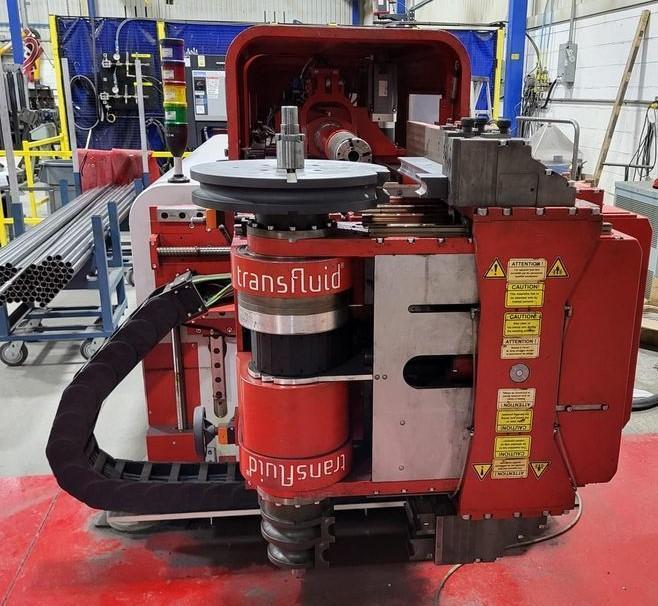

Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
EQUIPPED WITH:

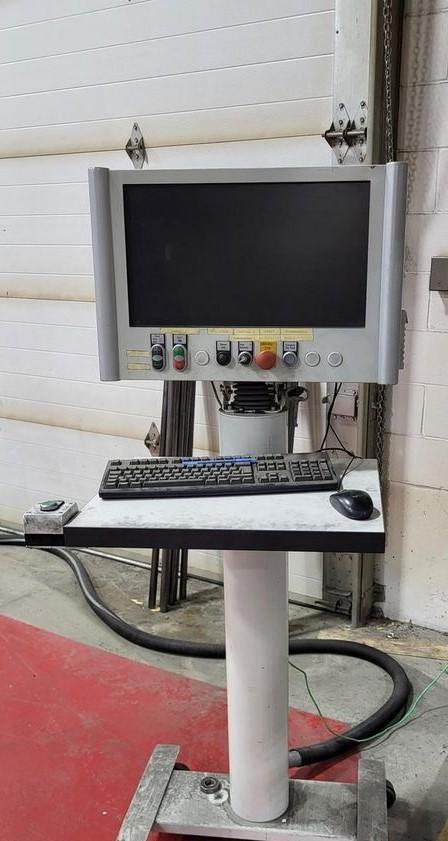

Transfluid CNC Control with Windows 10 Operating System and 22" Widescreen Monitor
Servo Electric Power Bending Axis
Servo Electric Positioning of the Rotation Length
All other axis Servo Electric (Clamping/Mandrel/Pressure Die...etc)
Bending Head For Right Hand/Left Hand with One Off Set Bend Device
Bending Head can be Horizontal & Vertical
Automatic Programmable Mandrel Withdrawal
Carriage For Wiper Die
Boosting Function
Remote Diagnostics Option
Automatic Mandrel Lubrication
Air Conditioning for Electrical Cabinet

Precision Rigging

Precision Finishing
