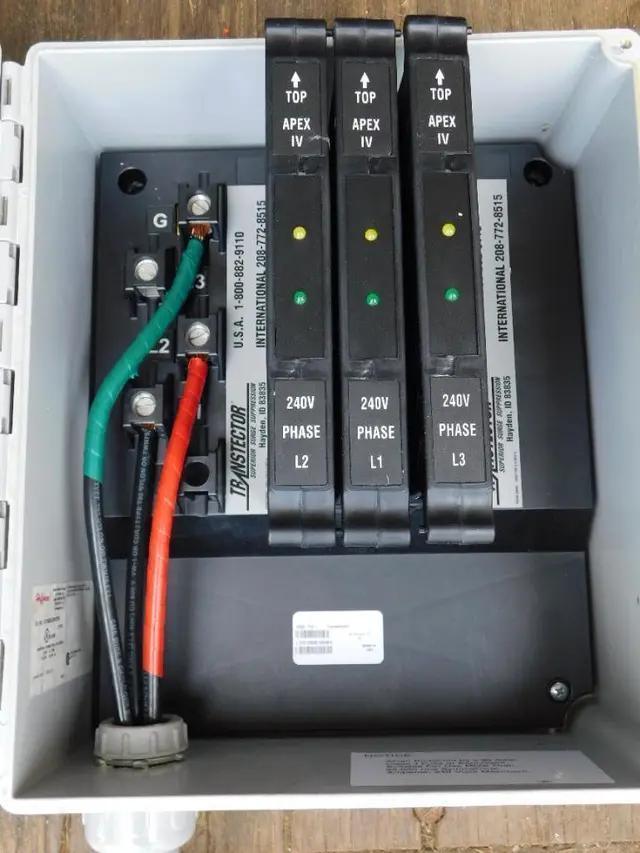

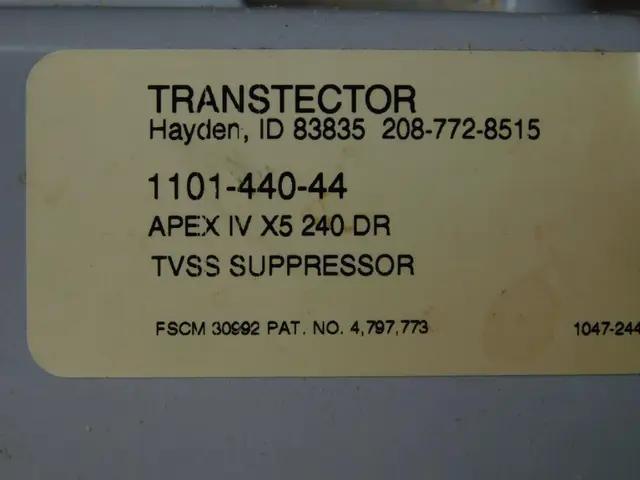

1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
  • 1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
  • 1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
  • 1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR
  • 1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR

1 - PREOWNED TRANSTECTOR TRANSIENT VOLTAGE SURGE SUPPRESSOR, MODEL #: APEX IV 240DR

Brand
Not Specified

Model
APEX IV 240DR

Type
Electrical Equipment, Miscellaneous

Stock #
85847

Condition
Used

Year
N/A

Request a Quote

Files

1101-440-44_Install_Guide_US.pdf
1101-440-44_datasheets_US.pdf
Dimensions (L x W x H) 6.5" x 10.5" x 12.5"
Weight 7.2 pounds
Housing Material & Plating Fiberglass

Equipped With

SPECIFICATIONS:
Electrical:
* Service Voltages: 240 Vac
* Service Type: 3-Phase Delta
Max. Continuous Operating Voltage (MCOV): 275 Vac
Surge Protection:
Surge Protection Technology: SASD
Protection Modes: L-L
8/20μs Surge Current: 10 kA
Nominal Discharge Current Rating (in): 10kA
Vpl 8/20μs L-N: 660@500A
Response Time: 5ns
SCCR (Short Circuit Current Rating): 65kAIC
Environmental:
Temperature Range (Operational): -30° - 65° C
Humidity: 90% non-condensing
Installation:
Mount Type: Panel
Service Wiring Terminal: #4 - #10 AWG Terminal
Status Indication Terminal: #14-#22 AWG 3-Pin Connector
