1 - PREOWNED WELLS INDEX VERTICAL TURRET MILLING MACHINE, MODEL #: 847, S/N: 20346

Brand
WELLS INDEX

Model
847

Type
MILLERS, TURRET

Stock #
85248

Condition
Used

Year
N/A

Request a Quote

Equipped With

SPECIFICATIONS:

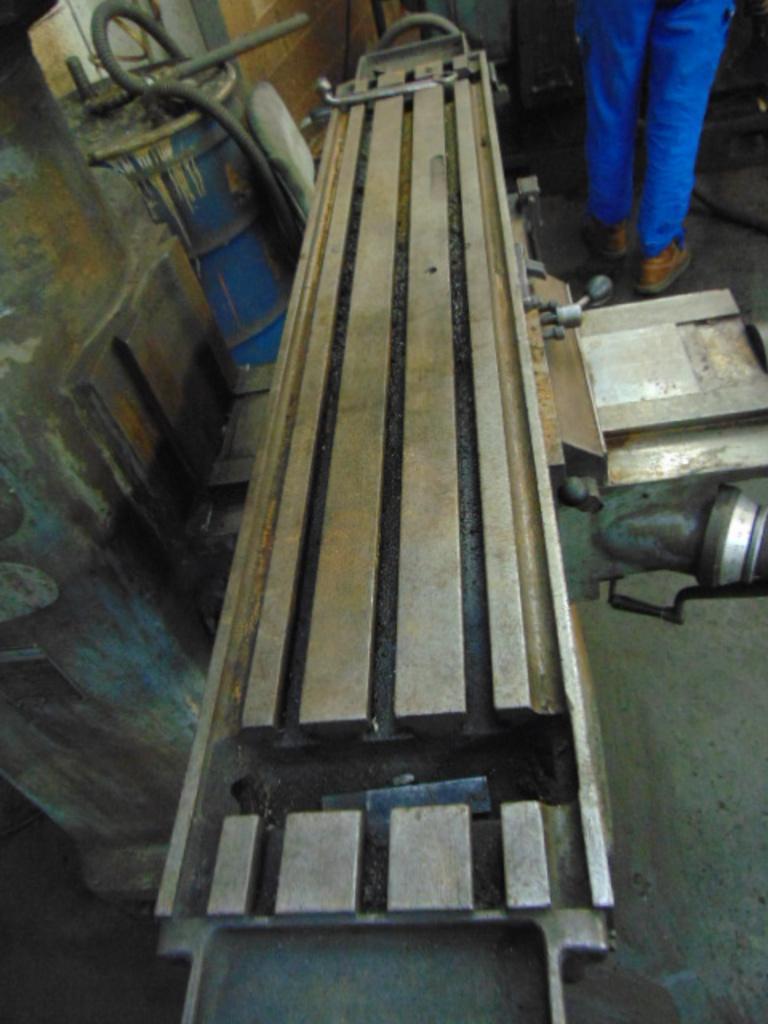

TABLE
Size Overall ................................................................ 9” x 46.5”
T-Slots: Number ....................................................................... 3
Size ............................................................................. 5/8”
Distance Between ....................................................... 2-1/4”
Dial Graduations ......................................................... 0.001”
RANGE
Longitudinal ................................................................ 34”
Cross ............................................................................ 14”
Vertical Knee ............................................................... 16-1/2”
Center of Table to Column Face - Max ....................... 19”
Center of Table to Column Face - Min ........................ 5”
VERTICAL SPINDLE
Quill Travel .................................................................. 5-1/4”
Head Tilt - Forward & Backward ................................ 45 deg.
Head Rotation - Side to Side ........................................ 90 deg.
Turret Rotation on Column .......................................... 360 deg.
Spindle Nose to Top of Table - Max ............................ 16-1/2”
Spindle Nose to Top of Table - Min ............................. 0”
Center of Spindle to Column Face - Max ..................... 28”
Center of Spindle to Column Face - Min ...................... 2-1/2”
Spindle Taper (uses drawbar) ........................................ R-8 or 30 NMTB
Spindle Rotation ............................................................ Forward and Reverse
Spindle Motor (continuous duty) .................................. 3HP
Spindle Speeds - Infinitely Variable: Back Gears ................................................................. 50 to 525 RPM
Direct Drive ................................................................ 400 to 4,200 RPM
Quill Feeds (3) - Per Spindle Revolution ...................... .0015”, 0.003”, 0.006”
Overall Dimensions ............... 6' x 5' x 7'
Weight ..................... 3,000 lbs
EQUIPPED WITH:
POWER DRAWBAR
LONG POWER FEEDS
