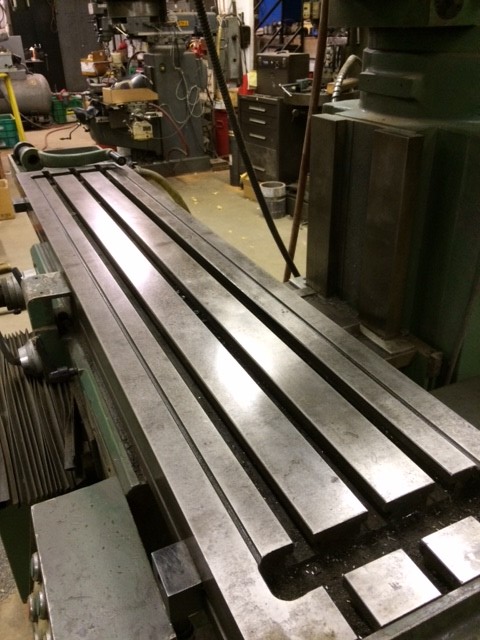

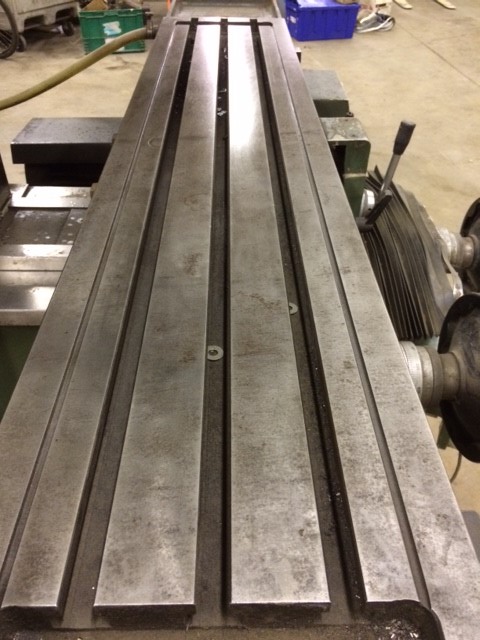

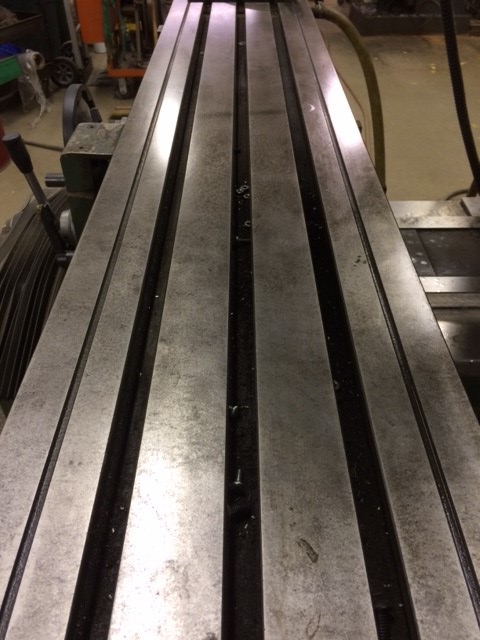

| Table Dimensions | 59" x 11.8" |
| Travels - Longitudinal/Cross (Manual) | 47" x 15" |
| Vertical Knee Travel | 20 inches |
| T-Slots (3) | 0.625 inches |

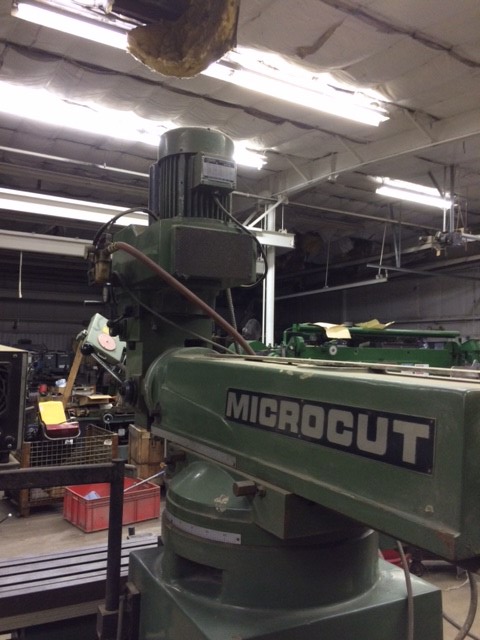

| Ram Travel | 20 inches |
| Ram Swivel | 360° |
| Quill Diameter | 4.125 inches |
| Quill Travel | 6 inches |
| Spindle Motor | 5 HP |

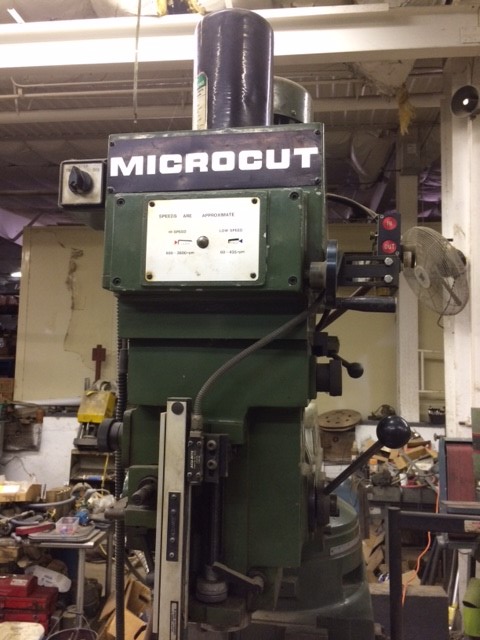

| Spindle Speeds | (Variable) 60-3,600 RPM |
| Spindle Taper | NTB 40 Taper |
| Quill Power Feed Rates | 0.0032", 0.0017", 0.0053" (Inch per Revolution) |
| Head Tilt (Left-Right) | 90°-0°-90° |
| Head Tilt (Front-Back) | Fixed |
| Spindle Nose to Table (Min./Max.) | 0" -20" |
| Center of Spindle to Column Face (Min./Max.) | 7" -29" |
| Ground Way Surface Width | 3.9375 inches |
| Saddle Width | 33.25 inches |
| Knee Width | 15.5 inches |
| Knee Height | 19 inches |
| Longitudinal Power Feed | (12) 1" - 28" per Minute |
| Longitudinal Rapid Traverse | 94 IPM |
| Longitudinal Feed Motor | 2 HP |
| Table Rising Motor | 2 HP |
| Coolant Pump Motor | 1/8 HP |
| Maximum Work Piece Weight (Centered) | 1650 pounds |
| Machine Dimensions | 84" x 62" x 95" |
| Net Weight | 4950 pounds |
